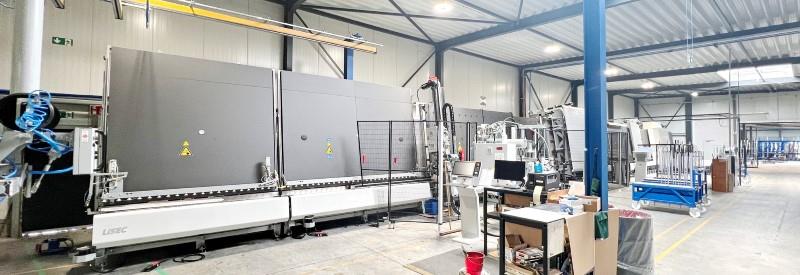

Lisec #I.G.-2026-L-R, Automated Insulating Glass Line, 78" x 98" Glass size, 2.4" max thickness, 28" transport height, L-R, 2023

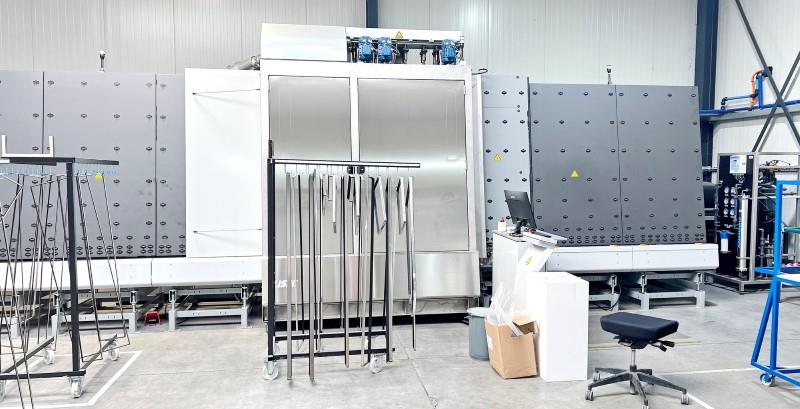

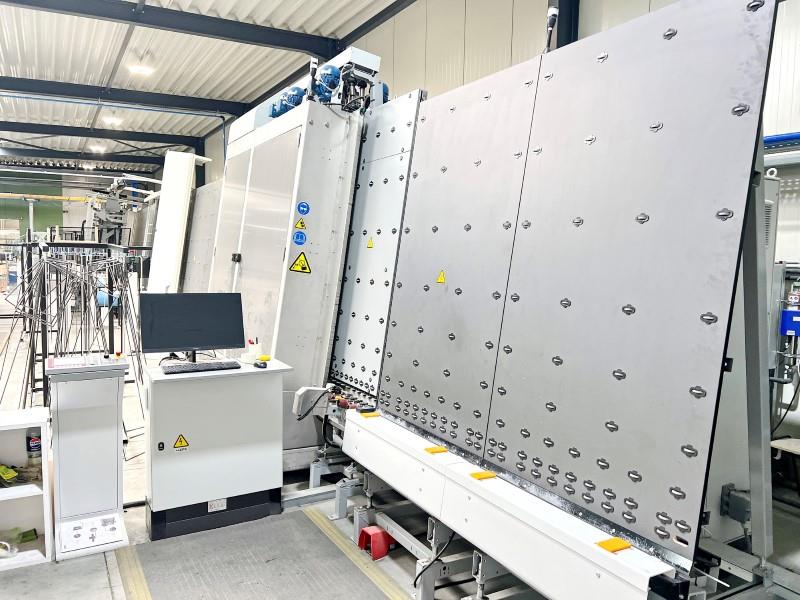

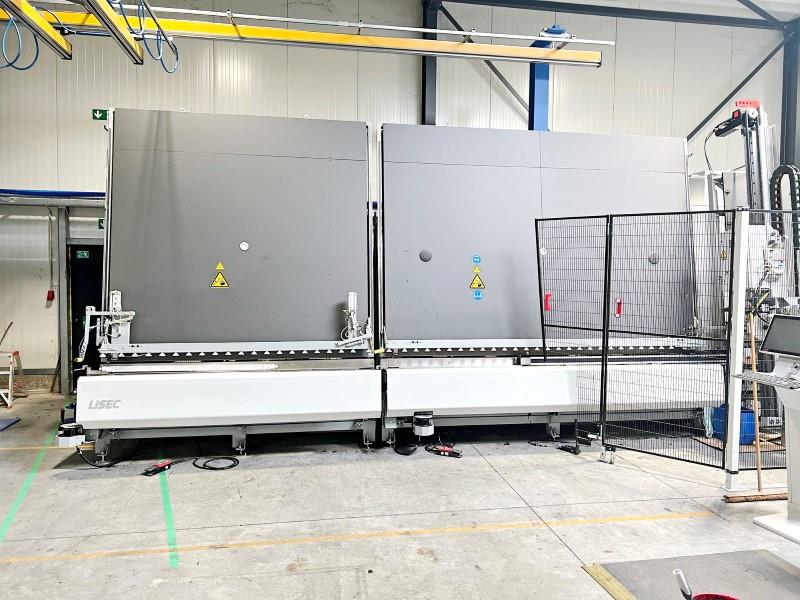

LISEC I.G. 2025 L-R Automated Insulating Glass Line - 2000 x 2500 mm ( 78`` x 98``) The loading zone at the inlet is designed to feed the washer in a timely manner. Washer and drying zone ensures cleanness of the single glass sheets before frame mounting and insulating glass assembly. Final visual quality checks are done at the frame mounting station. The press finalizes this automated process before manual take off and secondary sealing. LISEC Working direction: From Left to Right. Maximum glass production size 2000 x 2500 mm ( 78`` x 98``). The line is equipped to produce double, triples and quadruple IG units.Specifications:Max. Glass Size: 2000 x 2500 mm ( 78`` x 98``)Min. Glass Size: 350 x 180 mm (14" x 7")Glass Transport Height: 720 mm (28")LISEC Working direction: Left to RightSingle IG unit thickness up to 60 mm (2.4")Shapes according to LISEC shape catalog(4) Side steps (bottom step is 40 mm)IG Unit width 12 - 60 mm (0.5" x 2.4")Capable Of Triple UnitsConsists Of The Following Equipment Components: ● LISEC "RTVB-22/20WE" Transport and Storage Conveyor ● LISEC "RTVB-08/20WEK" Transport and Storage Conveyor ● LISEC "VHW-F20N6" Fully Automatic Vertical Washing and Drying System For Flat Glass PanelsAutomatic washing and drying system for glass panes with infinitely variable adjustment of the glass thicknesses. Implements a self-cleaning hot water filtration system to prevent interruption of production. Glass measurement on the inlet side of the washer. ● LISEC "RTVB-38/20ST" Transport and Storage ConveyorSystem section for the optimised transport of glass panes and glass elements in a solelling glass line. The ripple wall of this station is equipped with recessed and easy-to-change special rollers to ensure easy and safe transport of the glass pane. The transport is carried out on rollers covered with a largely wear-resistant covering .Due to the modular design, several dams can be combined with each other. ● LISEC "RTVB-11120ST" Transport and Storage Conveyor ● LISEC "RSVN-25/20U" Manual Frame Setting and Assembly StationVertical station for the manual application of spacer frames on glass sheets. After feeding in the glass sheet to the reference point, the auxiliary frame mounting stops automatically adjust to the bottom and front vertical glass edge. ● LISEC "RTVB-11/20ST" Transport and Storage Conveyor ● LISEC "RTVN-17/20MZ" Automatic Measuring StationTransport section for the fully automatic measurement of the height, width and length of the glass panes ● LISEC "FPS-A25/20" Fully Automatic Press For Gas Filling, Assembling and Mounting Of Glass ElementsFully automated machine for gas filling, assembly, and flat pressing of insulating glass units. The press is suitable for processing double and triple insulating glass units, any kind of shape (LiSEC Shape Catalog), cast glass, and laminated glass. Precise metering of the quantity of gas and a specially developed nozzle system enabl
