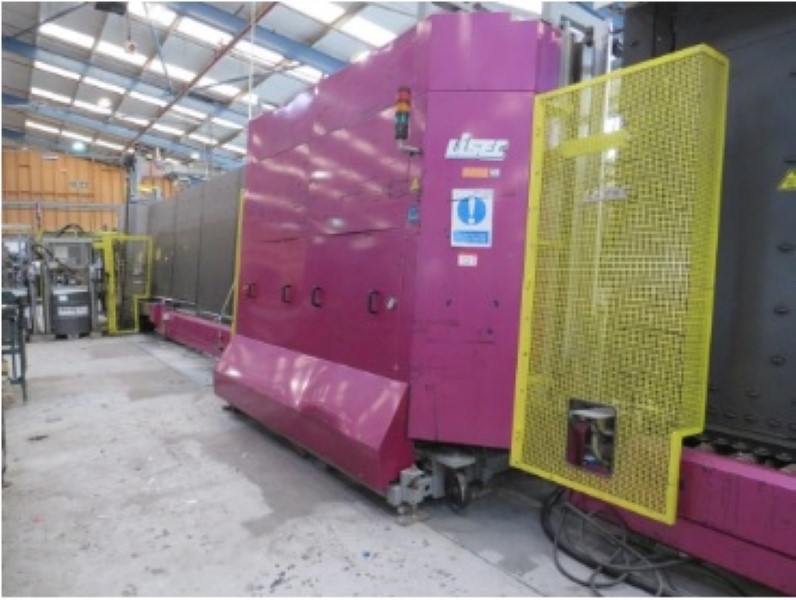

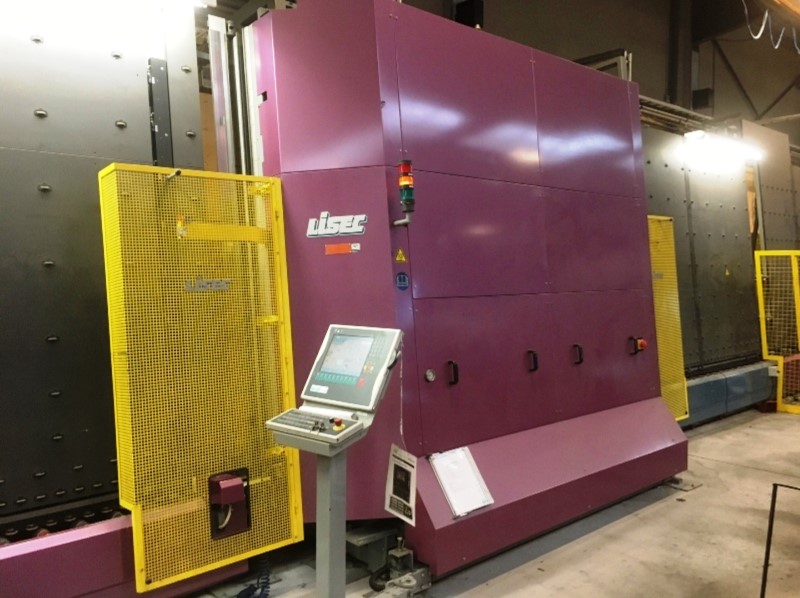

LISEC FPS 35/25U2 Automated Gas Filling Machine - 3500 x 2500 (137" x 98")+ Measuring Section Fully automated gas filling machine designed for gas filling, assembly and pressing of insulating glass units. The tried and tested system of filling the sealed chambers with gas from the bottom up reduces turbulence to zero. Gas consumption is minimized using a system of separate chambers with sealing bars. Includes Measuring Section in front of "FPS 35/25U2" Automated Gas Filling Machine.Specifications: -- Running direction: Left - Right -- Tilt angle glass transport: Vert: transport 6 incline -- Transport height vertical: Height of transport 520 mm -- Max. pass-through length: 3500 mm (137") -- Max. height (vert.), max. width: 2500 mm (98") -- Max. unit thickness: 12 - 60 mm (2-5/16") -- Max. glass thickness: 2.3 - 19 mm (fixed press plate) -- Max. glass thickness: 2.3 - 15 mm (movable press plate) -- Min. processing height: 180 mm ( 7") -- Min. Processing length: 250 mm (10") -- Max. load: 250 Kg/lmFeatures ● Operator Control center ● Capable of double and triplex units; 3-side and 4-side stepped units ● LISEC shape catalog/ shape sealing function ● LISEC infeed and outfeed stations ● Cycle time is independent of glass length [by filling from bottom up) ● Special measuring system allows exact pressing of units with flexible spacersNOTE: Equipment is in very good operating condition and is ready for immediate shipment.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
