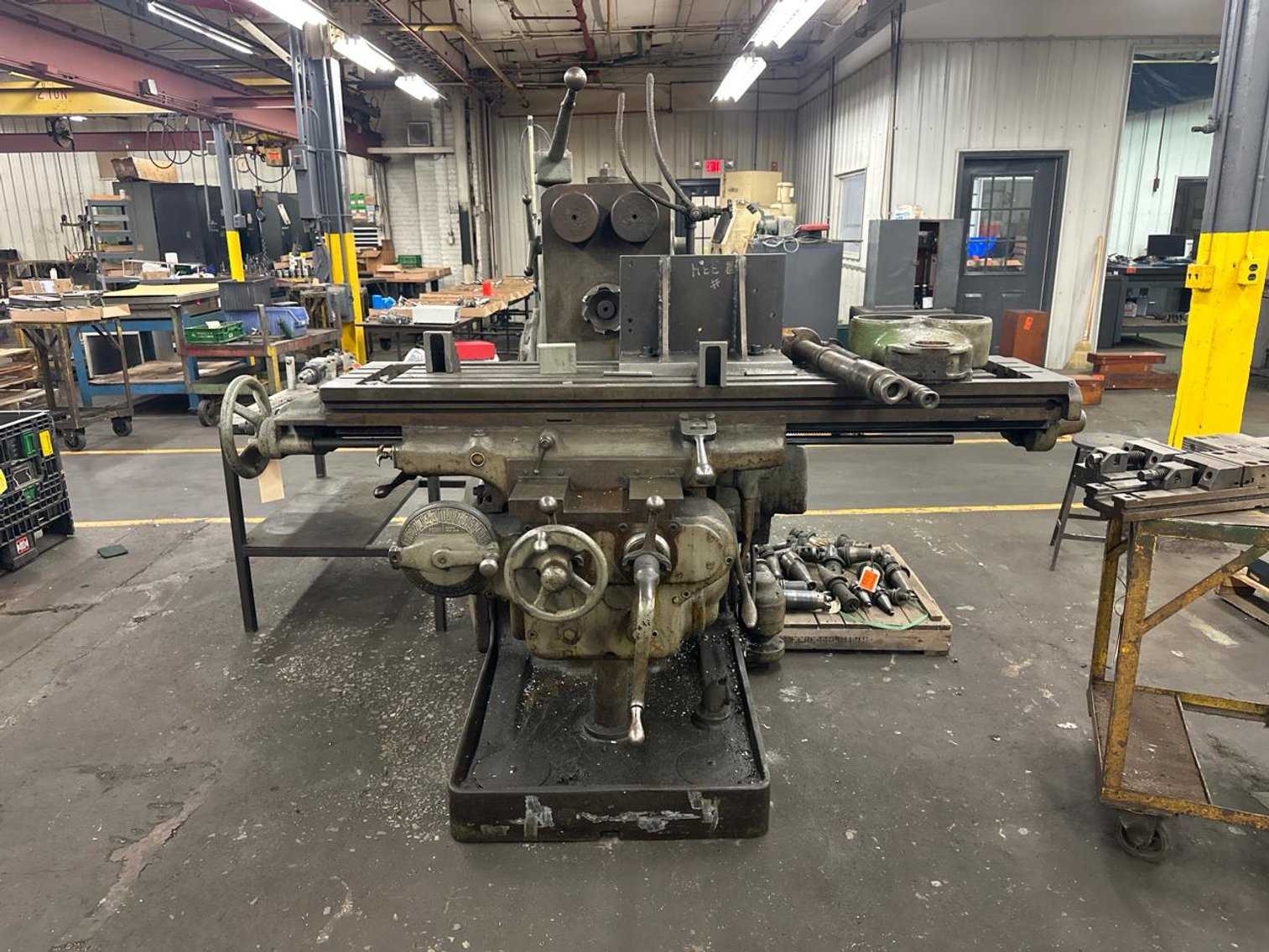

Kearney & Trecker #3CK, Horizontal Planer Mill, 63" x 16" table, 34" longitudinal travel, 12" cross travel, 18" vertical travel, 15 HP, 1500 RPM

SERIAL ....................................... #968012

MODEL ........................................ #3CK

AREA OF TABLE ................................ 63-1/2" X 16-1/2"

SPINDLE SPEEDS ............................... (24) 15 TO 1500 RPM

LONGITUDINAL & CROSS FEEDS ................... (32) 3/8 TO 90 IPM

VERTICAL FEEDS ............................... (32) 3/16 TO 45 IPM

LONGITUDINAL TRAVEL .......................... 34"

CROSS TRAVEL ................................. 12"

VERTICAL TRAVEL .............................. 18"

TAPER IN SPINDLE ............................. #50 NS

DISTANCE CENTER LINE OF SPINDLE TO TABLE ..... 0" MIN, 18" MAX

RAPID TRAVERS ................................ 150 IPM

DUAL CONTROLS ................................ YES

COOLANT ...................................... YES

OVERARM SUPPORT .............................. YES

MAIN MOTOR ................................... 15 HP

FEED AND TRAVERSE MOTOR ...................... 3 HP
