Year: 1999
Stock # VX-5055
For Sale by VX Machinery
Surplus Record Dealer Since 1995
Victor Van Deilen
734-85...> Show Seller's Phone Number 734-854-8700 Let the seller know you found their listing on Surplus Record!
Description
Capacity: 160,000(Ton / Year)
Manufacturer: 1999 by Jugairo, Shut Down in Sept, 2020
Product: Polyester, Silicon Polyester, PVDF, Highpolymer Polyester
Width: 67" W (1710 mm)
Coil Thickness: .009"-.079" (.23 mm-2 mm)
Coil Weight: 20 Ton
Material: CR, GI, EGI, SUS, Al
Line Length: (m) 248 Meter, Width : 30 Meter
Height: 21 Meter ( Under Ground 6.5 Meter + Over the Floor 14.5 Meter)
Coating Type: 2 Coat 2 Bake
Coater: Prime 3 Head (Top 2 / Back 1)
Finish 4 Head (Top 2 / Back 2)
Oven: Prime Length : 45m / : Max. 470?
Finish Length: : 52m / : Max. 470?
Product:
- Polyester - Si-Polyester
- Modified Polyester - Hi-Polymer
- PVdF - Aluminum coated
- House Home Usage Black Color
Line Speed: 126 m/min. Max
Oven: Catenary Type
Chemi Coater: Vertical Roll Type

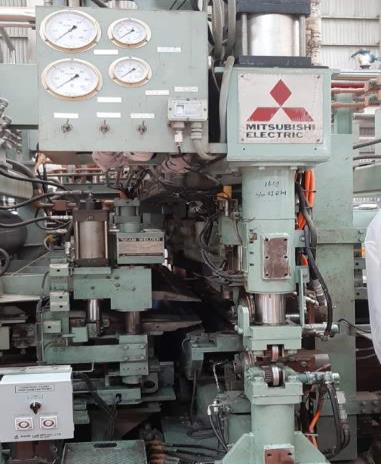

Welder : Mash Seam Welder
Oven Heating: Direct Heat Hot Air Recirculation
Manufacturer: 1999 by Jugairo, Shut Down in Sept, 2020
Product: Polyester, Silicon Polyester, PVDF, Highpolymer Polyester
Width: 67" W (1710 mm)
Coil Thickness: .009"-.079" (.23 mm-2 mm)
Coil Weight: 20 Ton
Material: CR, GI, EGI, SUS, Al
Line Length: (m) 248 Meter, Width : 30 Meter
Height: 21 Meter ( Under Ground 6.5 Meter + Over the Floor 14.5 Meter)
Coating Type: 2 Coat 2 Bake
Coater: Prime 3 Head (Top 2 / Back 1)
Finish 4 Head (Top 2 / Back 2)
Oven: Prime Length : 45m / : Max. 470?
Finish Length: : 52m / : Max. 470?
Product:
- Polyester - Si-Polyester
- Modified Polyester - Hi-Polymer
- PVdF - Aluminum coated
- House Home Usage Black Color
Line Speed: 126 m/min. Max
Oven: Catenary Type
Chemi Coater: Vertical Roll Type
Welder : Mash Seam Welder
Oven Heating: Direct Heat Hot Air Recirculation
Get Your Price from VX Machinery!
