Description:

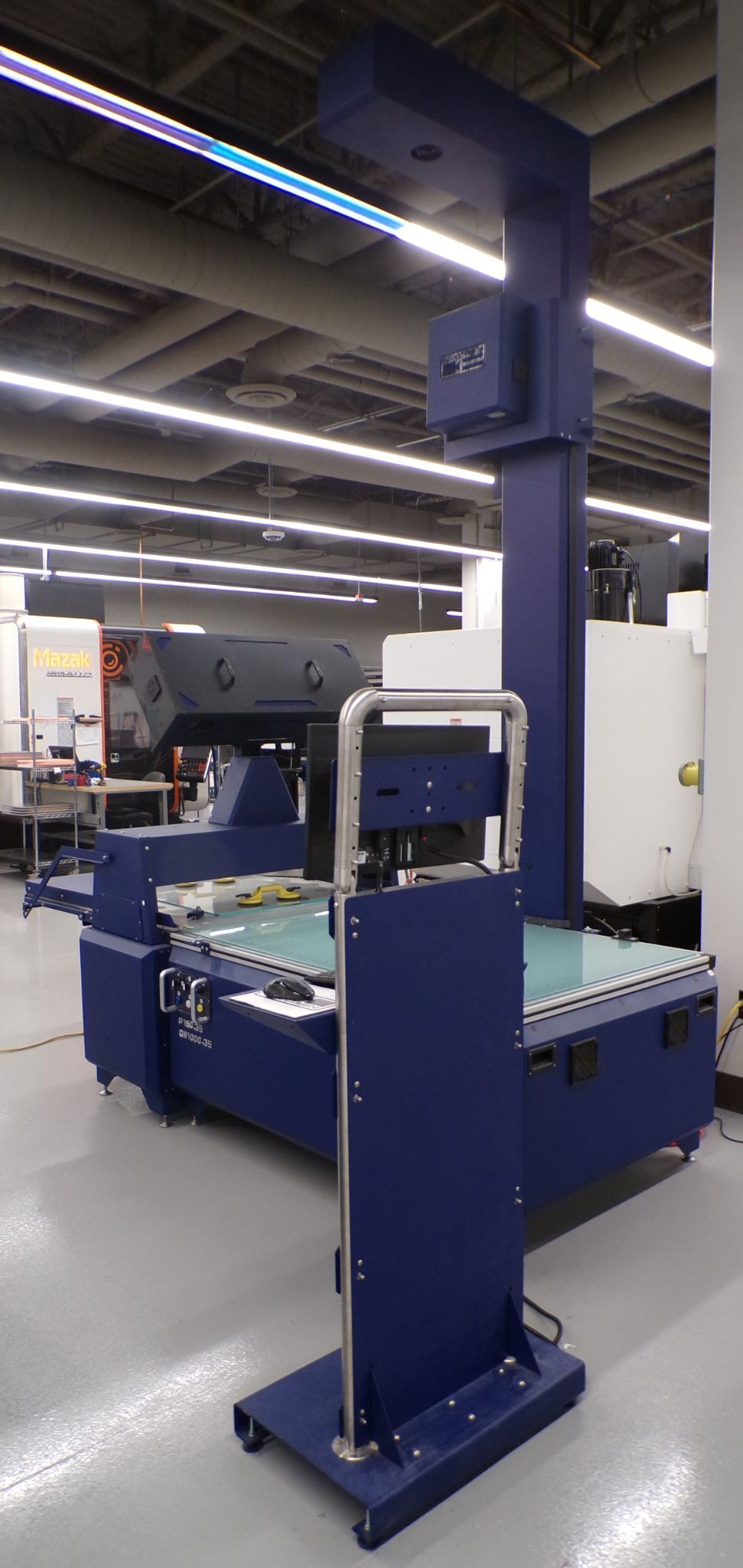

Specifications:
MAX. COMPONENT LENGTH: 59
MAX. COMPONENT WIDTH: 39.37
MAX. COMPONENT THICKNESS: 13.78
MAX. COMPONENT WEIGHT: 551 LBS UDL (UNIFORMLY DISTRIBUTED LOAD)
MEASURING ACCURACY:
- LENGTH: (+/-) 1.378
- WIDTH: 2.75
MEASURING ACCURACY HEIGHT (OPTIONAL): (+/-) 3.9
MEASURING SPEED: 0.0098 PS
CAMERA: INDUSTRIALISED ULTRA HIGH RESOLUTION PROFESSIONALLY MOUNTED IN SEALED
_ ENCLOSURE
DOT LASER HEIGHT MEASURING DEVICE (OPTIONAL): CLASS III R PRECISION LASER
COMPUTER PROCESSOR: INTEL QUAD OR DUAL CORE
PROCESSOR SPEED: 3GHZ
HARD DISK: 125GB
SCREEN: 20 INCH FLAT SCREEN OR BETTER
PERIPHERAL EQUIPMENT: KEYBOARD AND OPTICAL MOUSE
OPERATING SOFTWARE: WINDOWS 10 - 64 BIT
PROPRIETARY INSPECVISION SOFTWARE: INSPECTION, SPC, REPORTING, REVERSE ENGINEERING
DATA CABLE: USB 2 OR USB 3

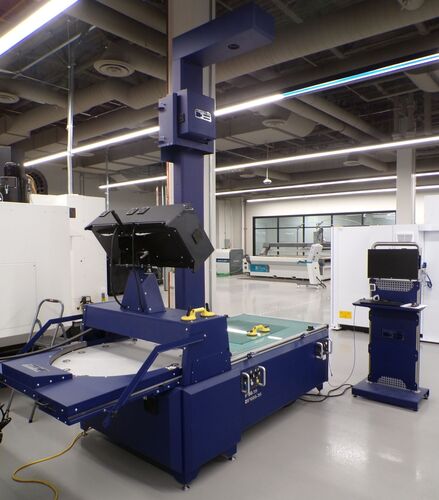

KVM: KEYBOARD, VIDEO DISPLAY & MOUSE STAND (PC INTEGRATED INTO LIGHT TABLE ASSEMBLY)
LIGHT TABLE CONSTRUCTION: FRAME WITH REMOVABLE SHEET METAL CLADDING
LIGHT TABLE MEASURING SURFACE: LAMINATE GLASS, TOUGHENED WITH INTEGRAL DIFFUSION
- LAYER
LIGHT SOURCE: HIGH EFFICIENCY LEDS
MAST CONSTRUCTION: HEAVY FOLDED SHEET METAL CONSTRUCTION
POWER SUPPLY: 230 VOLT, SINGLE PHASE, 50HZ OR 110 VOLT, SINGLE PHASE, 60HZ ON REQUEST
POWER CONSUMPTION: 4 AMP MAXIMUM AT 230 VOLT, 8 AMP MAX AT 110 VOLT
PROTECTIVE DEVICES: CIRCUIT BREAKERS, MOUNTED AT REAR OF LIGHT TABLE

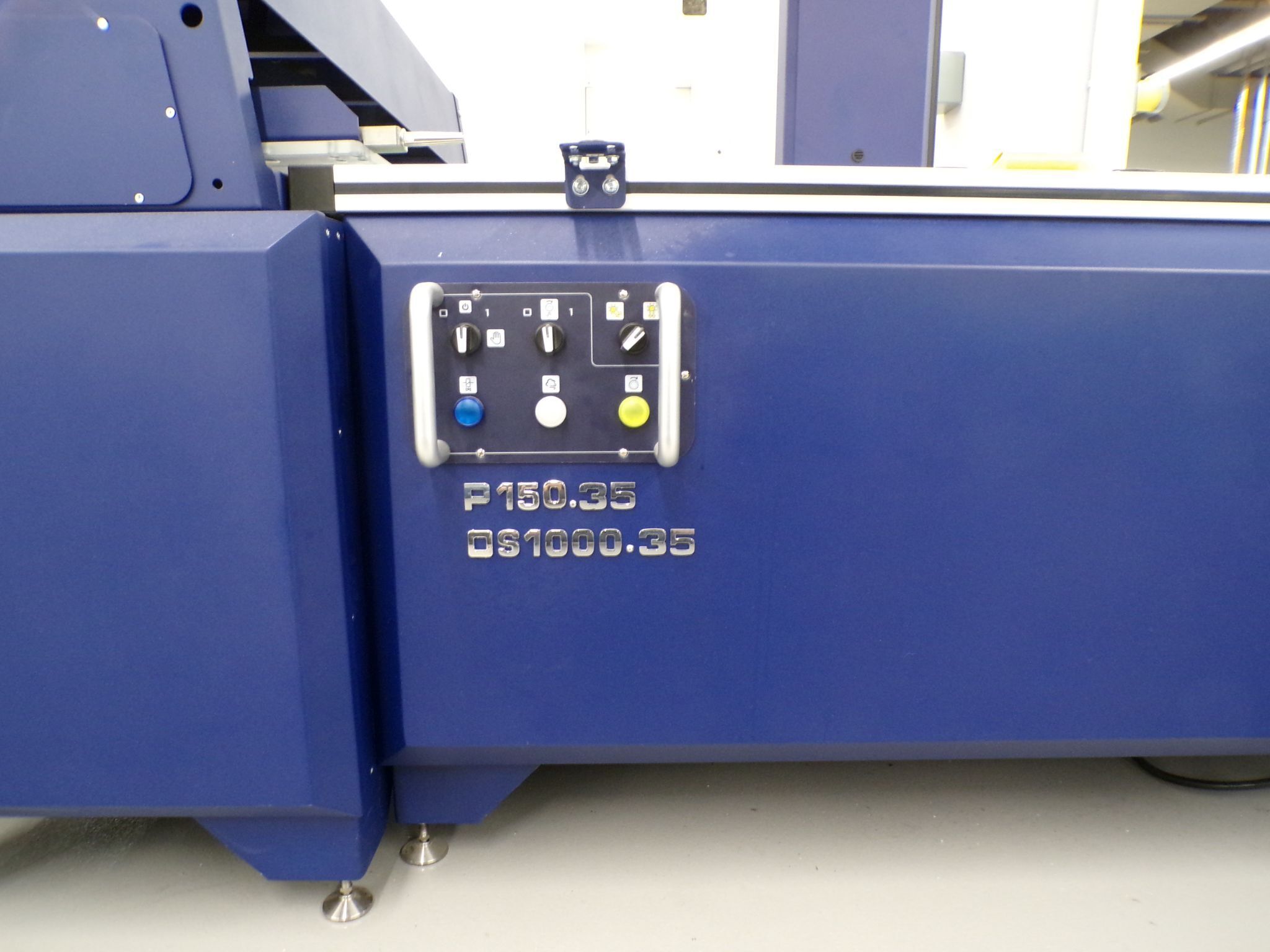

CONTROL PANEL: CONTROL SWITCHES FOR POWER, CAMERA AND LIGHTS, MAIN POWER INDICATOR
EC DIRECTIVES: COMPLIANT WITH MACHINERY, LOW VOLTAGE AND EMC DIRECTIVES
AMBIENT OPERATING CONDITIONS: 10-30 DEGREE C
APPROX. FOOTPRIN TOF INSTALLED lIGHT TABLE AND MAST: 73.7(W) x 56.6(D) x 144.7(H)
APPROX. WEIGHT OF LIGHT TABLE AND MAST: 1,819 LBS
APPROX. FOOTPRINT OF INSTALLED WICOMPUTER CABINET: 28(W) x 18.6 (D) x 68.5(H)
APPROX. WEIGHT OF INSTALLED WICOMPUTER CABINET: 100 LBS

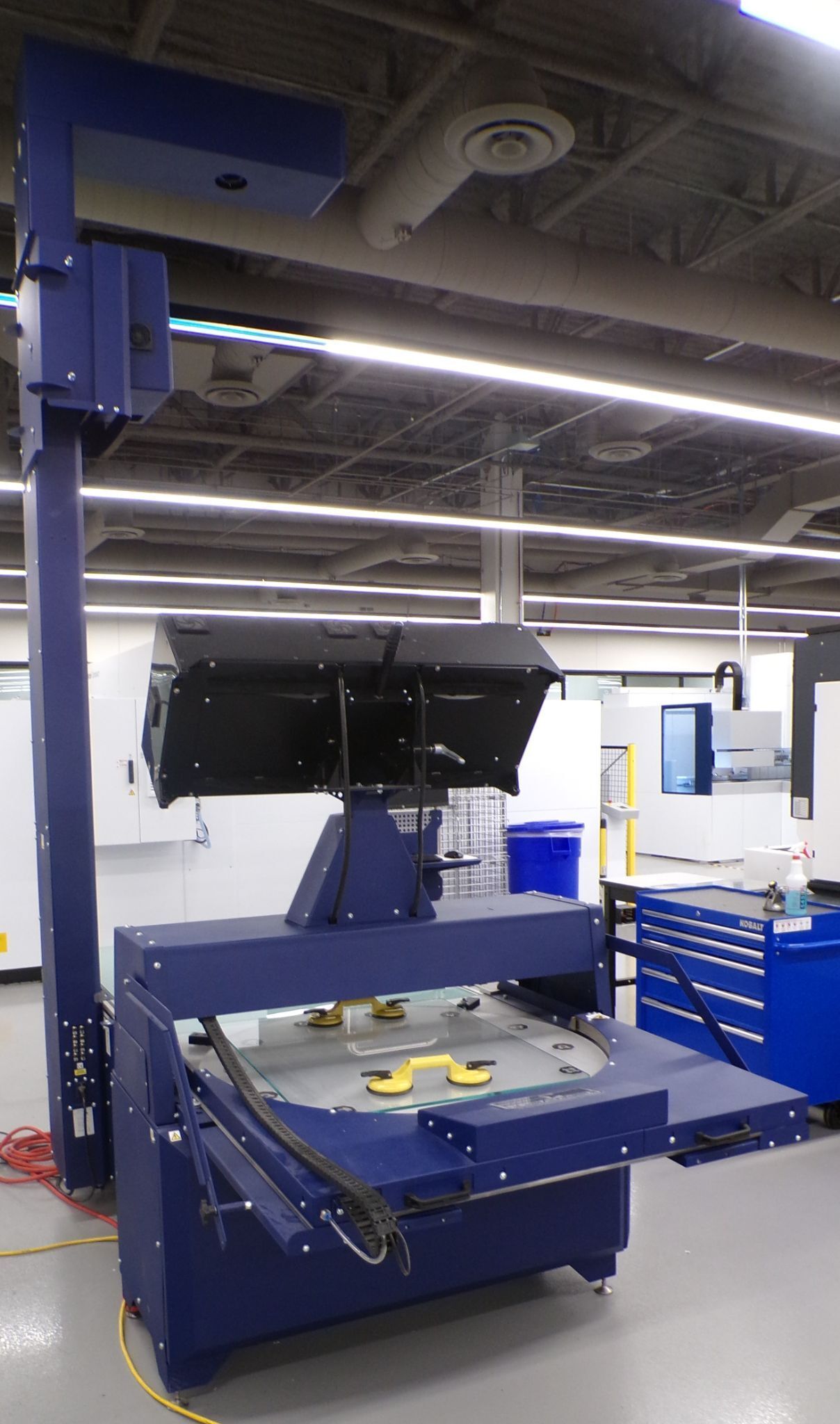

OPTI-SCAN 1000.35:
MAX. SINGLE SCAN AREA:
- X-AXIS: 39.37
- Y-AXIS 24.6
MAX. SINGLE SCAN DEPTH Z-AXIS: 24.6
VOLUMETRIC ACCURACY: 75 MICRONS
REPEATABILITY: 35 MICRONS
POINT SPACING: BETTER THAN 210 MICRONS
SCANNING SPEED: 250,000 POINTS PS
SCANNING TIME: 10 SEC.
PROCESSING TIME: 5 SEC.
PERIPHERAL EQUIPMENT: USB LIGHTING CONTROLLER, STANDARD COMPUTER - INTERFACE
REQUIRED OPERATING SYSTEM: WINDOWS 10
CAMERA: 18 MEGA-PIXELS
PROJECTION SOURCE: LED/LASER PROJECTOR
DATA CABLES : HDMI AND USB3
POWER SUPPLY: 110-240V 50/60HZ
POWER CONSUMPTION: 1.5 AMP MAX. AT 230 VOLT, 3 AMP MAX. AT 110 VOLT
EC DIRECTIVES: COMPLIANT WITH MACHINERY, LOW VOLTAGE AND EMC DIRECTIVES
AMBIENT OPERATING CONDITIONS: 5-35 DEGREE C
APPROX. FOOTPRINT: 47.8(W) x 33.6(D) x 58.7(H)
APPROX. WEIGHT: 56 LBS (TRIPOD)
* SOFTWARE INCLUDE: 3D SCANNING, AUTOMATED REPOSITIONING, TEXTURE MAP ACQUISITION,
3D COLOR RENDERING, CREATION OF CROSS-SECTIONS, CREATION OF 3D EDGES,
REVERSE ENGINEERING OF 3D EDGES TO DXF/DWG, COMPARISON OF 3D EDGES TO DXF/DWG,
REVERSE PROJECTION OF COLORED DEVIATION REPORTS ONTO PART, CREATION OF 3D POINT
CLOUDS IN PLY, STL, VRML, ASCII FORMATS, CREATION OF TEXTURE MAPPED POINT CLOUDS,
CALIBRATION SOFTWARE.
* FREE 3D INSPECTION SOFTWARE: FULLY COMPATIBLE WITH OFF THE SHELF FREE 3D INSPECTION
SOFTWARE. FUNCTIONALITY INCLUDES COMPARISON TO 3D SOLID MODELS, DIMENSIONING, GD&T,
CROSS-SECTIONS, FULL SURFACE DEVIATION INSPECTION, MERGING OF SCANS, CUSTOMIZABLE
REPORTS, AUTOMATIC ALIGNMENT OF SCAN TO CAD, POINT CLOUD MESHING, PROCESSING AND
FILTERING, EXTRACTION OF NOMINAL DATA FROM CAD MODEL, COMPARISON OF 2 SCANS.
* ADVANCED 3D INSPECTION SOFTWARE OPTION (GEOMAGIC CONTROL): AVAILABLE ON REQUEST. COMPARISON TO 3D SOLID MODELS, GD&T, SPC, CROSS-SECTIONS, FULL SURFACE AND EDGE INSPECTION, CREATION OF REPORT TEMPLATES, AUTOMATED MERGING OF POINT CLOUDS, AUTOMATIC ALIGNMENT OF SCAN TO CAD, AUTOMATIC POINT CLOUD PROCESSING AND FILTERING, AUTOMATIC DETECTION OR REPOSITIONING SPHERES, MACRO CREATION FOR FULL AUTOMATION, AUTOMATIC EXTRACTION OF NOMINAL DATA FROM CAD MODEL, COMPARISON OF 2 SCANS.
* 3D REVERSE ENGINEERING (ADVANCED PACKAGE): AVAILABLE ON REQUEST. CREATION OF 3D
SOLID MODELS FROM SCAN DATA.
* CALIBRATION KIT INCLUDED: RETRO-REFLECTIVE REFERENCE MARKERS MOUNTED ONTO STEEL
PLATE WITH REPOSITIONING FRAME
* ACCURACY VERIFICATION OBJECT : CALIBRATED BALL BAR * OPTISCAN CONSTRUCTION: CAMERA AND PROJECTOR ASSEMBLIES MOUNTED ON FLOATING CARBON FIBRE CHASSIS
* OPTISCAN ENCLOSURE : ABS CARBON FIBRE EFFECT
* REPOSITIONING MARKERS: SET OF 24 LOOSE MAGNETIC PHOTOGRAMMETRIC MARKERS TO ALLOW
REPOSITIONING
