Hegla Ecolam-37-Plus, Glass Cutting Line, L-R, 126" x 100" sheet size, 3 - 12 mm float glass thickness, 2 x 3 - 2 x 8 mmlaminate glass thickness, 920 + 30 mm working H, 2015

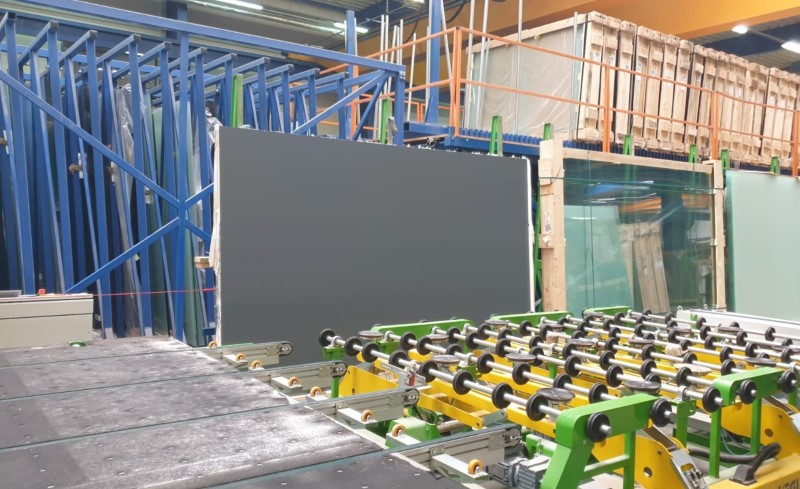

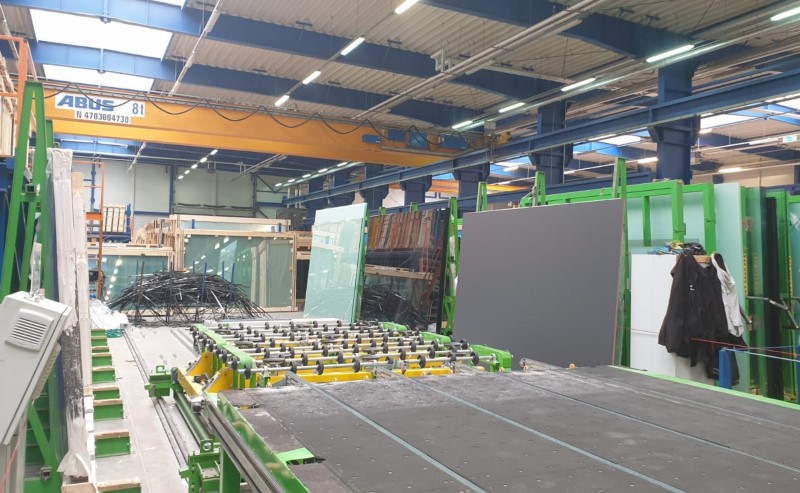

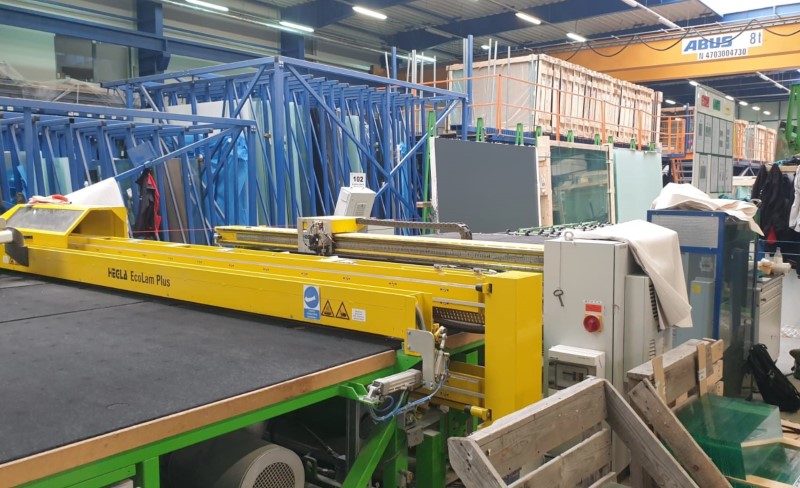

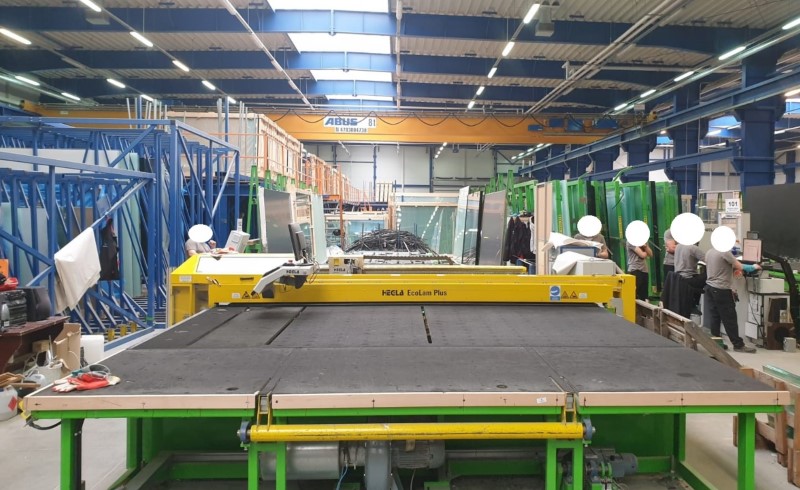

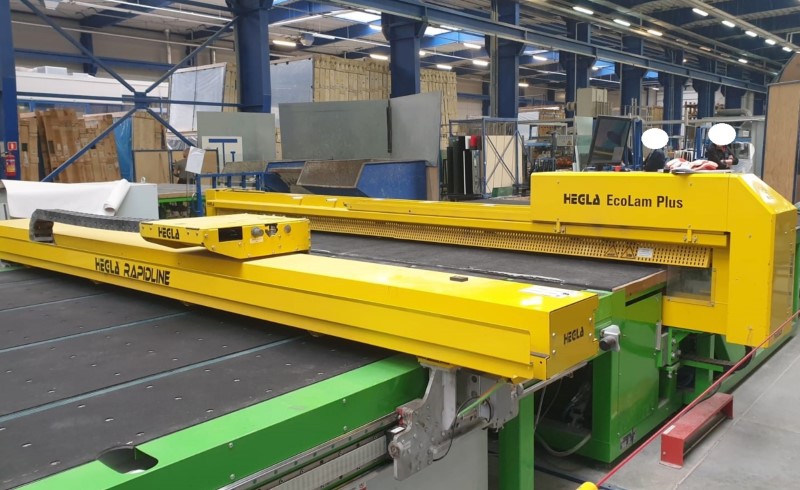

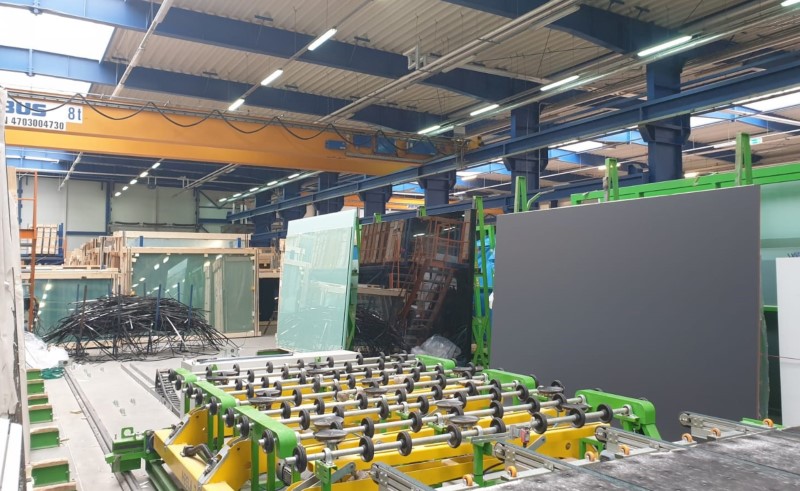

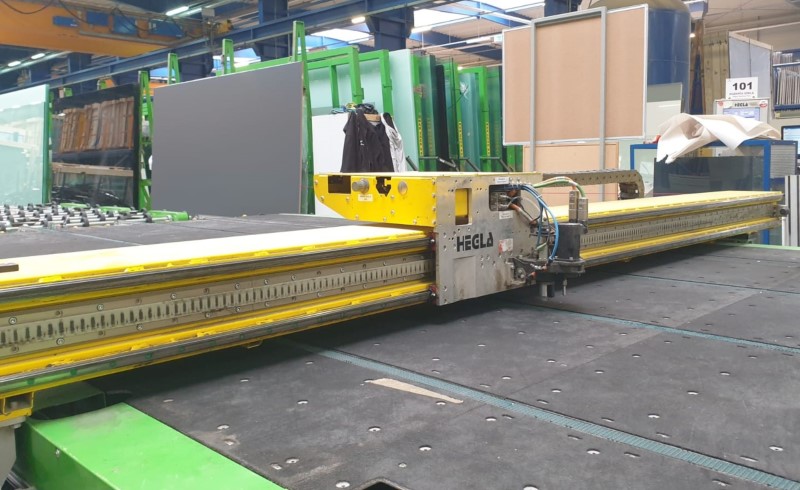

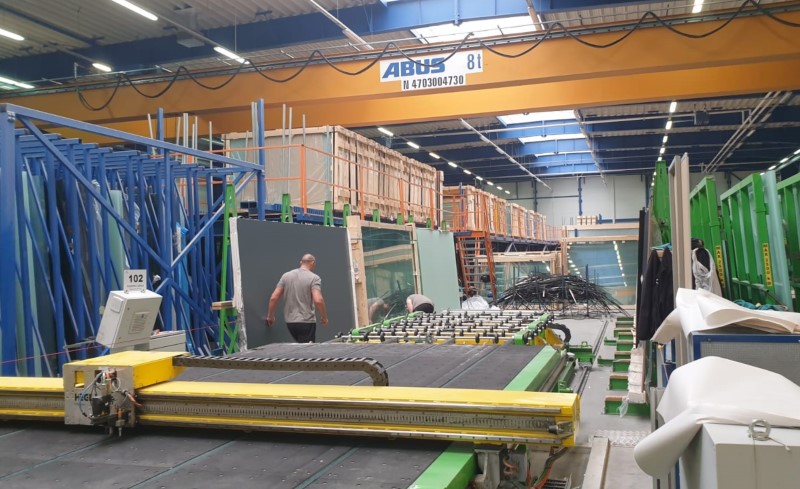

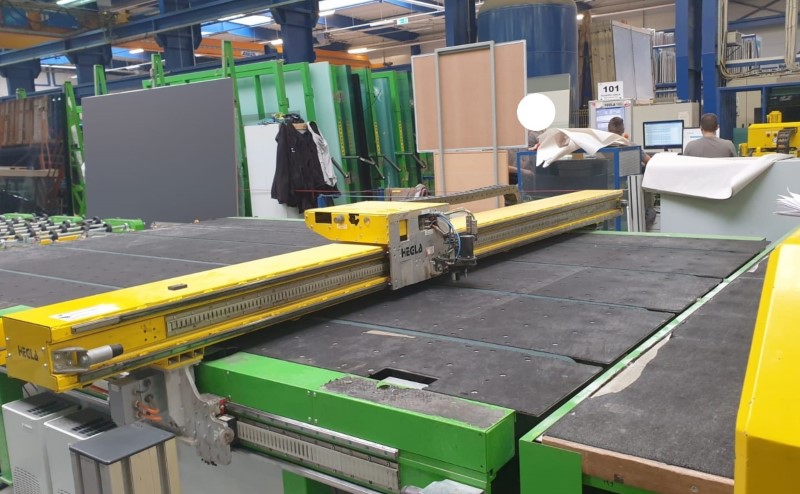

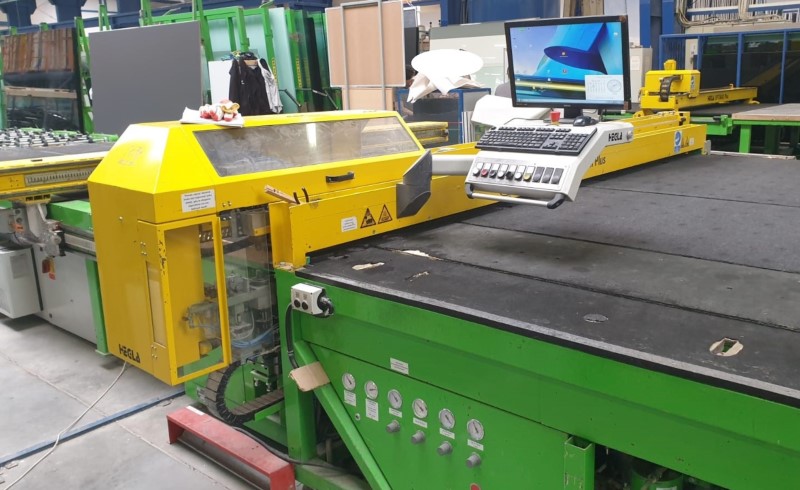

HEGLA EcoLam 37 Plus + RapidLoader BSL 3328 M + RapidLine 3828 + LT 1237A Fully Automatic Combi Line SystemFor Laminated & Float Glass Cutting - 3210 x 2550 mmFully automated CNC glass cutting system EcoLam series are designed for industrial volume cutting of Laminated and Float Glass. Driven by CNC-controlled servo motors, the cutting bridge achieves optimal high speeds, which are synchronously adapted to the cutting contour. The special bridge guides assure a consistent, accurate cut quality.With its short turnaround time, the EcoLam glass cutting system is ideal for use in simple or complex unattended line solutions. This line includes a double-sided movable floor loader, automatic shape cutting machine, semi-automatic laminated glass cutting machine and an air and arm assisted unloading table.Overall Specifications: ● Glass flow direction: Left to Right ● Glass sheet size cap: 3210 x 2550 mm (126" x 100") ● Glass thickness for float glass: 3 - 12 mm ● Glass thickness for laminate glass: 2 x 3 - 2 x 8 mm ● Thickness of interlayer film: 0.38 - 3.8 mm ● Working height: 920 + 30 mm ● Overall dimensions of line: 22,140 x 6254 mm (871" x 246")Includes The Following Equipment Components:[1] HEGLA Double Side Movable "BSL 3328 M" RapidloaderDouble-sided mobile loading device designed for (3) loading positions and for up to (6) pick up positions. Each side with 3 Suction arms with (3) suction cups each and trapezoid guiding for glass peel off bottom-up. The position of the suction cups can be adjusted manually & disengaged individually. Carriage for longitudinal movement on floor rails are controlled through the cutting table control system. - Max. unloading depth 800 mm. Reinforced Version: ● Upgraded load capacity increased for glass - thickness up to 19 mm (3/4") / 500 kG (1100 Lbs) ● Upgraded additional destination for (6) loading positions (total)[2] HEGLA "RapidLine 3828" Shape Glass Cutting Table Fully automated cutting system for float glass (automatic glass position sensing, cutting, glass transport, and optional de-coating)Electro-magnetic linear drives. Controller using a full-graphic software package. The system automatically senses the position of the glass and adapts its cutting movements accordingly. Max. cutting speed of 200 m/Min. Includes the following additional equipment: ● Hand-Editor: Graphic software package for editing & managing cutting patterns. Includes HEGLA shape library of standard regular shapes. ● Mechanical alignment stops: (4) alignment stops with manual activation footswitch. ● Air-Flotation: High performance blower. ● Second Supply Cutting Oil Tank: Additional tank for 2nd type of cutting fluid (eg. for thick glass cutting). ● Tool Changer: Quick change tool changer. ● Tool Retainer Type A: For glass thickness up to 12 mm. ● Air Conditioned Switch Cabinet: Ensures failure free operation even at high temperature. ● Module
