For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Dan Wheeler
909-34...> Show Seller's Phone Number 909-348-5610 Let the seller know you found their listing on Surplus Record!
Description

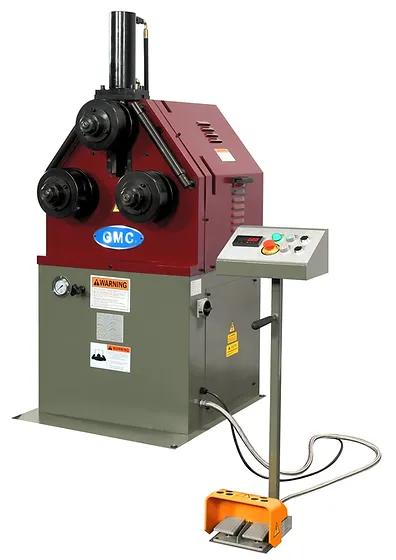

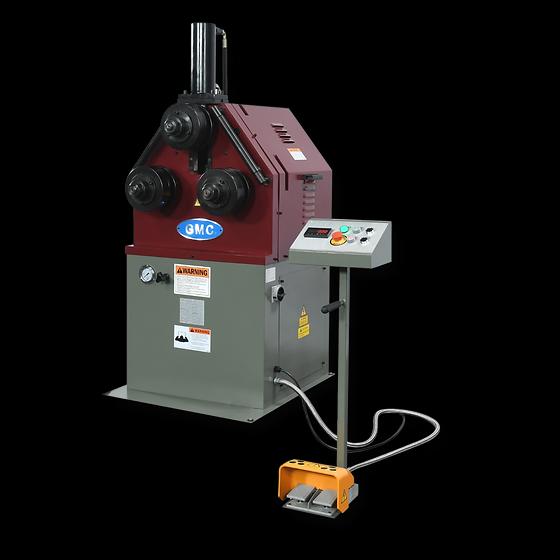

New GMC Angle Iron Benders, Ring Roller with 3 Square Dies PRB-75H

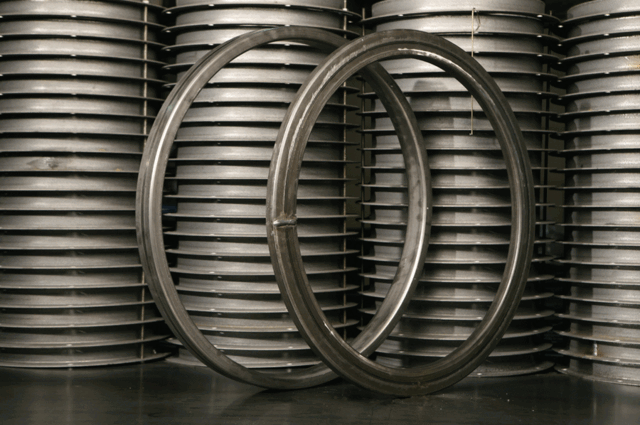

Our PRB-75H Angle Iron Benders aka profile bending machines are fully equipped with a 3" die set to roll metal square tube into rings. These roll benders are the perfect solution for any fabrication shop looking to speed up the manual process. These metal roller benders are popular amongst the metal fence manufacturing, green house manufacturing, roll cage fab shops, and welding fab shops.
ISO 9001 certified
Hydraulic top roller positioning with digital readout
Max capacity: 4 tube and 3-1/2 pipe
Heavy Duty 5-1/2HP AC main motor
Heavy welded all steel construction
Quiet compact hydraulic system
Custom-made rollers are available per request, such as steel, nylon, etc.
One year industrial warranty for parts
One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)
Foot pedal
Optional roller sets for pipe & round tubing, any size, one set (3-rolls) - call for pricing
Optional anti-twisting attachment - call for pricing
Dia. of Roller 8 1/2"
Dia. of Roller Shaft 3"
Roller Speed 16 RPM
Motor 5-1/2" HP, 220V/440V, 3 Phase
Dimiensions 51" x 45" x 72"
Weight (with top roller hydraulic positioning)
2,450 lbs.
Oil Capacity 28L =8 Gal
Optional Roll Sets:
34T-PRB-75H ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-75H
1T-PRB-75H ROLL SET FOR 1 INCH TUBING FOR GMC PRB-75H
114T-PRB-75H ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-75H
112T-PRB-75H ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-75H
2T-PRB-75H ROLL SET FOR 2 INCH TUBING FOR GMC PRB-75H
212T-PRB-75H
3T-PRB-75H
ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-75H
ROLL SET FOR 3 INCH TUBING FOR GMC PRB-75H
34P-PRB-75H ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-75H
1P-PRB-75H ROLL SET FOR 1 INCH PIPE FOR GMC PRB-75H
114P-PRB-75H ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-75H
112P-PRB-75H ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-75H
2P-PRB-75H ROLL SET FOR 2 INCH PIPE FOR GMC PRB-75H
212P-PRB-75H
3P-PRB-75H
ROLL SET FOR 2-1/2 INCH PIPE FOR GMC PRB-75H
ROLL SET FOR 3 INCH PIPE FOR GMC PRB-75H
Our PRB-75H Angle Iron Benders aka profile bending machines are fully equipped with a 3" die set to roll metal square tube into rings. These roll benders are the perfect solution for any fabrication shop looking to speed up the manual process. These metal roller benders are popular amongst the metal fence manufacturing, green house manufacturing, roll cage fab shops, and welding fab shops.
ISO 9001 certified
Hydraulic top roller positioning with digital readout
Max capacity: 4 tube and 3-1/2 pipe
Heavy Duty 5-1/2HP AC main motor
Heavy welded all steel construction
Quiet compact hydraulic system
Custom-made rollers are available per request, such as steel, nylon, etc.
One year industrial warranty for parts
One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)
Foot pedal
Optional roller sets for pipe & round tubing, any size, one set (3-rolls) - call for pricing
Optional anti-twisting attachment - call for pricing
Dia. of Roller 8 1/2"
Dia. of Roller Shaft 3"
Roller Speed 16 RPM
Motor 5-1/2" HP, 220V/440V, 3 Phase
Dimiensions 51" x 45" x 72"
Weight (with top roller hydraulic positioning)
2,450 lbs.
Oil Capacity 28L =8 Gal
Optional Roll Sets:
34T-PRB-75H ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-75H
1T-PRB-75H ROLL SET FOR 1 INCH TUBING FOR GMC PRB-75H
114T-PRB-75H ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-75H
112T-PRB-75H ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-75H
2T-PRB-75H ROLL SET FOR 2 INCH TUBING FOR GMC PRB-75H
212T-PRB-75H
3T-PRB-75H
ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-75H
ROLL SET FOR 3 INCH TUBING FOR GMC PRB-75H
34P-PRB-75H ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-75H
1P-PRB-75H ROLL SET FOR 1 INCH PIPE FOR GMC PRB-75H
114P-PRB-75H ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-75H
112P-PRB-75H ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-75H
2P-PRB-75H ROLL SET FOR 2 INCH PIPE FOR GMC PRB-75H
212P-PRB-75H
3P-PRB-75H
ROLL SET FOR 2-1/2 INCH PIPE FOR GMC PRB-75H
ROLL SET FOR 3 INCH PIPE FOR GMC PRB-75H
Inquire Further with Wheeler Machinery Sales!
Buyers Who Viewed This Listing Also Viewed …
GMC #PRB-75H, angle iron bender, ring roller, 8.5" roll diameter, 3" roller shaft, 16 RPM, foot pedal
Category: Angle Bending Rolls
Seller: Manufacturing Solutions
Location: Santa Ana, CA
Mfr: Gmc
Model: PRB-75H
8.5"3"16 RPM5.5 HP, 220v/440v, 3 Phase8 Gallons51" x 45" x 72"2,450 lbs..
Featured
Gator #GAR120, professional angle rolls, 15.35" roll diameter, 4.72" shaft diameter, 20 HP (3 available)
Category: Angle Bending Rolls
Seller: Gator Fabrication Technology
Location: Ormond Beach, FL
Mfr: Gator
Model: GAR120
Year: 2026
M.g. #AR4-Line, 4-Roll Profile Bending Machines, 8.5"-24.9" Rolls diameter, 2.4"-8.25" Shaft diameter, New
Category: Angle Bending Rolls
Seller: Comeq Inc
Location: White Marsh, MD
Mfr: M.g.
Model: AR4-LINE
MG The AR line are powerful machines, with superior capacities at a competitive price, to roll all types of profiles. Configuration of planetary movement forming rolls to minimize flat parts. The three rolls are driven by three independent hydraulic motors and three planetary gears connected directly to each roll to ...more

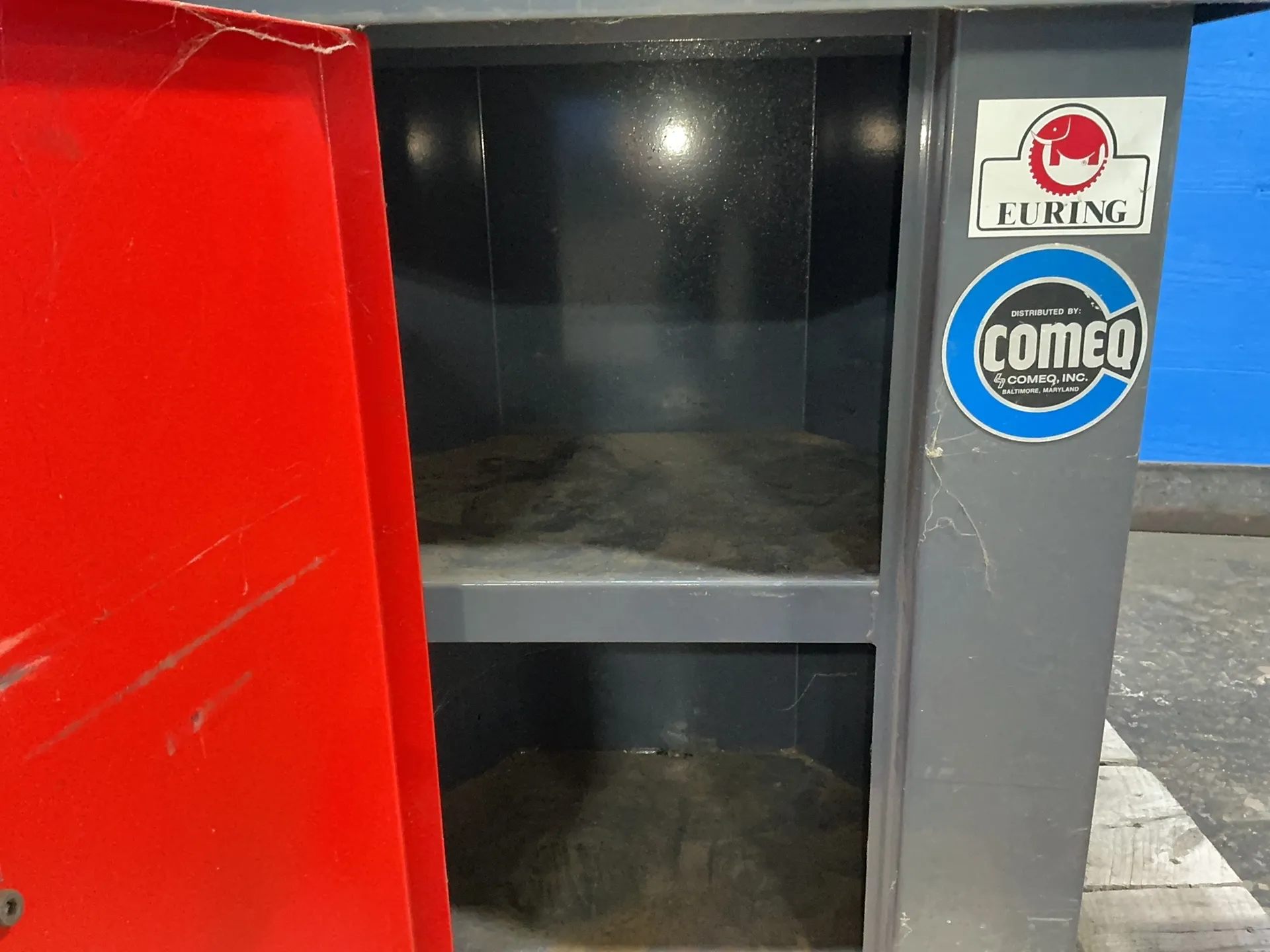

Euring #CM2000, Angle Bending Roll, sngl speed
