Description

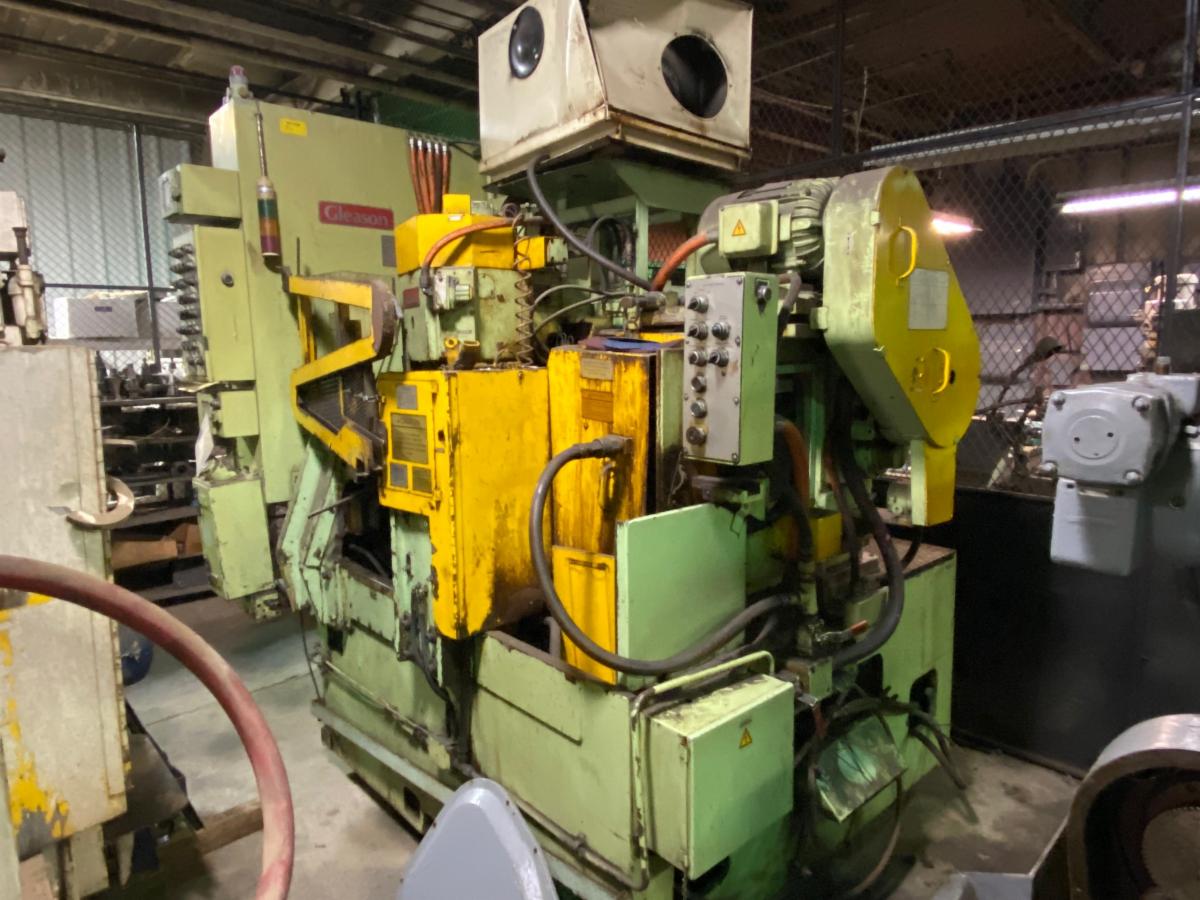

The Gleason 726 Straight Bevel REV ACY CLE Machine is designed for high speed cutting of a wide variety of different ratios and quantities. It cuts straight bevel gears up to 6 Inch pitchdiameter and 1 1/8 face width.This versatile machine either completes gears in one cut from the solid blank or roughs and finishes extra depth parts in separate operations. Manual loading is standard but automatic loading is available to increase productivity.
EQUIPPED WITH:
Multiple Cutter Bodies
Blades
Auto Lube
Coolant System
Motor and Push Button Controls
SPECIFICATIONS:
Pitch Diameter- Manual: 152mm
Face Width At Root-21 Inch Cutters: 28mm
Index Range: 8-50
Work Spindle:
Diameter Of Tapered Hole At Large End: 99.22mm
Taper Per Foot: 15.48mm
Depth Of Taper: 15.8mm
Counterbore Behind Taper: 57.2 X 77.9 mm
Diameter Of Hole Through Spindle: 22.3mm
Feeds And Speeds:
Cutter Speeds 21 Inch Cutters: 107-163 FT/Min.
Feeds 21 Inch Cutters: 2.0-3.1 Sec/Tool
Main Drive Motor-10HP: 1800 RPM
Hydraulic Motor-7.5HP: 1800 RPM
Machine Dimensions L X W Automatic: 3.2 X 2.26m
Machine Weight Manual/Automatic: 7484/8664 KG
EQUIPPED WITH:
Multiple Cutter Bodies
Blades
Auto Lube
Coolant System
Motor and Push Button Controls
SPECIFICATIONS:
Pitch Diameter- Manual: 152mm
Face Width At Root-21 Inch Cutters: 28mm
Index Range: 8-50
Work Spindle:
Diameter Of Tapered Hole At Large End: 99.22mm
Taper Per Foot: 15.48mm
Depth Of Taper: 15.8mm
Counterbore Behind Taper: 57.2 X 77.9 mm
Diameter Of Hole Through Spindle: 22.3mm
Feeds And Speeds:
Cutter Speeds 21 Inch Cutters: 107-163 FT/Min.
Feeds 21 Inch Cutters: 2.0-3.1 Sec/Tool
Main Drive Motor-10HP: 1800 RPM
Hydraulic Motor-7.5HP: 1800 RPM
Machine Dimensions L X W Automatic: 3.2 X 2.26m
Machine Weight Manual/Automatic: 7484/8664 KG
