Description

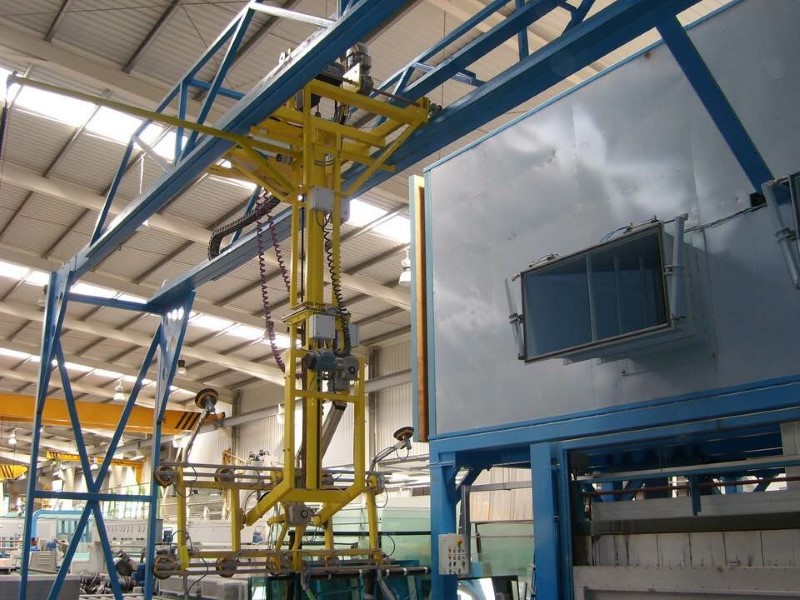

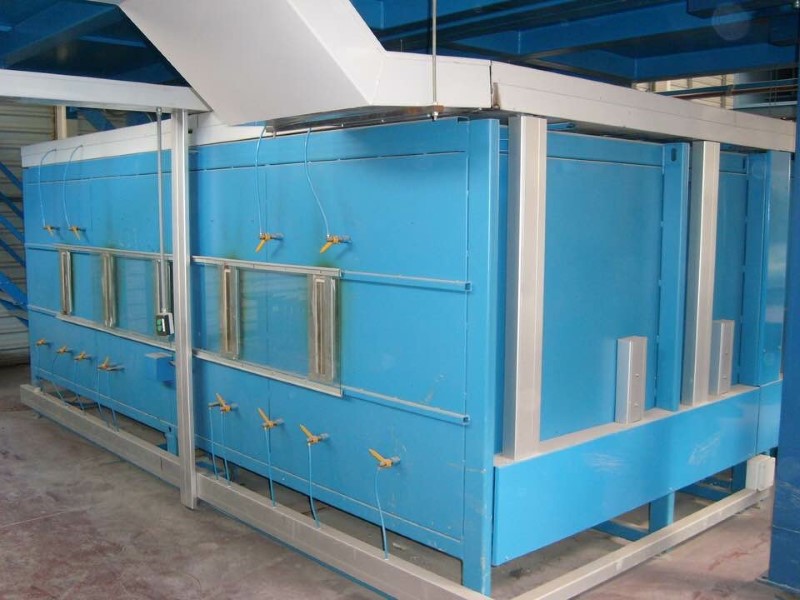

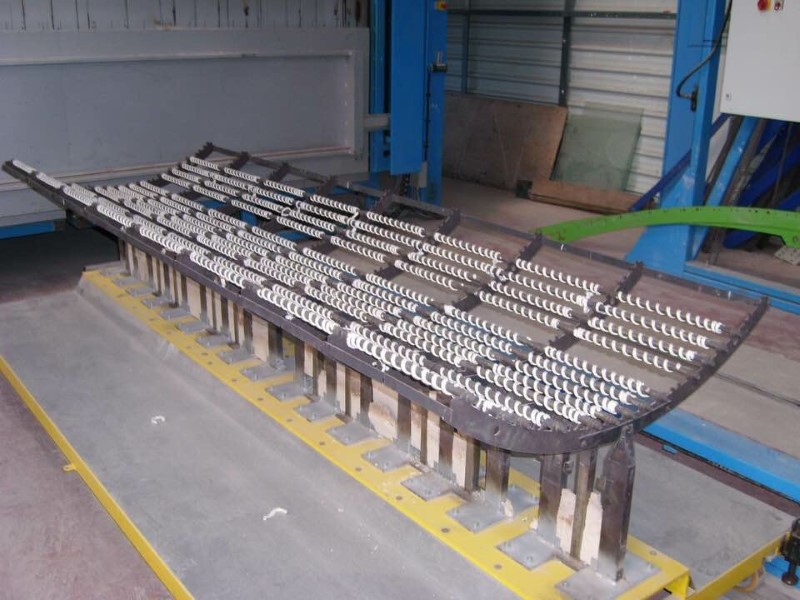

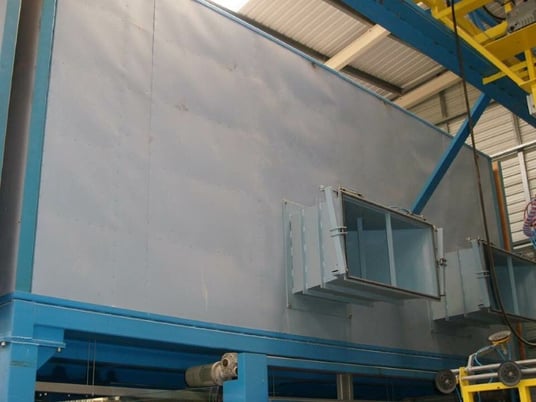

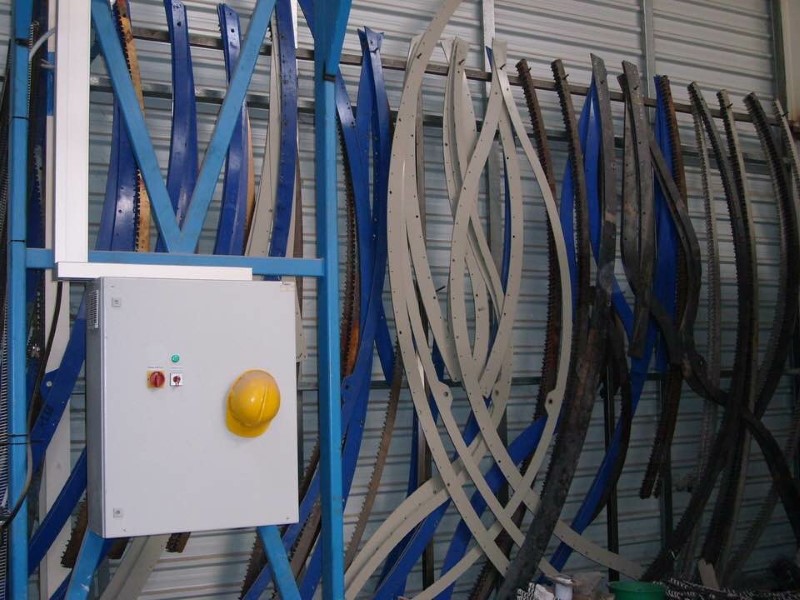

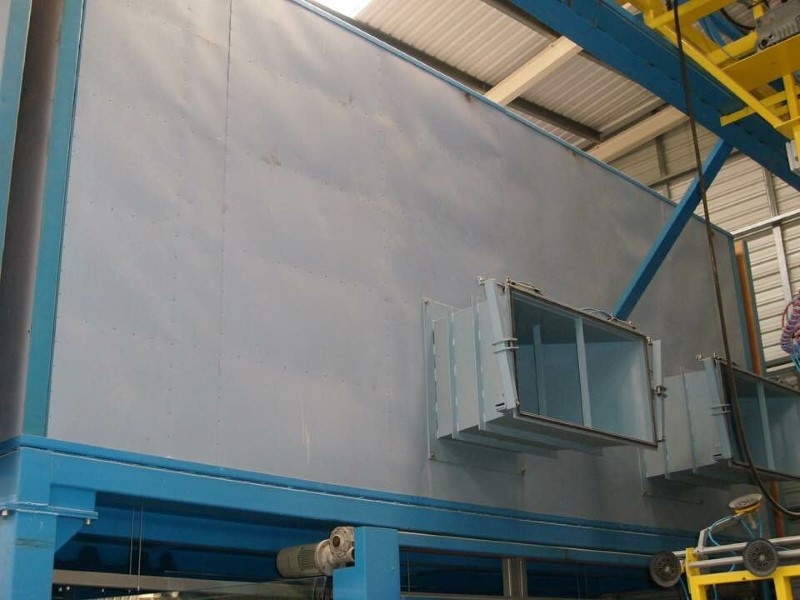

GLASSROBOTS - Rainbowmaker TSF COMBI 350 / 350 Turbo, Glass Bending FurnaceLarge-scale, exceptionally versatile production Bending & Tempering Furnace suitable for the processing of a wide variety of special Glass types such as painted and pyrolytically coated Glass.Typically used for the manufacture of large production Glass such as windshields for large trucks and buses; the machine also allows for bending without tempering and guarantees the serial production of top-quality, optically superior Glass.Throughput version system with: (3) Mold wagons, which are motorized and automatic. Additionally, the Chiller Unit is automatically adjustable according to the bending radius. The "350/350" enables production of Glass with smaller girth and standard height, as well as bigger girth with lower height.Features: ● PC-Based Control System provides flexible and precise bending. ● Continuous measuring of the Glass temperature, together with the patented mold system, allows considerably tighter form tolerances and outstanding clear optics. ● System does not use expensive ceramic molds, but rather a special module-type mold with a gravity-based bending method.Specifications: - Max. loading area: 3,500 x 3,500 mm (137.7" x 137.7"). - Min. Glass size: 430 x 200 mm (17" x 7.9"). - Min. bending radius: 400 mm [6 - 12 mm). - Max. bending depth: 400 mm (15-3/4"). - Max. bending angle: 90 (1/4 Circle). - Thickness range: 6 - 19 mm (Fully tempered Glass). - Thickness range: 3 - 8 mm (Heat-strengthened Glass). - Machine footprint: 17,500 x 12,000 mm (57' x 39'). - Cycle time: (33) Min. for 15 mm Glass.NOTE: The machine is under power and in excellent, well-maintained condition. NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty, and domestic shipping to your Plant Door.
