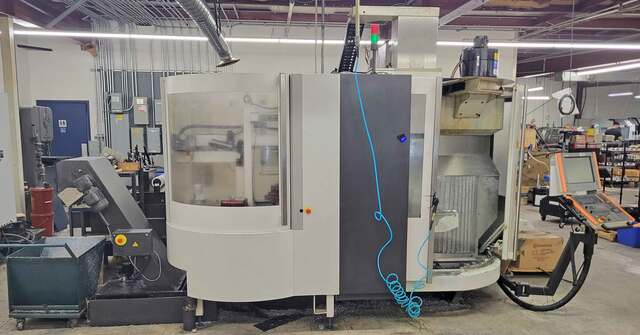

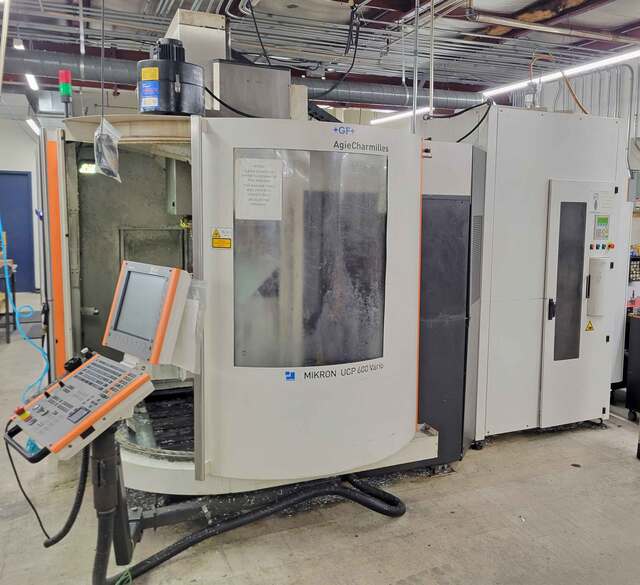

Mikron #UCP-600-Vario, 5-Axis, 120 automatic tool changer, 23.6" X, 17.7" Y, 17.7" Z, 20000 RPM, iTNC 530 Control, 2008

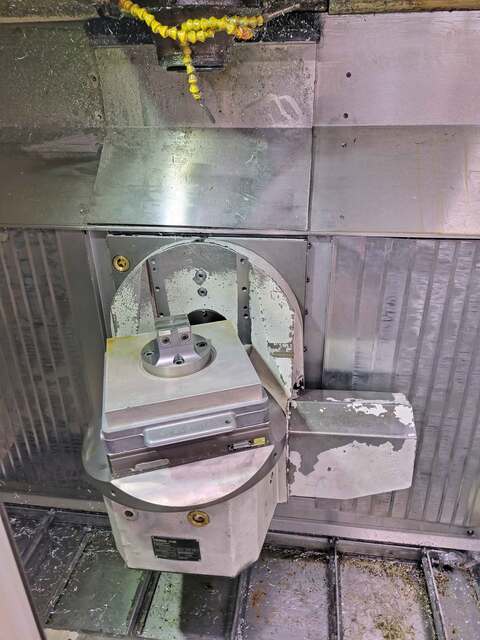

SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS OF FRANKE CNC SALES CONTRACT, WE OFFER FOR YOUR CONSIDERATION: One used 2008 +GF+ MIKRON UCP 600 Vario 5-Axis Machining Center with Pallet Changer: Machine was manufactured at +GF+ in Nidau, Switzerland 4/2008 Machine was first installed new in the USA 8/2008 May be inspected in plant under power by appointment CONTROL Heidenhain iTNC 530 with Ethernet and electronic handwheel for part setup WORKING RANGE Longitudinal X-Axis..................................... 23.6" (600 mm) Cross Y-Axis............................................ 17.7" (450 mm) Vertical Z-Axis......................................... 17.7" (450 mm) B-Axis (Swivel)....................................... -115/+30 degrees C-Axis (Rotary)........................................ n x 360 degrees Number of simultaneous axis........................... 5/5 simultaneous FEED DRIVE Feed Rate X/Y/Z..................................... 590 IPM (15 m/min) Rapid Speed X/Y/Z................................... 866 IPM (22 m/min) Rapid Speed B-Axis (Swivel)..................................... 25 RPM Rapid Speed C-Axis (Rotary)..................................... 33 RPM DYNAFIX PALLET RTT (ROTARY TILT TABLE) Pallet Clamping Surface..11.02" x 11.02 (280 x 280 mm) or 13.78 x 13.78 (350 x 350 mm) pallet sizes Maximum workpiece weight (manual loading)............. 441 lbs (200 kg) Maximum workpiece size (manual loading).17.72 diameter x 17.72 height (450 mm x 450 mm) Pallet type this machine and pallet changer are equipped for............. System 3R Dynafix pallets Number of pallet stations pallet changer is equipped with7 x pallet stations All feed motors are liquid-cooled Direct measuring system on the B and C-axis HEIDENHAIN rotary encoders 0.00004 (1 um) resolution AUTOMATION-TOOL TOWER Automatic tool changer tool tower.................................... 120 positions BLUM Laser tool measuring system.............................. Standard Infrared parts measuring touch probe............................... M&H Automatic pallet changer number of pallet stations................... 7 WEIGHT Including pallet changer........... Approximately 16,976 lbs (7,700 kg) Machine base................................................... Polymer/man made granite STEPTEC SWISS MADE SPINDLE Spindle taper.................................................. HSK A63 Spindle RPM................................................. 20,000 RPM Spindle power 40% ED................................... 40.2 HP (30 kW) Spindle torque 40% ED............................... 67.1 Ft/Lb (91 Nm) EQUIPPED WITH: Chip conveyor for higher demands (aluminum machining) Spray gun External spindle chiller Direct measuring system Heidenhain glass scales X/Y/Z, Encoders B,C Completely enclosed machine cabin 18-70 bar (261 PSI-1,015 PSI) Coolant Thru The Spindle, with paper band micro filter BLUM laser tool measuring of tool length and diameter M&H Infrared Parts Measuring Touch Probe Miscellaneous used pallets Oil mist extractor Beacon To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
