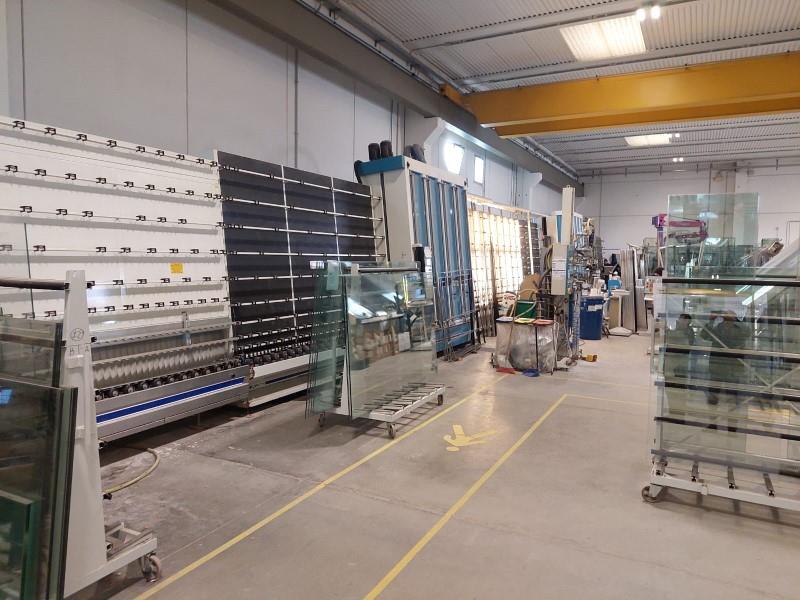

Forel #I.G.-2535-L-R, Insulating Glass Line, 98" x 137" Glass Size, 0.11" x 2" Thickness, 137.8' length, left to right direction, 2008

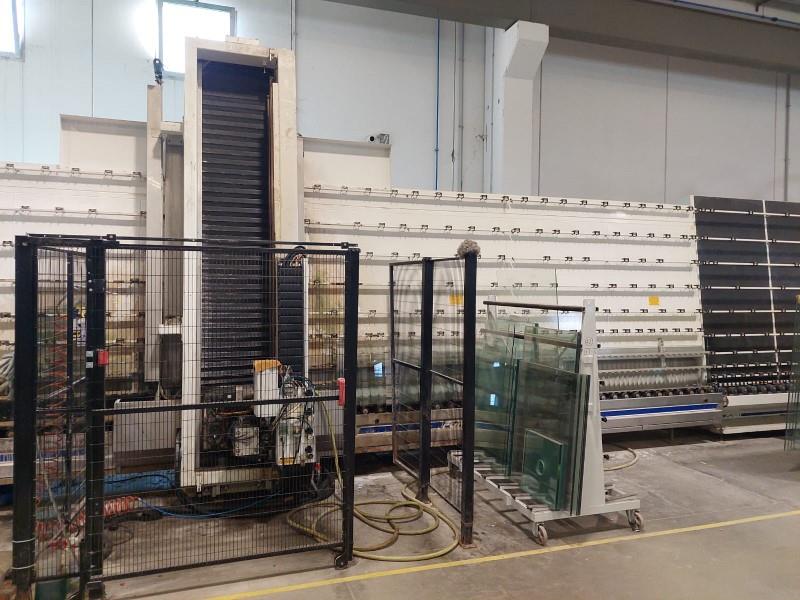

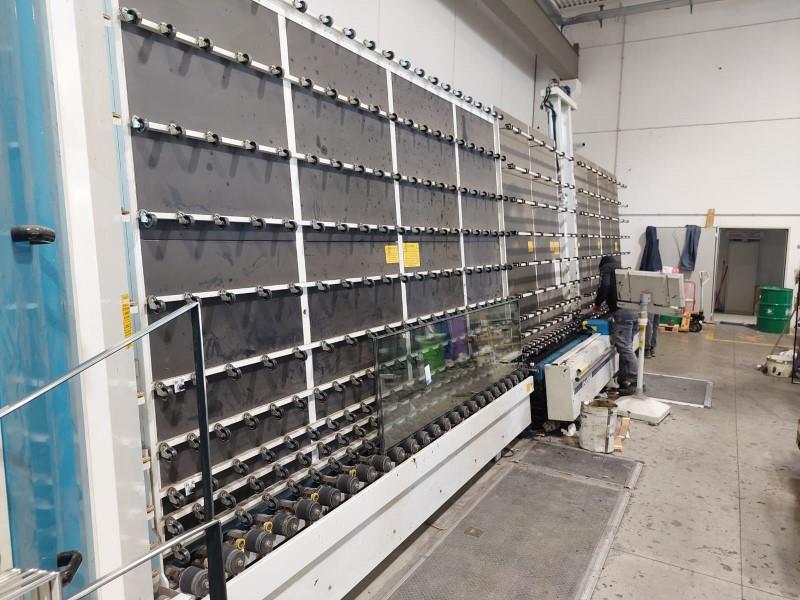

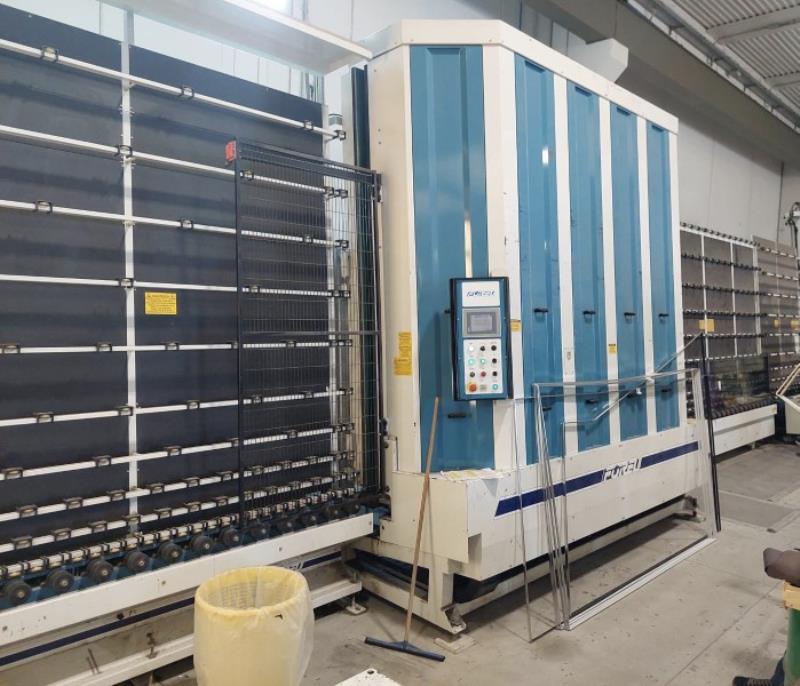

FOREL I.G. 2535 L-R Insulating Glass Line - 2500 x 3500 mm (98" x 137") Left to RightThe loading zone at the inlet is designed to feed the washer in a timely manner. Using an 6-Brush washer and drying zone ensures cleanness of the single glass sheets before frame mounting and insulating glass assembly.Final visual quality checks are done at the frame mounting station. The press finalizes this automated process before manual take off and secondary sealing.Working direction: Right to Left.Consists Of The Following Equipment Components:Edging MachineVertical compact grinding machine for the edging of glass sheets on all four sides in a fully automatic cycle. Are simultaneously processed the front and rear side of a glass edge, the grinding head moves, allowing it to reach all four sides of a glass sheet. This grinding process achieves a perfect and gentle finishing of glass edges with the shortest cycle times and minimizes the quantity of required abrasive tools.Vertical Washing MachineAutomatic washing and drying system for glass panes with infinitely variable adjustment of the glass thicknesses. With Low-E capability.Assembly And Frame-Setting StationVertical station for the manual application of spacer frames on glass sheets. After feeding in the glass sheet to the reference point, the auxiliary frame mounting stops automatically adjust to the bottom and front vertical glass edge.Gas PressFully automated machine for gas pressing of insulating glass units. The press is suitable for processing insulating glass units, any kind of shape (Shape Catalogue), cast glass, and laminated glass. Precise metering of the quantity of gas and a specially developed nozzle system enable units to be filled with argon or krypton at the highest possible gas filling rate. When using mixed gases, precision regulators will control the gas amount and mixing ratio.Automatic Sealing RobotAutomatic sealing machine designed to apply a sealant to insulating glass units. The machine consists of an infeed and outfeed section and of an unloading station.A separate measuring section in front of the machine measures the thickness of the glass panes, the air spaces between them, and the total thickness of the glass unit. The top edge of the insulating glass unit is guided along a horizontal roller beam. In this way, glass units are conveyed at a given distance to the back panel in the sealing sections. They are transported on a wear-resistant transport chain, which supports the unit’s bottom edge only slightly and keeps the sealing cavity-free for sealant application. A suction device, guided in a linear manner and integrated into the back panel, ensures that insulating glass units are transported with no slippage.Specifications: ● Max. glass size: 2500 x 3500 mm (98" x 137") ● Thickness: 3 - 52 mm (0.11" x 2") ● Direction: Left to Right ● Estimate length: 42000 mm (137.8 ft)NOTE: Equipment is
