For Sale by Frain Industries
Surplus Record Dealer Since 1991
Location: Carol Stream, IL
Contact Katie Frain
Phone Number: 630...> Show Phone Number 630-629-9900
Let the seller know you found their listing on Surplus Record!
Description

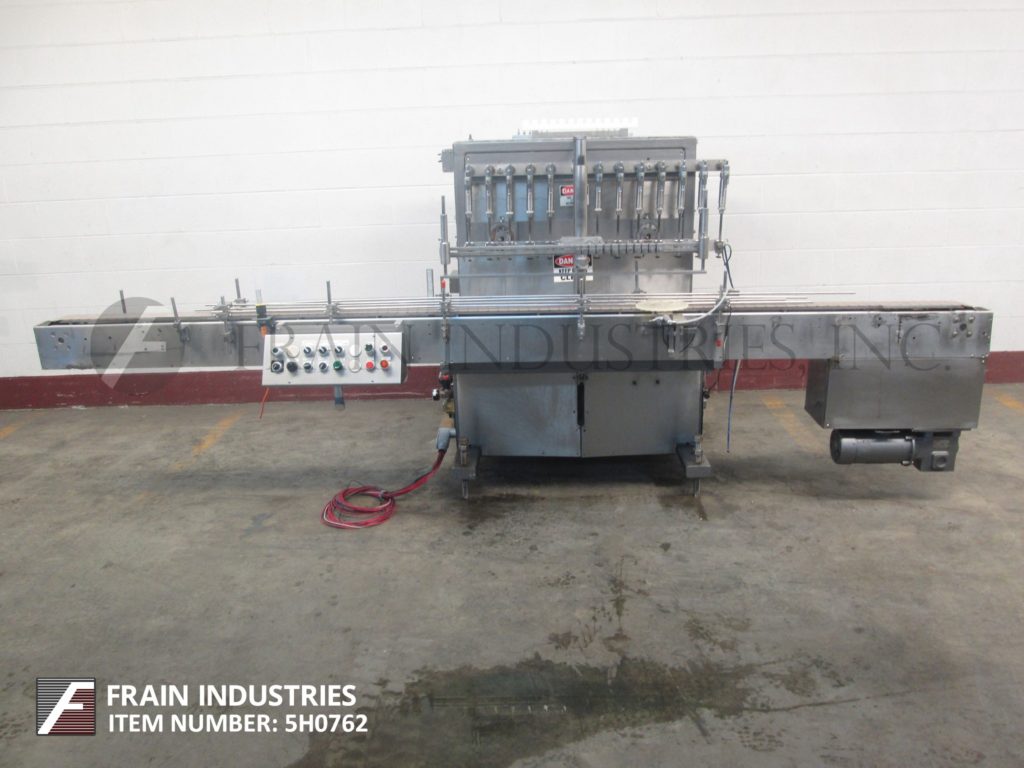

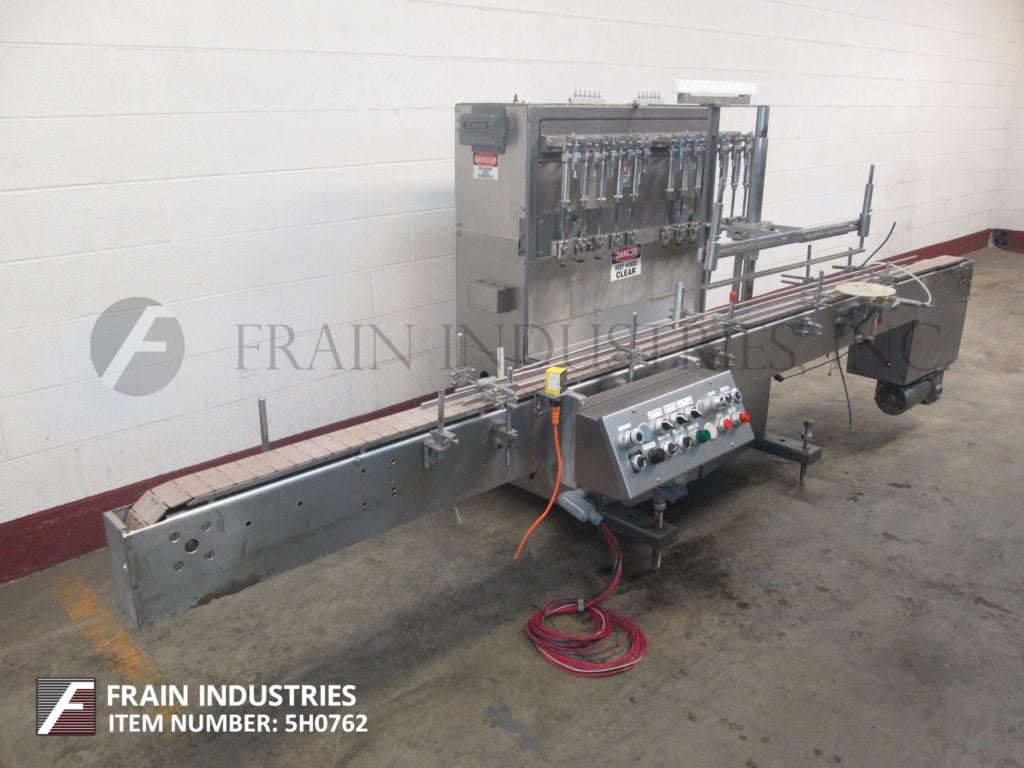

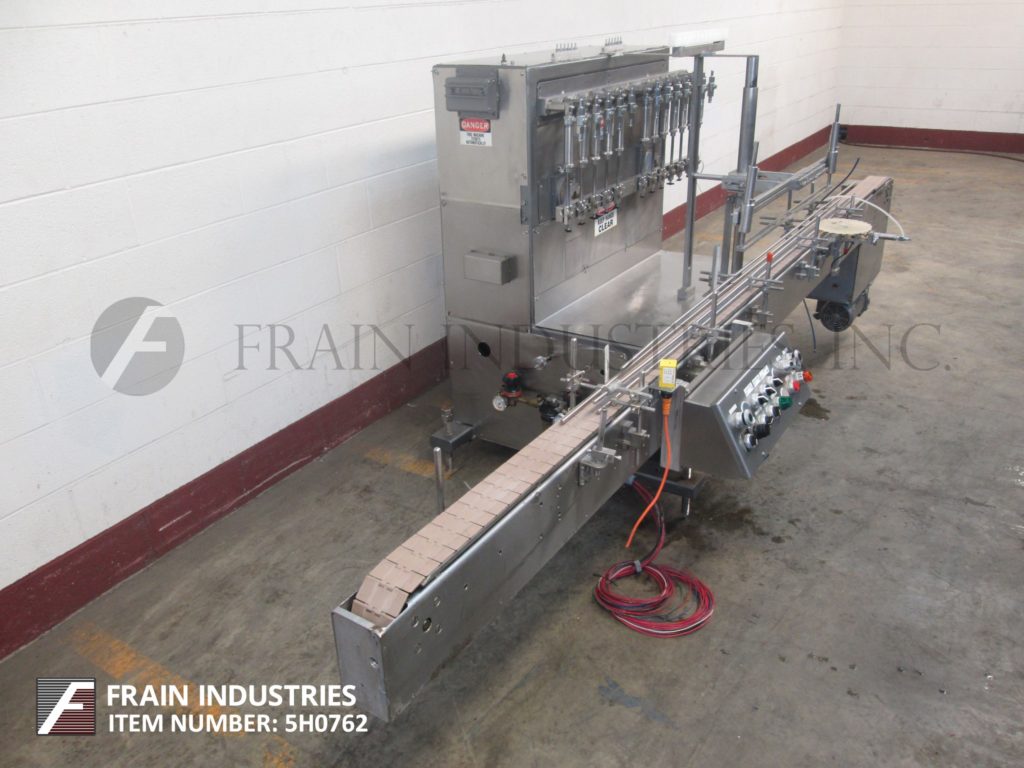

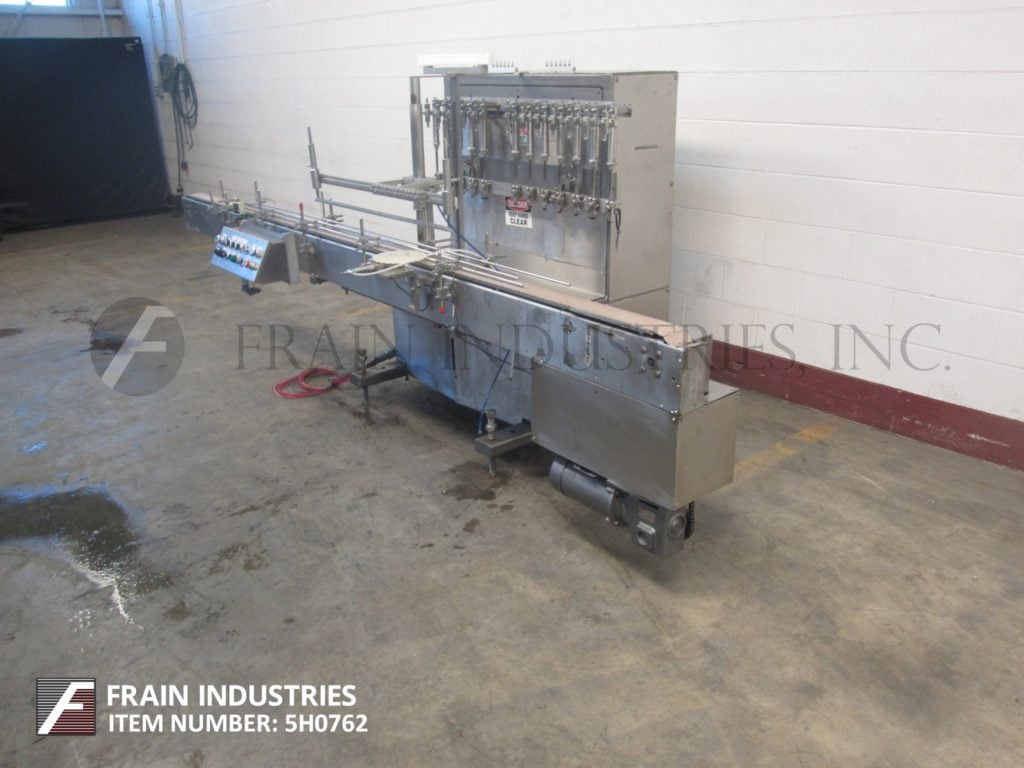

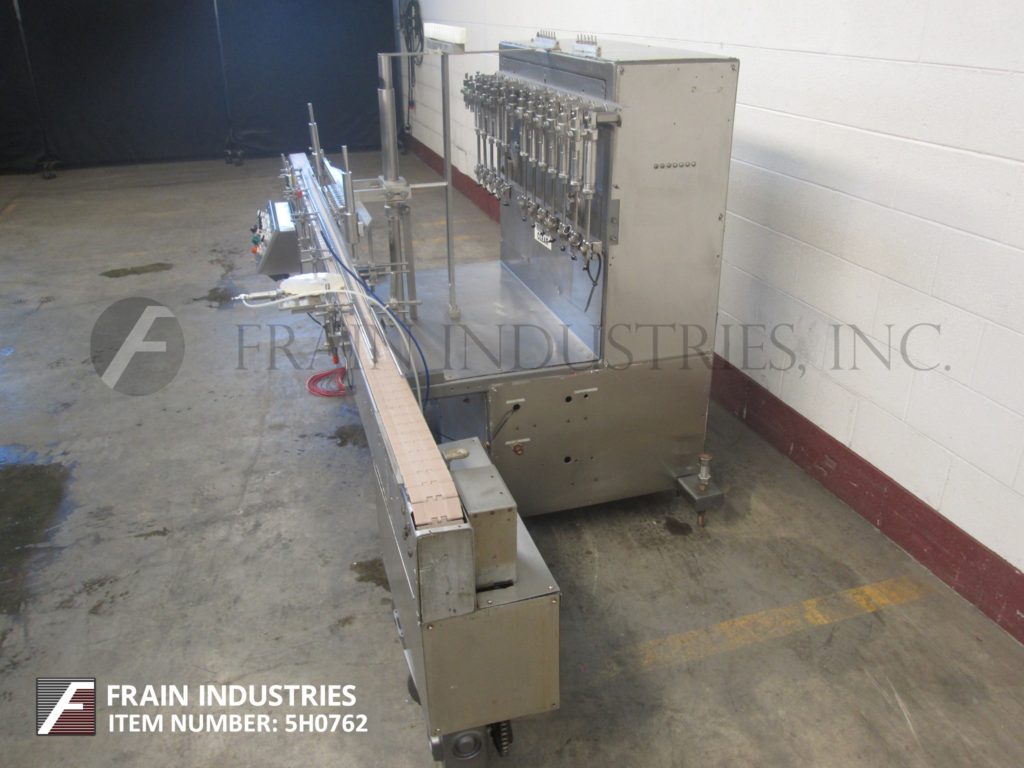

Filamatic Model CVK-500 12 head, high speed in line, automatic piston filler for free flowing, semi viscous and viscous product rated from 24 to 120 containers per minute – depending on materials and application. Fill volume: 0.10cc to 1300cc single stroke (with proper change parts) Currently set with 30cc pistons. Equipped with 136" long x 3-1/4" wide plastic delran conveyor with star wheel indexing, currently set with (12) 30cc pistons, set on 3-1/2" centers. Control panel has filler, conveyor and hesitation speed controls with start, stop and e-stop push buttons. Mounted on stainless steel base frame with height adjustable legs.
OAD: 156" L x 60" W x 58" H
Get Your Price from Frain Industries!
