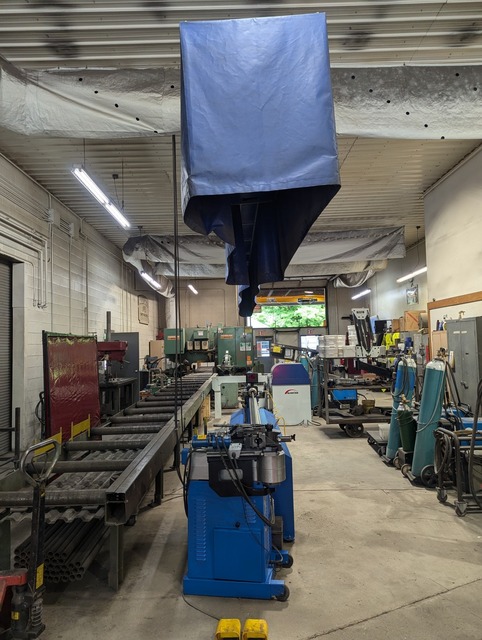

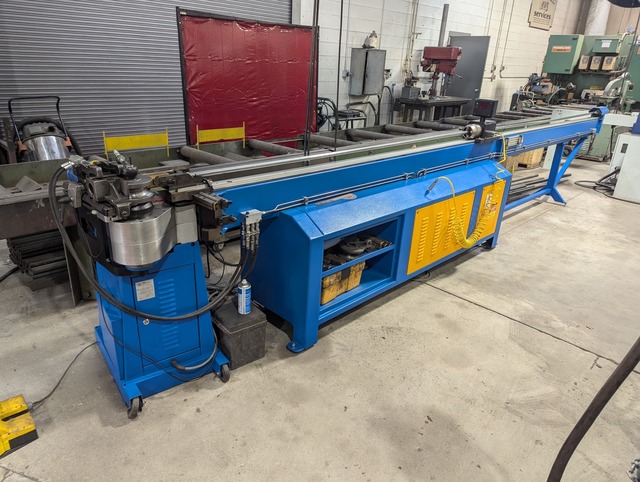

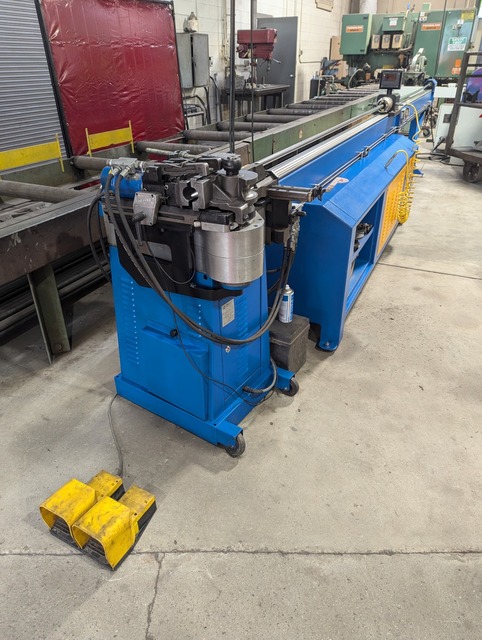

Ercolina #030, cnc semi-automatic mandrel bending machine, variable bending speed

OVERVIEW

Ercolina’s030 Mega Bender”‘ with mandrel system is ideal for prototype or small production mandrel bending applications.

KEY FEATURES

Programmable bend angle

Ideal for bending handrail, wall mild steel, stainless steel, bend grade aluminum and other materials

Programmable bend sequencing and mandrel retraction

Independent clamp and pressure die adjustment

Variable bending speed

Quick change tooling reduces setup time

Bending software available for part layout guides

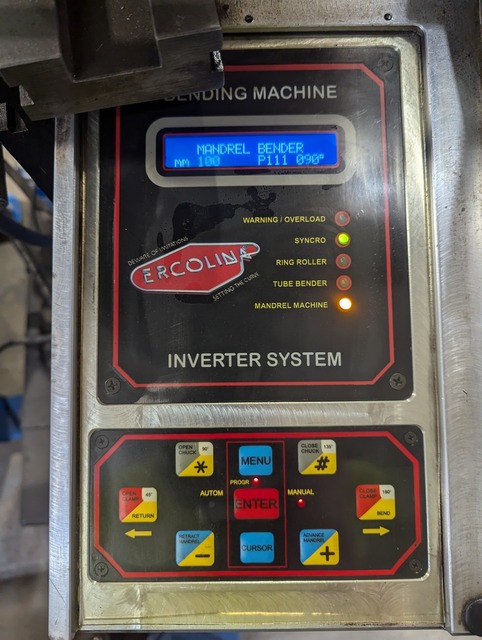

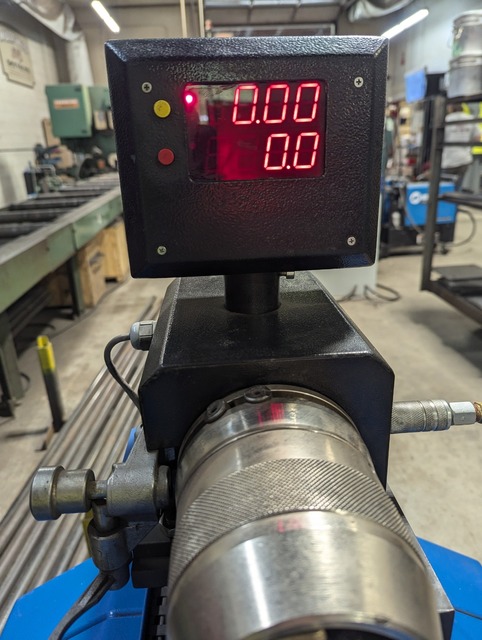

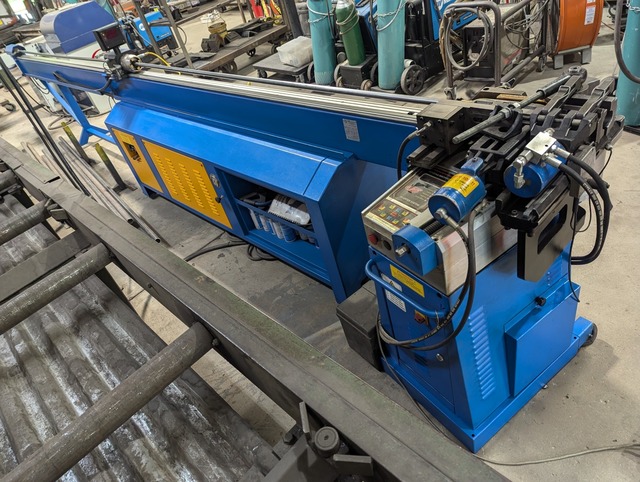

reference display of Y & B Axis to assist setup

Y – Feeding manual with adjustable stops

B- Feeding manual with adjustable stops

C- NC programmable bend angle

CAPACITIES & SPECIFICATIONS

Max. Tube Capacity – Mild Steel: 2-1/2″ (.083 wall)

Stainless: 2-1/2″ (.065 wall)

Square Tube (.065 wall)

Max. Pipe Capacity 1-1/2″ Sch. 40

Min. Bending Radius 1.5 x 0

Max. Shaft Rotation 210′

Max. Bending Angle 180′

Max. Tailstock Capacity 2’/4″(2½” with adapters)

Max. Material Length – 5′ table 59″

10′ table 118″

20′ table 240″

Mandrel Table

(available in S’-10′-20′ lengths) Maximum Carriage Travel Number of Programs Precision of Bend Angle

3ph Motor

Height x Width x Length 44″ X 32″ X 83″-260 “

Shipping Weight 1,600 lbs.
