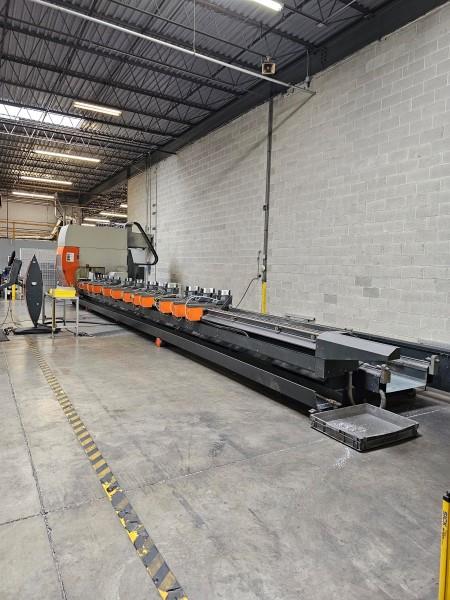

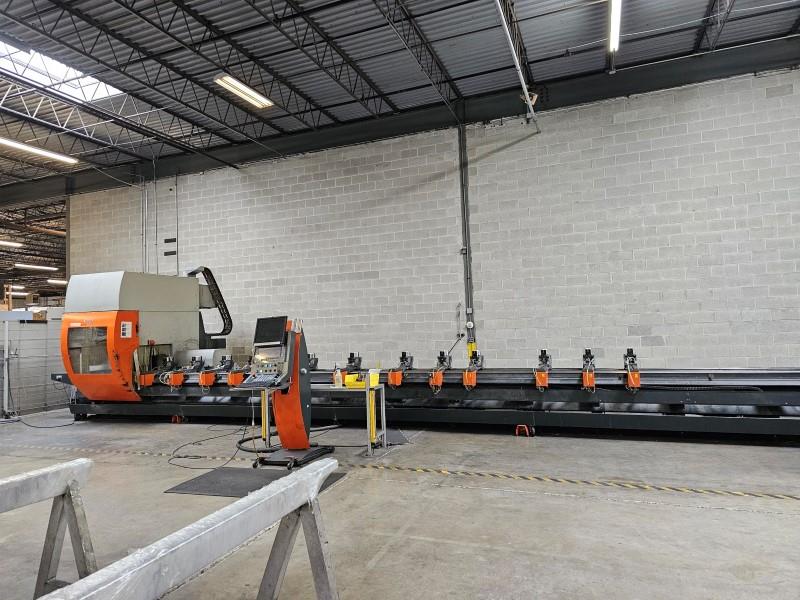

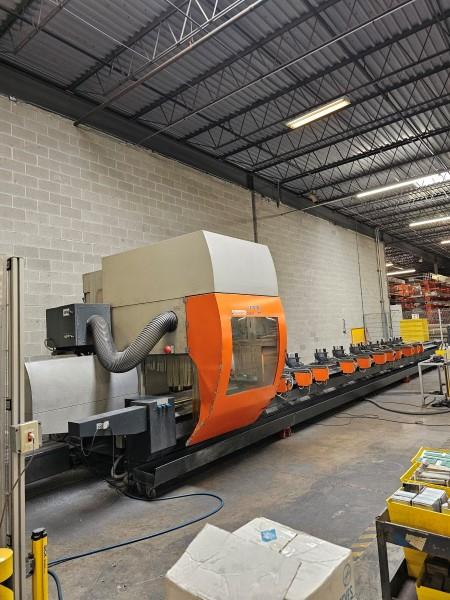

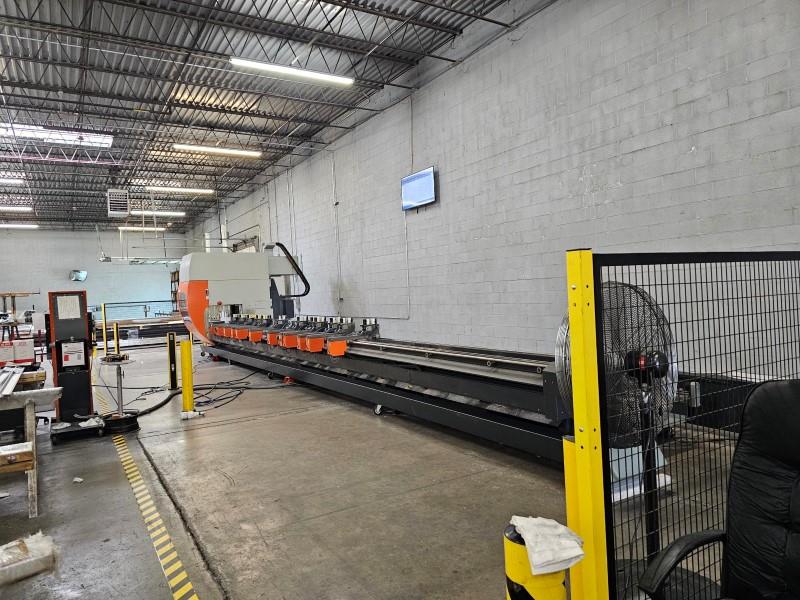

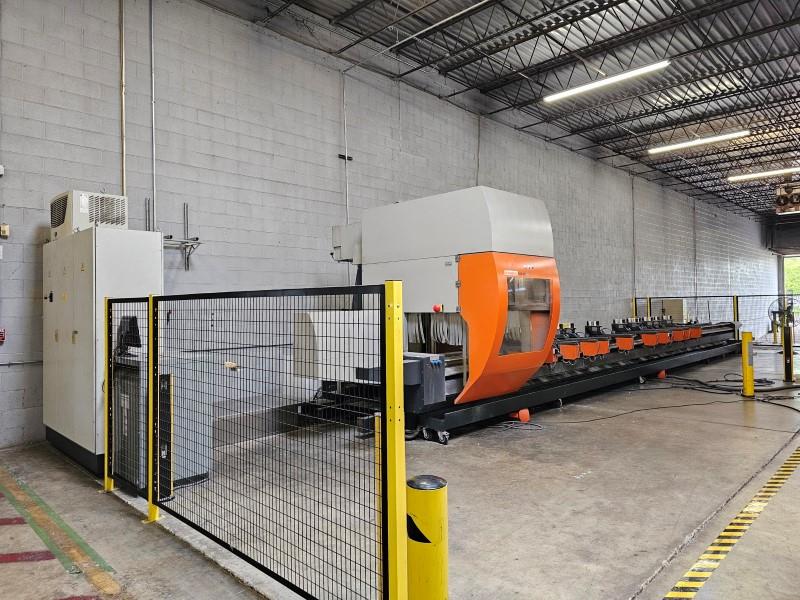

Elumatec #SBZ-151, Profile Machining Center, 10300 mm X, 1150 mm Y, 715 mm Z, 167 FPM X, 102 FPM Y & Z, 24000 RPM, 20 kW, 2009

ELUMATEC SBZ 151 CNC Profile Machining Center - 10.3 M (33.8 ft)5-Axis CNC automatic profile machining center designed for flexible and efficient machining of aluminum and thin-walled steel profiles. All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surfaces.One magazine can be equipped with (13) standard tools and (7) special tools (angle routing head and special cutters). An additional magazine for the saw blade, diameter 400 mm or 500 mm.Capacities:Max. machining length with profile end machining, 9,980 mmMax. machining length without profile end machining, 10,300 mm Traverse path X-axis 10,300 mm / Vmax. 66 m/Min (167 FPM)Traverse path Y-axis 1150 mm / Vmax. 40 m/Min (102 FPM)Traverse path Z-axis 715 mm / Vmax. 40 m/Min (102 FPM)Pivoting angle A-axis: for saw blade with diameter of 500 mm +/- 100 (for saw blade with diameter of 400 mm +/- 110)C-axis pivoting angle: +/- 182Positioning accuracy X-/Y-/Z-axis +/- 0.1 mm/m (A-/C-axis +/- 0.1)Specifications:Max. spindle speed 24,000 RPMSpindle power output: 20 kW S1Right tool changer: (20) tool positionsLeft tool changer, one saw blade with a diameter of 500 mm (400 mm optional)Max. cutting tool dia.: 100 mm(12) ClampsTool holder HSK-63FCompressed air supply 7 bar (100 PSI)Air consumption per minute approx. 265 liters (with mist spraying option)Dimensions: 12410 x 3150 x 3065 mm (489" x 124" x 121")Weight: 9000 kG (9250 Lbs)Features: ● Autonomous clamp positioning with absolute measurement system ● Two separate working zones enable machining in shuttle operation ● Secure access with safety fences and light barriers ● 5-Axis CNC control with independent CNC for 3D machining, notching, and cutting. ● The absolute rotary encoder system means no axis homing is required ● Network connection and USB port ● Operating panel with WINDOWS operating system and 15" flat screen display ● Remote maintenance via TCP/IP using existing Internet connection eluCloud readyIncludes The Following Additional Options: ● Automatic length measuring (on both sides) ● (2) External reference stops for (2) working zones ● Autonomous tensioner displacement ● Clock device with special tensioner ● HSK-F63 quick-action chuck for clamping range 1 - 10 mm ● Saw blade holder HSK-F63 ● Manual control unit for CNC-NUM with electric hand-wheel ● Network connection PC control, telephone support ● Pulse Spray Mist Coolant System ● Chip Collection Tray ● Air Conditioning Unit for Control Cabinet ● Hand-Held Mobile Control with Start-Stop Switch and Feed ControlNOTE: The machine is in excellent condition, currently under power and in production. NOTE: EX-FACTORY’s Logistic Department is experienced and set up to provide “Full Service Logistics"; from the Seller to your Door. …Packaging, Loading, and Insurance (
