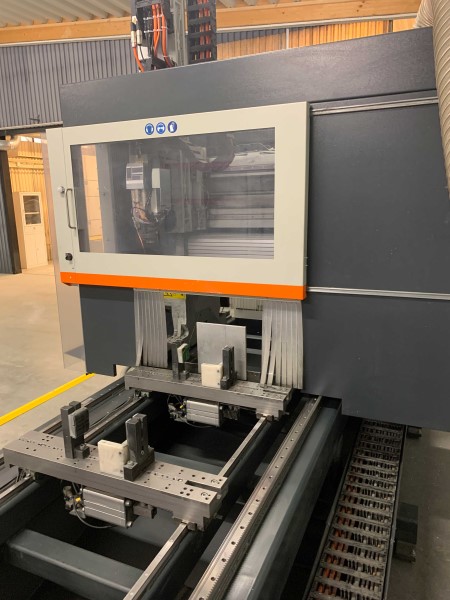

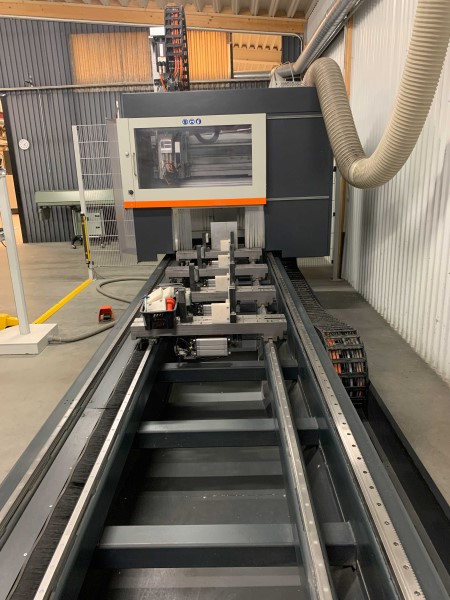

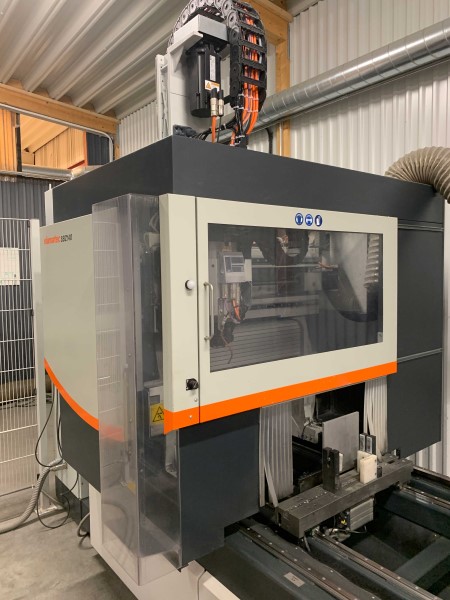

Elumatec #SBZ-140, Profile Machining Center, 165" X, 33.5" Y, 25.5" Z, 213 FPM X, 196 FPM Y & Z, 24000 RPM, 8 tools, 2017

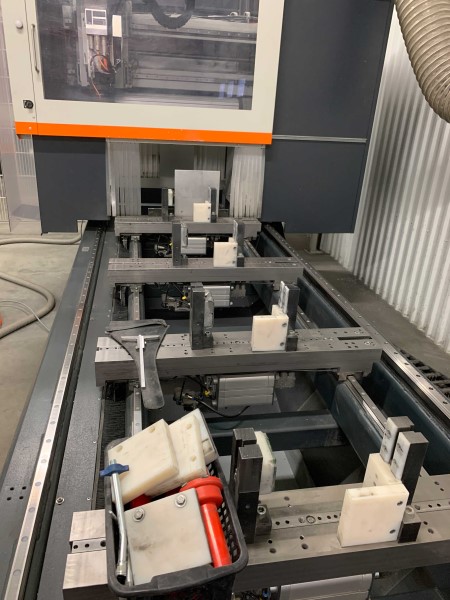

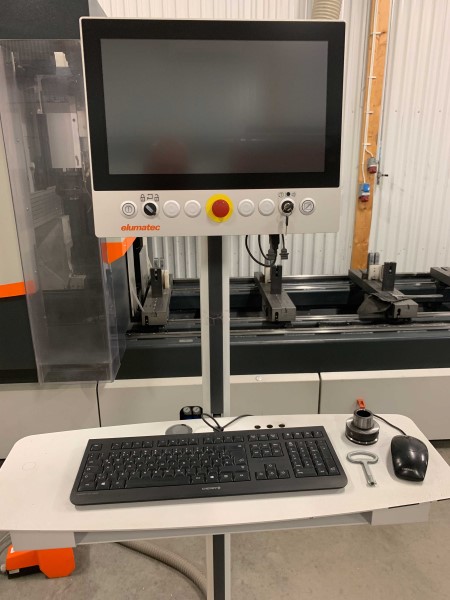

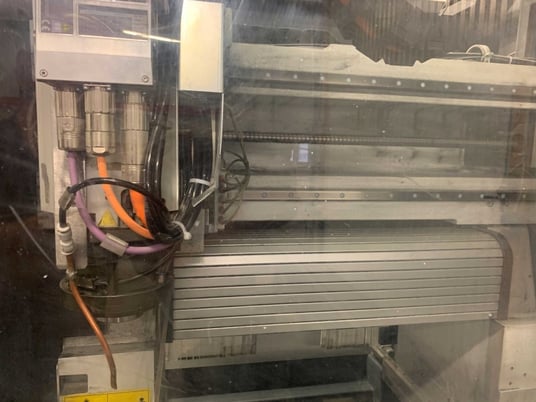

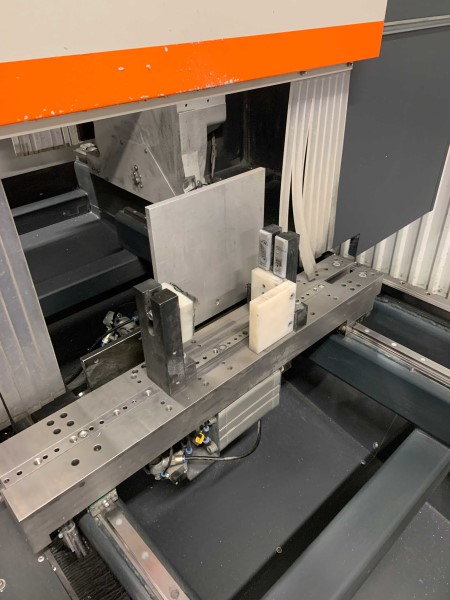

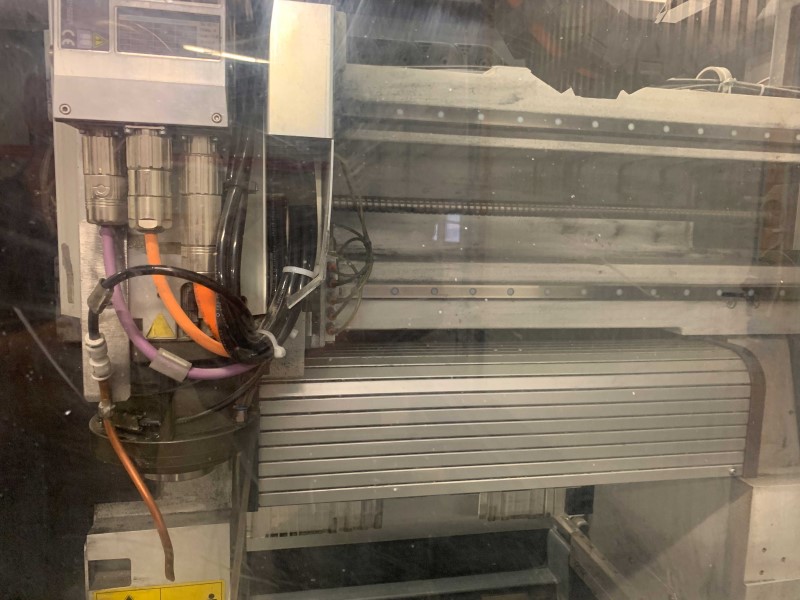

ELUMATEC SBZ-140 CNC Profile Machining Center4-Axis CNC profile machining center designed for efficient and economical machining of aluminum and thin-walled steel profiles. Machining with all tools at angles continuously adjustable from 0 to 180The On-board Tool Magazine ensures that tool changing times are kept short, thereby optimizing working cycles. The magazine can be equipped with (8) tools. A rotating head with (2) different tools for double-bar and end machining 0 – 90 – 180 – 270. (2) Separate working zones enable machining in shuttle operation. The electronic 4-axis industrial PC control for 2.5D application possesses a 15" colour display and RJ45 10/100 MBit network connection.Machining Lengths:SBZ 140 - 4.2 m (165")Max. machining length with profile end machining, 4,080 mm (160-1/2")Max. machining length without profile end machining, 4,200 mm (165")Specifications: -- Traverse X-axis: 4200 mm (165") / V max. 65 m/Min (213 FPM) -- Traverse Y-axis: 850 mm (33-1/2") / V max. 60 m/Min (196 FPM).. -- Traverse Z-axis: 650 mm (25-1/2") / V max. 60 m/Min (196 FPM). -- Pivoting angle A-axis: 0 - 180 freely programmable in 1/10 steps -- Spindle speed max. 24,000 RPM -- Tool changer with (8) tools -- Touch Screen Windows operating system -- 15" Flat screen display, USB ports and network connection (RJ45 10/100 MBit) -- Light Barrier for operator protection -- (4) Horizontal Material Clamps -- Pulsed Coolant System -- Barcode scannerFeatures: -- Automatic length measuring -- Automatic clamping device with collision detection -- Tool holder set, holder for endmilling tool -- Rotation in the head for angle head -- Toolplace for angle head -- Dimensions: 7865 x 3350 x 2700 mm (310" x 132" x 106") -- Weight: 4200 kG (9250 Lbs)NOTE: The machine is in excellent condition and ready for shipment. NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
