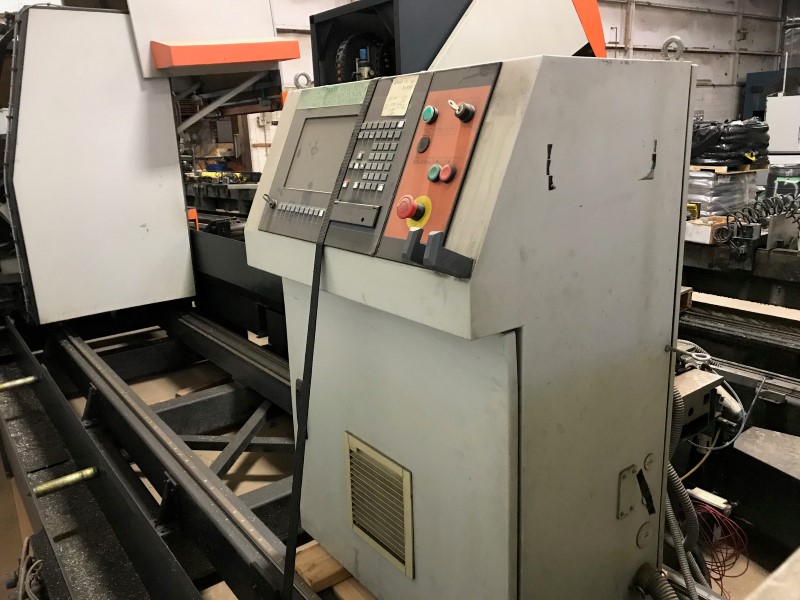

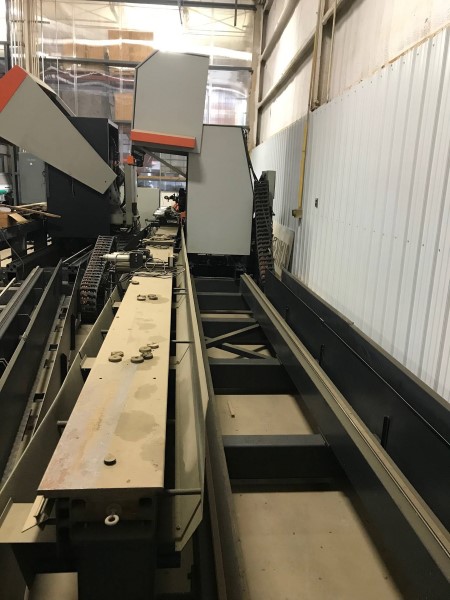

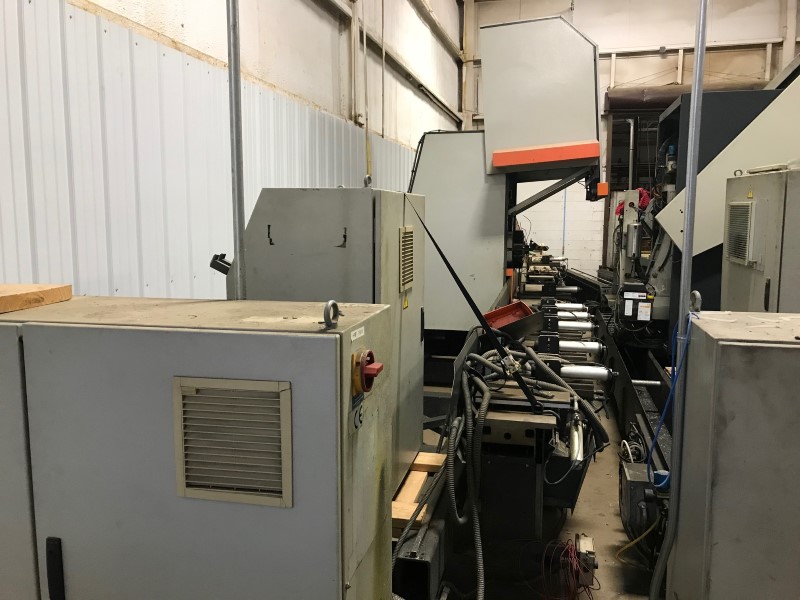

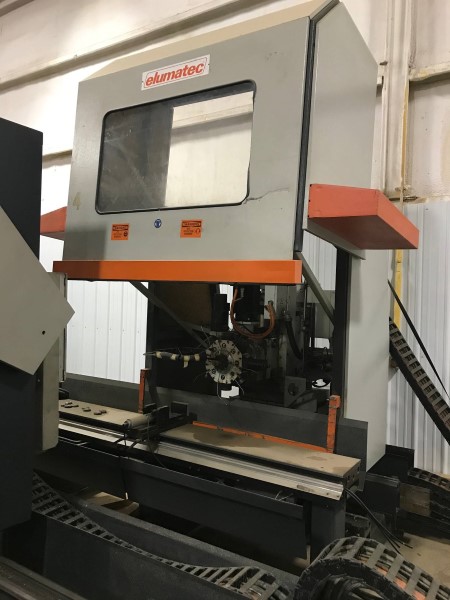

ELUMATEC SBZ-130 CNC Aluminum Profile Machining Center - 8.5 MeterA 3-axis CNC profile machining center is designed for economical and efficient machining of aluminum, steel, and stainless steel profiles. To protect the profile surfaces, all operations, such as routing, drilling, and tapping, are performed while the profile bar is stationary.The on-board turret head ensures that tool changing times are short, optimizing machining cycles. The turret head can be equipped with eight (8) tools or angle routing heads. Automatic clamping adjustment enables the machine to position the material clamps.Specifications: Bed length: 8.5 meters (335")Max. machining length with profile end machining, 8,380 mmMax. machining length without profile end machining, 8,500 mmTraverse X-axis: 8500 mm (335"") / V max. 60 m/Min (197 FPM)Traverse Y-axis: 485 mm (19") / V max. 30 m/Min (98 FPM)..Traverse Z-axis: 340 mm (13") / V max. 30 m/Min (98 FPM).Max. spindle speed: 6000 RPMSpindle power output 5.5 kWDimensions: 10,540 x 4230 x 3100 mm (415" x 167" x 122")Weight: 7257.5 kG (16,000 lbs)Features:Tool changer with (8) tools on turret head(12) Horizontal Pneumatic Clamps With Automatic Positioning Recognition SystemTouch Screen Windows operating system15" Flat screen display, USB ports and network connection (RJ45 10/100 MBit) (8) Horizontal Pneumatic Clamps With Automatic Positioning Recognition SystemWork Enclosure With WindowPulsed Coolant SystemAutomatic clamping device with collision detection(2) Front/Back Right Angle Tool Holders(4) Straight Tool Holders(2) Pneumatic Work StopsFoot Pedal Controlled Material StopNOTE: The machine is dismantled & in storage. Will need regular service but in good operating condition.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; to your Door. …Packaging, Freight, Insurance (door to door), domestic shipping to your Plant Door.
Make: Elumatec, Model: SBZ 130, Year: 2013, Machine Location: Upon Request, 3-axis profile machining centre, Designed for economical and efficient machining of aluminium, steel and stainless steel profiles, All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to ...more
The Elumatec SBZ130 CNC (2013) profile machining center is designed for high-speed, automated drilling, milling, and tapping of aluminum, steel, and PVC profiles. Ideal for window and door production, curtain walls, storefronts, and glazing systems. Ensures precision machining on multiple sides while protecting ...more
