electromagnetic chuck #ROTOPLUS-LUC+BRILL-1350, 2-machine line - 52" Polisher, 59" x 53" infeed, 2026, new

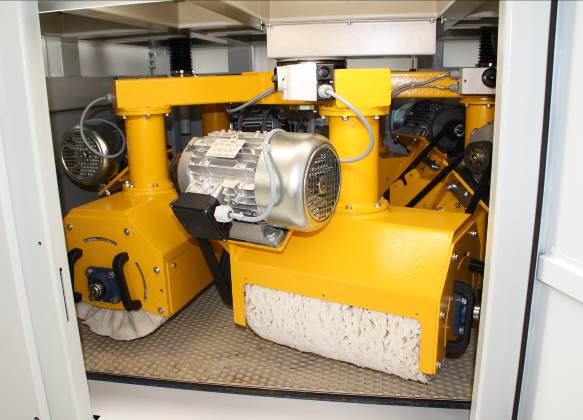

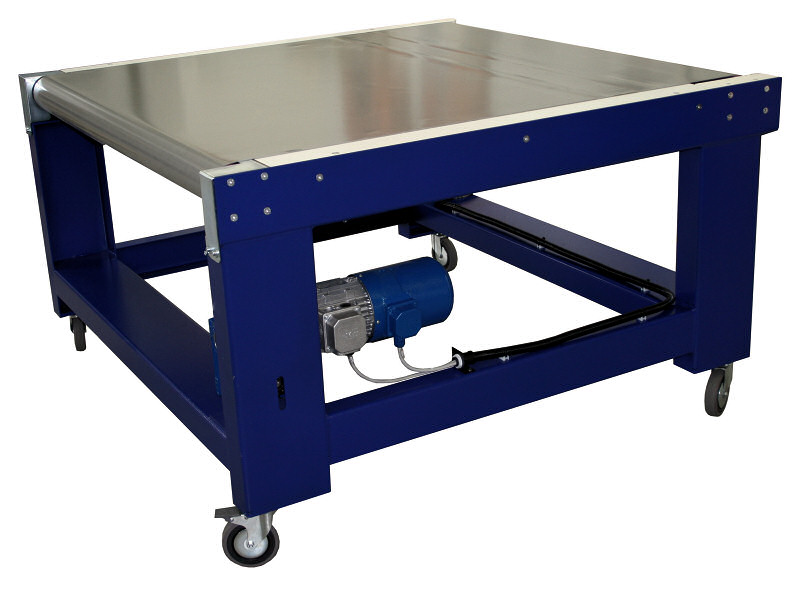

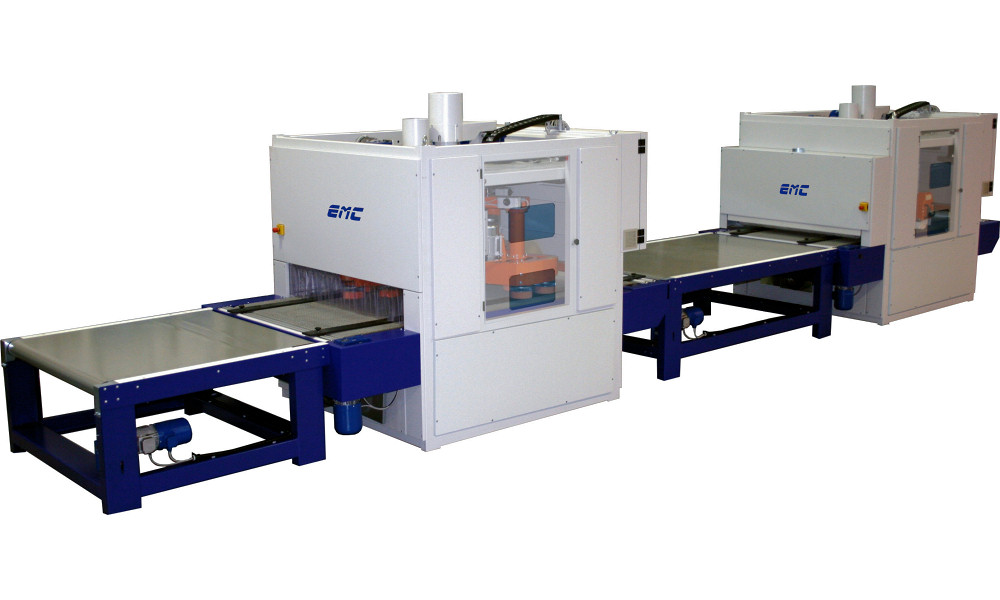

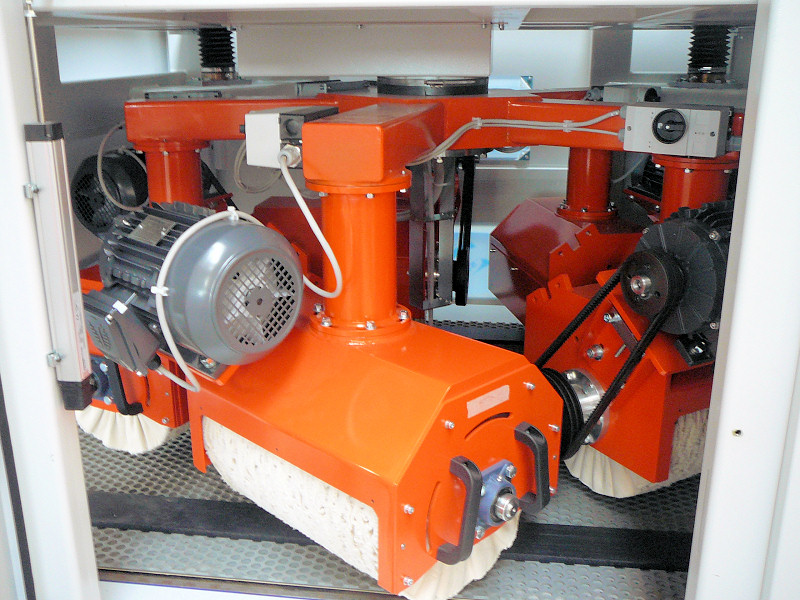

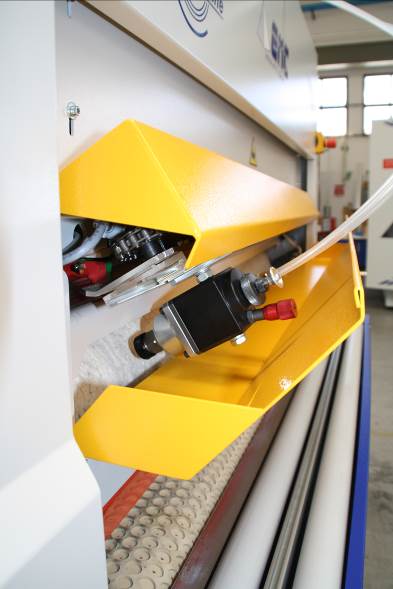

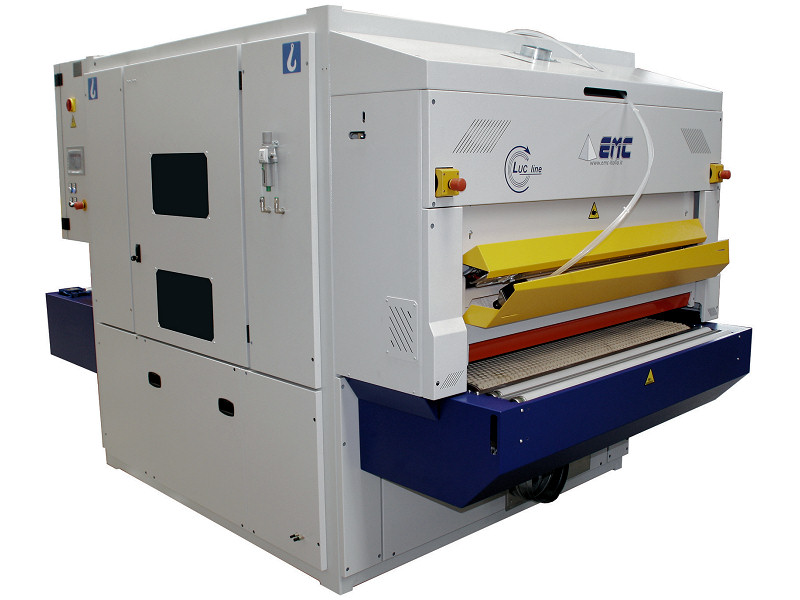

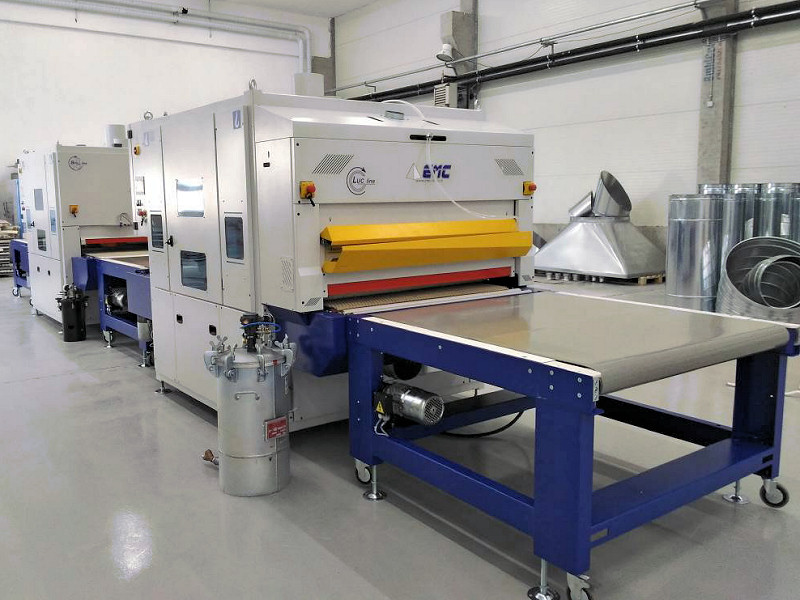

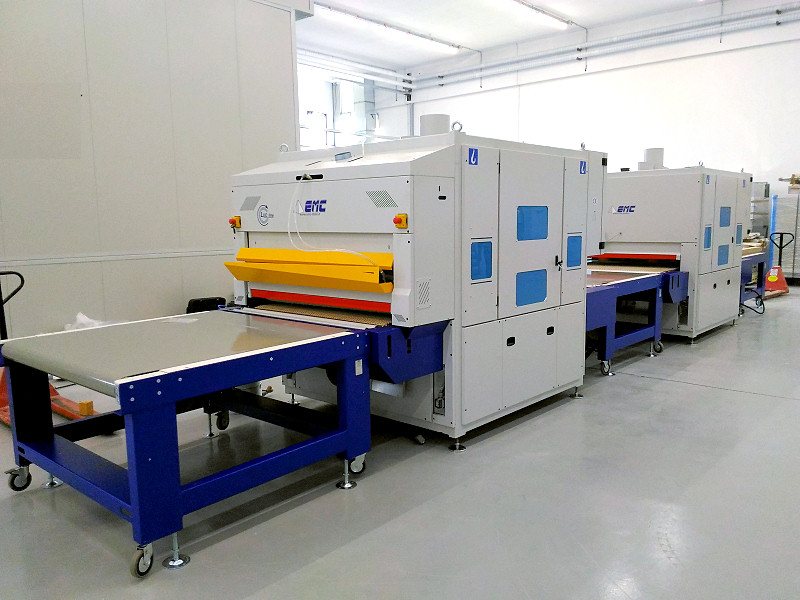

EMC ROTOPLUS 1350 – LUC (1)5 + BRILL 15 Polishing & Buffing LineHeavy Duty Automatic Polishing & Buffing line for high gloss lacquered panels, consisting of: -- Infeed Conveyor -- ROTOPLUS 1350 LUC 5+1 - Polishing and Wax Application machine -- Intermediate Conveyor -- ROTOPLUS 1350 BRILL 15x - Buffing Polishing machine -- Outfeed Conveyor -- Synchronization of feed speed of all equipment in the line, the Rotoplus machines including all conveyorsFollowing are the full specifications: -- Infeed Conveyor, 1.500 x 1.350 mm (59" x 53") Constant pass line 900 mm (35") +/- 40 mm (1-9/16"). Variable feed speed inverter controlled and electronically controlled for synchronized speed and transfer with all other machines of the line.Feed speeds from 0,4 to 8 m/Min (1,3 - 26 FPM). -- ROTOPLUS 1350 LUC 5+1Polishing and Wax application machine for high gloss lacquered wood panels for Polyurethane lacquer or brilliant straight, brushes adjustable at different angles. Equipped with (1) longitudinal Brush Head plus (5) rotating brushes on carousel.1st STATION - Longitudinal Polishing Brush:Cleaning polishing cotton brush diameter 275 mm (10-13/16").Length of the brush 1,420 mm (55-5/16").Brush inclined 3 in respect to the parallel 180.Automatic low pressure Spraying Gun.Longitudinal chain rail system for gun movement.Electric adjustment of the working pressure, operated from main touch screen control unit.Main motor power 7,5 kW (10 HP).Rotating speed adjustable from 260 to 960 RPM by means of inverter 7,5 kW (10 HP). 2nd STATION - Polishing Carousel: CAROUSEL with (5) Brushes.Max. Brush diameter: 350 mm (13-3/4").Spindle diameter 80 mm (3-1/8").Spindle length: 400 mm (15-3/4").(5) Independent motors, 5,5 kW (7,5 HP) each, with counter bearing supports.The working angle of the brushes is adjustable.Variable speed adjustable from 3 to 36 RPM by means of electronic inverter, driven by 4 kW (5,5 HP) motor.Clockwise and anti-clockwise direction of rotation.Programmable speed control operated from main electronic touch screen display. (5) Special shafts for brushes support EXTRA in addition to the standard ones.(5) Cotton rags 350 mm (13-3/4") to fit the shafts.Automatic System for Abrasive Wax application:Pressurized tank (50) liters for liquid abrasives, with automatic miscellaneous bottom exit and pressure regulator for gun.Low pressure spraying gun for liquid abrasives.Electronic valve for spray gun control.Infrared high precision photocell to detect the panels and activate the spraying gun.Adjustable support for spraying gun positioning.Software and graphic control, programmable through PLC and touch screen. Software and Plug for Telemetry. Computer remote diagnostics control: Direct computer connection between EMC and customer, for online support. -- Intermediate Conveyor, 1.500 x 1.350 mm (59" x 53"), Constant pass line 900 mm (35") +/- 40 mm (1-9/16"). Variable feed speed inve
