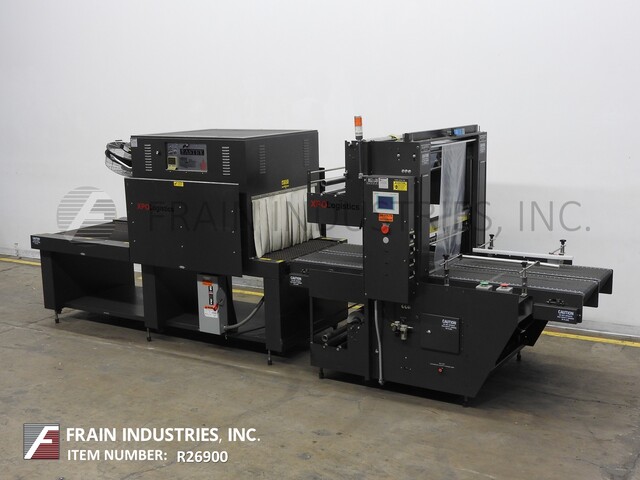

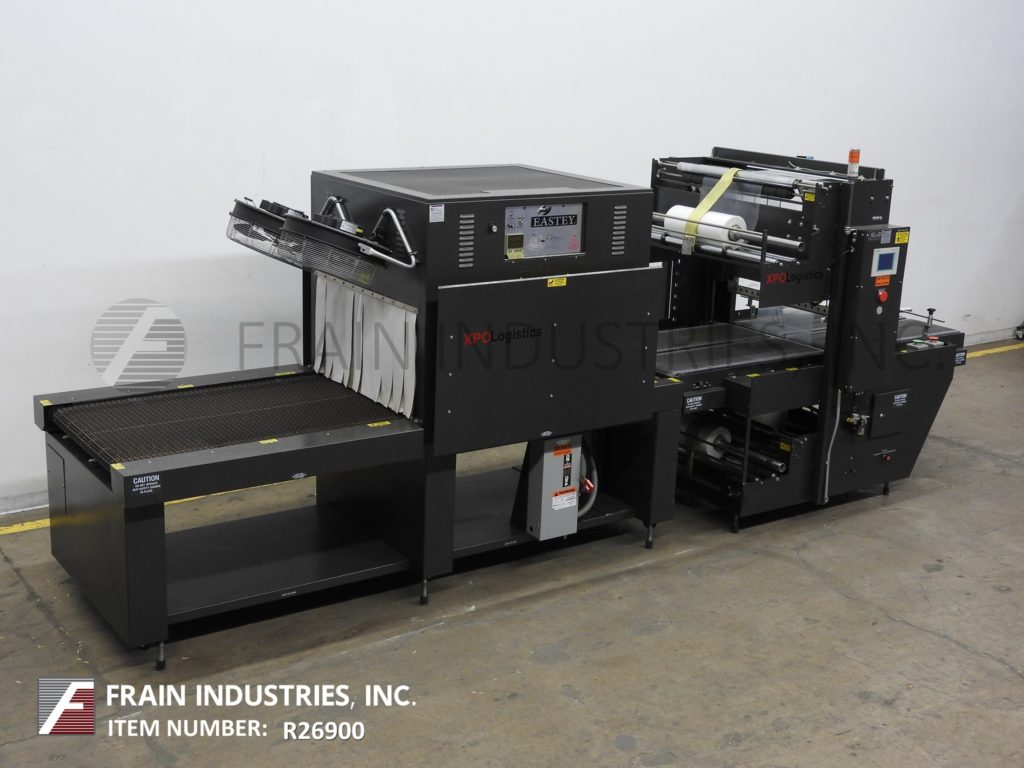

Eastey #EB-35-A, automatic, inline, intermittent motion, shrink bundler

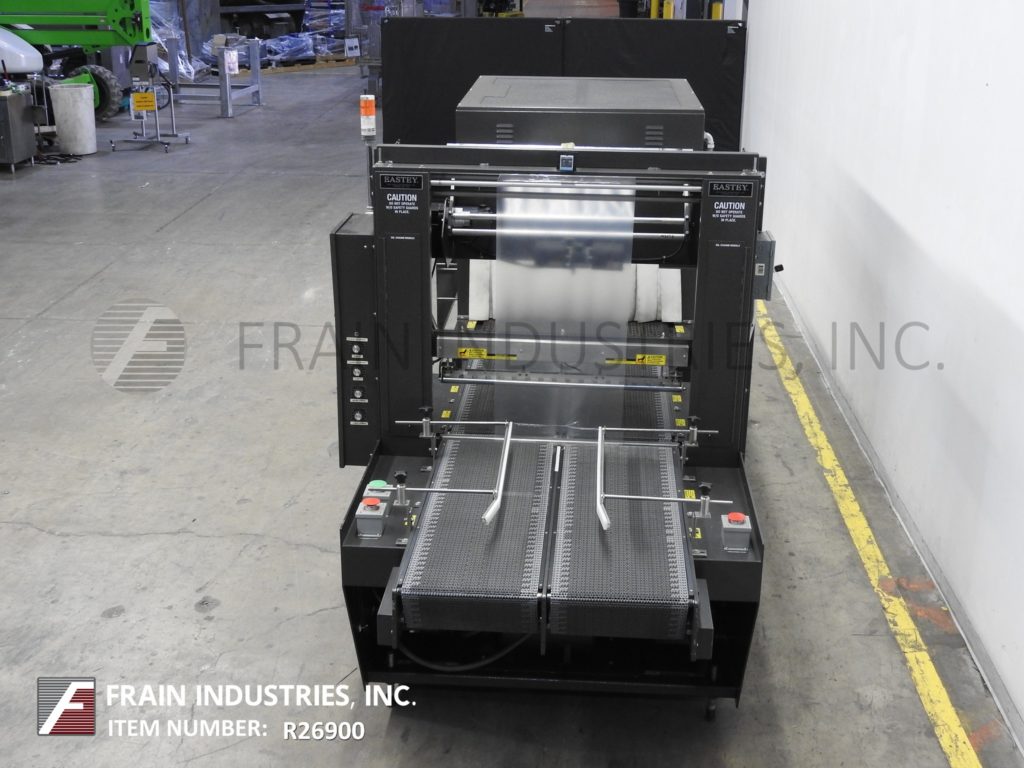

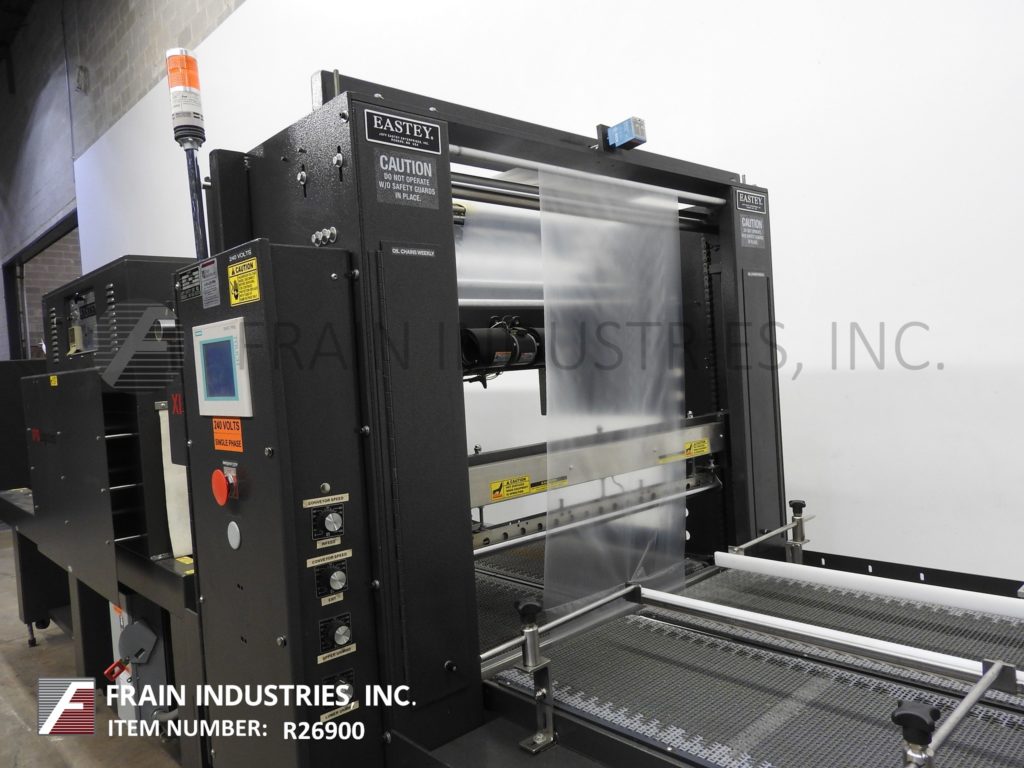

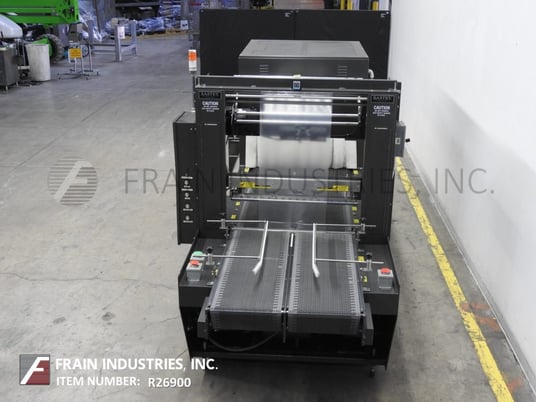

Eastey Model EB35A, automatic, inline, intermittent motion, shrink bundler. Package size: up to 35" in Width; up to 22" in Height. Equipped with dual 47" long by 30" (2×15") wide flex link in-feed and discharge conveyors, 36" wide hot knife seal jaw with 23" of vertical travel and PLC touch pad controller. Additional features E-Stops and status light bar. Accepts film up to 14" in diameter.

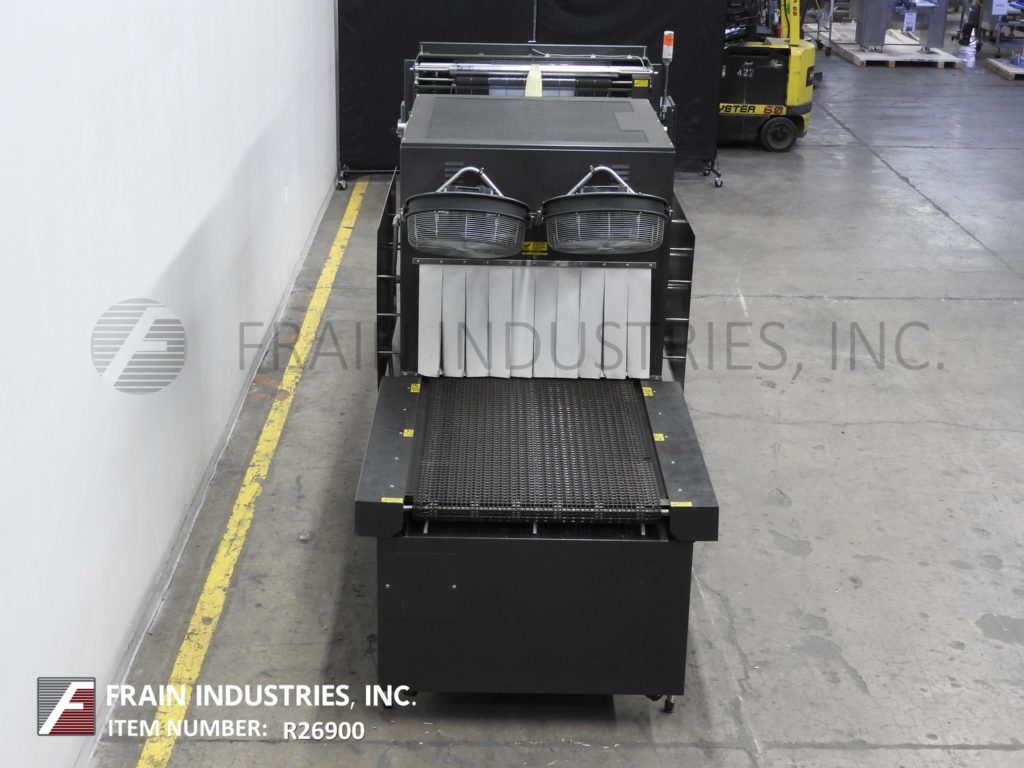

Eastey Model ET3620BU, shrink bundler tunnel. Aperture: 20" in Height; 38" in Width. Tunnel length: 52". Equipped with 120" long x 36" wide flex link conveyor and dual exit cooling fans. Control panel with power on / off, temperature, conveyor speed and air velocity. Mounted on height adjustable legs.

Speed dependant on materials, application and machine configuration.

OAD: 100" L x 60" W x 78" H (bundler)
OAD: 120" L x 55" W x75" H (tunnel)
