E-Pak, automatic, inline, Stainless Steel, feeder, spindle cappper, conveyor & capacity inspection, 10-90 containers/min.

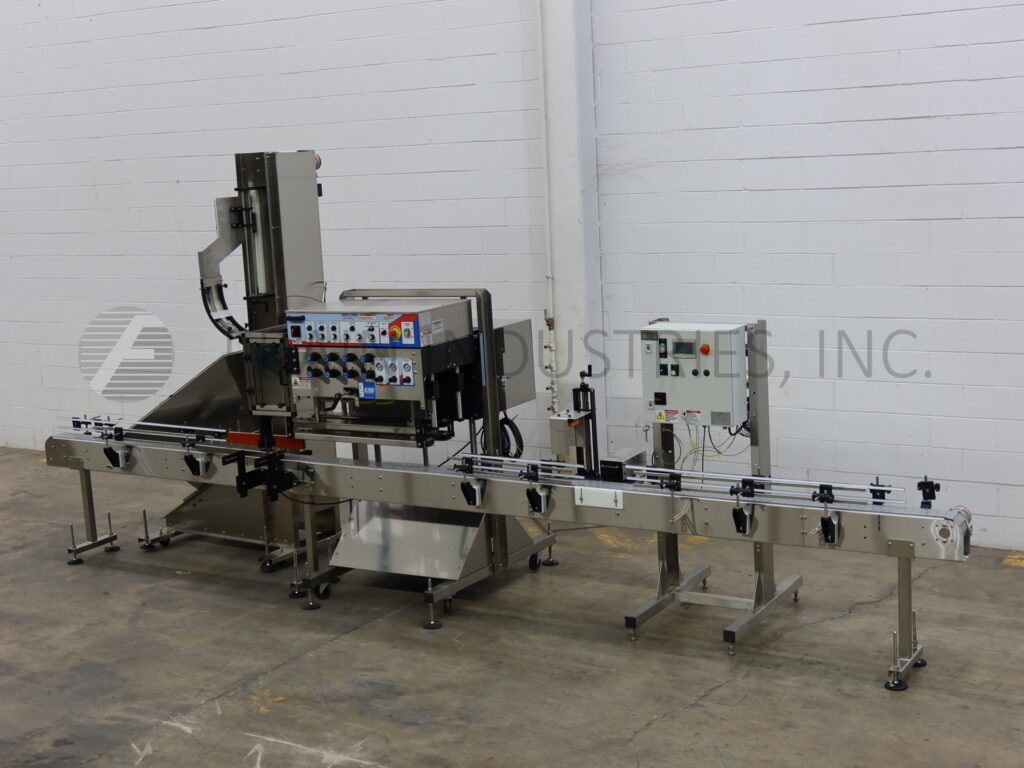

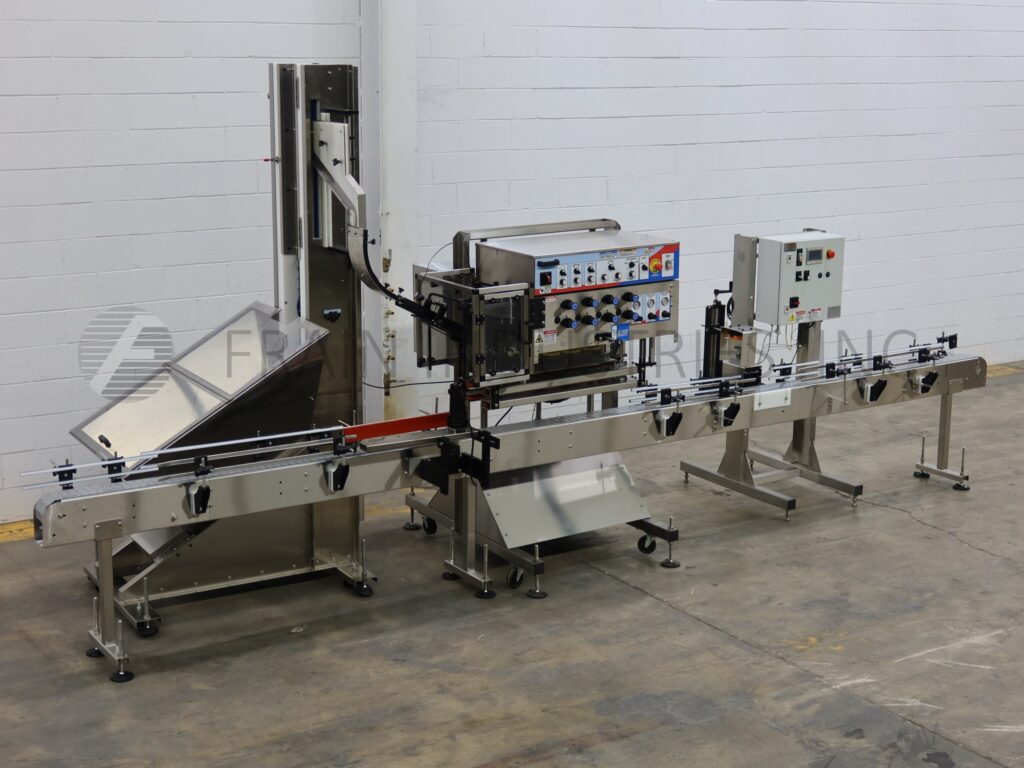

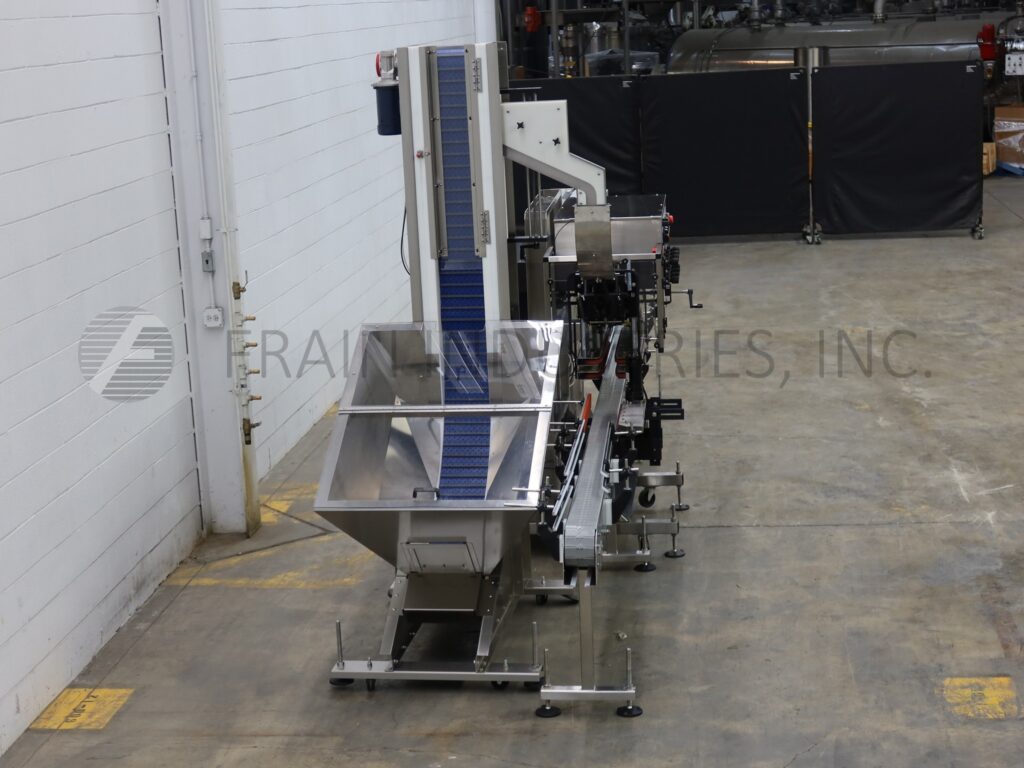

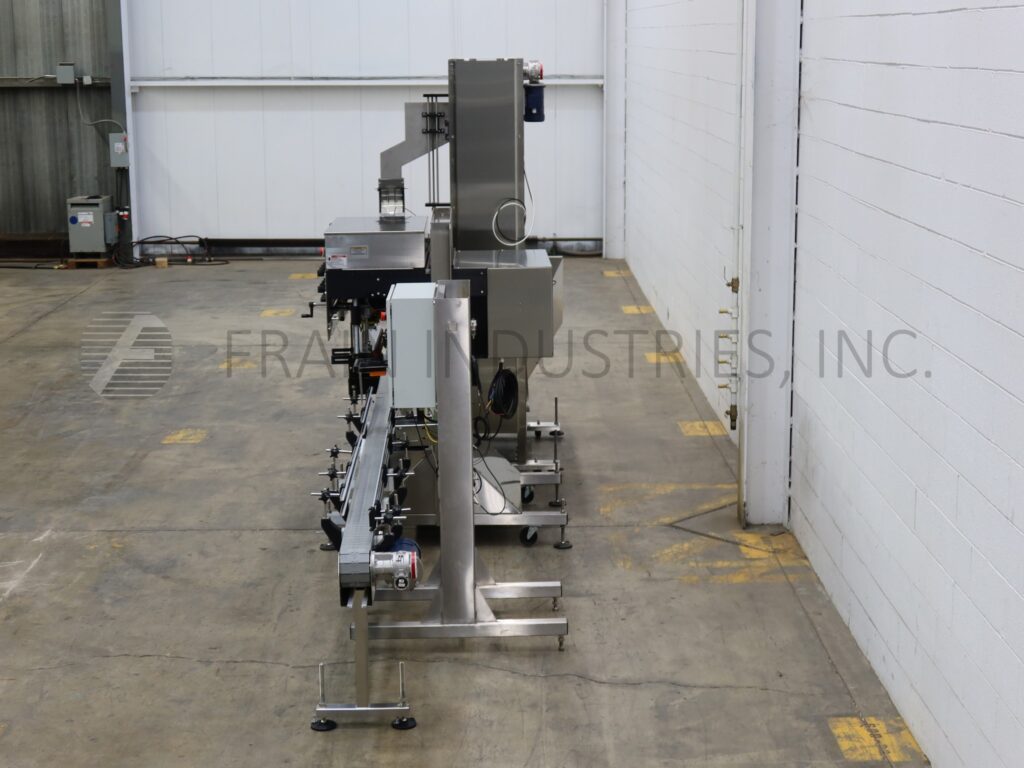

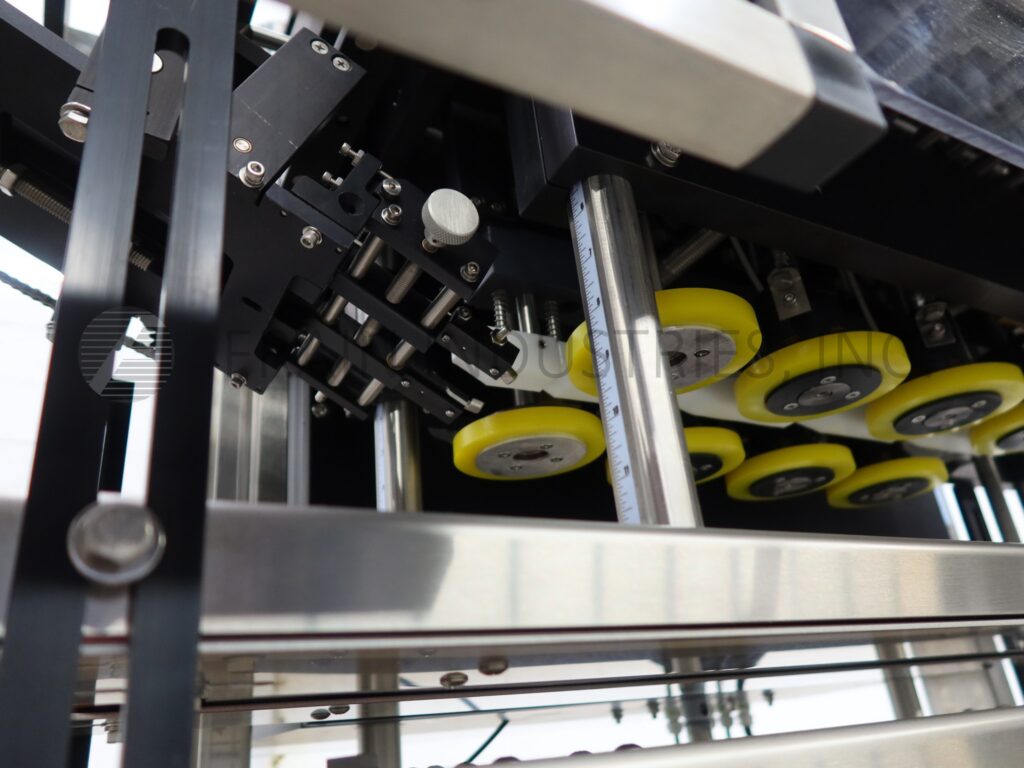

E Pak, Automatic, inline, stainless steel, feeder, spindle capper, conveyor and cap inspection. Rated from 10 to 90 containers per minute – depending on materials, application and machine configuration. Cap size range: 32mm to 130mm in Diameter. Equipped with a waterfall style cap sorter with a 47" long x 37" wide x 22" deep hopper and 9" wide belt with 3/8" high cleats set on 2" centers, adjustable cap chute, 4½" wide x 240" long Delrin belt, 32" long double container gripper belts, 4 station / 8 spindle capper and cap inspection with reject to identify missing, crooked or high caps. Control panel has push button start / stop controls and variable speed controls. Mounted on heavy duty base frame.

OAD: 240"L x 57"W x 71"H (Capper)
50"L x 46"W x 105"H (Feeder)
