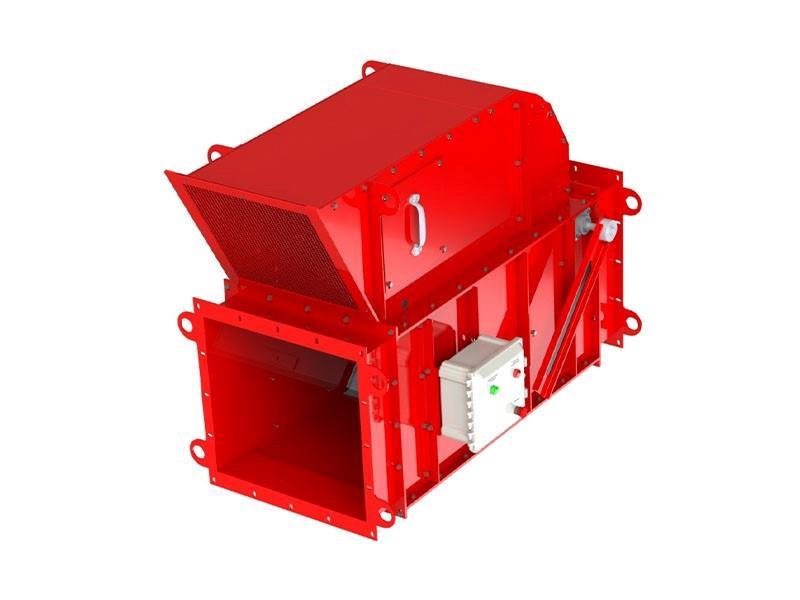

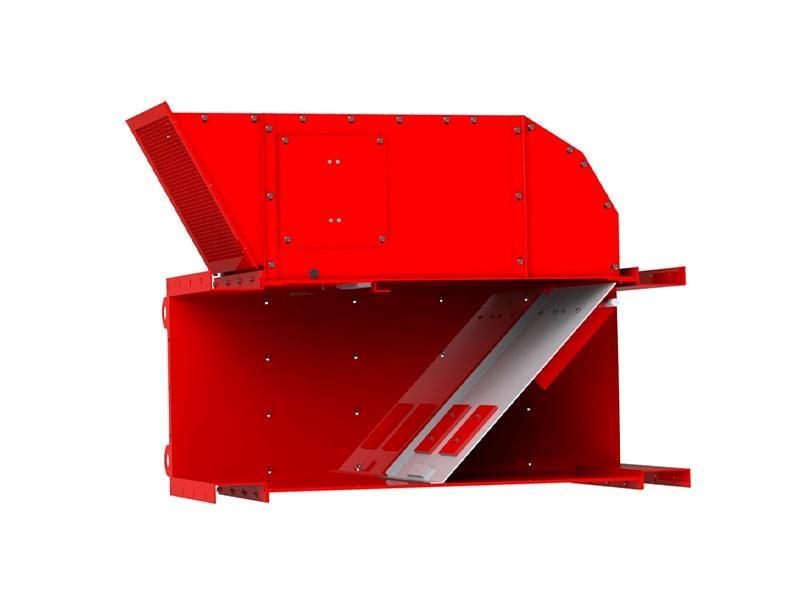

Dust-Ex #RASS-24, Return Air Safety Solution, 24" diameter round equivalent, 2026, new

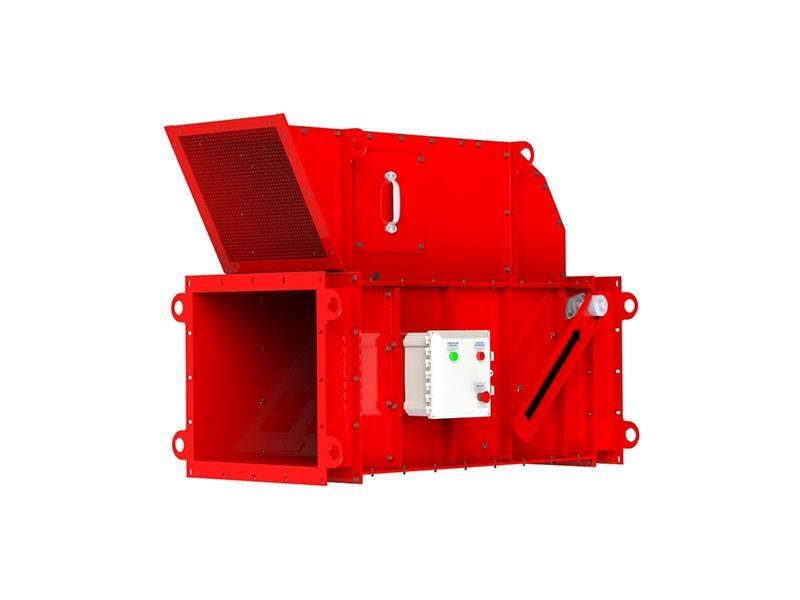

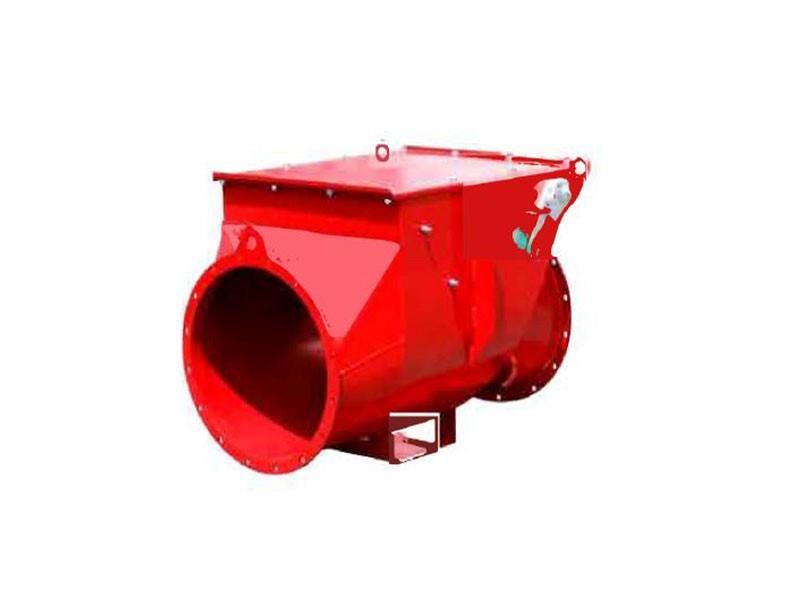

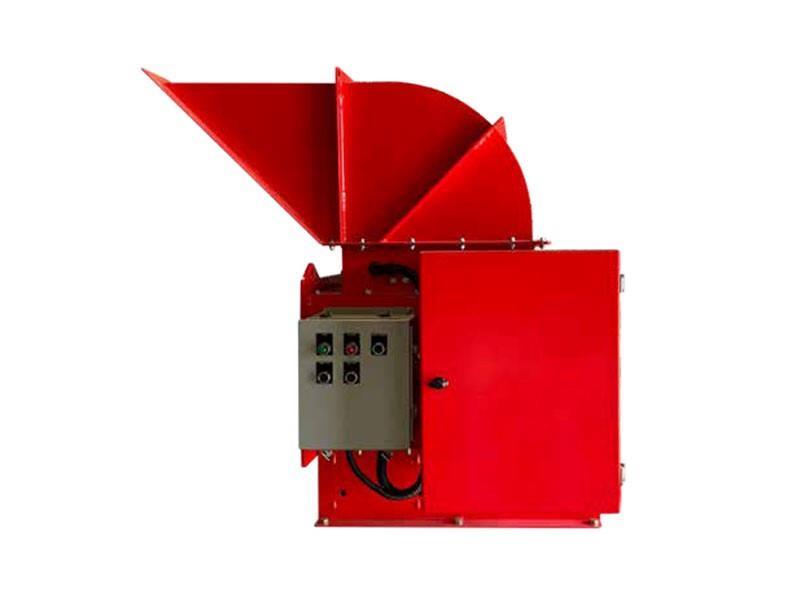

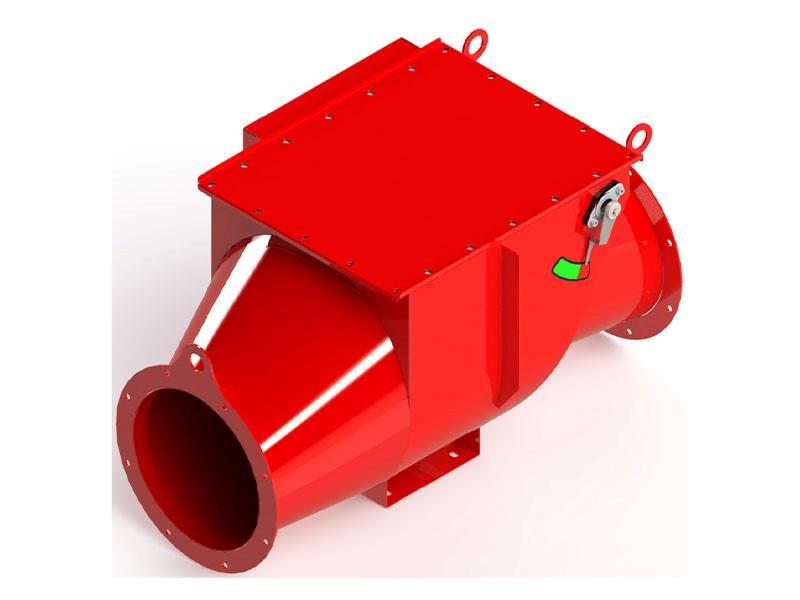

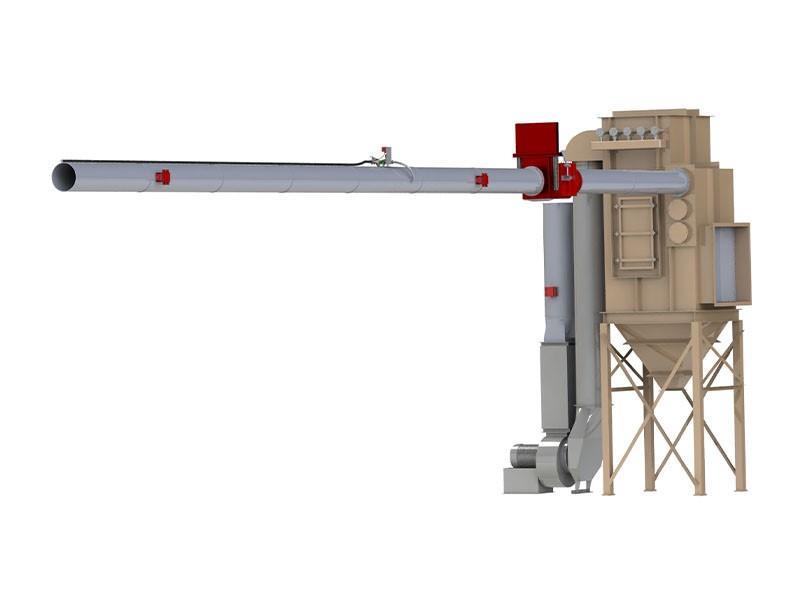

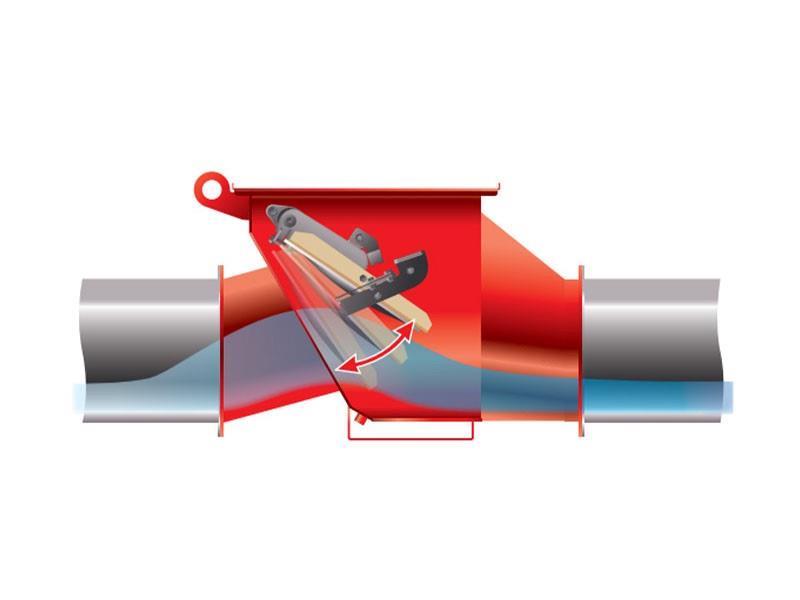

DUST-EX HSAG-24 Packaged Safety Solution for a 22"x22" (24" dia. round equivalent) Return Air Rated for 10,000 CFM. System for mitigating fire and explosions in combustible dust environments, for the woodworking industries. Generally includes Abort Gate, Non -Return Valve and Spark Detection/Suppression Hardware and Controls as follows: -- 1.) VigiFlap Dust Sensor, Dirty Air 22": Sensor, dust level, adjustable capacitive for organic dust, requires intrinsic safety system (will not trigger combustion or ignition in gasses or fuels). -- 2.) VigiFlap Explosion Isolation Flap Valve (Non-Return) Valve, EV-VF22 (EPDM); 22" diameter, flanged inlet and outlet, locking mechanism; welded steel construction, safety red painted finish, domed flap (stainless steel), inspection/access door, EPDM gasket, grounding straps, inductive shutdown sensor, normally open or closed flap orientation, certified ATEX EN 16447, NFPA 69 compliant. -- 3,) Control Panel. One-Zone CP05 Control Panel 1 inlet, 1 outlet: UL698A Control Panel for use with NFPA 69 compliant Explosion Isolation Valves. Standard panel includes status lights, intrinsically safe circuit (1 Per Zone), monitored inputs (3 total), ability to add a secondary clean air isolation valve, output for system shut down and monitoring, drawings, installation instructions, NEMA 4 outdoor rated enclosure, UL and Canada UL listings. Allows for 120VAC or 24VDC input power. -- 4,) SPARK DETECTION & EXTINGUISHING, SINGLE ZONE, KIT for pipe sizes 20?- 40? diameters; includes Raptor Spark RS-CUSP1L Control Panel, (2) Spark Detectors, Extinguishing Kit, Flexible hoses, Audible Alarm & Warning Light. Single zone spark detection and extinguishing kit for duct sizes of ?20" - 39" diameter, RS-KIT02, includes Raptor Spark RS-CUSP1L control panel, (1) RS-PDK02 packaged detector kit with (2) spark detectors with mounting kits, (1) RS-PWE02 water extinguishing assembly with hose connections and spray nozzles, audible alarm, warning light, battery back up - ATEX certified, CE listed, FM approved. -- 5.) Packaged External Test Lamp Kit, RS-TLK02, duct sizes: 6" - 39" diameter, (2) RS-SD02 test lamps with (2) RS-MK02SD/TL mounting kits - IP 65 enclosure, ATEX certified, CE listed, FM approved. -- 6.) Optional Start up Service Assistance: a.) Start Up - Day Rate @ $1,750/day. b.) Travel Service: Day Rate @ $900/day. c.) Travel Expenses: Total $110/hr. - min. two hrs. required - total $220. c.) Start Up Service Hourly Rate is $160/hr. Min. (4) hrs. needed for a total $640. -- 7.) High Speed Abort Gate, EM-HSAG02-24, magnetic (24 VDC), 22" x 22" flanged inlet and outlet (24" round equivalent), control panel for, magnet power with status lights and manual test button, gate position verification monitoring, manual reset lever, weather hood with bird screen. Maximum volume and velocity: 10,000 CFM / 3000 FPM, clean air installations only, NFPA compliant when installed with listed spark detection system. -- 8.) Packaged dust probe
