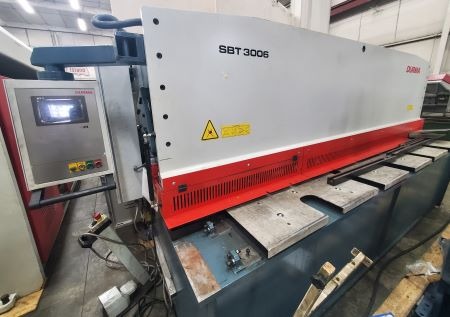

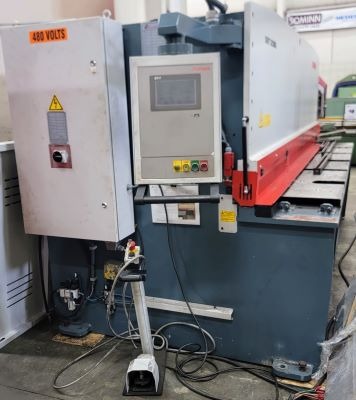

Durma #SBT-3006, Used

DURMA (USED) MODEL SBT 3006 HYDRAULIC SWING
BEAM SHEAR
10' 2" CUTTING LENGTH
0.236" CUTTING CAPACITY - MILD STEEL
0.157" CUTTING CAPACITY - STAINLESS STEEL
1.96" THROAT DEPTH
15 SPM STROKES PER MINUTE
1.5 DEGREES CUTTING ANGLE
16 HOLDDOWNS
31,500 HOLDDOWN FORCE
39.37" BACKGAUGE RANGE
1 HP BACKGAUGE POWER
4.72"/SECOND BACKGAUGE SPEED
20 HP, 3 PHASE, 480 VOLTS
52 GALLONS OIL CAPACITY
11' 6" TABLE LENGTH
19.68" TABLE WIDTH
34.05" TABLE HEIGHT
FEATURES
- HEAVY, ROBUST CONSTRUCTION
- RIGID SWING-STYPE UPPER BEAM
- OPTIMIZED CUTTING ANGLE
- OVERSIZED ROLLER BEARING GUIDES
- BOX CONSTRUCTED SWING BEAM
- LOW MAINTENANCE OPERATION
STANDARD EQUIPMENT
- HEAVY-DUTY ST44 STEEL CONSTRUCTION
- USER-FRIENDLY CNC TOUCH SCREEN CONTROL UNIT
- SINGLE-POINT MANUAL BLADE GAP ADJUSTMENT
- BALL TRANSFERS IN TABLE
- BALLSCREW BACK GAUGE WITH 39" TRAVEL
- 59" SQ ARM WITH SCALE, T-SLOT, TILTING STOP
- 39" 2 FRONT SUPPORT ARMS W/T-SLOT,TILTING STOP
- ILLUMINATION AND SHADOW LINE
- 1 METER FLIP-UP FINGER GUARD
- AUTOMATIC PRESSURE ADJUSTED SOLID HOLDDOWNS
- FOOT PEDAL
- AUTOMATIC SWING-UP BACK GAUGE
OPTIONS INCLUDED
- PNEUMATIC THIN SHEET SUPPORT DEVICE
