Manufacturer: Dmg
Model: SL403BMC/2000
Year: 2014
Swing: 36.8
Chuck: 24
Centers: 91.5
Stock # 3729104
For Sale by Machinery Marketing International
Surplus Record Dealer Since 2013
Victoria
312-22...> Show Seller's Phone Number 312-226-4150 Let the seller know you found their listing on Surplus Record!
Description
Live Milling| 24" chuck with 5.1" spindle bore| 5 Live tool holders

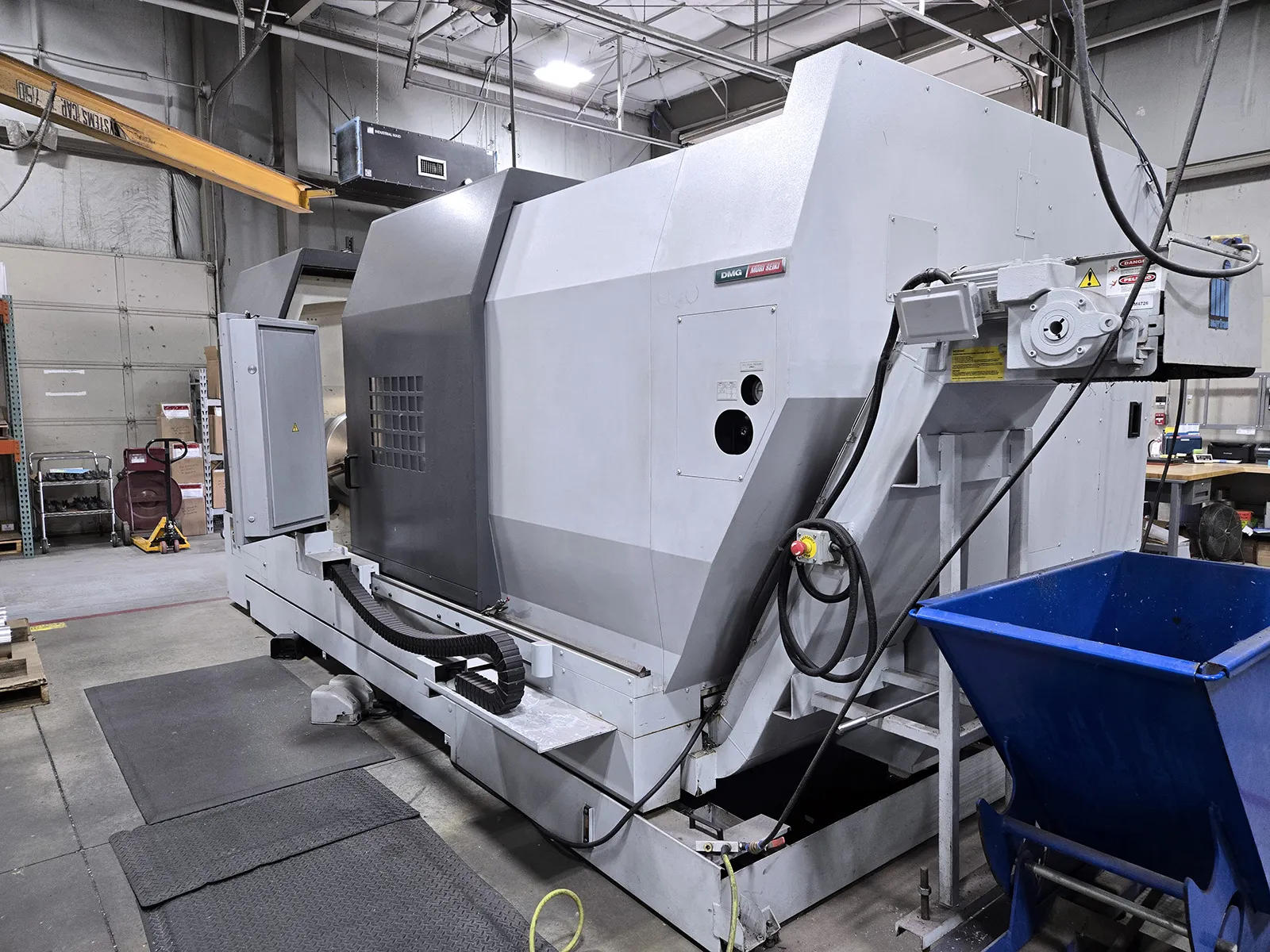

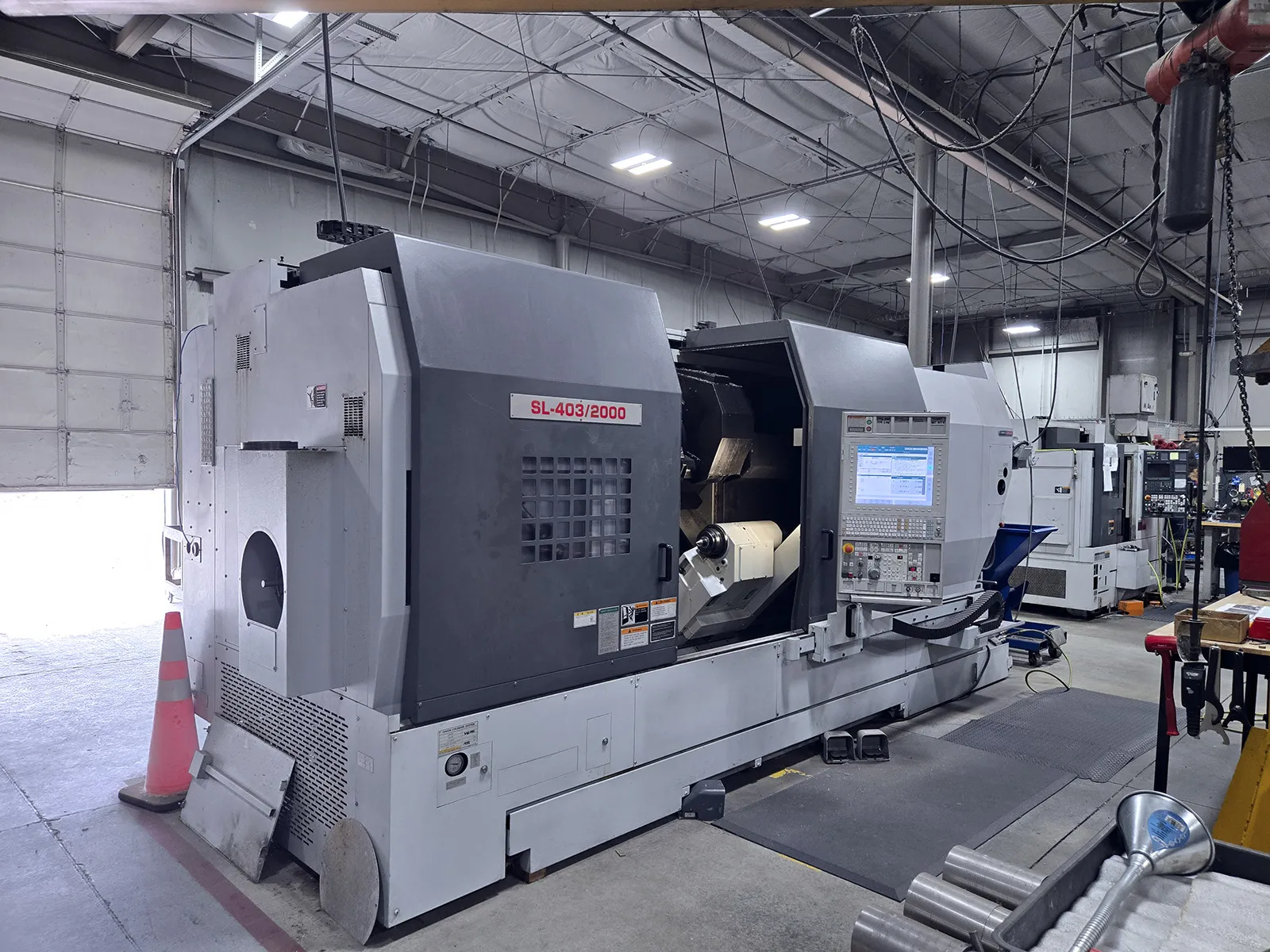

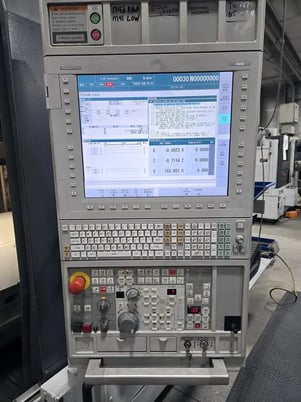

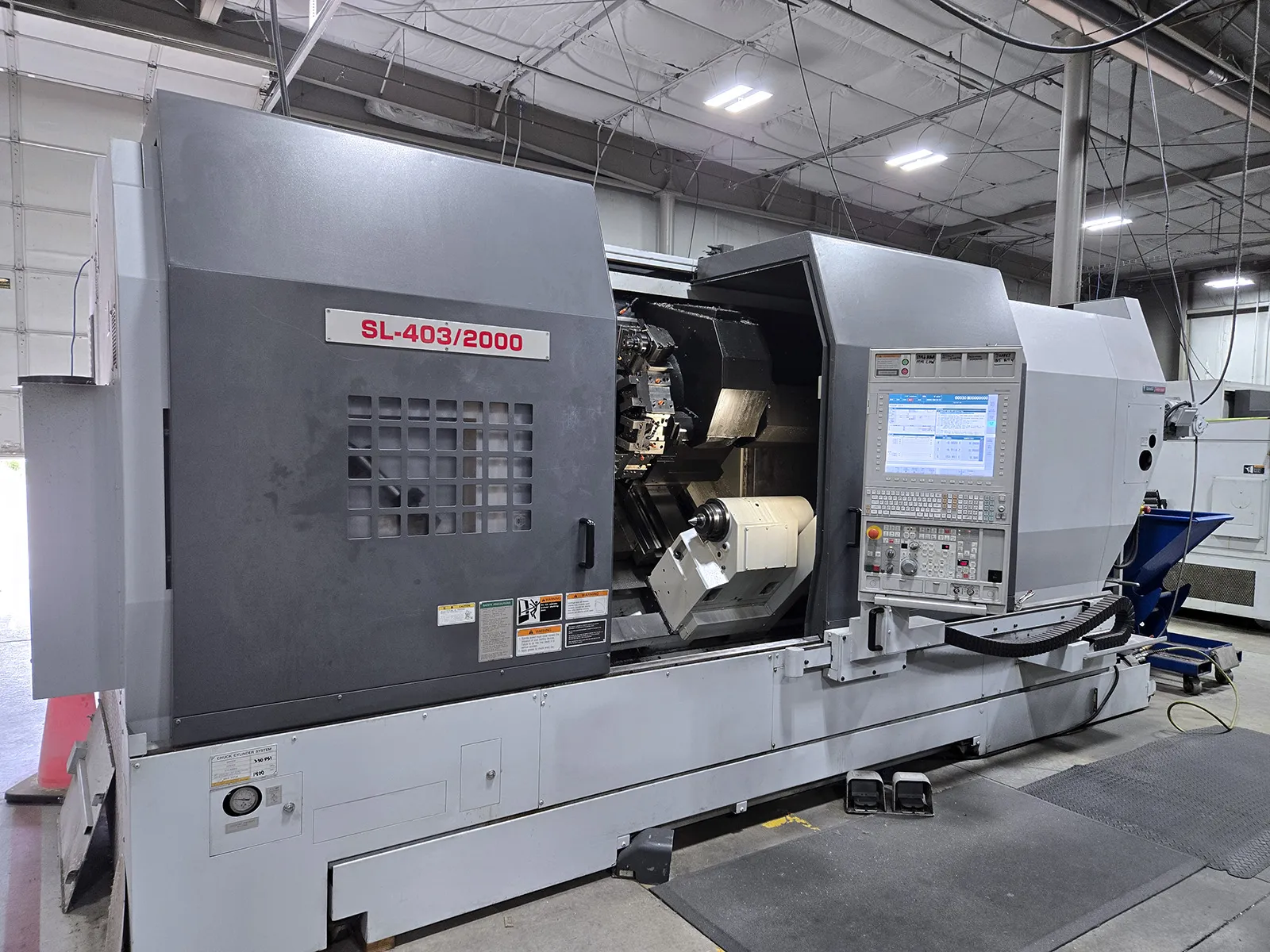

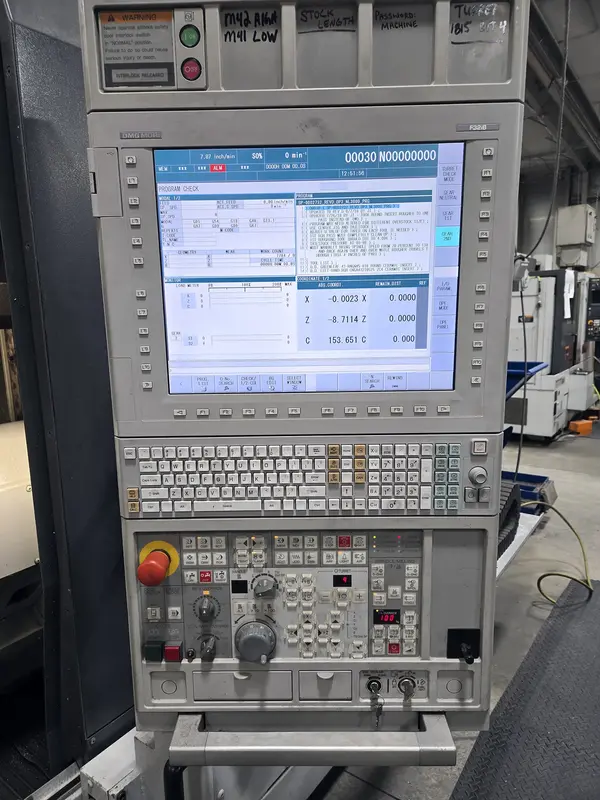

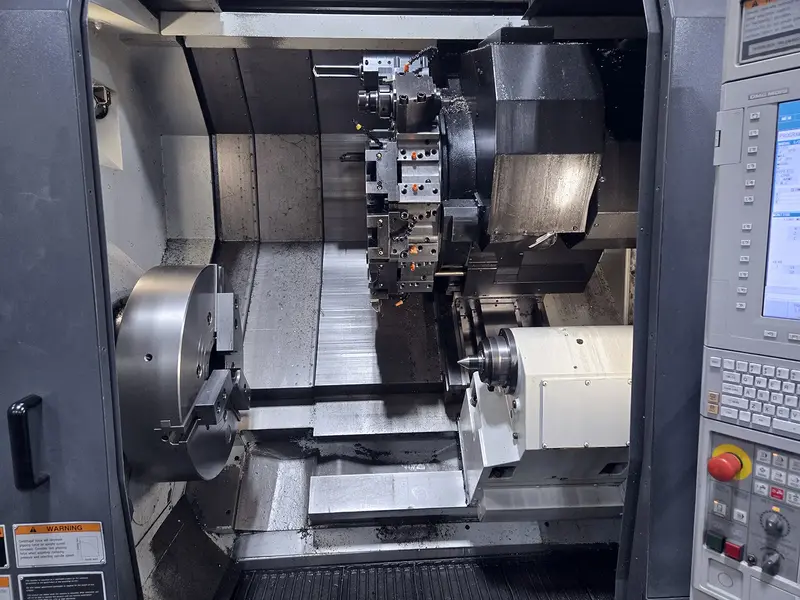

Used 2014 DMG Mori SL403BMC/2000 CNC Lathe heavy-duty machining center, powered by Fanuc 32iB MAPPS4 control, it handles complex turning and milling jobs with efficiency and precision. A reliable industrial-grade lathe ideal for large-part production.
Swing over Bed: 36.8"
Swing over cross slide: 29.1"
DISTANCE BETWEEN CENTERS: 91.5"
Max Turning Diameter: 24.0"
Max Turning Length: 84.9"
X-Axis Travel: 14.7"
Z-Axis Travel: 82.7"
Max Spindle Speed: 2400 RPM
Number of Spindle Speed Ranges: 2
Type of Spindle Nose: JIS-A2-11
THROUGH-SPINDLE HOLE DIAMETER: 5.1"
MIN SPINDLE INDEXING ANGLE: 0.001
Number of Tool Stations: 12
Shank Height For Square Tool: 1-1/4"
Shank diameter for boring bar: 2-1/2"
Turret Indexing Time: 0.4 SEC
MAX ROTARY TOOL SPINDLE SPEED: 3000 RPM
RAPID TRAVERSE X/Z/C: 787.4 / 944.9 / 56
Tailstock Travel: 78.7"
Tailstock Spindle Diameter: 5.9"
Taper Hole of Tailstock Spindle: MT#5, BUILT-IN
Spindle Drive Motor: 50 HP
Rotary Tool Spindle Drive Motor: 12 HP
Electrical power supply: 52.3 KVA
Coolant Tank Capacity: 87.1 GAL
Machine Dimensions: 243" × 101" × 100" TALL
Machine Weight: 33,000 LBS
Used 2014 DMG Mori SL403BMC/2000 CNC Lathe heavy-duty machining center, powered by Fanuc 32iB MAPPS4 control, it handles complex turning and milling jobs with efficiency and precision. A reliable industrial-grade lathe ideal for large-part production.
Swing over Bed: 36.8"
Swing over cross slide: 29.1"
DISTANCE BETWEEN CENTERS: 91.5"
Max Turning Diameter: 24.0"
Max Turning Length: 84.9"
X-Axis Travel: 14.7"
Z-Axis Travel: 82.7"
Max Spindle Speed: 2400 RPM
Number of Spindle Speed Ranges: 2
Type of Spindle Nose: JIS-A2-11
THROUGH-SPINDLE HOLE DIAMETER: 5.1"
MIN SPINDLE INDEXING ANGLE: 0.001
Number of Tool Stations: 12
Shank Height For Square Tool: 1-1/4"
Shank diameter for boring bar: 2-1/2"
Turret Indexing Time: 0.4 SEC
MAX ROTARY TOOL SPINDLE SPEED: 3000 RPM
RAPID TRAVERSE X/Z/C: 787.4 / 944.9 / 56
Tailstock Travel: 78.7"
Tailstock Spindle Diameter: 5.9"
Taper Hole of Tailstock Spindle: MT#5, BUILT-IN
Spindle Drive Motor: 50 HP
Rotary Tool Spindle Drive Motor: 12 HP
Electrical power supply: 52.3 KVA
Coolant Tank Capacity: 87.1 GAL
Machine Dimensions: 243" × 101" × 100" TALL
Machine Weight: 33,000 LBS
Get Your Price from Machinery Marketing International!
