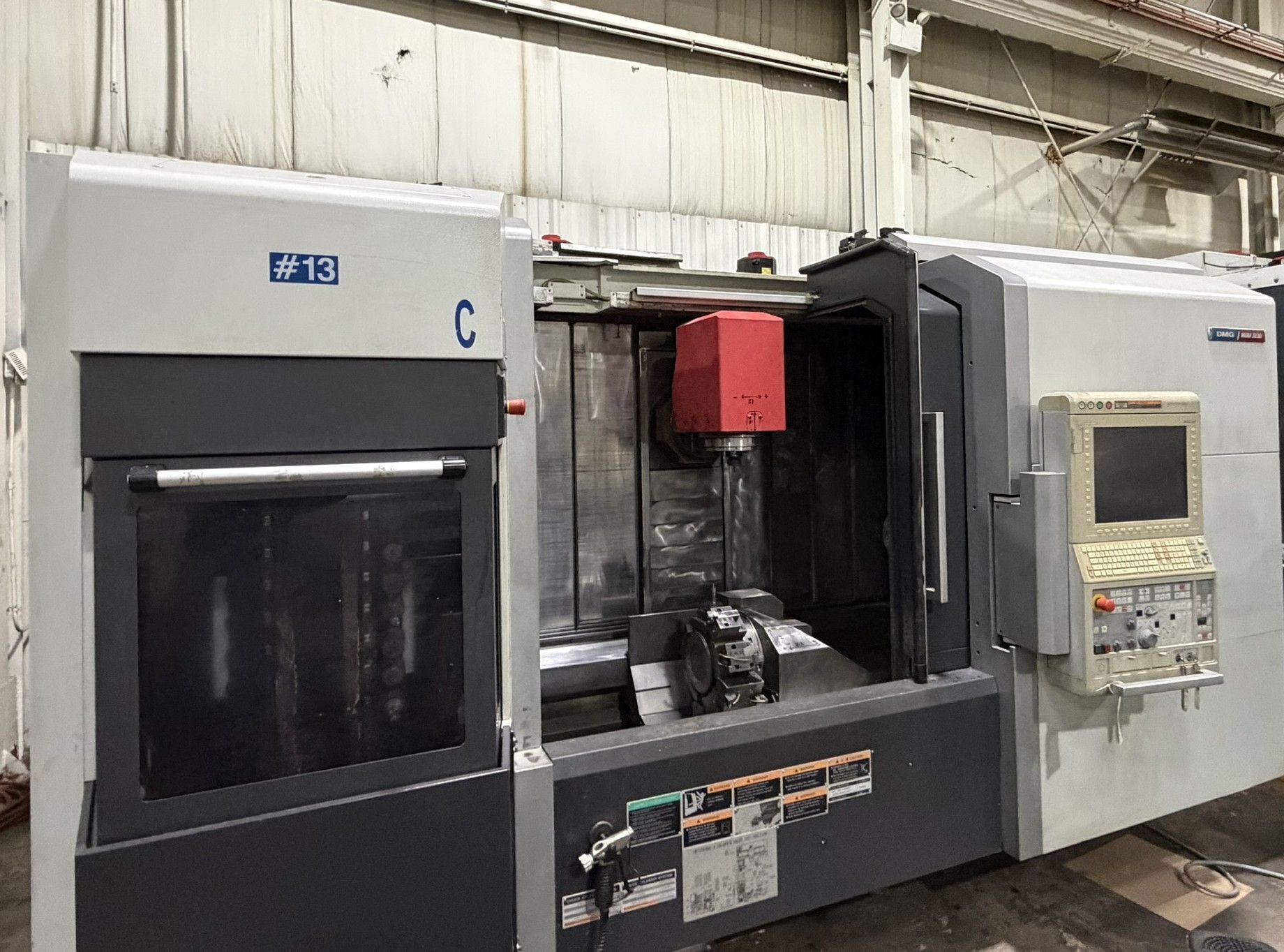

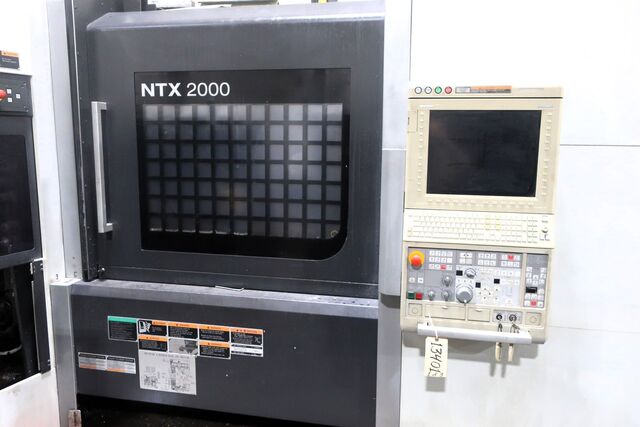

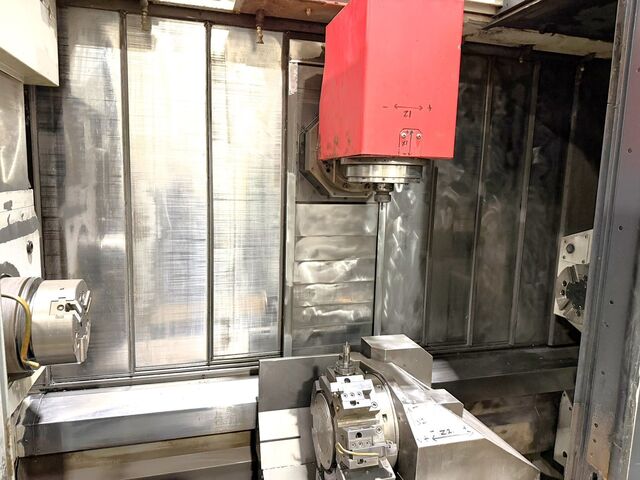

DMG, Mori-Seiki #NTZ-2000SZ1500, CNC mill turn center, 25.9" swing, 2.5" bar, live tooling, 2014

  Play Video

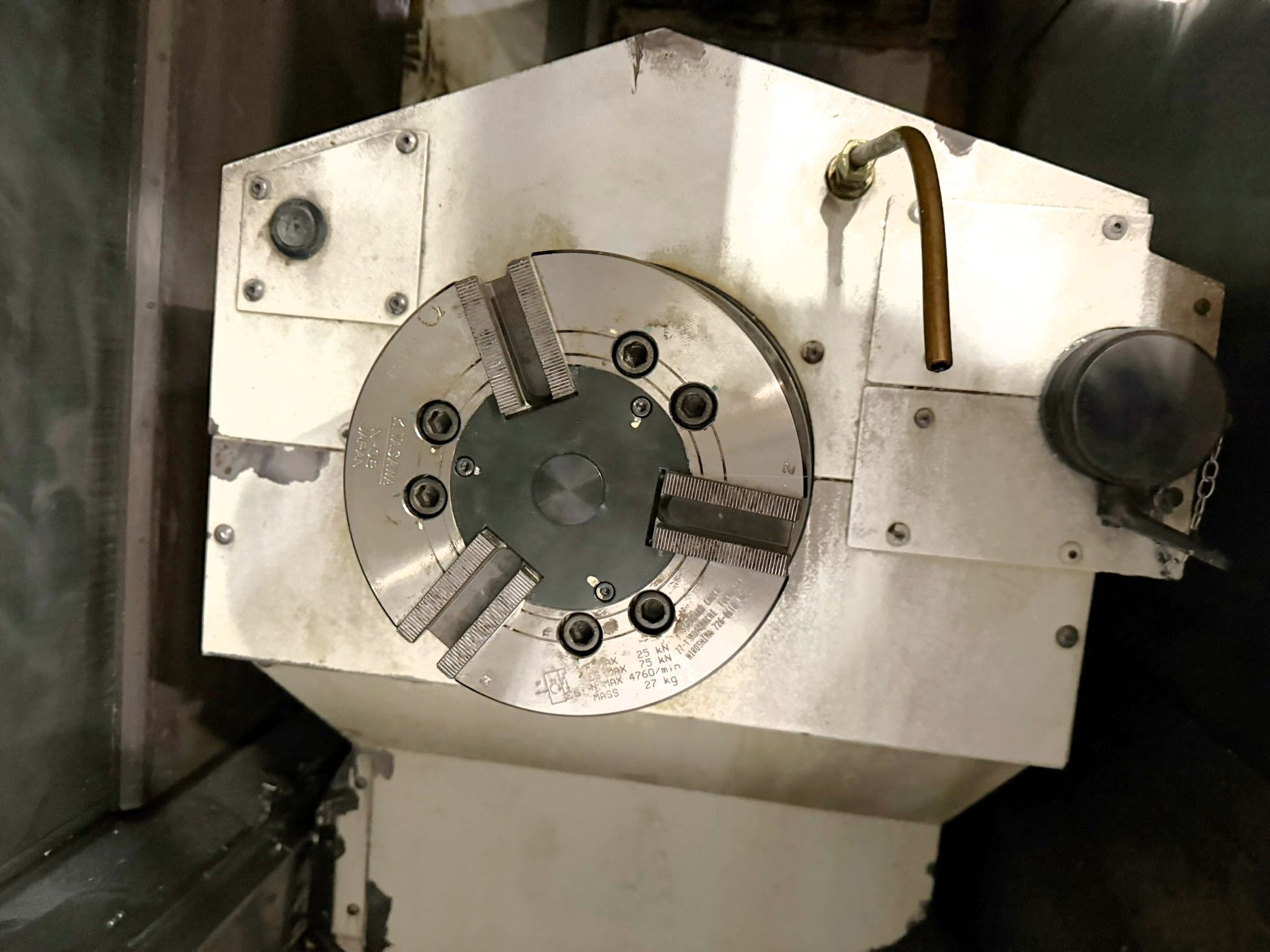

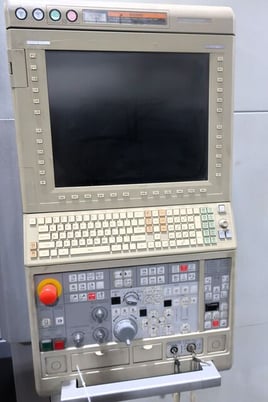

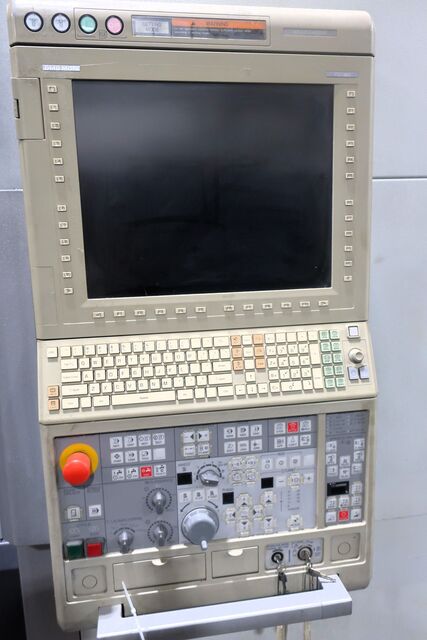

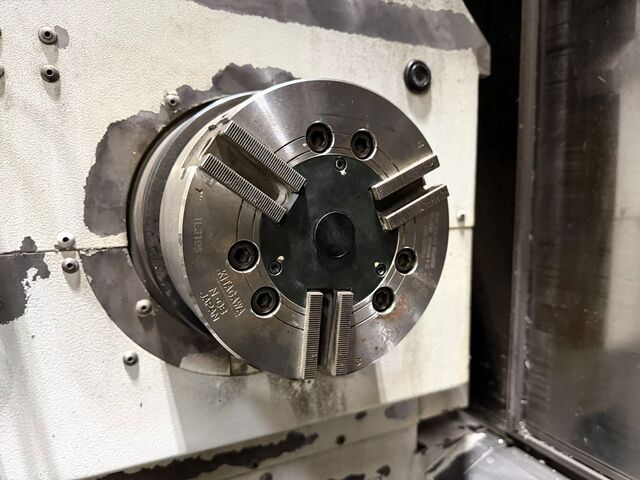

2014 DMG MORI SEIKI NTX2000/1500SZM CNC Mill Turn Center in used condition. Features a max workpiece swing of 660mm, 12,000 RPM milling spindle, Fanuc 31iB5 CNC control, dual spindles, and an 8" chuck. Includes live tooling and chip conveyor.
Technical Description
Basic machine: NTX 2000 | 1500SZM
The specifications below apply to a basic machine without additional options. Specifications in square brackets [ ] are values or features for a machine with additional options.
Capacity
Maximum workpiece swing diameter mm (in.) 660 (25.9)
Swing over cross slide:
- Standard mm (in.) 660 (25.9)
- Turret 2 mm (in.) 300 (11.8)
Maximum turning diameter:
- Standard mm (in.) 610 (24.0)
- B-axis 90 mm (in.) 660 (25.9)
- Turret 2 mm (in.) 274 (10.7)
Maximum turning length mm (in.) 1,540 (60.6)
Bar work capacity:
- Standard mm (in.) 65 (2.5)
- For 80 mm (?3.1 in.) bar work capacity specifications mm (in.) [80 (3.1)]
Travel
X-axis <Tool spindle> mm (in.) 495 <470+25>
(19.5 <18.5+1.0>)
Y-axis <Tool spindle> mm (in.) 125 (4.9)
Z-axis <Tool spindle> mm (in.) 1,560 (61.4) +215 (8.5) <for ATC>
B-axis <Tool spindle> 120
X2-axis <Turret 2> mm (in.) 160 (6.3)
Z2-axis <Turret 2> mm (in.) 1,402 (55.2)
Spindle 1
Maximum spindle speed:
- Standard min-1 5,000
- For 80 mm (3.1 in.) bar work capacity specifications min-1 [4,000]
Number of spindle speed ranges 1
Type of spindle nose:
- Standard A2-6
- For 80 mm (3.1 in.) bar work capacity specifications [A2-8]
Through-spindle hole diameter:
- Standard mm (in.) 73 (2.9)
- For 80 mm (3.1 in.) bar work capacity specifications mm (in.) [91 (3.6)]
Minimum spindle indexing increment 0.0001
Spindle bearing inner diameter:
- Standard mm (in.) 120 (4.7)
- For 80 mm (?3.1 in.) bar work capacity specifications mm (in.) [140 (?5.5)]
Spindle torque <15%ED/30 min/cont>:
- Standard Nm (ftlbf) 230/178/159
(169.6/131.3/117.3)
- High-torque Nm (ftlbf) [358/231/214
(264.0/170.4/157.8)]
Spindle 2
Maximum spindle speed min-1 5,000
Number of spindle speed ranges 1
Type of spindle nose A2-6
Through-spindle hole diameter mm (in.) 73 (2.9)
Minimum spindle indexing increment 0.0001
Spindle bearing inner diameter mm (in.) ?120 (?4.7)
Spindle torque <15%ED/30 min/cont> Nm (ftlbf) 230/178/159
(169.6/131.3/117.3)

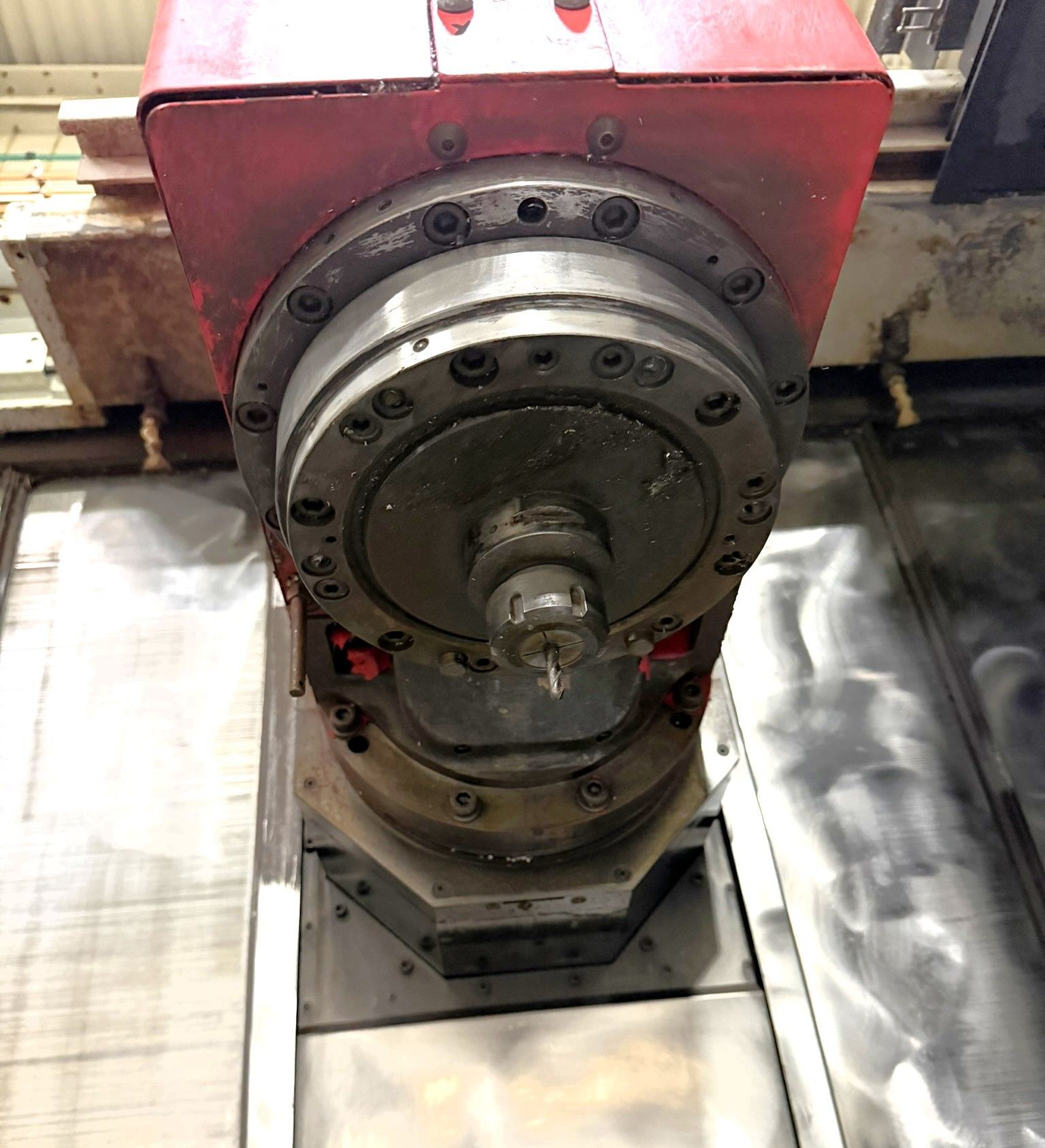

Tool spindle <Turret 1>
Number of tool stations 1
Minimum B-axis indexing increment 0.0001
Maximum tool spindle speed min-1 12,000
Taper hole of rotary tool spindle Capto C6 [BT40]
[CAT40] [HSK-A63]
[KM-63]
Type of retention knob <BT40, CAT40> DMG MORI SEIKI 90
<Center through>
Inner diameter of rotary tool spindle bearing mm (in.) 70 (2.7)

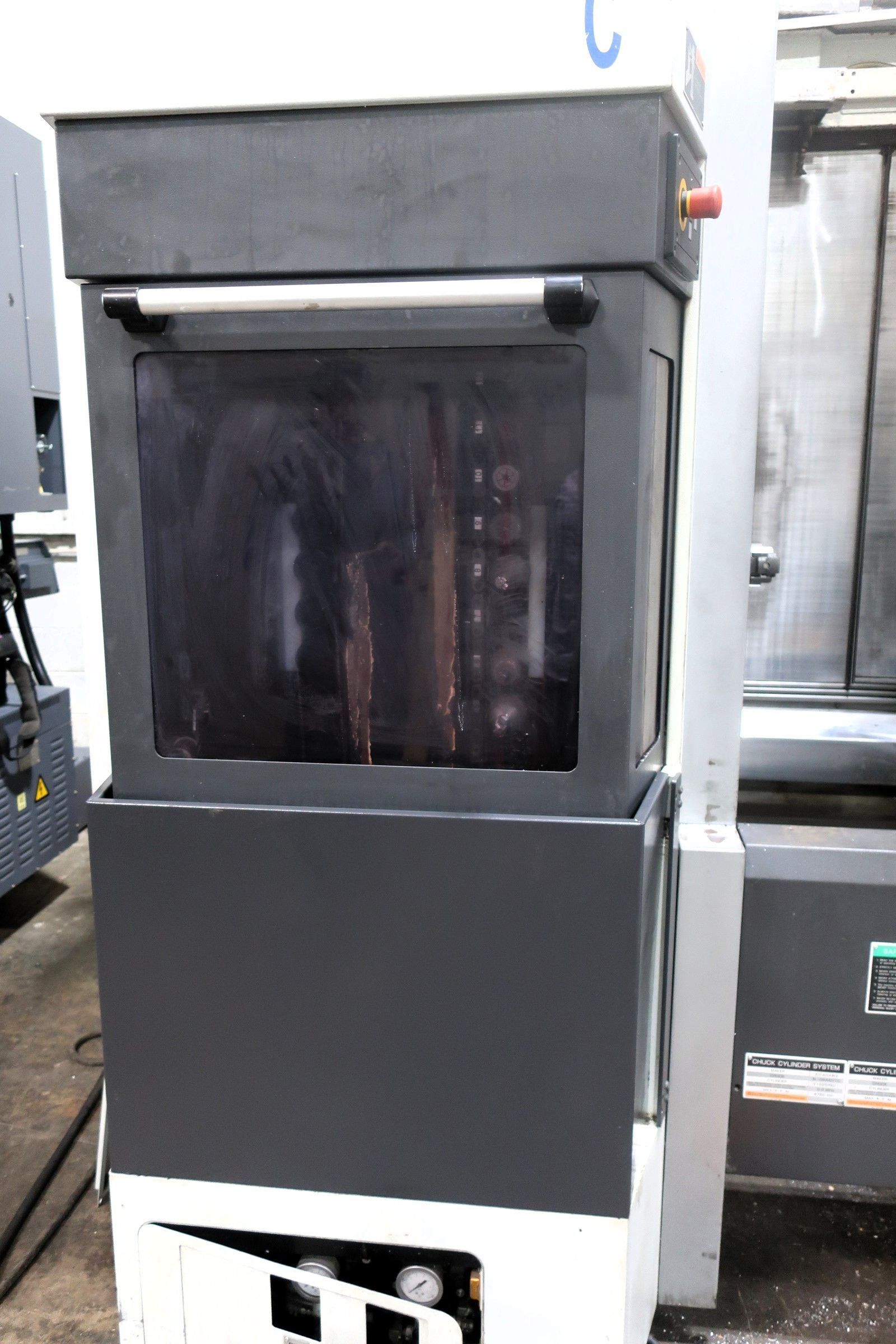

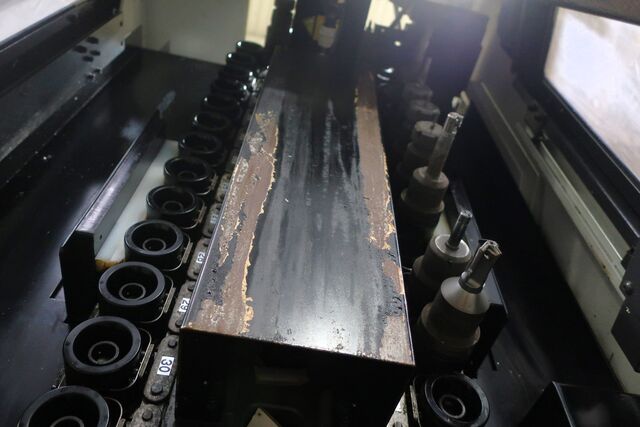

Tool storage capacity 38 [76]
Maximum tool diameter <with adjacent tools> mm (in.) 70 (2.7)
Maximum tool diameter <without adjacent tools> mm (in.) 125 (4.9)
Maximum tool length mm (in.) 300 (11.8)
Maximum tool mass kg (lb.) 8 (17.6) [10 (22)]
Tool changing time <tool-to-tool> sec 1.25
Spindle torque <10%ED/cont> Nm (ftlbf) 120/44 (88.5/32.5)

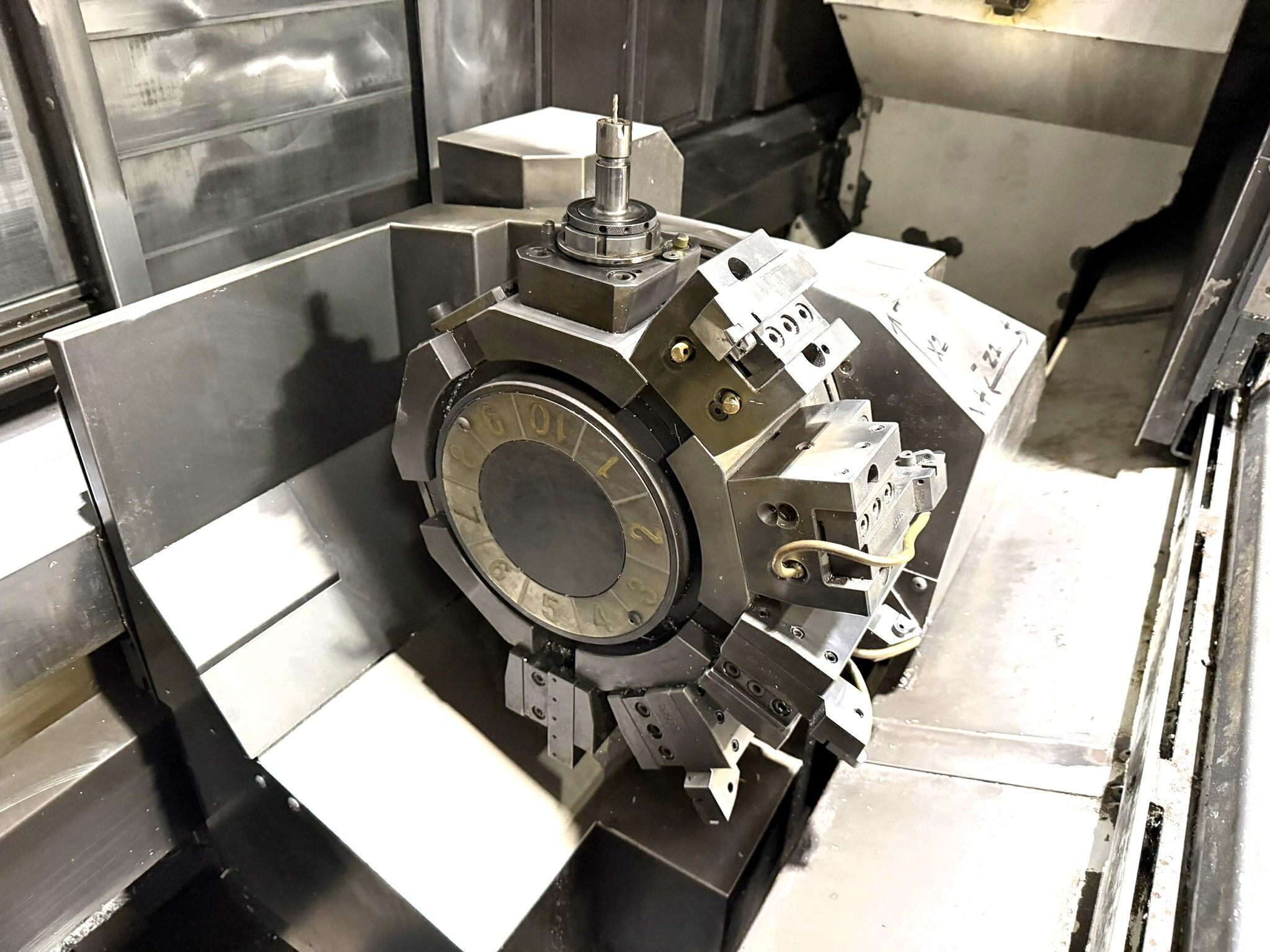

Turret 2
Number of tool stations 10
Turret Indexing time <1-station> sec 0.19
Shank height for square tool mm (in.) 20 (0.8)
Diameter of boring bar shank part mm (in.) Max. 32 (1.2)
Live tooling on turret
Feedrate
Rapid traverse rate:
- X-axis <Tool spindle> mm/min
(ipm) 40,000 (1,574.8)
- Y-axis <Tool spindle> mm/min
(ipm) 40,000 (1,574.8)
- Z-axis <Tool spindle> mm/min
(ipm) 40,000 (1,574.8)
- X2-axis <Turret 2> mm/min
(ipm) 30,000 (1,181.1)
- Z2-axis <Turret 2> mm/min
(ipm) 38,000 (1,496.1)
- A-axis <Spindle 2> mm/min
(ipm) 30,000 (1,181.1)
Motors
Spindle 1 drive motor <30 min/cont> kW (HP) 22/18.5 (30/24.7)
Spindle 2 drive motor <30 min/cont> kW (HP) 22/18.5 (30/24.7)
Tool spindle drive motor <10 min/cont> kW (HP) 18.5/11 (24.7/15)
Power Sources
Electrical power supply <cont> kVA 79.9
Compressed air supply MPa (psi), L/min (gpm) 0.5 (72.5), 650 (171.6)
Tank Capacity
Coolant tank capacity L (gal.) 675 (178.2)
Machine Size
Machine height mm (in.) 2,621 (103.2)
Floor space <width x depth> <excluding chip conveyor> mm (in.) 4,080 x 2,980
(160.6 x 117.3)
Mass of machine:
- Tool storage capacity: 38 tools kg (lb.) 15,270 (33,594)
- Tool storage capacity: 76 tools kg (lb.) [15,780 (34,716)]
