Description

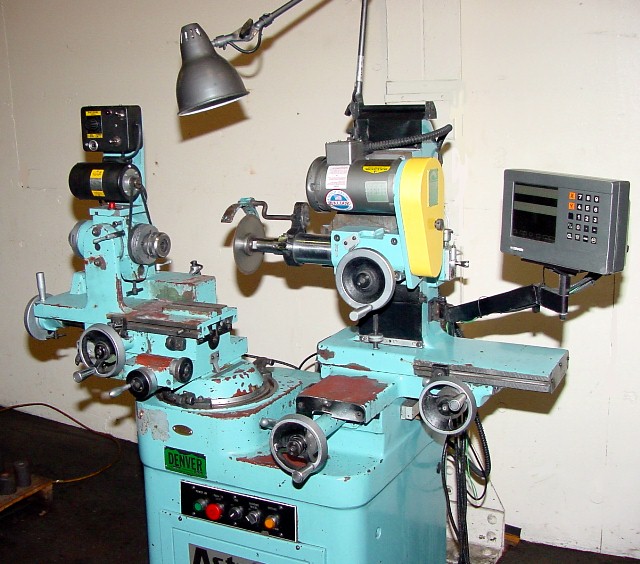

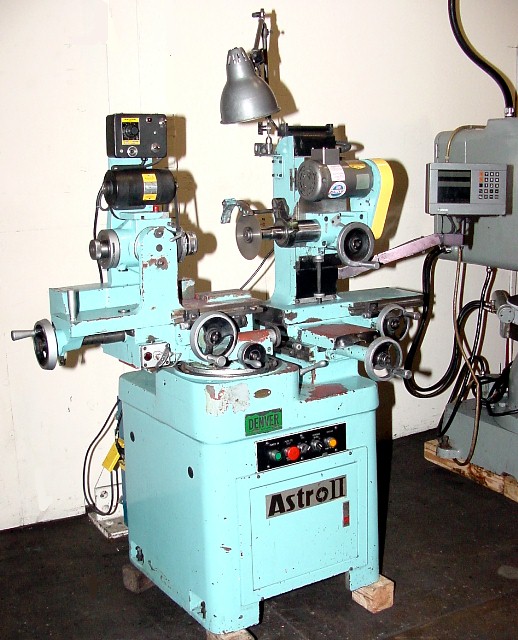

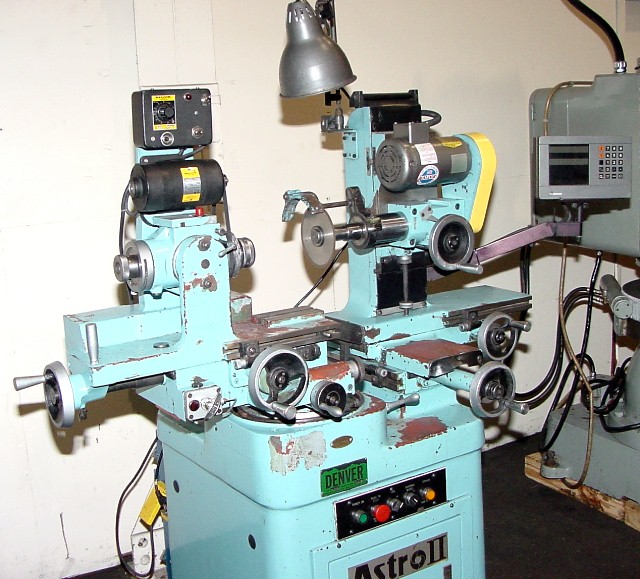

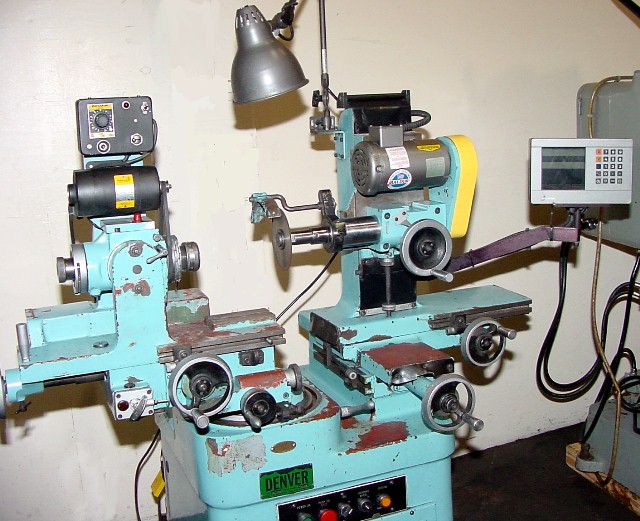

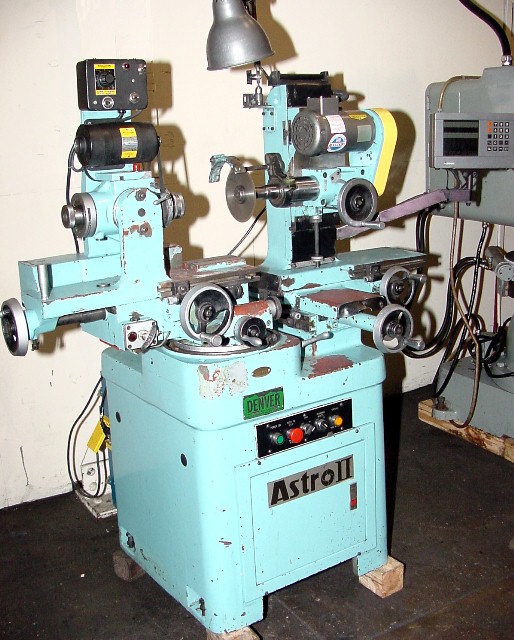

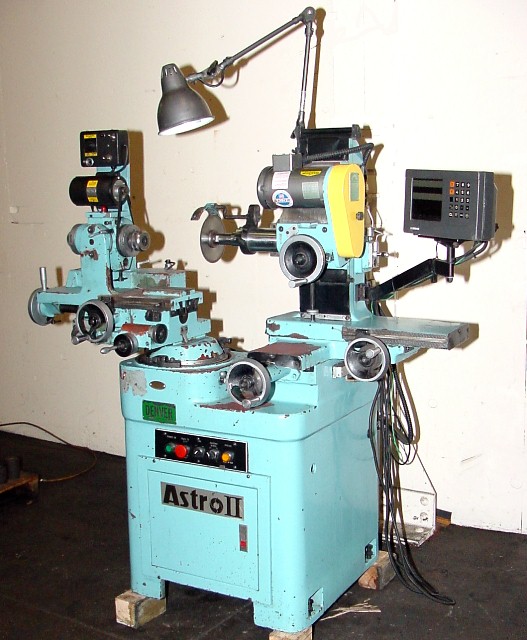

DENVER "ASTRO II"
"MONOSET" TOOL… CUTTER GRINDER
*** HEIDENHAIN 2-AXIS DIGITAL READOUT ***
S/N: 795221 NEW: 1997
CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA.:... 12"
MAX. WORKHEAD COLLET HOLE DIA.:.............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA.:.............. 0.12"
MAX. GRINDING WHEEL DIA.:.................... 4"
LEAD GENERATION BY SPIRAL LEAD MECHANISM,
MINIMUM:.................................... 1.81"
MAX. LENGTH OF WORK BETWEEN SPINDLE…
TAILSTOCK CENTER:............................ 6"
RANGE -
WORKHEAD SLIDE TRAVEL:
MAIN SLIDE TRAVEL:........................... 5-″/4"
OFFSET SLIDE TRAVEL, TOTAL:.................. 5- 1/4"
-FRONT OF CENTER:...........................″"
-REAR OF CENTER:............................ 2- 1/4"
WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL:....................... 235 DEG.
ABOVE AND BELOW CENTER:...................... 40 DEG.
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL SLIDE TRAVEL:................... 6"
VERTICAL SLIDE TRAVEL, TOTAL:................ 9-1/2"
-ABOVE CENTER:.............................. 4- 1/2"
-BELOW CENTER:.............................. 5"
CROSS SLIDE TRAVEL, TOTAL:................... 7- 1/2"
-FRONT OF CENTER:...........................″"
-REAR OF CENTER:............................ 4- 1/2"
SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS: 4,000, 5,729, 8,000 RPM
WORKHEAD SPINDLE SPEEDS: INFINITELY VARIABLE
APPROXIMATE WEIGHT: 1,525 LBS.
APPROX. DIMS.:34"F-B x 42"L-R x 62"H
EQUIPPED WITH:
HEIDENHAIN 2-AXIS DIGITAL READOUT DISPLAY
ELECTRONIC VARIABLE SPEED CONTROL FOR INFINITELY VARIABLE
WORKHEAD SPINDLE SPEEDS
WHEEL GUARD
.0005" HANDWHEEL GRAUATIONS
BALDOR ELECTRONIC VARIABLE SPEED MOTOR… SPEED CONTROL,
FOR MOTORIZED WORKHEAD, PROVIDES INFINITELY VARIABLE
SPINDLE SPEEDS.
BIJUR ONE-SHOT LUBRICATION SYSTEM
1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
MACHINE IS PRESENTLY WIRED FOR″/60/480 VOLTS
*** TOOLING PACKAGE ***
* * EXCELLENT CONDITION… APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
"MONOSET" TOOL… CUTTER GRINDER
*** HEIDENHAIN 2-AXIS DIGITAL READOUT ***
S/N: 795221 NEW: 1997
CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA.:... 12"
MAX. WORKHEAD COLLET HOLE DIA.:.............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA.:.............. 0.12"
MAX. GRINDING WHEEL DIA.:.................... 4"
LEAD GENERATION BY SPIRAL LEAD MECHANISM,
MINIMUM:.................................... 1.81"
MAX. LENGTH OF WORK BETWEEN SPINDLE…
TAILSTOCK CENTER:............................ 6"
RANGE -
WORKHEAD SLIDE TRAVEL:
MAIN SLIDE TRAVEL:........................... 5-″/4"
OFFSET SLIDE TRAVEL, TOTAL:.................. 5- 1/4"
-FRONT OF CENTER:...........................″"
-REAR OF CENTER:............................ 2- 1/4"
WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL:....................... 235 DEG.
ABOVE AND BELOW CENTER:...................... 40 DEG.
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL SLIDE TRAVEL:................... 6"
VERTICAL SLIDE TRAVEL, TOTAL:................ 9-1/2"
-ABOVE CENTER:.............................. 4- 1/2"
-BELOW CENTER:.............................. 5"
CROSS SLIDE TRAVEL, TOTAL:................... 7- 1/2"
-FRONT OF CENTER:...........................″"
-REAR OF CENTER:............................ 4- 1/2"
SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS: 4,000, 5,729, 8,000 RPM
WORKHEAD SPINDLE SPEEDS: INFINITELY VARIABLE
APPROXIMATE WEIGHT: 1,525 LBS.
APPROX. DIMS.:34"F-B x 42"L-R x 62"H
EQUIPPED WITH:
HEIDENHAIN 2-AXIS DIGITAL READOUT DISPLAY
ELECTRONIC VARIABLE SPEED CONTROL FOR INFINITELY VARIABLE
WORKHEAD SPINDLE SPEEDS
WHEEL GUARD
.0005" HANDWHEEL GRAUATIONS
BALDOR ELECTRONIC VARIABLE SPEED MOTOR… SPEED CONTROL,
FOR MOTORIZED WORKHEAD, PROVIDES INFINITELY VARIABLE
SPINDLE SPEEDS.
BIJUR ONE-SHOT LUBRICATION SYSTEM
1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
MACHINE IS PRESENTLY WIRED FOR″/60/480 VOLTS
*** TOOLING PACKAGE ***
* * EXCELLENT CONDITION… APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
Get Your Price from Machinery Values Inc!
Buyers Who Viewed This Listing Also Viewed …
JUST ADDED!
Denver #2, Tool & Cutter Grinder
Category: Tool and Cutter Grinders
Seller: Machinery Network Auctions
Location: El Segundo, CA
Mfr: Denver
Model: 2
Denver #Astro-II-Monoset type tool grinder, 12" swing, coolant, one shot lube, .5 HP
Category: Tool and Cutter Grinders
Seller: Cleveland Machinery Sales Inc
Location: Cleveland, OH
Mfr: Denver
Model: ASTRO-II-MONOSET
DENVER (MORGAN) ASTRO II MONOSET TYPE, Swing. 12", (ASTRO II)., Swing Over Table. 12", Dist. Between Tailstock & Workhead. 15", Work Head Spindle Tapers. 5C, Table Working Surface. 3-1/4" x 6", Longitudinal Travel. 9", Swivel Angle. 50 Degree L & R, Table Graduation On End For Taper Grinding. 14 Degree L & ...more

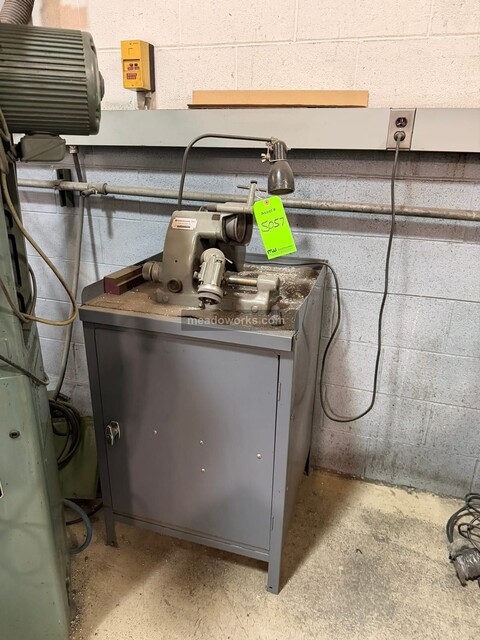

Deckel Soe, cutter grinder, axially adjustable wheel, w/ dust collector, 230 V., w/ tooling, on stand, AS IS
