Complete Brewhouse / Microbrewery for beer

Price on request:

• m.lamprecht@eurolux.de
• +49 176-93263486
• More brewerys / brew houses are here https://eurolux.de/seite/brauerei

Detailed description:

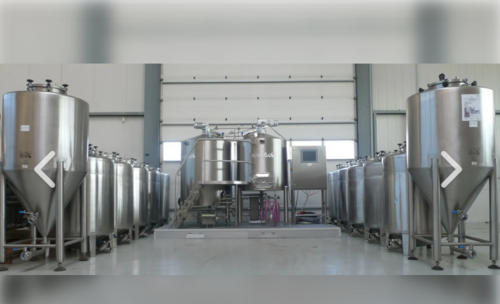

Small brewhouse, microbrewery, pub brewery, craft brewery with 10 hl brewing volume

This brewhouse is NEW

Technical description

Technical data:

Energy consumption - electricity, gas, water, cooling

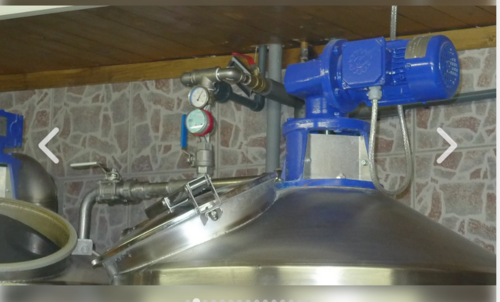

Electricity for pump, agitator, chopper - 5.0 kW/hour

Gas 12 kg per brew

Water 2.5 m³ per brew

for cooling 5 kW per day



The values given are approximate. Especially for cooling

cooling depends on the size of the cold store etc.

System description brewhouse

This small brewhouse includes all components for a complete and fully functional brewhouse. All system components used meet the high quality standard and are characterized by their ease of operation. The two-device brewhouse consists of a mash/wort kettle and a lauter tun, which is also used as a whirlpool.


Technical description

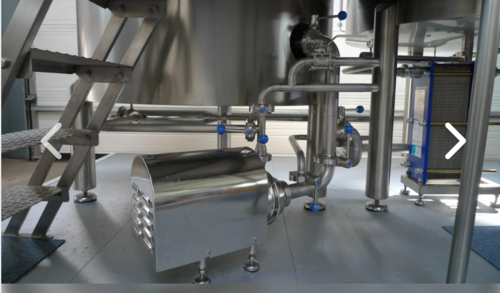

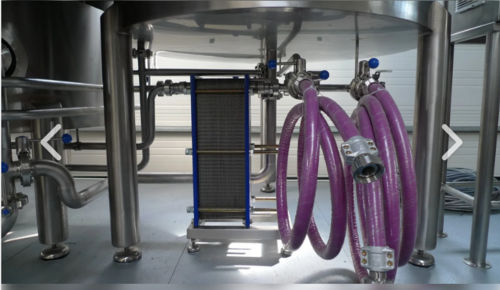

All pipes are cleaned by a circulation pump system.

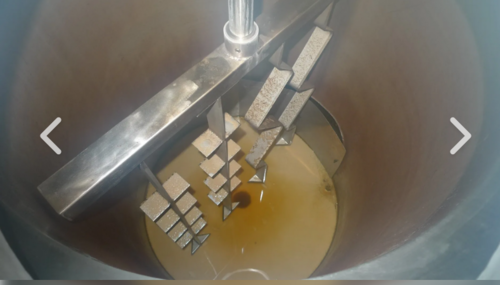

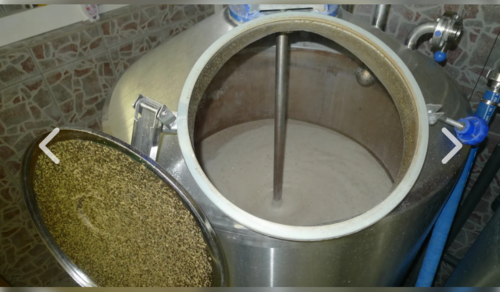

a) The mash is boiled in the mash kettle, then the mash is pumped into the lauter tun by the beer pump.

b) During lautering, the wort is pumped back into the mash tun.

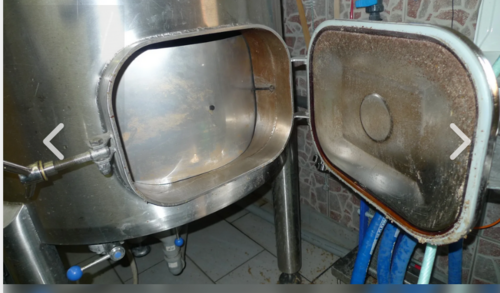

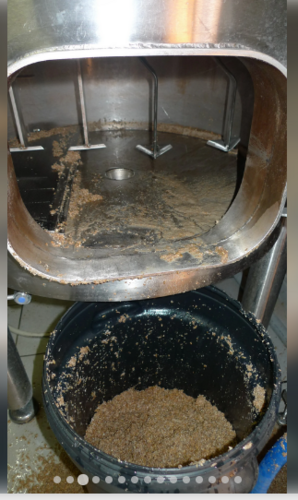

c) After lautering, the lauter tun is cleaned and the sieve bottom is removed.

A special injection nozzle is installed at the bottom of the lauter tun on the cylinder wall.

This allows it to be used as a whirlpool even after the mobile sieve tray has been removed.

d) After boiling down the hops in the mash tun
