Water Planet #CMS-2500, Ceramic Ultrafiltration System

CMS-2500 Ceramic Ultrafiltration System

Compact Modular UF System for Industrial Water Treatment
The CMS-2500 is a compact, modular ceramic ultrafiltration (UF) system designed for industrial
and remote site water treatment. Ideal for operations needing high-solids filtration without the
added complexity of deoiling or fully automated optimization, the CMS-2500 is a proven
platform for high-recovery treatment of:

• Produced water (low oil content)
• Tank bottoms and slop water
• Cooling water and contact washdown

With only 811 hours of prior operation, this unit is field-proven and lightly used, ready for rapid
deployment and ideal for budget-conscious or pilot-scale applications.
Why Choose the CMS-2500?

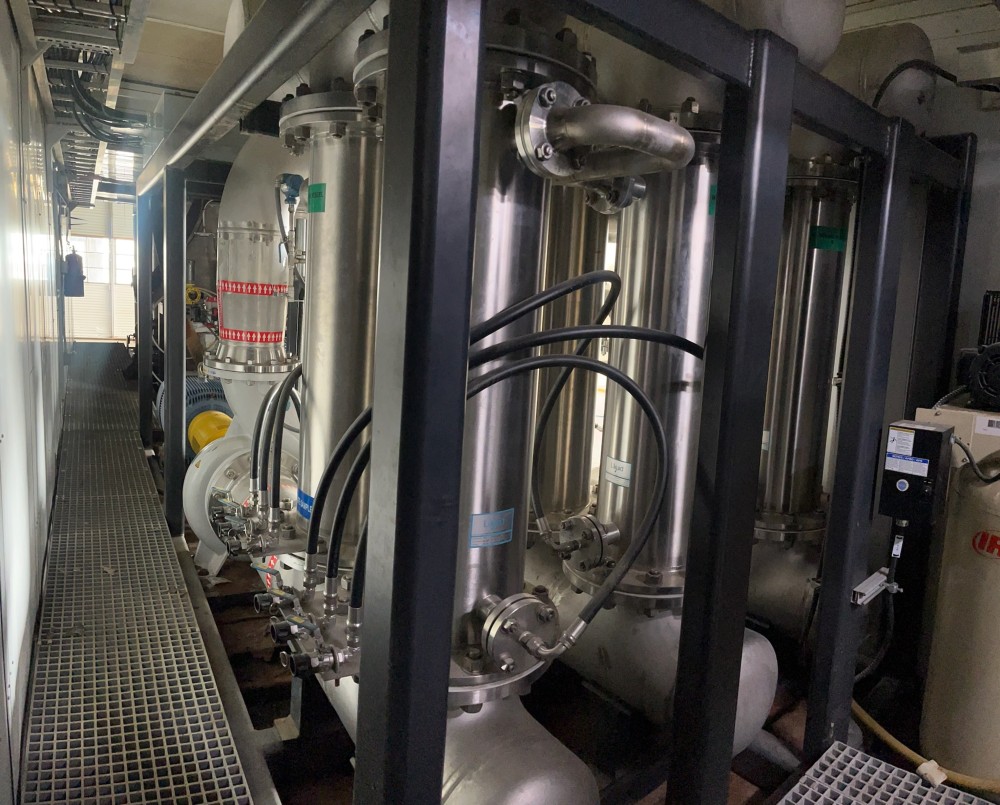

Proven Ceramic Membrane Technology

• TiO₂ active layer over ceramic substrate
• 100 kDa MWCO for suspended solids and organics removal
• Robust against fouling, thermal and chemical stress

Simplified Modular Platform

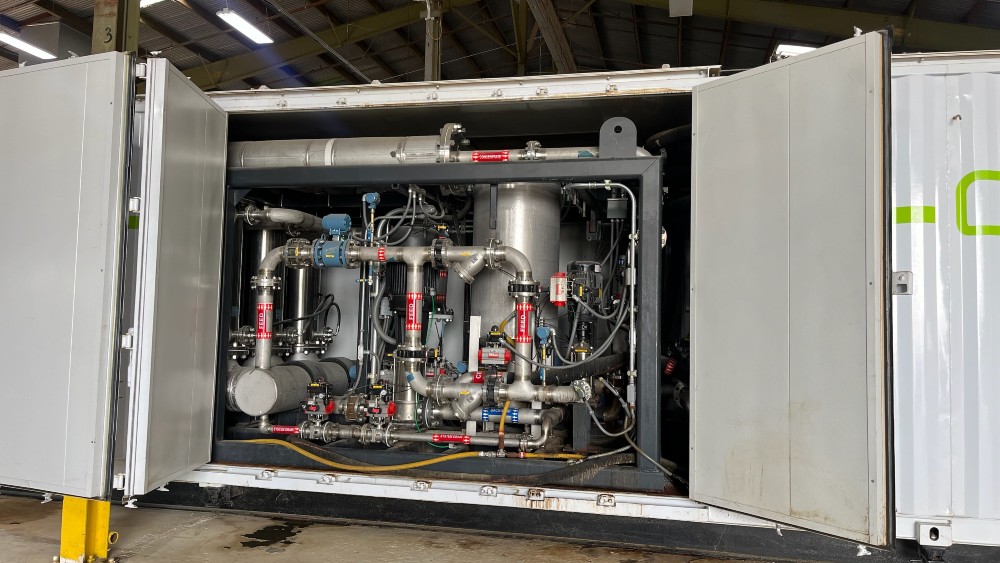

• Skid-mounted membrane system with integrated pumps and sensors
• Local touchscreen HMI (no remote SCADA or optimization software, remote or combined operation can be added.)
• Includes basic auto-backwash and CEB functions

Compact & Mobile

• Easily transported on flatbed trailer
• Quick hose-based deployment

System Capacities

Subsystem	Flow Rate (Nominal)	Max Design	Notes
Total Feed Capacity	~81 GPM	~105GPM	Single-stage pre-treated feed
Permeate Flow	~35 GPM	45 GPM	1 x CMU skid, ~90% recovery
Concentrate Flow	~4 GPM	5 GPM	Recycle or discharge
RO CIP Capacity	~5 GPM	-	Integrated RO support (if used)

Power & Footprint

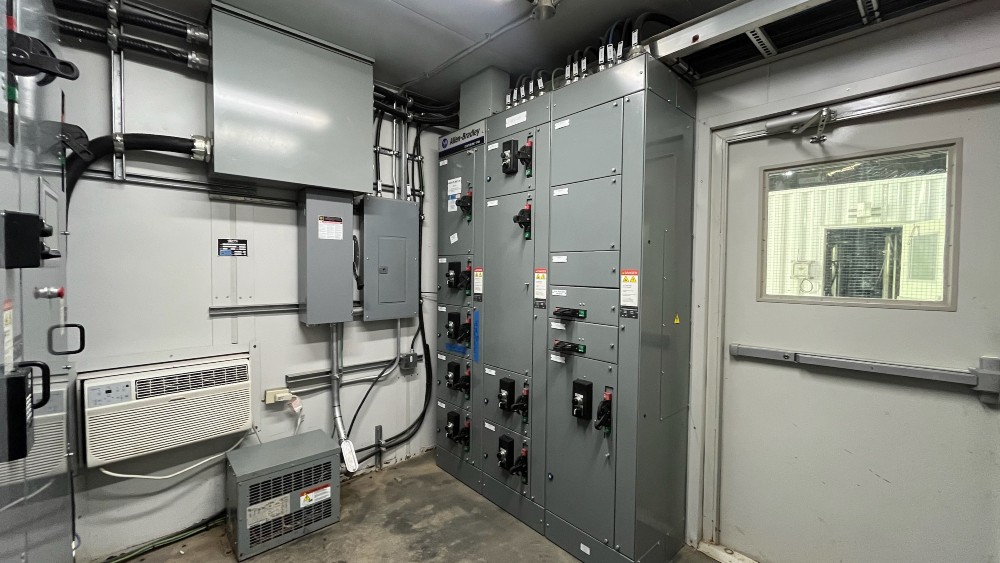

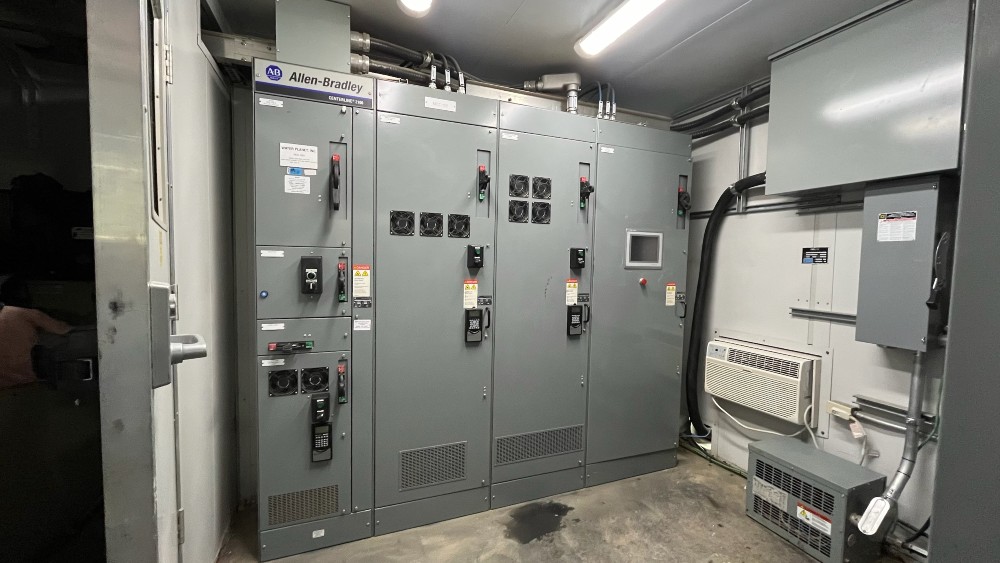

• Class 1 Div 2 Electrical classification
• Installed weight: ~34,000 lbs
• Wetted weight: ~67,000 lbs (~4,000 gal capacity)

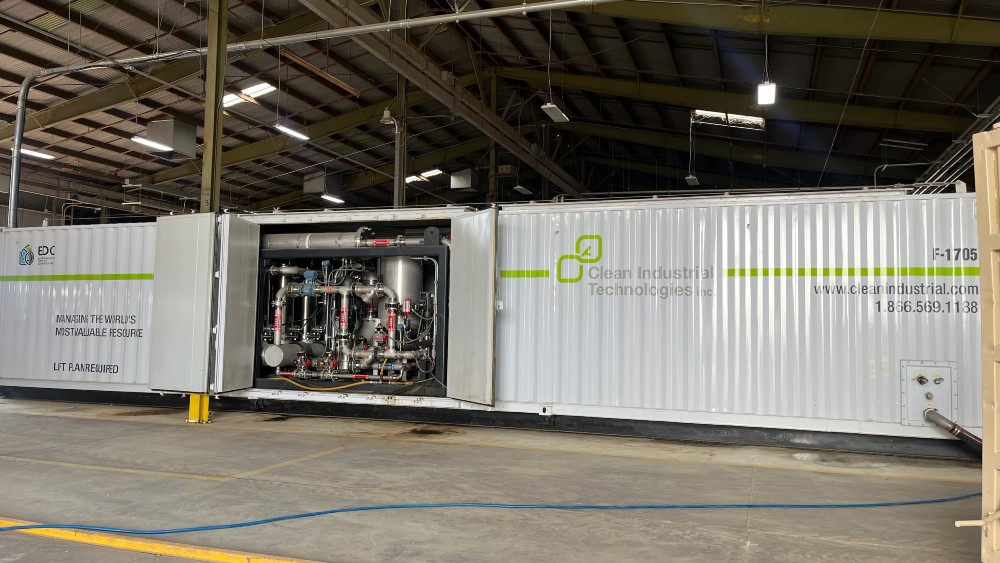

• Footprint: Compact skid + containerized shell
• Deployment: Forkliftable, skid-mounted system

Applications

• Oil & Gas: Slop water treatment, tank bottom reuse, field pilot applications
• Industrial: Cooling watr filtration, maintenance dewatering
• Municiple/Remote Sites: Emergency treatment, temporary high-solids treatment
