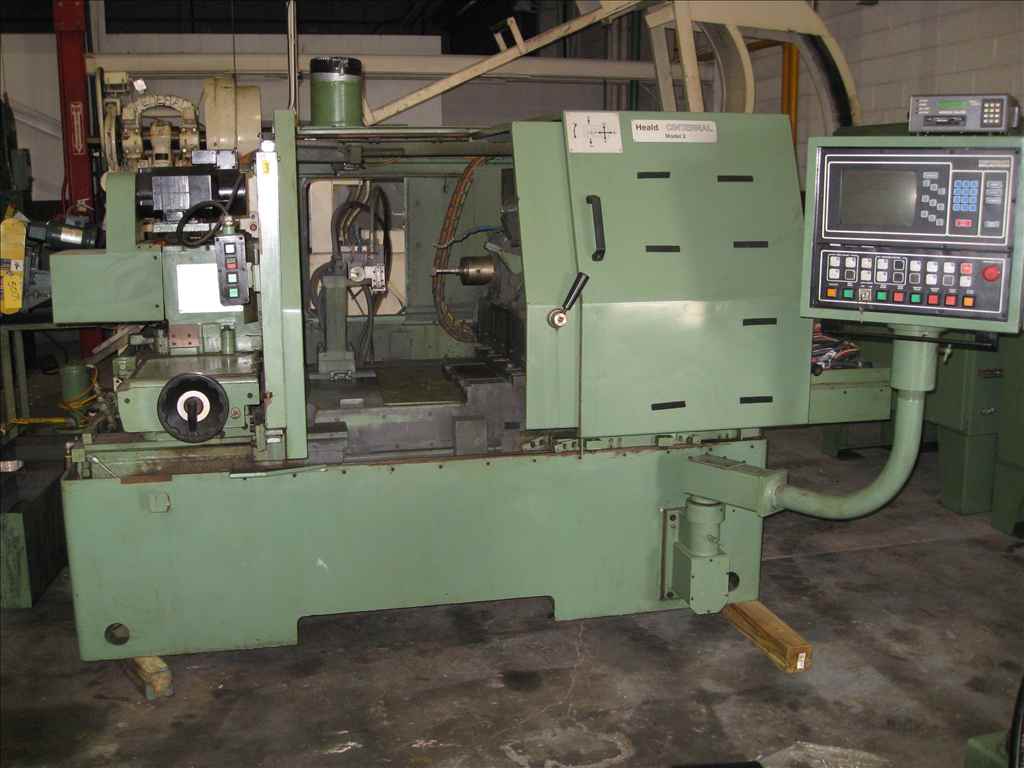

Cincinnati Milacron/Heald #2EF-750G, CNC multi-surface internal grinder, 28"/17" swing, 17" grinding stroke, 20" table travel, 10 HP, 1987

Heald #2EF 750G, 28" Swing Over Table, 1,000 lb Work Head Capacity, 2" Riser on Workhead, Acramatic 750G CNC Control, Hydraulic Rotary Diamond Dresser, As Is
2EF 750G CINCINNATI MILACRON/HEALD CINTERNAL CNC
MULTI-SURFACE INTERNAL GRINDER
S/N 912027U87-0122 Year:1987
STANDARD SPECIFICATIONS
Work head capacity………………………………………. 1,000 lbs.
Swing over table –maximum…………………………….. 28”
Swing with work head @ 90 degrees…………………….. 17”
Grinding stroke –maximum……………………………… 17”
Table longitudinal travel..………………………………… 20”
Wheel head cross slide travel…………………………….. 9”
Work slide travel…………...…………………………….. 16”
Work head swivel angle –maximum…………………….. 0 – 90 degrees
Work head spindle speeds– reversible…………………… 30 to 999 RPM
Feed rate – infinite range………………………………..… .001 to 999 IPM
Work head spindle motor………………………………..… 10 HP
Work head chuck motor…………………………………… 4.5 HP
Hydraulic motor –HP/RPM……………………………..…1/3 HP
Overall dimensions – W x D………………………………. 65” high x 173” x 113”
Weight–approximately…………………………………… 12,000 lbs.
EQUIPPED WITH
Acramatic#750 GCNC Control.
Cross sliding work head.
0-45 Degree Sine bar.
28”swing over table.
2”riser on work head.
Hydraulic rotary diamond dresser.
12” extended base.
Coolant tank pump.
Standalone electrical panel.
Flange style work head.
Full guarding.
Specifications are deemed accurate, however, subject to verification or prior sale.
