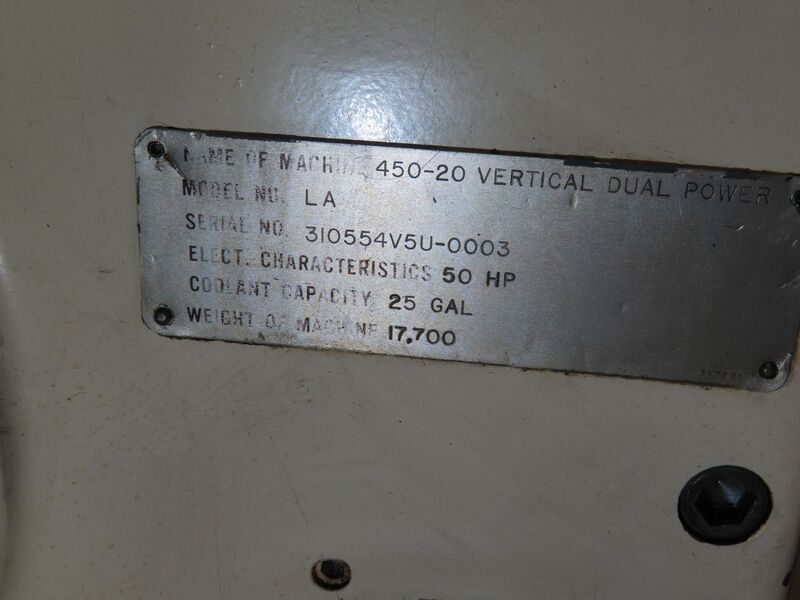

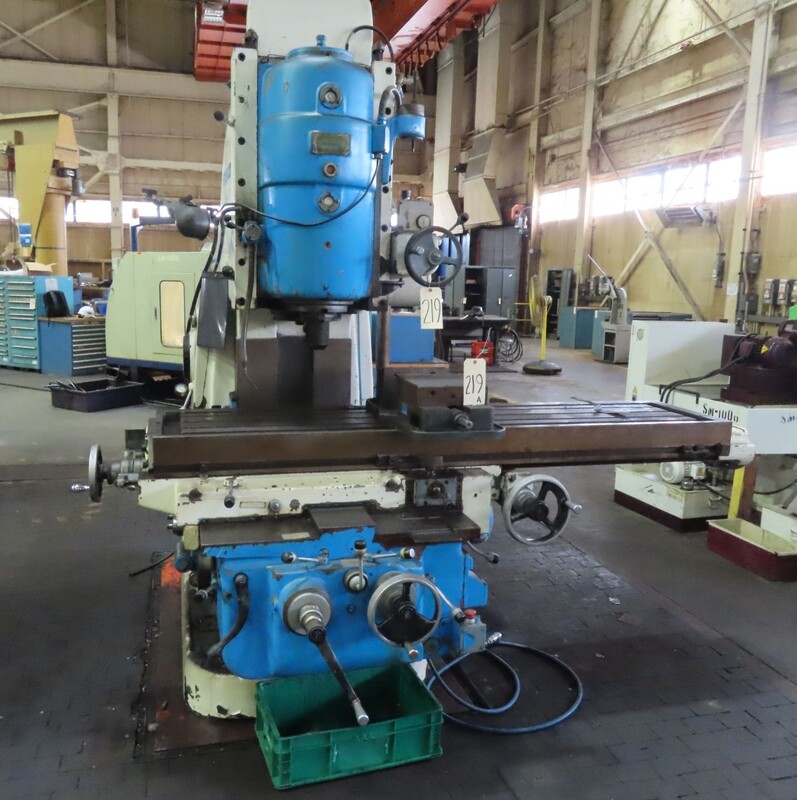

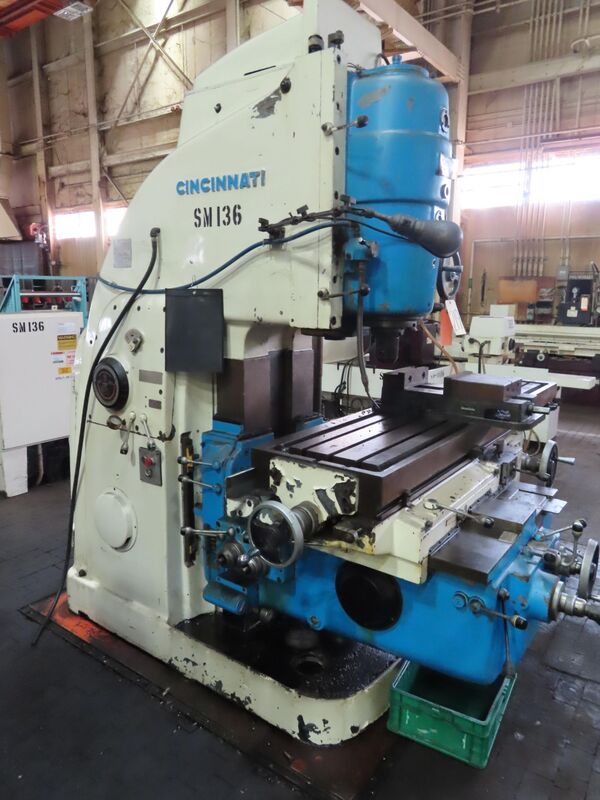

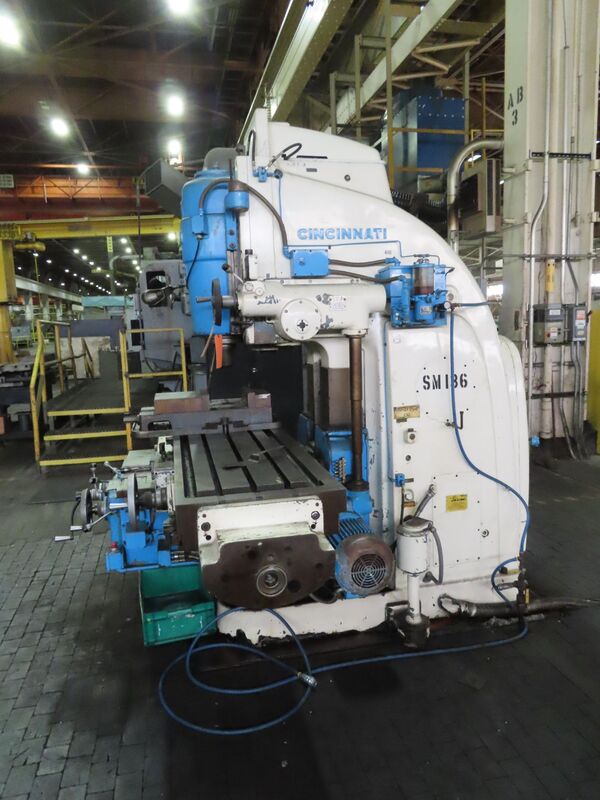

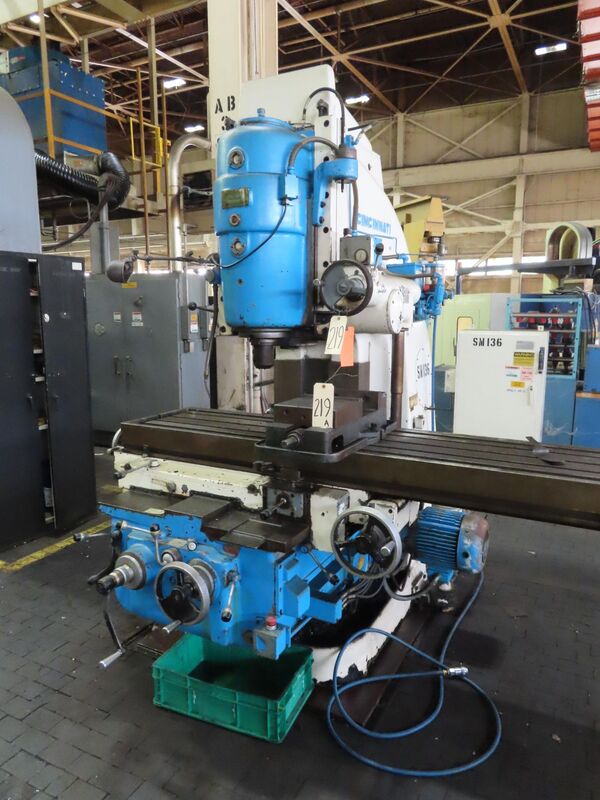

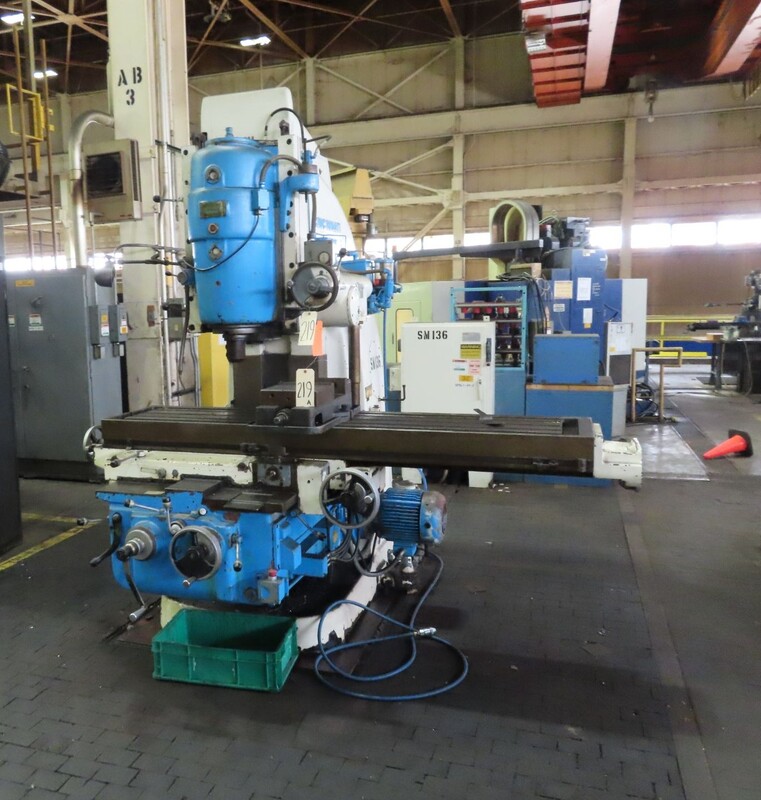

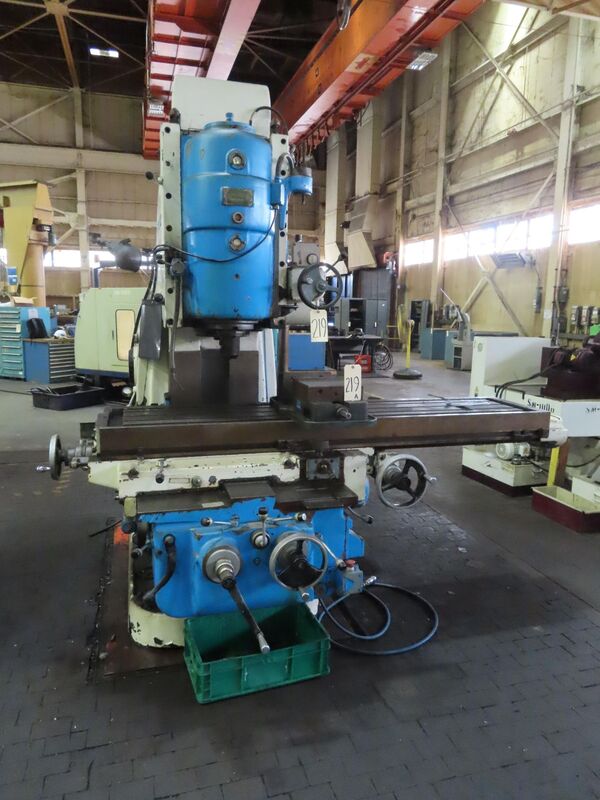

450-20 CINCINNATI-MILACRON "DUAL- POWER" DIAL-TYPE VERTICAL MILL Serial No 310554V5U-0003, Model 450-20, Series, Dual-Power Dial Type, Ltr LA
EQUIPPED WITH: Motor On Knee --- Automatic Table Feed Cycle Power Rapid Traverse --- Front & Rear Controls Automatic Backlash Eliminator - Heavy-Duty Vise Vertical Turret Depth Stops (4-Position) Coolant System (Built-In)
CATALOG SPECIFICATIONS: Table Dimensions (Overall), W x L 20" x 86-1/2" Table Working Surface, W x L 20" x 86-1/2" Table Longitudinal Travel (X-Axis) 42" Saddle Cross Travel (Y-Axis) 18" Knee Vertical Travel (Z-Axis) 16" Spindle-Head Vertical Travel (Z-Axis) 8" Spindle-Nose to Table, Minimum 0" Spindle-Nose to Table, Maximum 22" (24) Spindle Speeds, Range 14 to 1400 RPM (32) Longitudinal and Cross Feeds 3/8 to 90 IPM (32) Vertical Head Feeds, Range 3/16 to 45 IPM (32) Vertical Knee Feeds, Range 3/32 to 22.5 IPM Power Rapid Traverse, Long & Cross 150 IPM Power Rapid Traverse, Vertical 37-1/2 IPM Power Rapid Traverse, Spindle Head 75 IPM Spindle Motor, Horsepower 50 HP Feed Motor, Horsepower 5 HP Floor Space Required, W x D 12'3" x 11'3" Overall Height 8'11" Weight, Approximately 17,700 LBS
