For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Sales
866-69...> Show Seller's Phone Number 866-692-8933 Let the seller know you found their listing on Surplus Record!
Description

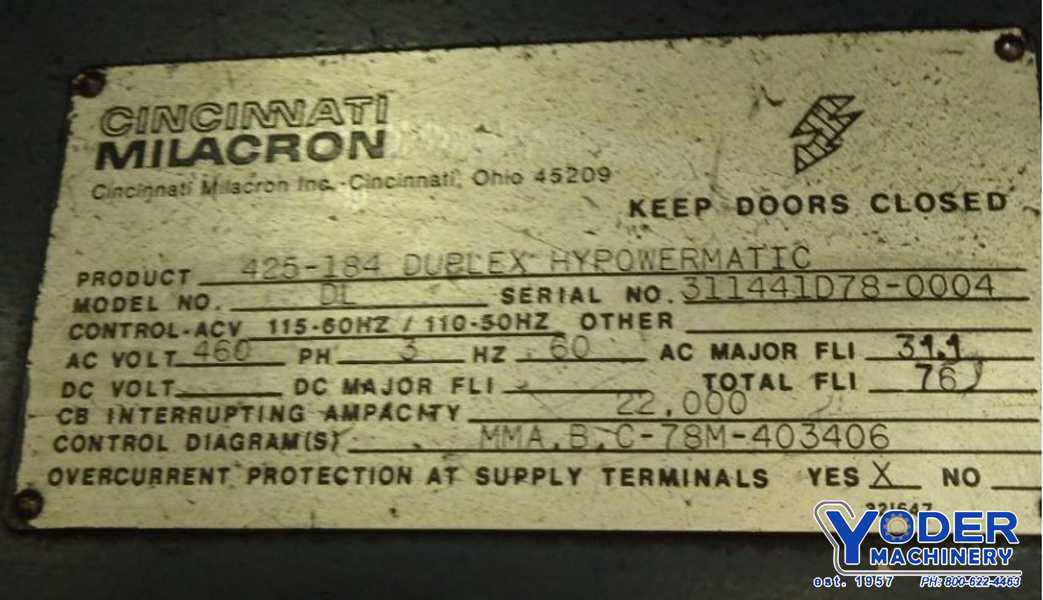

MODEL ......................................... 425-184
TABLE DIMENSIONS (OVERALL) W X L .............. 18" X 80"
TABLE WORKING SURFACE, W X L .................. 18" X 72"
TABLE LONGITUDINAL TRAVEL (X-AXIS) ............ 48"
SPINDLE-HEAD VERTICAL TRAVEL (Y-AXIS) ......... 17.25"
QUILL CROSS ADJUSTMENT (Z-AXIS) ............... 6"
SPINDLE-CENTER TO TABLE-TOP, MINIMUM .......... 4.75"
SPINDLE-CENTER TO TABLE-TOP, MAXIMUM .......... 22"
TABLE-CENTER TO SPINDLE-FACE, MINIMUM ......... 5.5"
TABLE-CENTER TO SPINDLE-FACE, MAXIMUM ......... 11.5"
QUILL DIAMETER ................................ 8.5"
SPINDLE TAPER ................................. #50 NSTD
(16) SPINDLE SPEEDS (GEARED), RANGE ........... 22 TO 900 RPM
POWER RAPID TABLE TRAVERSE .................... 200 IPM
(2) SPINDLE MOTORS, HORSEPOWER ................ 25 HP (EACH)
HYDRAULIC MOTOR, HORSEPOWER ................... 5 HP
TABLE DIMENSIONS (OVERALL) W X L .............. 18" X 80"
TABLE WORKING SURFACE, W X L .................. 18" X 72"
TABLE LONGITUDINAL TRAVEL (X-AXIS) ............ 48"
SPINDLE-HEAD VERTICAL TRAVEL (Y-AXIS) ......... 17.25"
QUILL CROSS ADJUSTMENT (Z-AXIS) ............... 6"
SPINDLE-CENTER TO TABLE-TOP, MINIMUM .......... 4.75"
SPINDLE-CENTER TO TABLE-TOP, MAXIMUM .......... 22"
TABLE-CENTER TO SPINDLE-FACE, MINIMUM ......... 5.5"
TABLE-CENTER TO SPINDLE-FACE, MAXIMUM ......... 11.5"
QUILL DIAMETER ................................ 8.5"
SPINDLE TAPER ................................. #50 NSTD
(16) SPINDLE SPEEDS (GEARED), RANGE ........... 22 TO 900 RPM
POWER RAPID TABLE TRAVERSE .................... 200 IPM
(2) SPINDLE MOTORS, HORSEPOWER ................ 25 HP (EACH)
HYDRAULIC MOTOR, HORSEPOWER ................... 5 HP
Get Your Price from Yoder Machinery Sales!
