10" x 20" Chevalier #FSG-3A1020, Precision Surface Grinder, 12 Grinding Wheel, 16-82 FPM table, 3 HP, 460 V., Sokki digital read out

Description

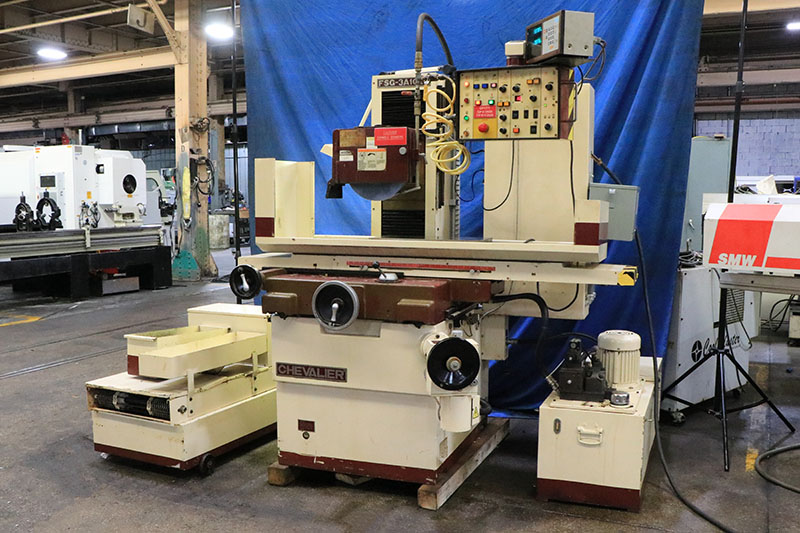

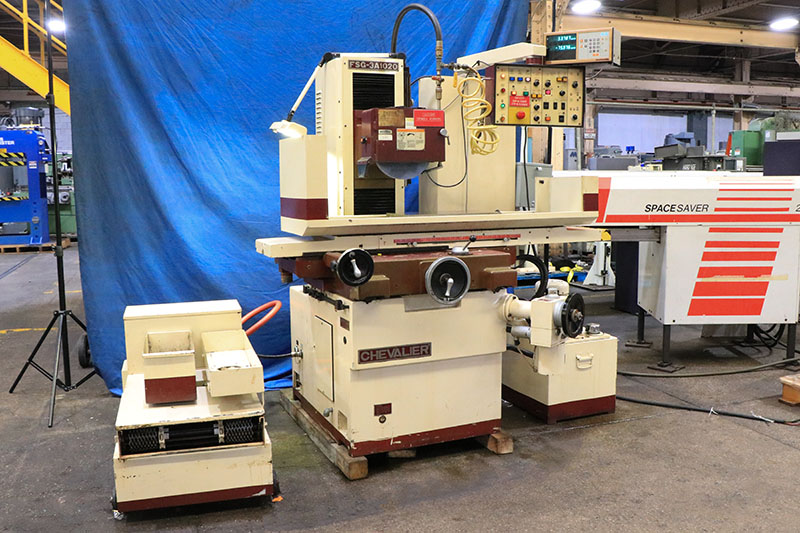

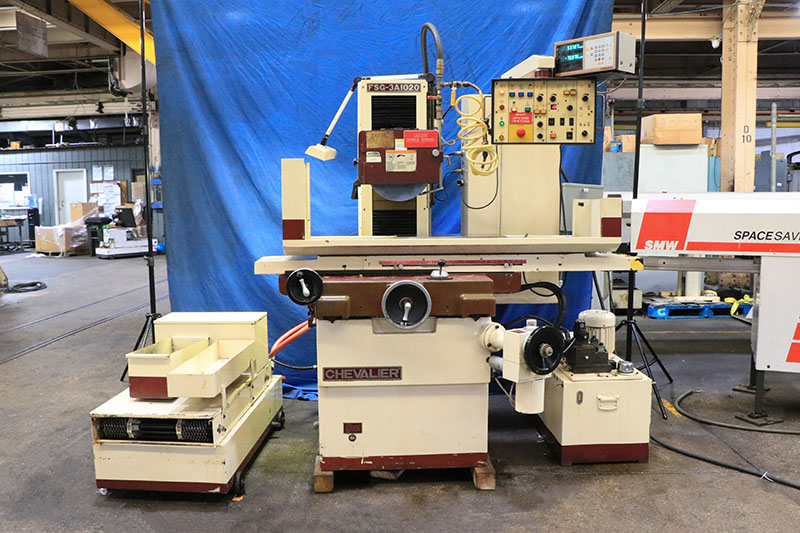

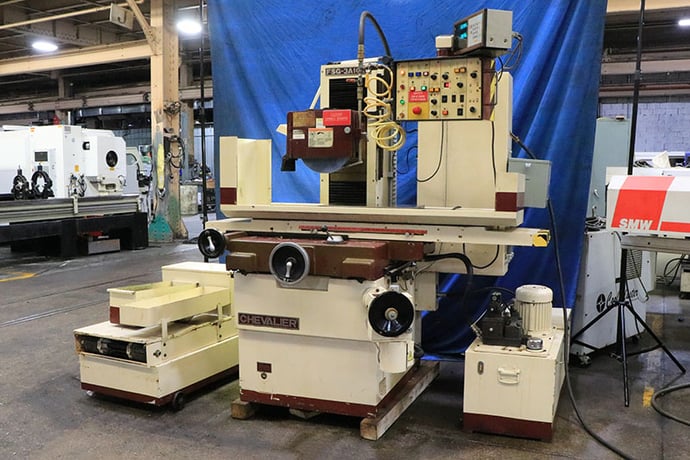

Chevalier 10″ x 20″ Precision Surface Grinder with Programmable Automatic Incremental Downfeed and 12″ Grinding Wheel

Inventory # 9932-P

Model: FSG-3A1020

S/N: N3823003 “1993”

Specifications:

Nominal Grinding Capacity: 10″ x 20″

Max. Longitudinal Table Travel, Hydraulic: 22 7/8″

Max. Longitudinal Table Travel, Manual: 24 3/8″

Max. Cross Feed Travel, Automatic: 11 7/16″

Max. Cross Feed Travel, Manual: 11 3/4″

Distance from Spindle Center to Table: 21 1/2″

Variable Table Speed, Hydraulic: 16 – 82 FPM

Automatic Cross Feed Increment: 0.02″ – 0.4″

Power Rapid Traverse, Cross: 48 IPM

Cross Feed Handwheel per Graduation: 0.001″

Per Revolution: 0.02″

Automatic Incremental Down Feed: 0.0001″ – .002″

Auto Down Feed Dial per Graduation: 0.0005″

Per Revolution: 0.1″

Micro Feed: 0.0001″

Rapid Traverse Rate: 13 IPM

Standard Grinding Wheel: 12″ Diameter x 1 1/4″ x 3″

Spindle Motor: 3 HP / 460v / 3ph

Standard Features:

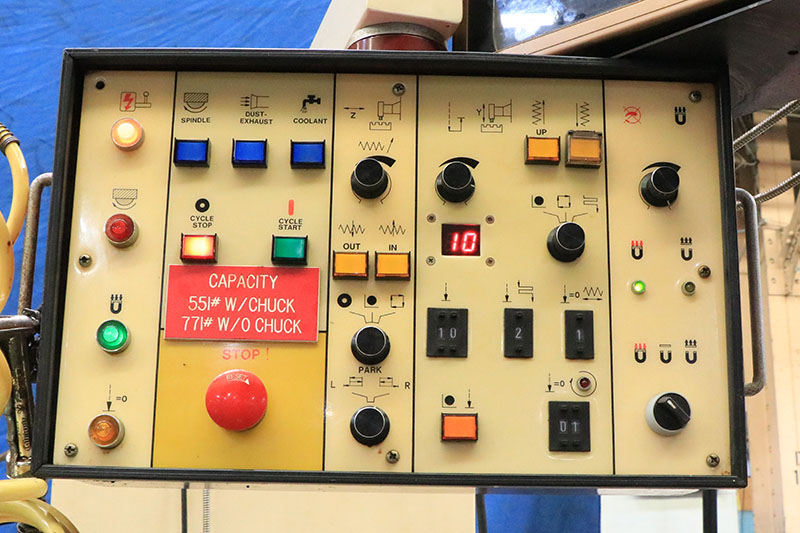

Fully Programmable Microprocessor Auto-Cycle Control with Digital Display

Automatic Incremental Down Feed (Plunge & Surface)

Spark Out Cycle with Automatic Wheel Head Retraction at Completion of Grind Cycle

Power Rapid Wheel Head Positioning

Hydraulic Table Traverse

Electronic Cross & Vertical Feeds

Micro-Down Feed (.0001″ Graduation)

Equipment Included:

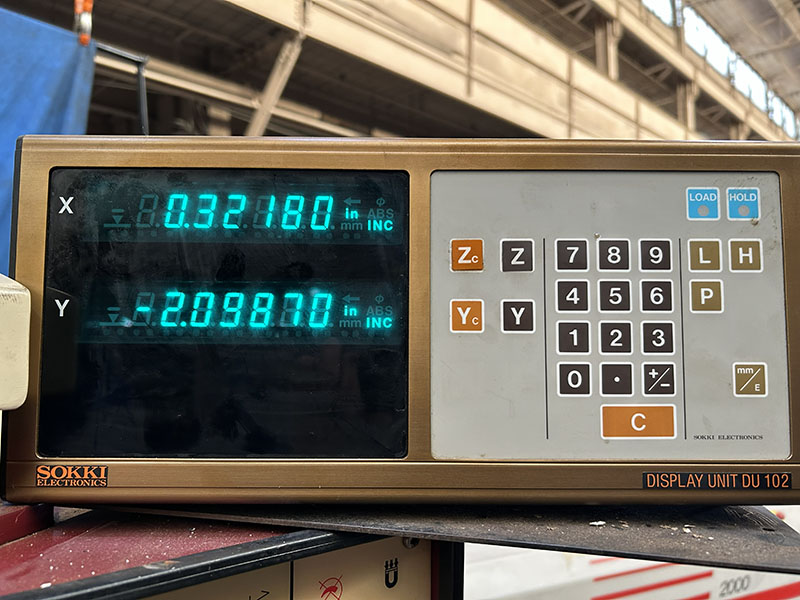

“Sokki” High-Accuracy ‘Made in Japan’ 2-Axis Digital Read Out Display; Reads to 0.00005″ Resolution

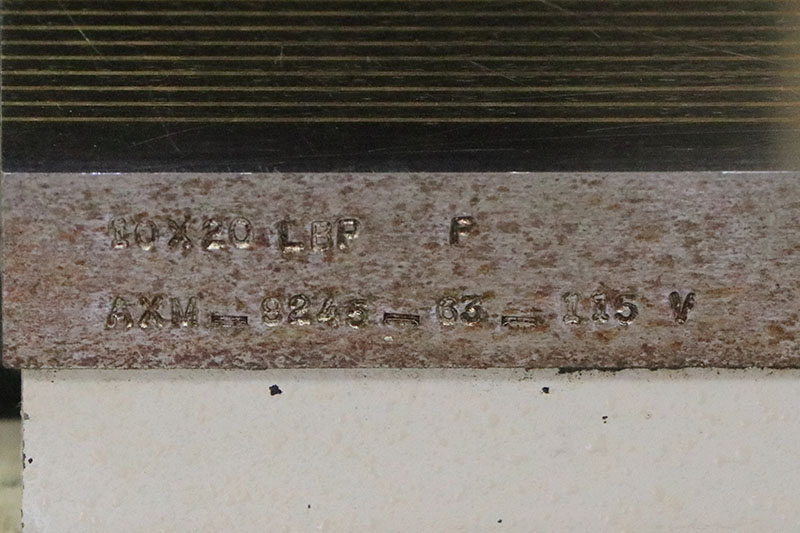

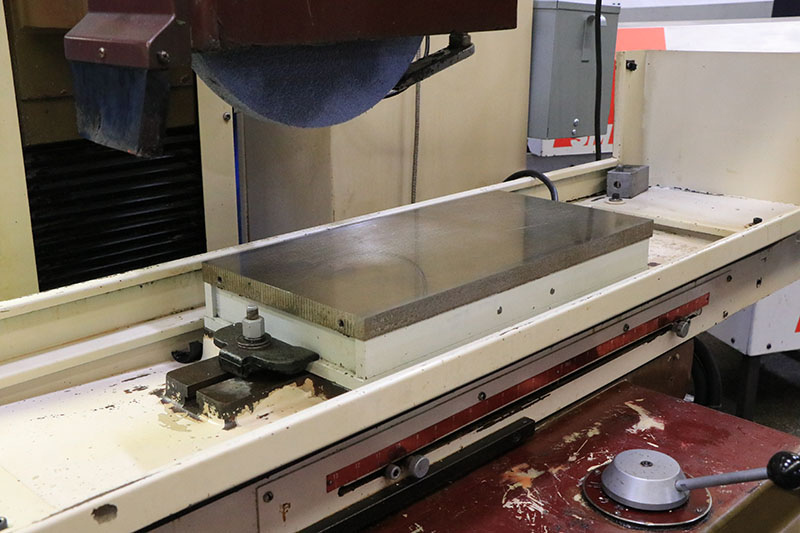

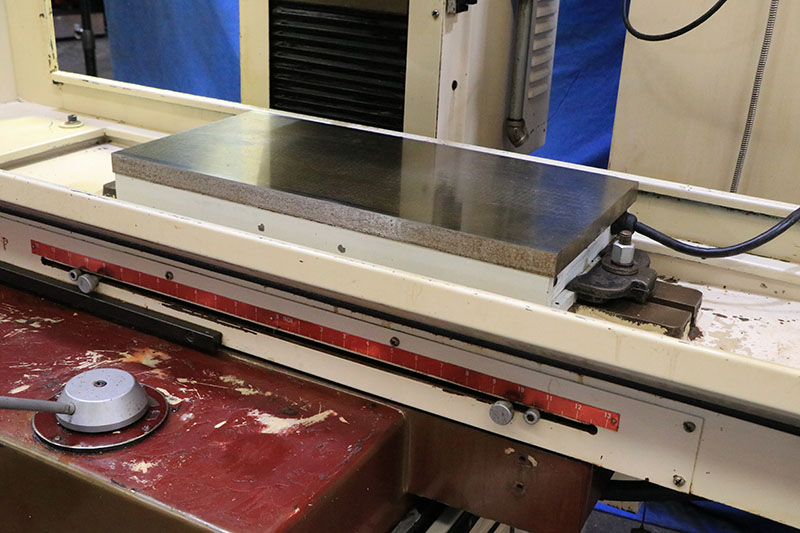

10″ x 20″ O.S. Walker “LBP” Fine-Division Electro-Magnetic Chuck with Variable Hold Neutrofier Control on the Machine Control Console

Coolant System with Paper Filtration

Work Light

External Hydraulic System

Auto Lube System

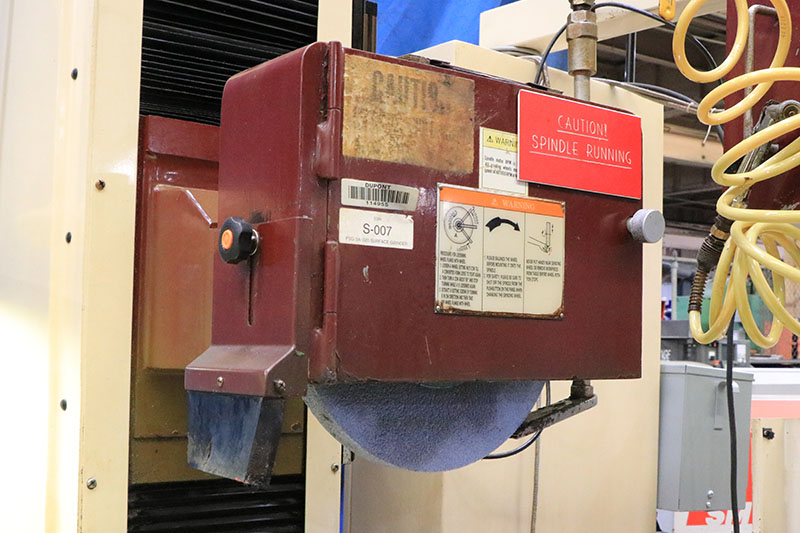

12″ Grinding Wheel

3 HP Super-Precision Direct Drive Spindle

Mechanical Specifications:

Dimensions: 85″ x 48″ x 65″ H

Weight: approx. 3,310 lbs.

FOB Harrison, NJ Warehouse
