For Sale by Pearl Equipment Co
Surplus Record Dealer Since 1963
Si Culp
615-38...> Show Seller's Phone Number 615-383-8703 Let the seller know you found their listing on Surplus Record!
Description

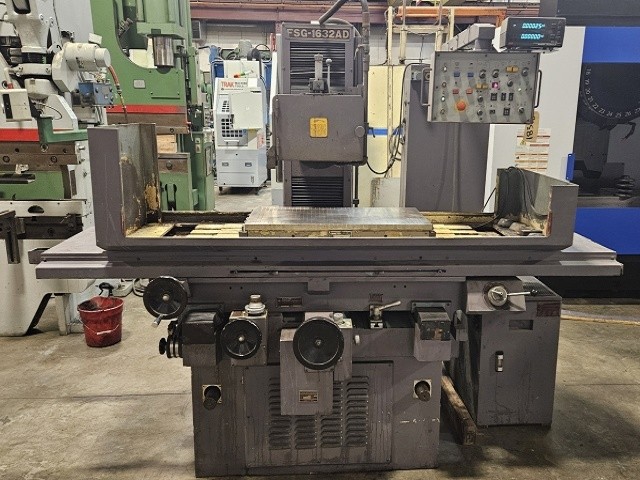

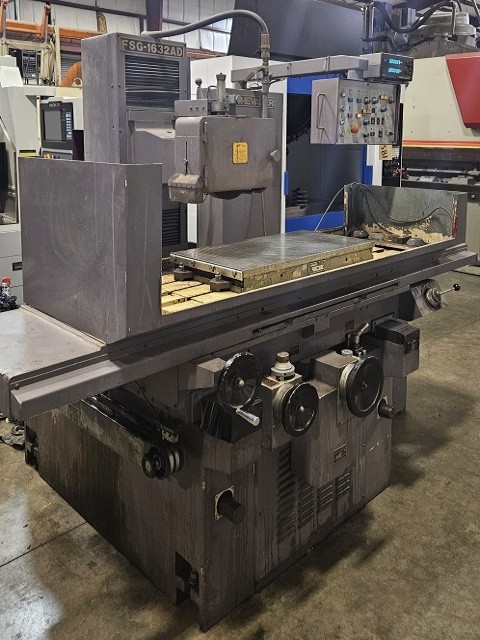

Chevalier 16" x 32" Automatic Surface Grinder

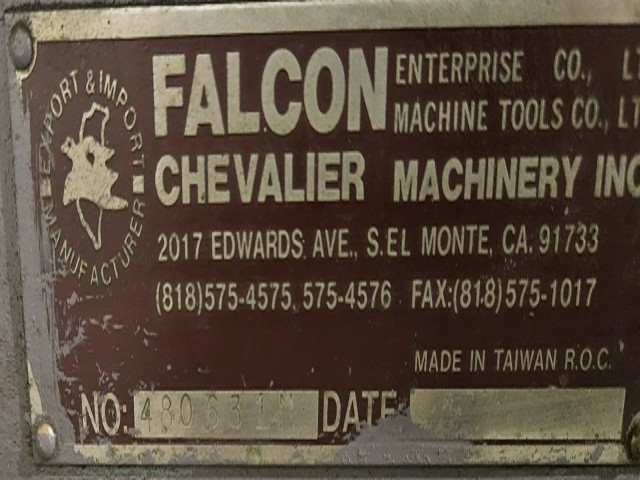

S/N: 480631M, Stock No: 18378
Model: FSG-1632AD
Grinding Capacity: 16" x 32"
Spindle To Table Max: 24"
Longitudinal Table Travel: 35-3/8"
Cross Table Travel: 18"
Table Speed Variable: 5 To 25 Fpm
Spindle Speed: 3,450 Rpm
Grinding Wheel Size: 14" x 2" x 5"
Electro-Magnetic Chuck Size: 31-1/2" x 15-3/4"
Incremental Downfeed: 0.00005" - 0.002"
Automatic Crossfeed: 0.005 Ipr
Power Elevation: 12 Fpm
Electrics: 240/480 V, 3 PH (Currently Wired 480V)
Spindle Motor: 5 Hp
Hydraulic Motor: 2 Hp
Equipped With:

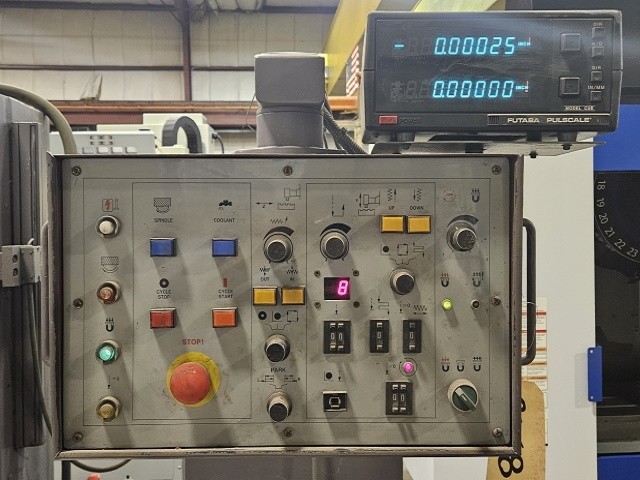

Futaba DRO
3 Axis Auto Feed
Coolant With Paper Filtration
Over The Wheel Dresser
Electro-Magnetic Chuck w/Controls
Overall Size, Approximate: 132" L-R x 68" F-B x 86" H
Weight, Approximate: 6,500 Lbs.
S/N: 480631M, Stock No: 18378
Model: FSG-1632AD
Grinding Capacity: 16" x 32"
Spindle To Table Max: 24"
Longitudinal Table Travel: 35-3/8"
Cross Table Travel: 18"
Table Speed Variable: 5 To 25 Fpm
Spindle Speed: 3,450 Rpm
Grinding Wheel Size: 14" x 2" x 5"
Electro-Magnetic Chuck Size: 31-1/2" x 15-3/4"
Incremental Downfeed: 0.00005" - 0.002"
Automatic Crossfeed: 0.005 Ipr
Power Elevation: 12 Fpm
Electrics: 240/480 V, 3 PH (Currently Wired 480V)
Spindle Motor: 5 Hp
Hydraulic Motor: 2 Hp
Equipped With:
Futaba DRO
3 Axis Auto Feed
Coolant With Paper Filtration
Over The Wheel Dresser
Electro-Magnetic Chuck w/Controls
Overall Size, Approximate: 132" L-R x 68" F-B x 86" H
Weight, Approximate: 6,500 Lbs.
Get Your Price from Pearl Equipment Co!
