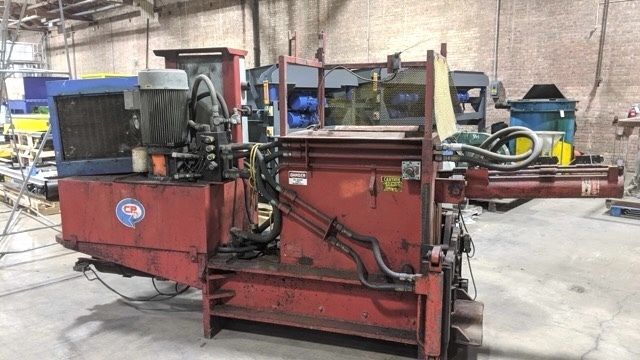

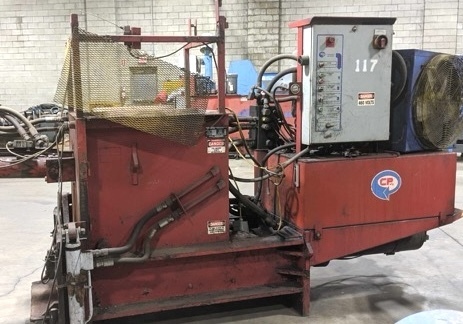

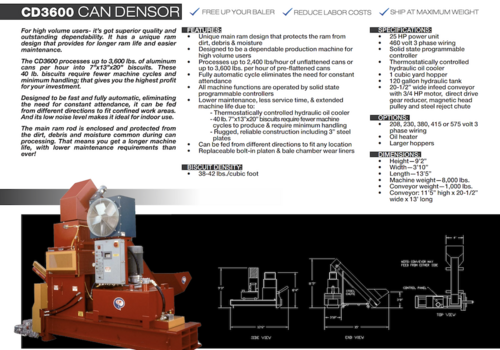

Can Densifier, Chicago Pneumatic #3000, fully automatic, Relay Logics controls, with conveyor

  Play Video

- **Processing Capacity:**
- Up to 2,400 lbs./hour with whole cans
- Up to 3,600 lbs./hour with pre-flattened cans
### Features:
- New, unique main ram design that protects the ram from dirt, debris, and moisture
- Fully automatic cycle eliminates the need for constant attendance
- All machine functions are operated by a solid state, programmable controller
- Low noise level makes the CD3600 ideal for indoor use
- Lower maintenance, less service time, and extended machine life
- Thermostatically controlled hydraulic oil cooler
- Fewer machine cycles required to produce output
- Minimum handling required
- Stack into interlocking layers for bundle integrity
- Fewer moving parts
- Rugged, reliable construction including 3" steel
- Can be fed from different directions to fit any location, even confined areas
- Replaceable bolt-in bale chamber wear liners
- Each machine tested with up to 10,000 lbs. of cans before shipping
### Specifications:
- **Power Unit:** 25 hp
- **Wiring:** 460 volt three-phase
- **Hopper:** 1 cubic yard
- **Hydraulic Tank:** 120 gallons
### Options:
- Wiring: 208, 230, 380, 415, or 575 volt three-phase
- Oil heater
- 2 cubic yard hopper
- 5 cubic yard hopper
- Biscuit counter
- Hour meter
### Dimensions:
- **Machine:**
- Height: 9'3"
- Length: 13'5"
- Weight: 9,600 lbs.
### Density:
- 38-42 lbs./cubic feet allowing:
- 140,000 lbs. on 50' railcars
- 40,000 lbs. in 40' trailers
### Output:
- **Biscuit Size:** 7"x13"x20"
- **Biscuit Weight:** 40 lbs.
### Benefits:
- High volume processing capability
- Superior quality and outstanding dependability
- Economically replaces baling
- Premium price for high-density product
- Reduces baler wear caused by aluminum and steel cans
- Reduces labor costs
- Ships maximum weight railcars and truckloads
**Conveyor not Included
