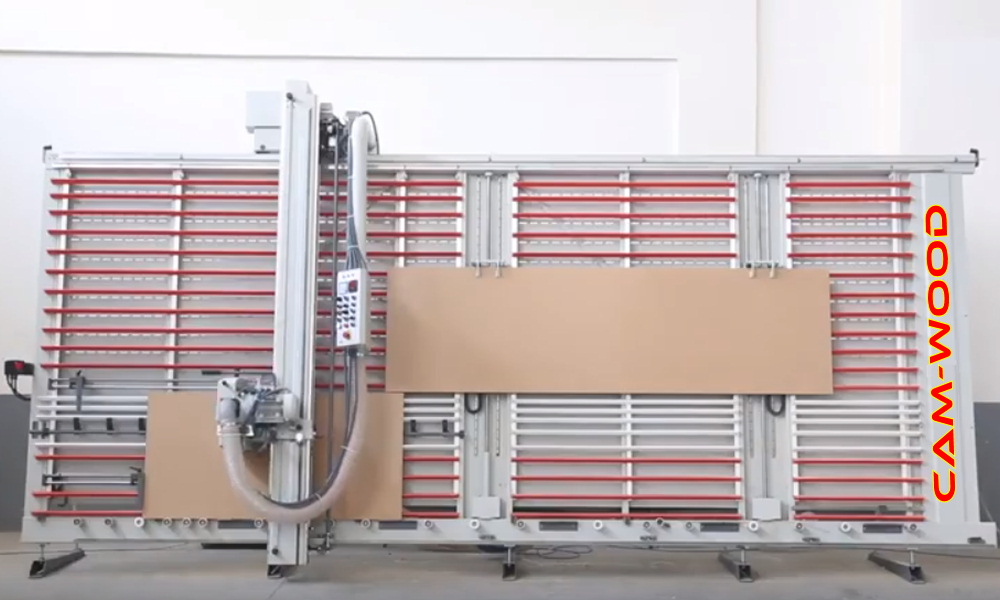

Cam-wood VPS-AP, Vertical Panel Saw, 78-3/4" cutting height with scoring, 161.417" cut lenght, 4 HP, 3.15" scoring blade, 2026, new

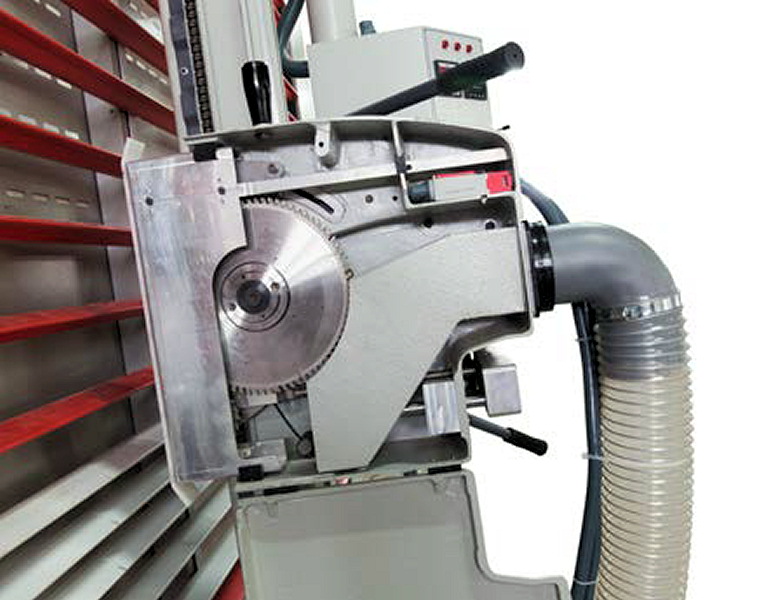

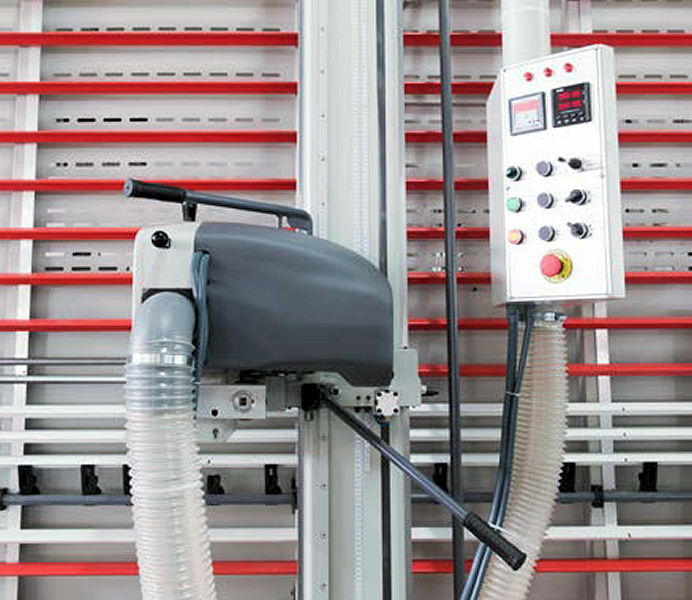

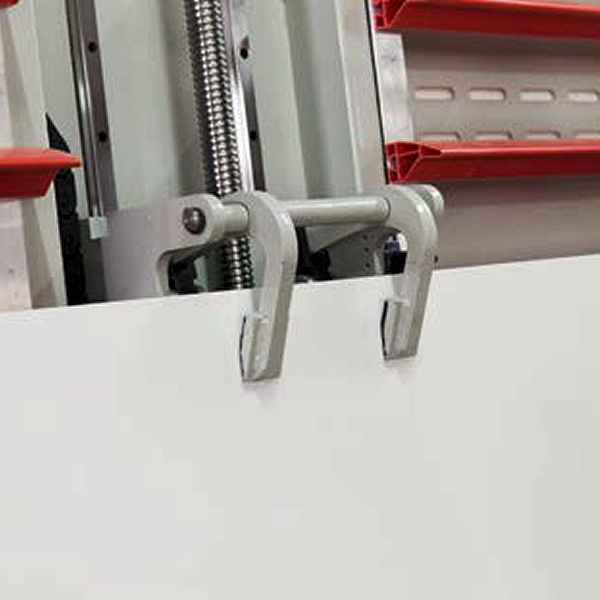

CAM-WOOD - VPS APL , ...Vertical Saw w/Scoring & Panel Lifting ClampsCapacity: -- Top to Bottom cutting height is 82-1/2" (2,100 mm) without scoring and 78-3/4 (2,000 mm) with scoring; saw head w/motor rotates 90 for rip or crosscutting. -- Cutting length "rip cut from left/right" is 161.417" (4,100 mm); cuts single or stacked panels up to 1-7/8 (50 mm) in thickness. Equipped with: -- 4 HP Motor; 250 mm (10") dia. x 80-tooth x 30 mm bore main blade; separate 3.15" dia. scoring blade belt driven at 7,800 RPM to insure clean cuts on everything from Plywood to Melamine to Hardwood. -- 2-Motorized panel lifting clamps "grab panel on top edge" for bottom cuts, clamps travel on (2) vertical screws for positioning of panels (660 Lbs. cap). -- (2) LED Readouts, (1) for crosscutting at the middle of the frame and (1) for horizontal rip cuts; (2) flip stops for crosscut measuring, one located on the bottom rail and the other on the mid-height measuring rail. Complete with: -- Foldout shelf at the middle of the frame for small part cutting; automatically shifting material back support grid shifting away from the saw blade cut-line prevents cutting into the grid support strips while rip cutting horizontally. -- Precision ground bottom edge support rollers to facilitate easy loading & positioning of the larger or heavy panels; standard inch preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- Rip gauge for repeat (same size) rip cuts and (3) adjustable preset stops; material always rests firmly against the "angled" back grid support. Includes: -- Spring-loaded floating saw blade enclosure shoe glides over panel surface applying a holddown force while it enhances dust collection & safety by enclosing the saw blades. -- (1) Main blade; (1) scoring blade.

Request More Information from Seller
