BTB Solutions, reapr, articulated, rotary joint, robotic, pic-n-place arm

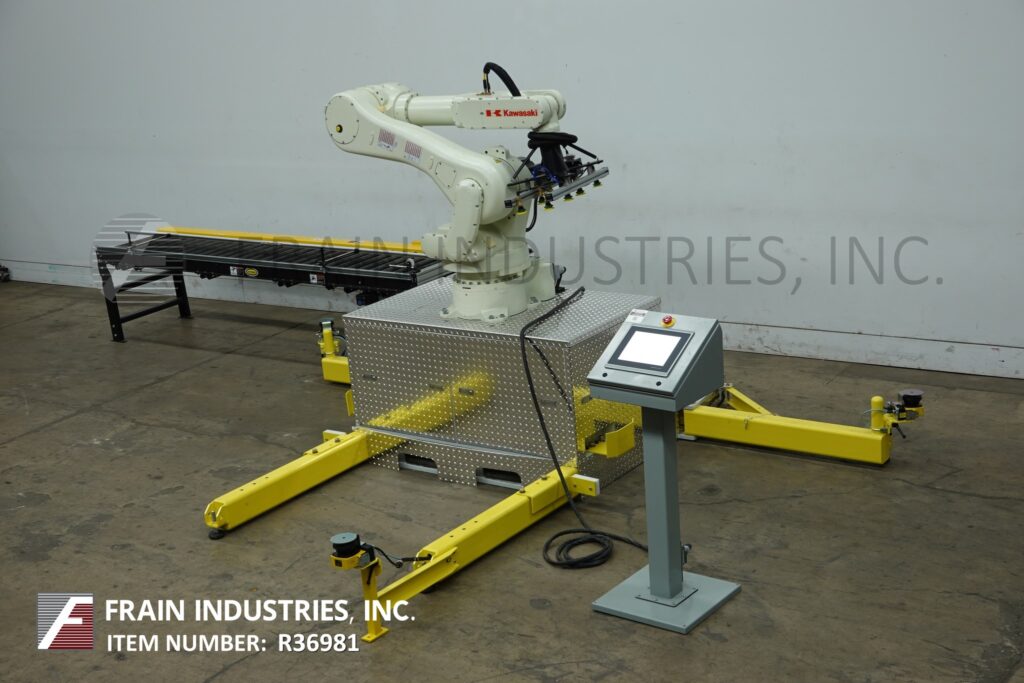

BTB Solutions LLC, Model REAPR, (rapidly employed palletizing system) with 6 axis, articulated, rotary joint, robotic, pic-n-place arm. The system has a Kawasaki RS080N robot arm with 24" long (4) suction cup end effector and has a stack height up to 79" with a maximum reach of 82" and maximum pick-up weight of 160 lbs. Capable of 3 pallet positions. Product infeed roller conveyor is 22" wide x 118" long with 2" diameter rollers set on 4" centers. Control panel has A/B PLC with A/B HMI panelview with step by step setup. (3) 2D area scanners provide 360 degree safety protection with (2) configurable zones (warning zone – slows the robot’s motion and stop zone – stops all motion). Mounted on heavy duty frame. Rates dependent on materials, application, environment, pattern configuration and type of end effector.

OAD: 74" L x 67" W x 80" H (Robot)
: 123" L x 34" W x 32" H (Conveyor)
