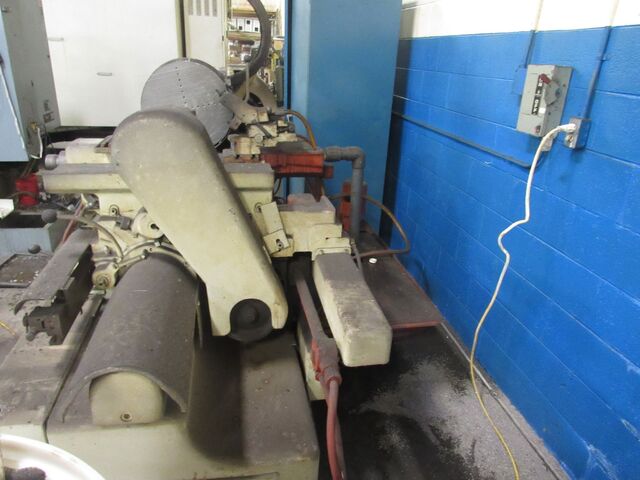

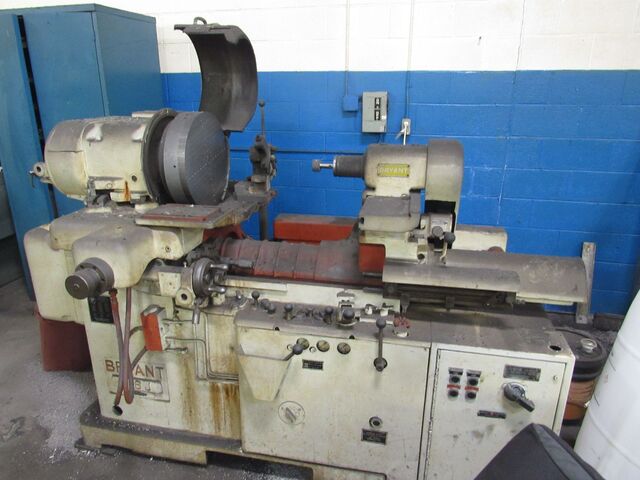

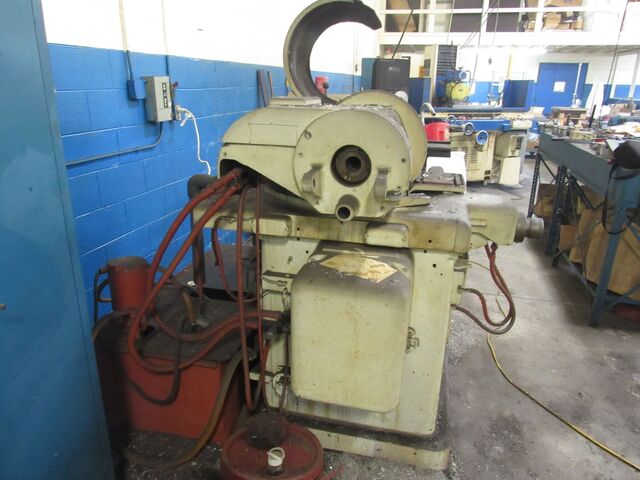

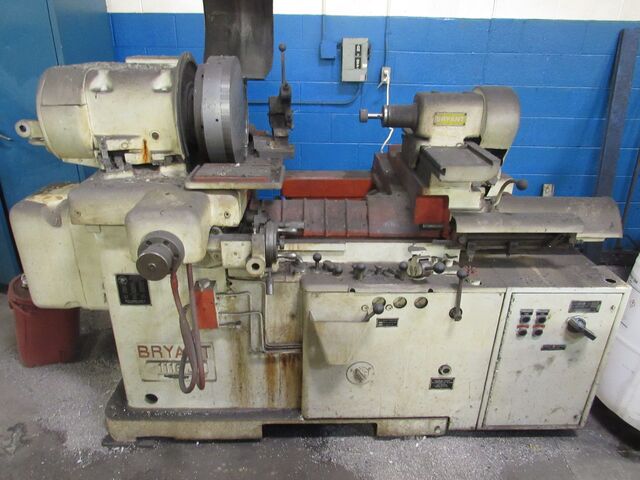

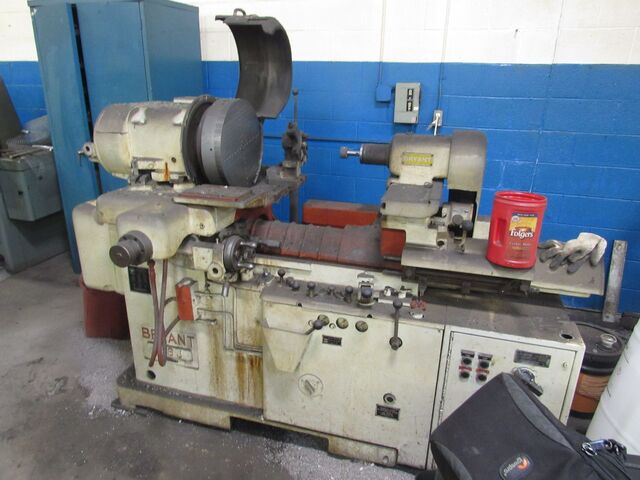

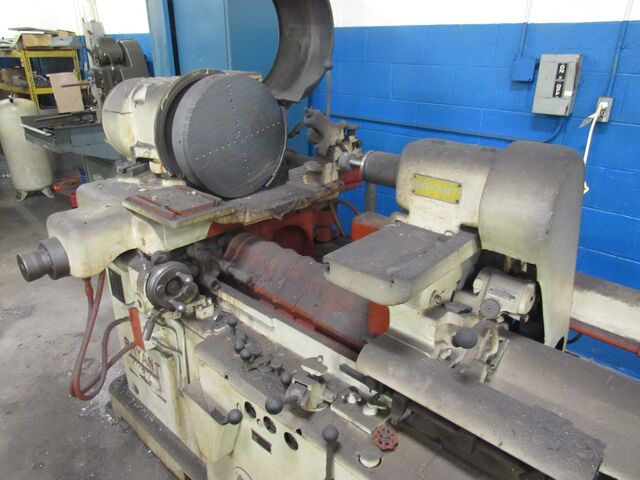

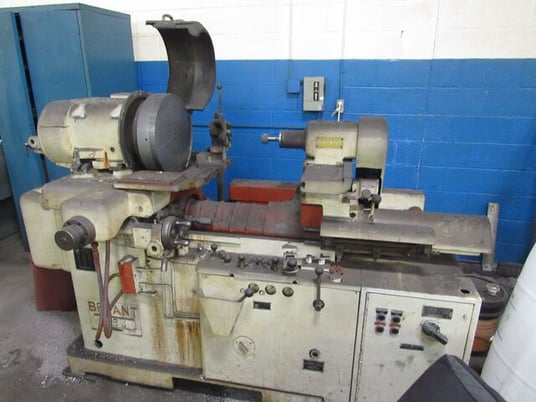

Bryant #1116J, internal grinder, 16" swing, 20" stroke, 7" longitudinal travel, 45° workhead swivel, 650 RPM, dresser, 1951

BRYANT 1116J Internal Grinder. Features 16" swing, 20" stroke, 7" longitudinal travel, 45 workhead swivel, 650 workhead speed, equipped with dresser. Suitable for precision grinding tasks.
1116J BRYANT INTERNAL GRINDER
S/N R9937
STANDARD CATALOG SPECIFICATIONS
Total chuck swing (without guard) work head on center. 16"
Traverse stroke (maximum)............................. 20"
Grinding stroke....................................... .375 to 8"
Work spindle RPM (either direction of rotation)....... 50 to 650
Table movement............ Forward.................... 7"
Table movement............ Rear....................... 2.75"
Work head adjustable to.............................. 45 degrees
(Will grind 90 degrees included angle)
EQUIPMENT & FEATURES
Bryant cartridge spindle.
Hydraulic single point diamond dresser.

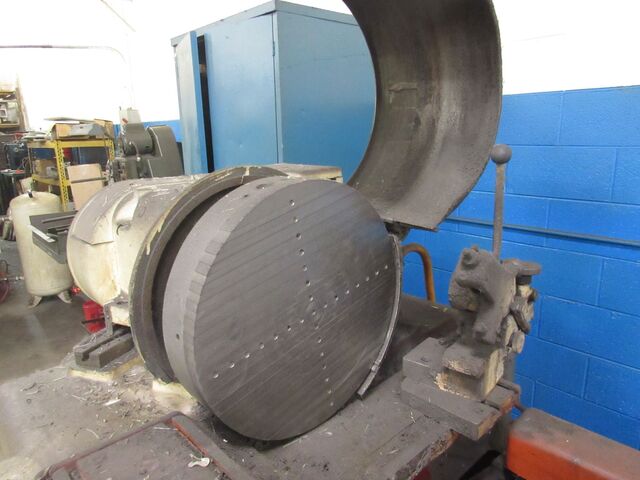

Cam lock work head.
Face stop.
Attached electrical.
Compensation.
Specifications are deemed accurate, however, subject to verification or prior sale.
