Description

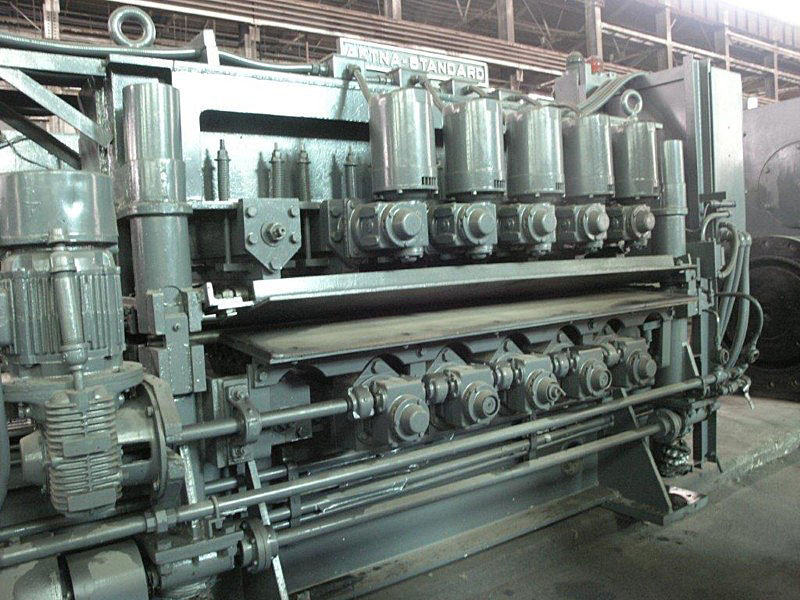

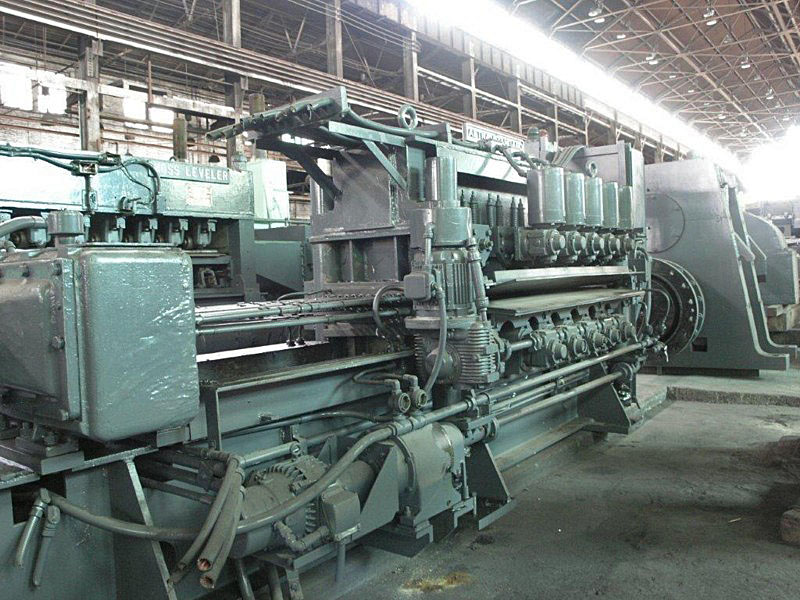

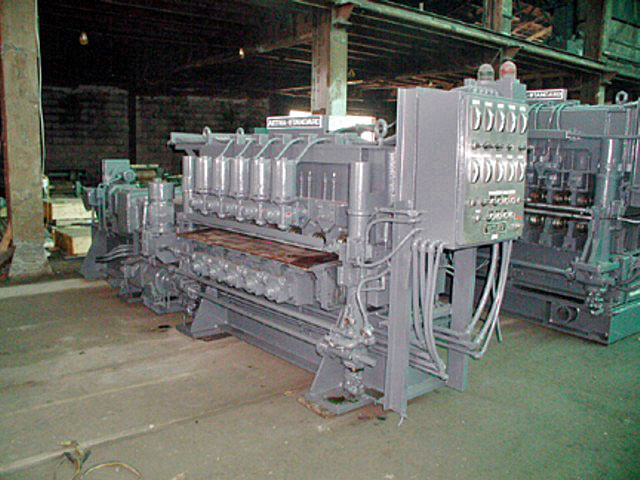

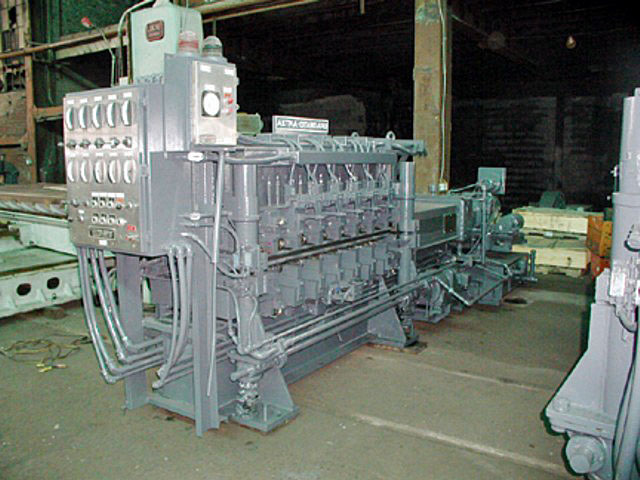

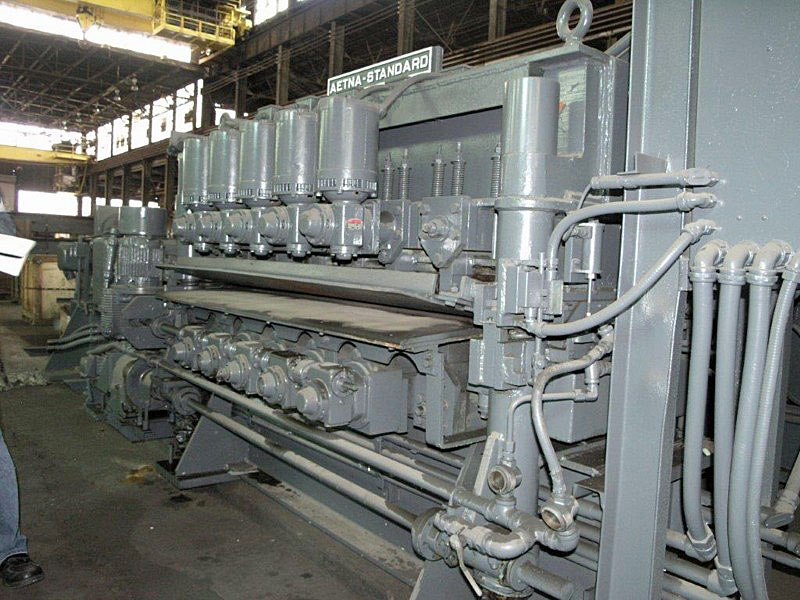

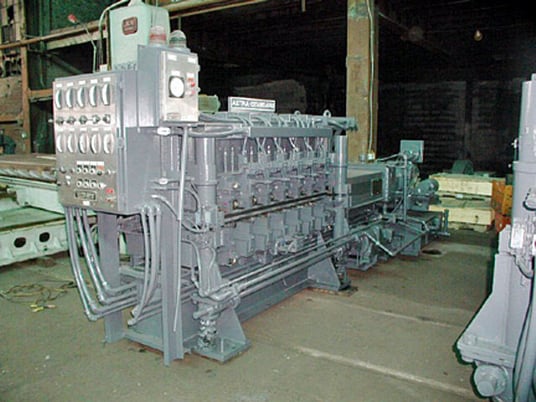

Blaw Knox / Aetna Standard Precision Leveler
-Material previously leveled:
Width: 20" TO 66"
Thickness: 0.012" TO 0.080"

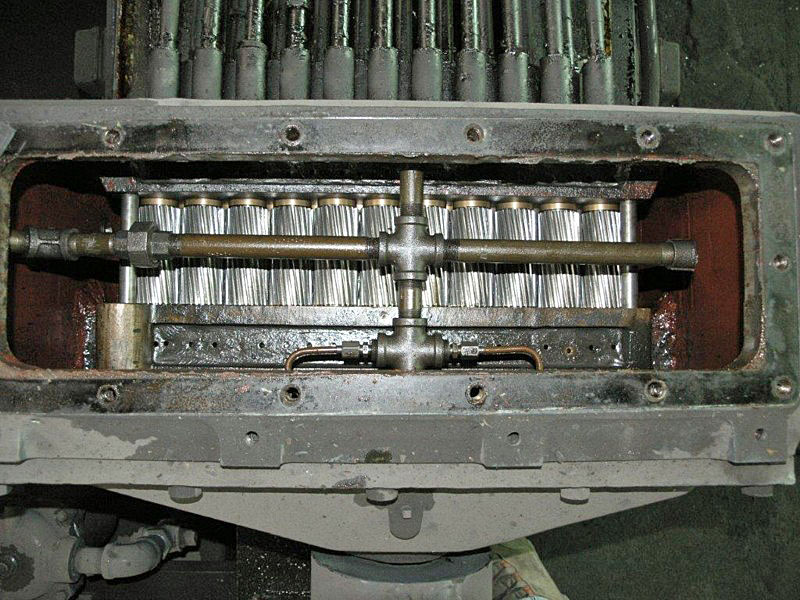

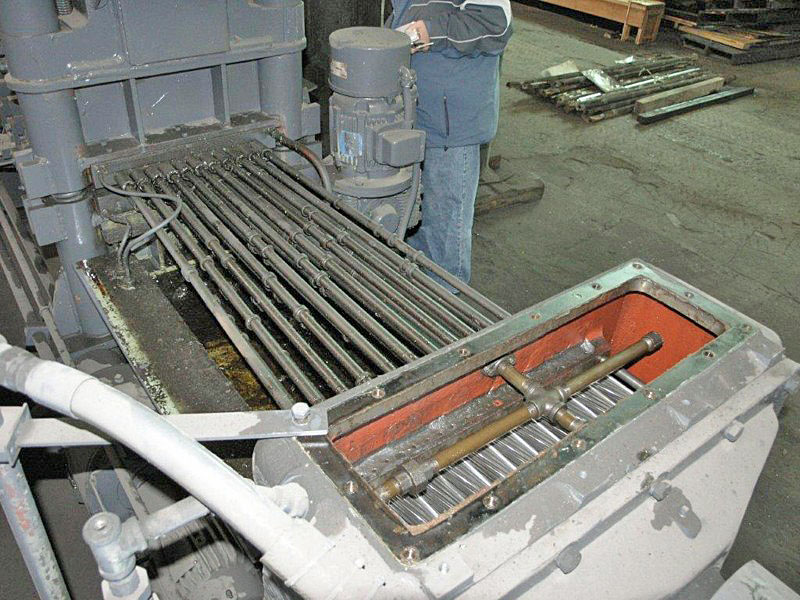

-Work Rolls: 21 Rolls (11 over 10)
1.5" Dia. Rolls
72" Face Width

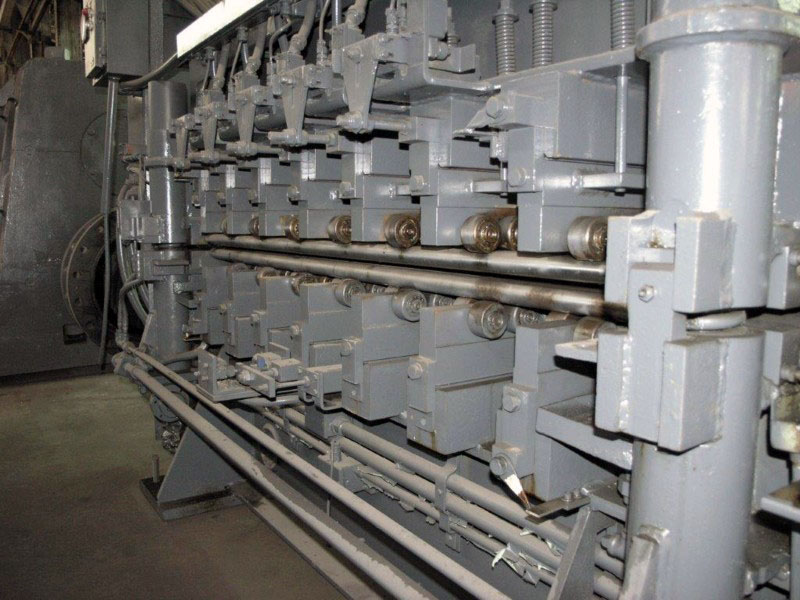

-Backup Rolls: 7 Flights Top & Bottom
Adjustment:
Top: 5 Flights, Individually motorized adj.
(5) 1/2 HP, 29.7 RPM
Bottom: Single Motor Adjustment
-Screwdown Adjusment: 4 Screws
(2) Motors: 2 HP, 84 RPM
-Roll Bend Adjustment: 3 HP, 525 RPM
-Motorized Lubrication Sys: 1 HP, 1200 RPM

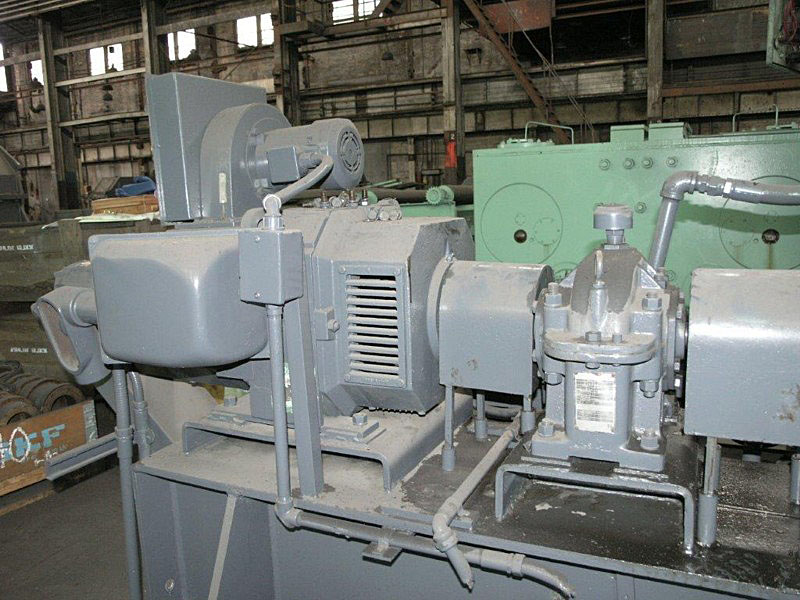

-Main Drive Motor: 30 HP DC, 1150/2300 RPM, 230 V
(Less DC Motor Control)
-Pass Line Height: 34.25"
-Material Speed: 100 - 350 FPM
-Note: Spare set of Rolls included.
-Line Direction: Left to Right
-Approx. Overall Dimen.: 204" L x 48" W x 84" High
-Removed and in storage: Toledo, Ohio
