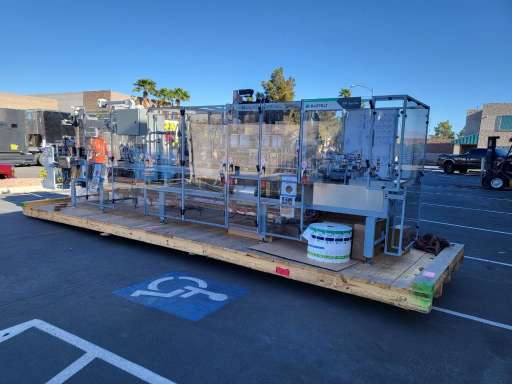

Bartelt Packaging Im Poucher, Never Put Into Production, new 2021

Specs
Capacity: 80–90 ppm (Format 1); Max mechanical speed: 100 CPM

Performance: Pouch sizes 2.00–5.75″ W × 2.00–9.50″ H; Gusset up to 2.25″; Max pouch weight: 16oz

Control: Allen‑Bradley PanelView Plus HMI, Rockwell CompactLogix controller, Kinetix 5700 drives, full servo (feed roll, main, clamp chain)

Accessories:
Dual servo vacuum pouch openers
Graphic Packaging Dual Lane Pick & Place system
Dial feeder with slotted inserts
Pre-heat, side, bottom, top seal bars
Zipper application unit with unwind stand
Product detection (top seal laser, no-bag stop, reject mechanisms)

Utilities: 480V 3-phase 60Hz (40amps); 20SCFM compressed air @ 80psi; Chiller (2GPM at 32–50°F)

Dimensions: 272.7″ L × 120.5″ W × 77.75″ H

Weight: Approx. 3,500lb

Installed options
Graphic Packaging dual-lane pick-and-place loader
Dial feeder with two pouch size setups
Full zipper applicator system
Pneumatic reject & vacuum pick-off discharge
Water chiller package
Static bar eliminators, laser top seal detection, and slit notcher

Feature spotlight
Never commissioned—fully OEM spec with zero-hour production history
Dual format capability with integrated pick-and-place for automated loading
Full Rockwell motion control & Allen‑Bradley HMI for precision pouching
Zipper-capable with upgraded web handling and reject system
