Description

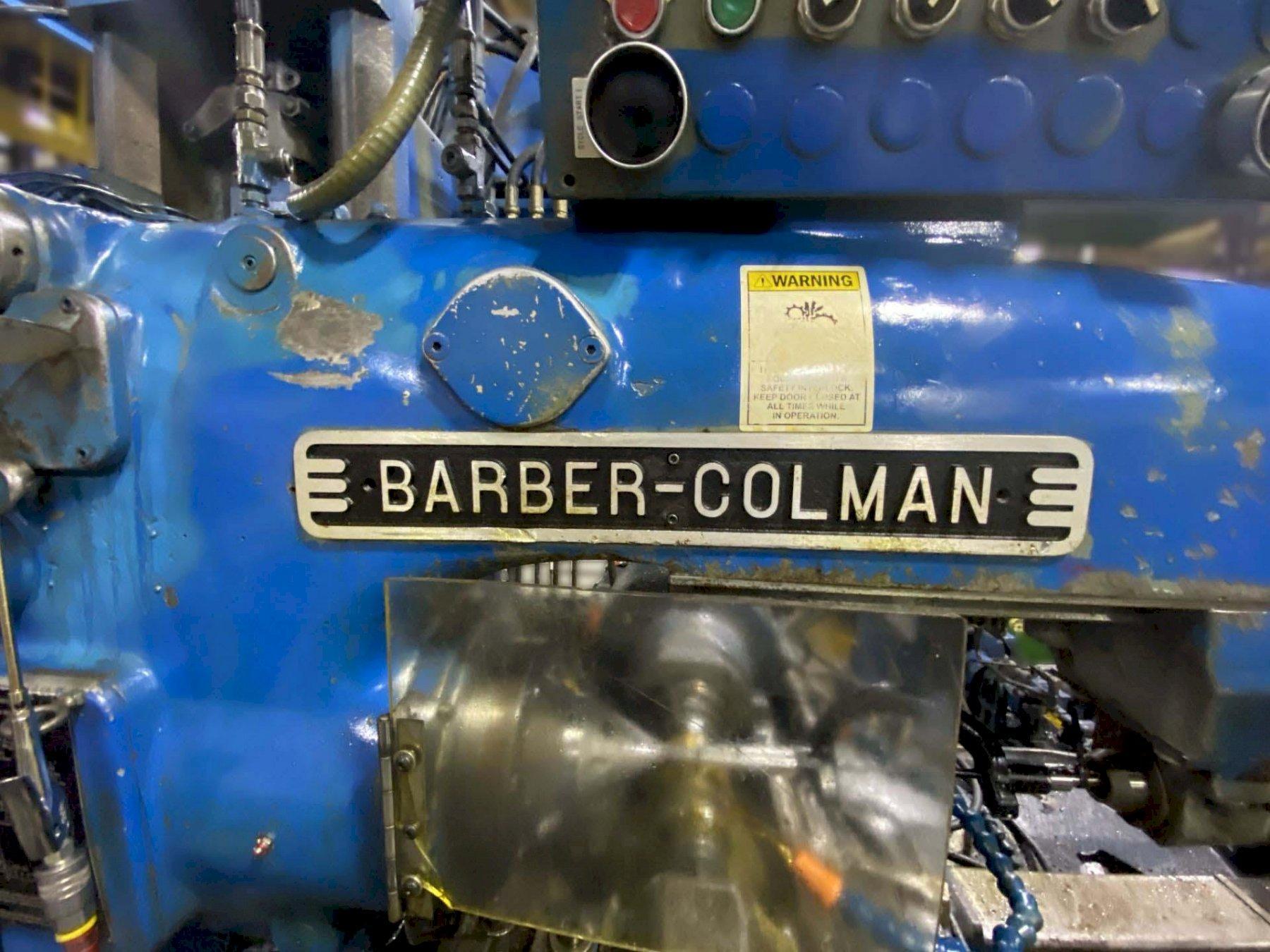

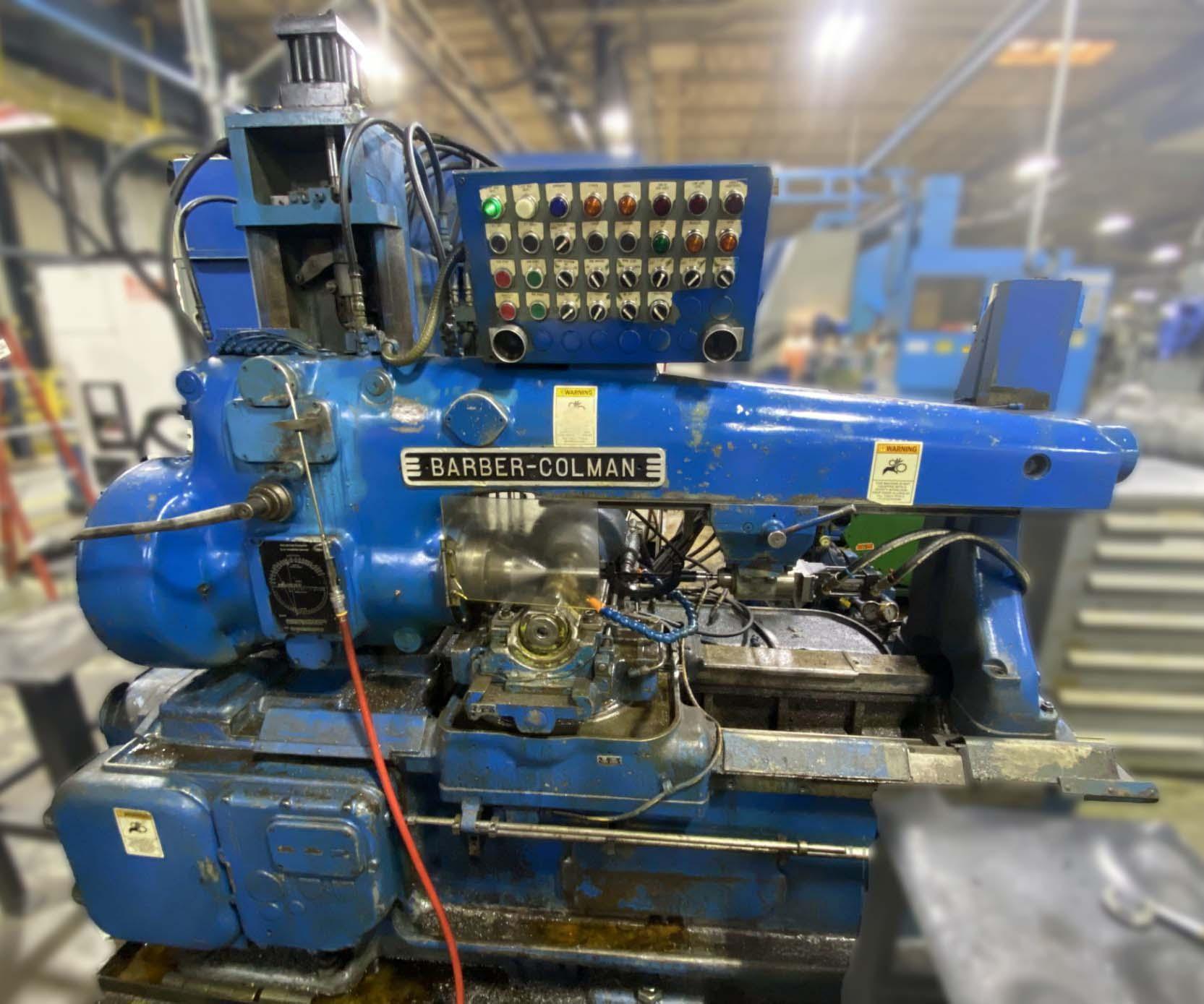

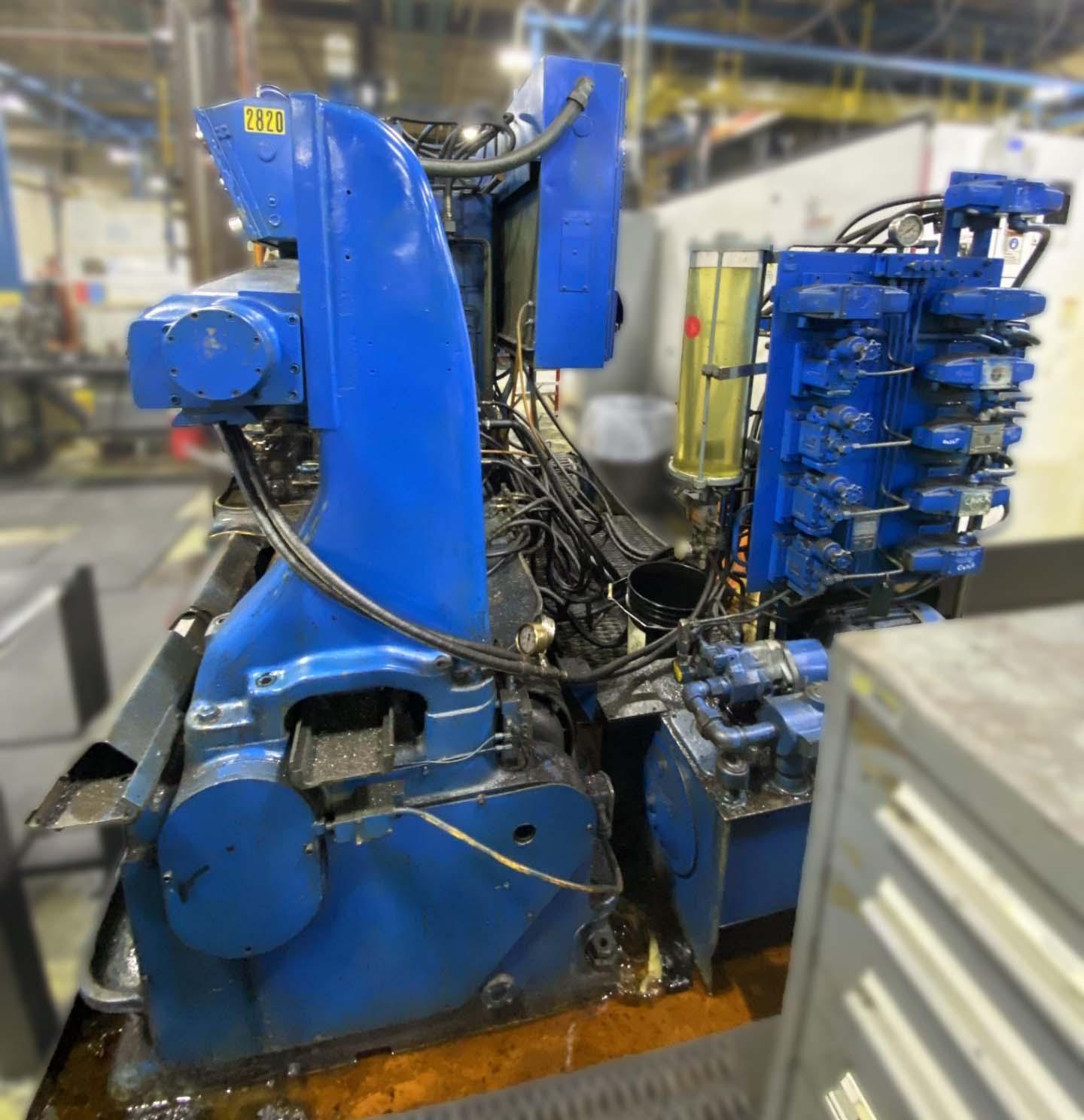

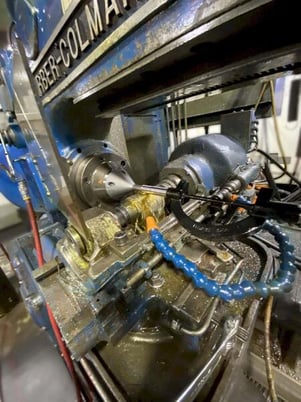

BARBER COLMAN 14-30 GEAR HOBBING MACHINE

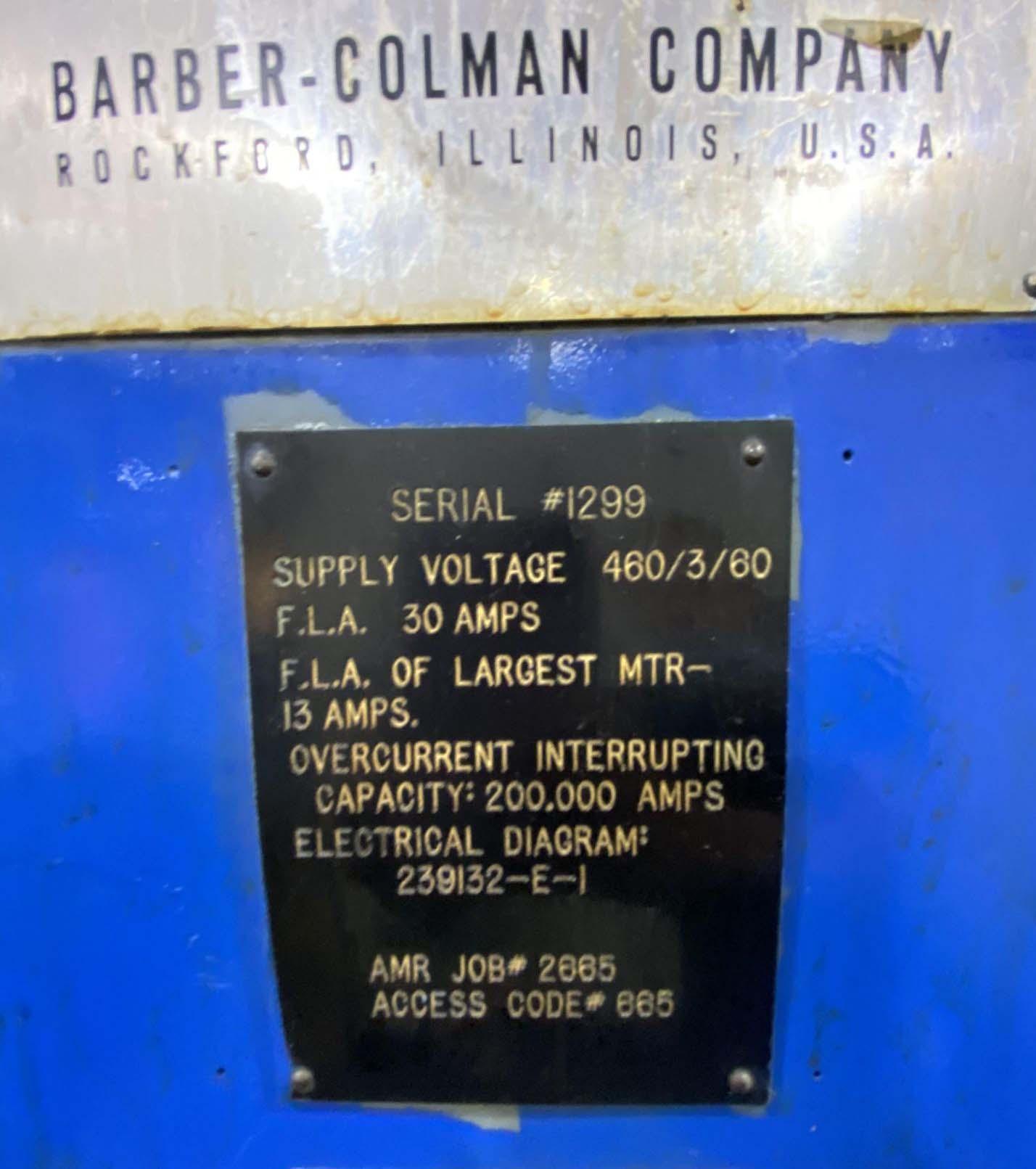

Model 14-30, S/N 1299, New 1970
Stock# Q10552
Model 14-30, S/N 1299, New 1970
Stock# Q10552
EQUIPPED WITH:

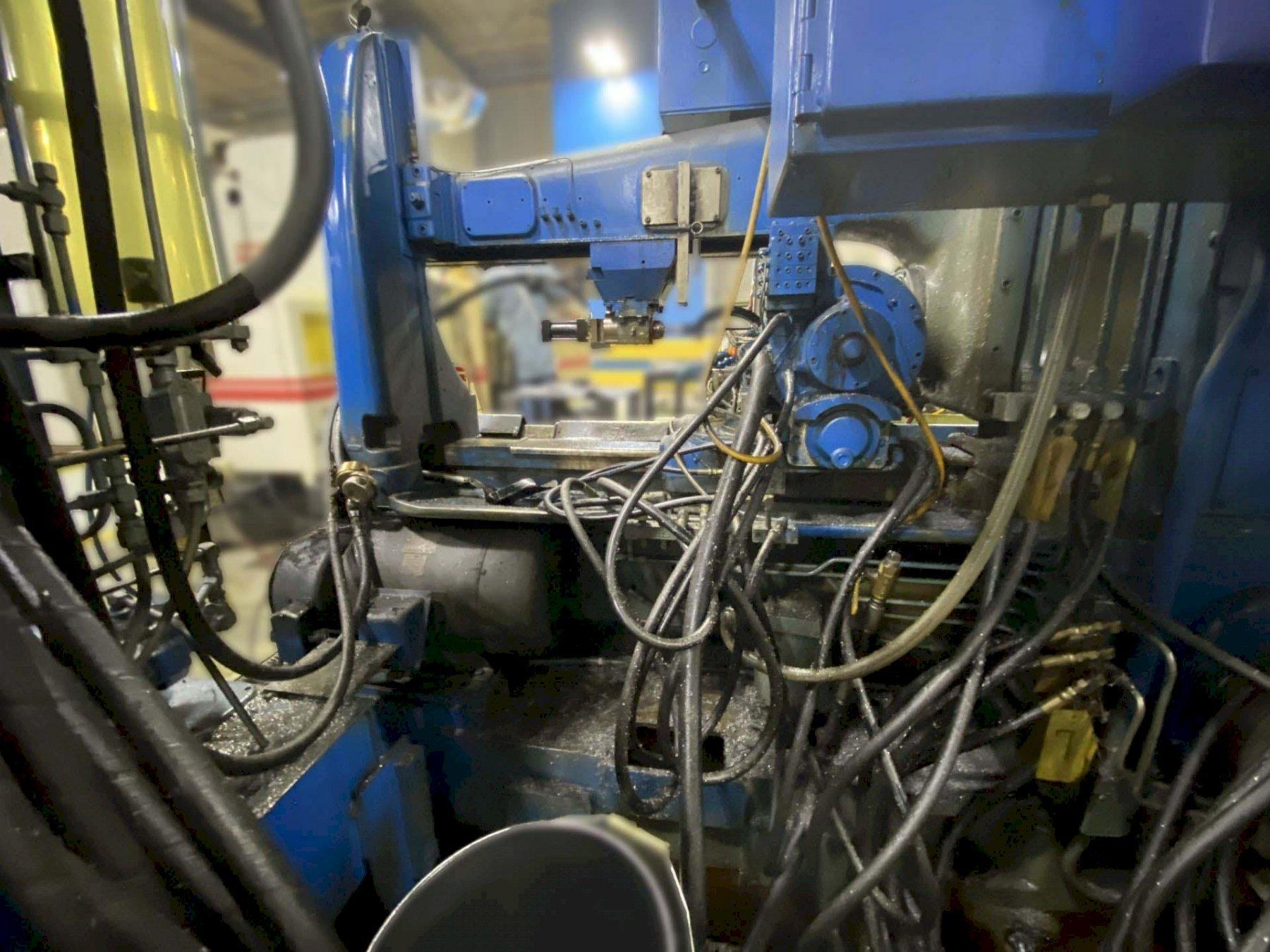

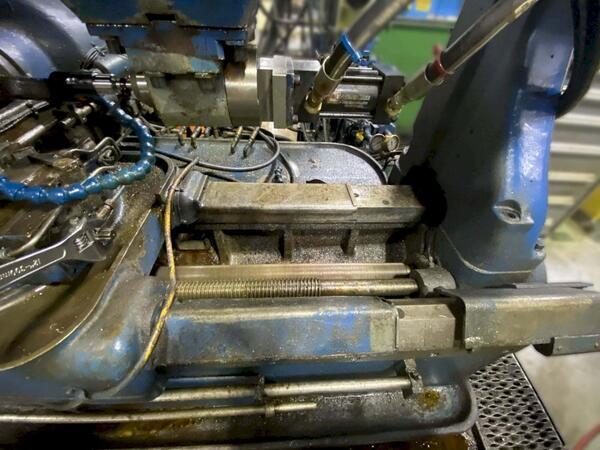

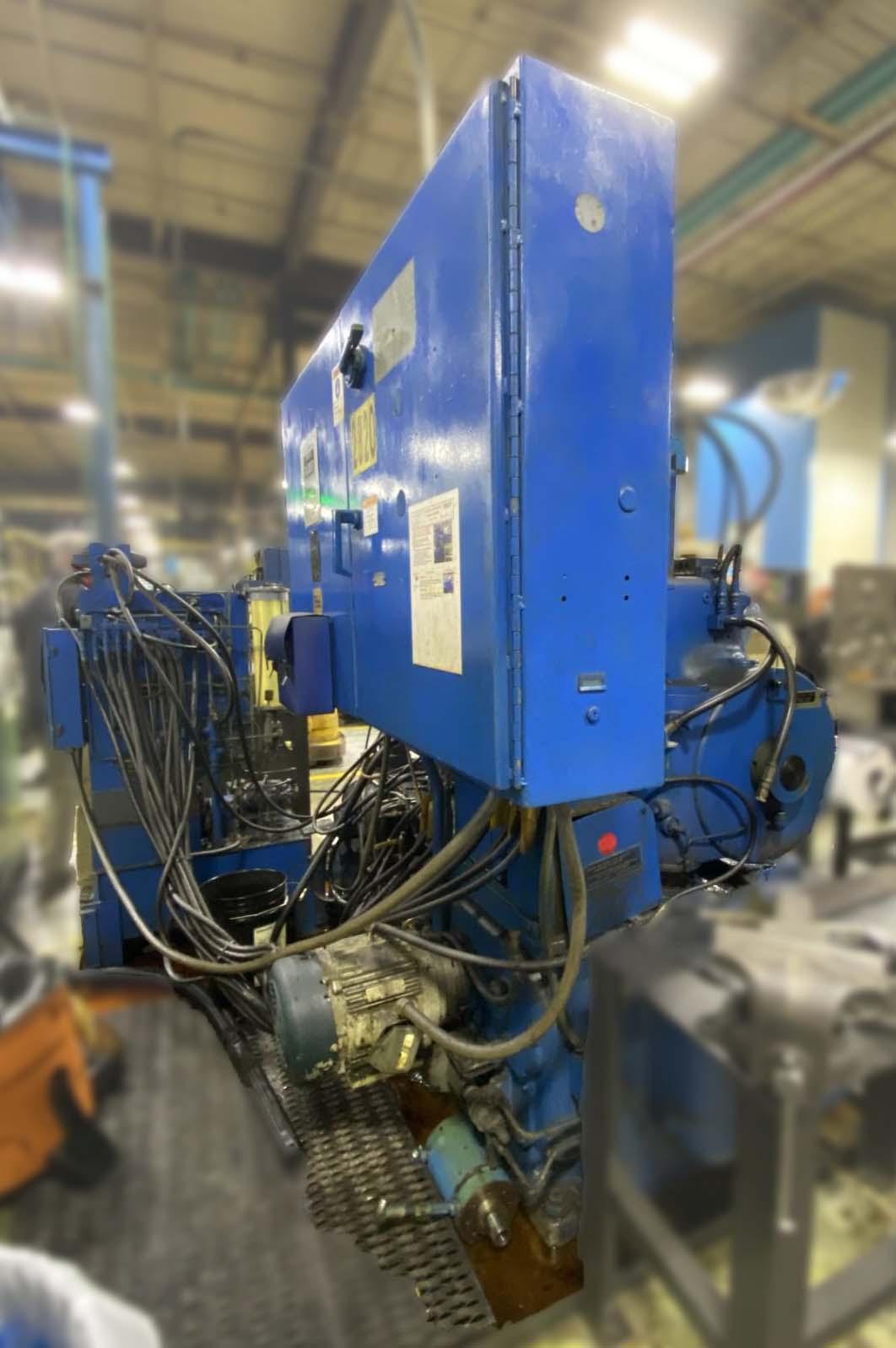

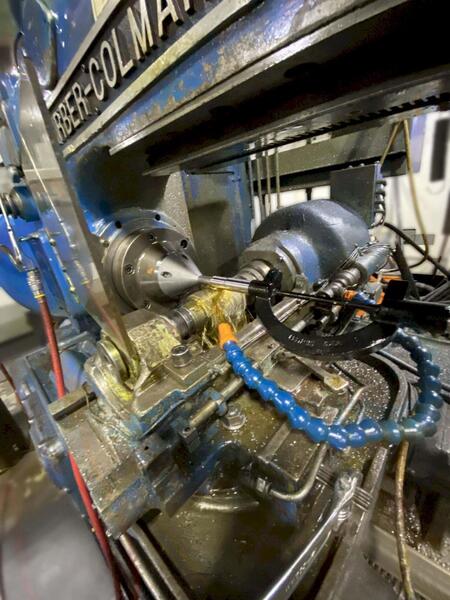

Standard Hob Head with Anti-Friction Bearing Spindle, Anti-Friction Bearing Work Spindle, Double-Thread Index Worm (Hardened and Ground), Bronze Worm Gear, Built-In Differential Mechanism, Automatic Hob Shift-Clamped During Working Cycle, Automatic 2-Cut Cycle, (1) Hob Arbor, Work-Head Arranged for Hydraulic Chucking (Minus Chuck), Work Spindle Adaptor, Hydraulic Operated Tailstock with Center, Hydraulic Power Unit, Coolant Tank with Pump and Piping.

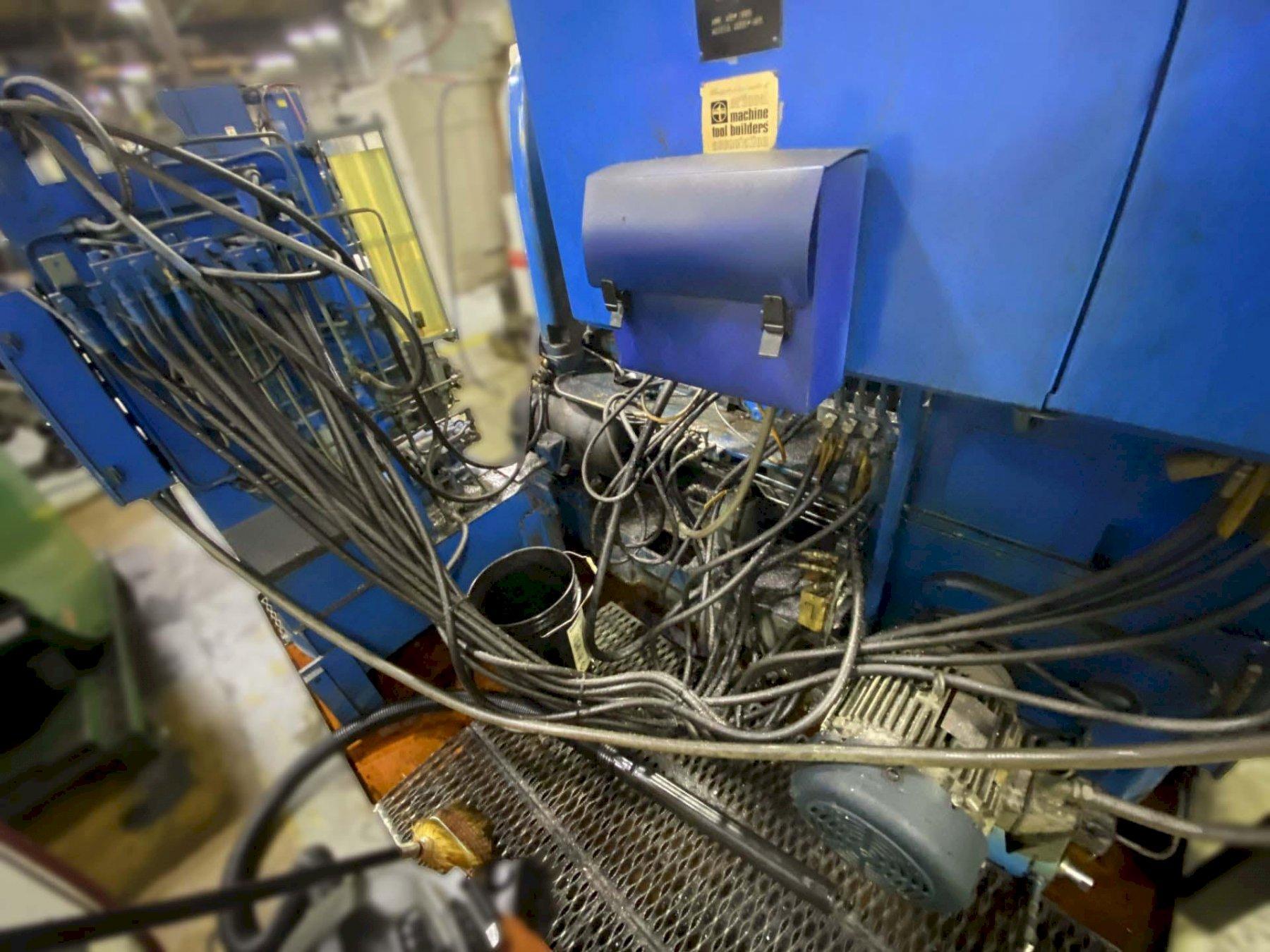

NOTE: Has electrical issues
CATALOG SPECIFICATIONS:
| Max Rated Work Diameter | 14" |
| Max Pitch in Steel | 3.5 DP |
| Max Travel of Hob Slide | 30" |
| Max Distance Work Spindle Face to Tail Center | 27.25" |
| Max Distance Work Spindle Centerline to Hob Spindle | 9.75" |
| Min Distance Work Spindle Centerline to Hob Spindle | 1.75" |
| Work Spindle Bore (Standard) | 4.18" |
| Index Worm Gear Pitch Diameter | 17.9" |
| Max/Min Number of Teeth Cut | 300/4 |
| Max Hob Diameter (Standard) | 6.25" |
| Max Swivel Angle (Helix) Setting R/L | 50° |
| Max Hob Shift Travel | 4" |
| Main Drive Horsepower | 10 HP |
| Hydraulic Pump Horsepower | 3 HP |
| Lubricating Pump Horsepower | 1/4 HP |
| Coolant Pump Horsepower | 1 HP |
| Approximate Machine Dimensions | 130" x 81" |
| Approximate Machine Height | 90" |
| Approximate Machine Weight | 13,500 LBS |
CONDITION: This Machine has electrical issues; Sold As Is; No Return
