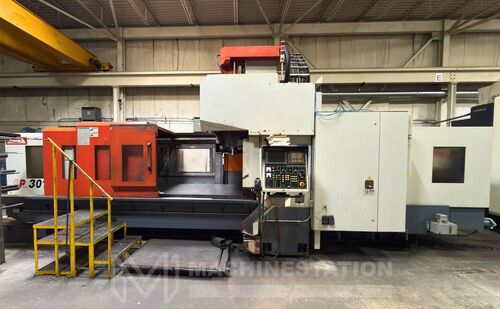

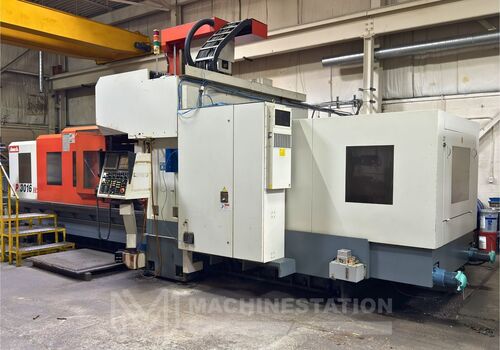

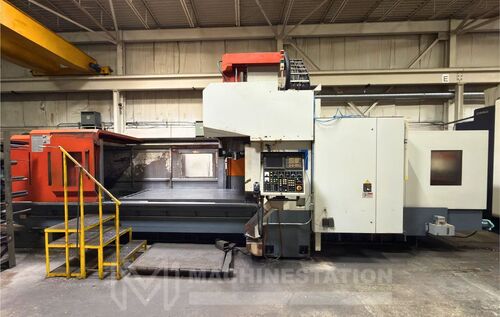

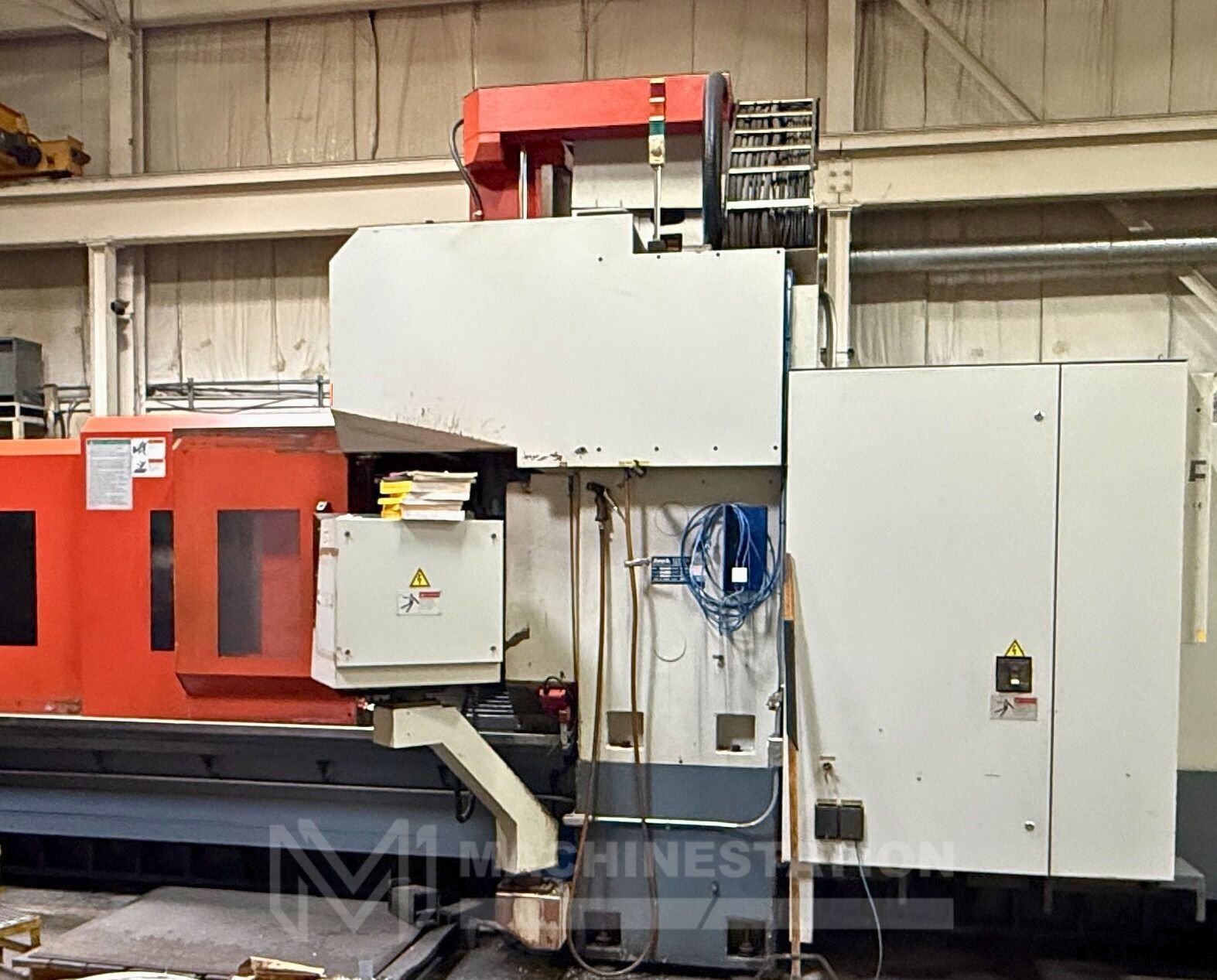

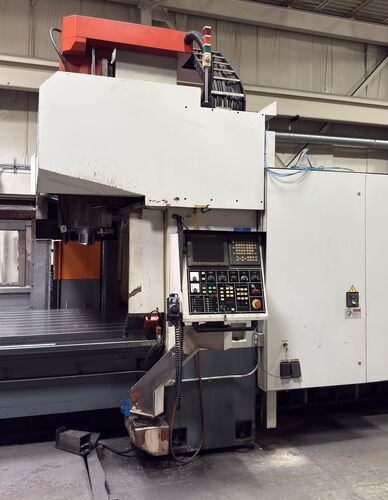

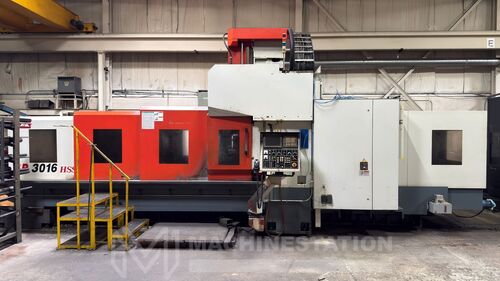

Awea #SP-3016HSS, High Speed Bridge Type CNC Machining Center, 120.5" X Travel, 63" Y Travel, 30" Z, 35 HP, 15000 RPM, CAT 40, 19 tools, Fanuc 18iMB, 2005

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

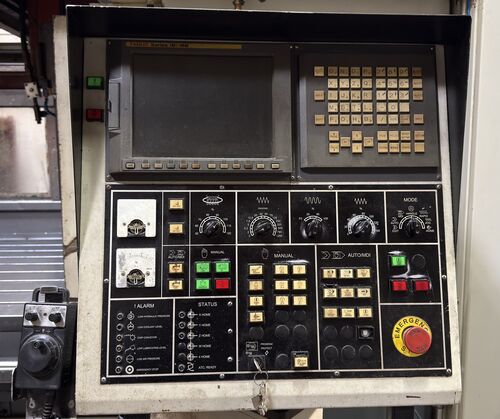

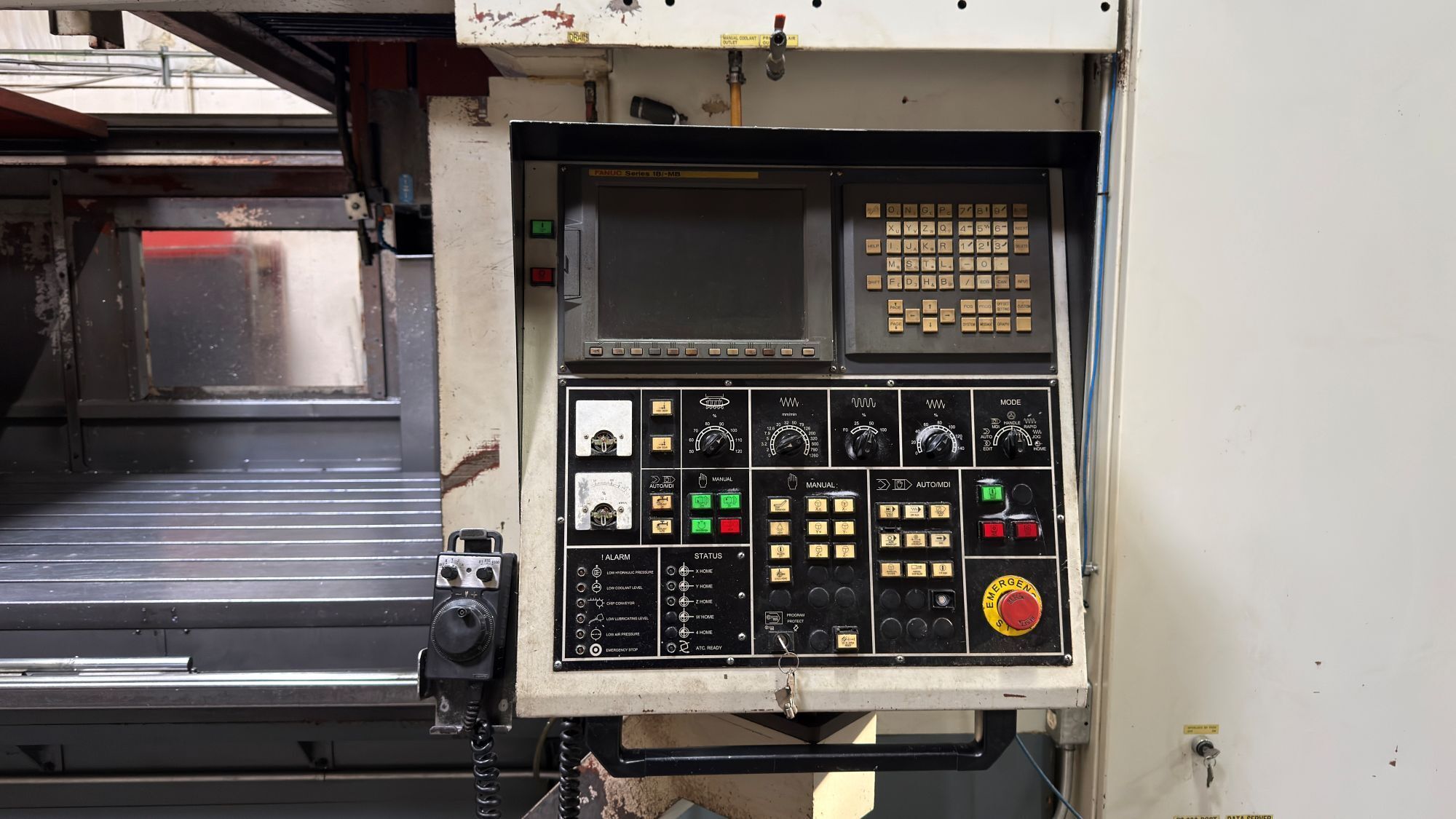

Fanuc 18iMB CNC Control
128.3" X 59.0" Table
Powerful 30 HP high torque spindle motor
PCMCIA Card Slot
Coolant System
Travels:
X-Axis: 120.5"
Y-Axis: 63.0"
Z-Axis: 30.0"
Distance Between Columns: 66.9"
Spindle Nose to Table (Min.- Max.): 6.3"- 36.2"
Rapid Travers Rates X,Y-Axis: 787 inch per minute
Rapid Travers Rates Z-Axis: 591 inch per minute
Cutting Feedrate: .04" 591" inch per minute

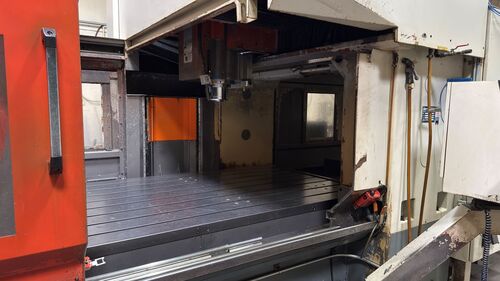

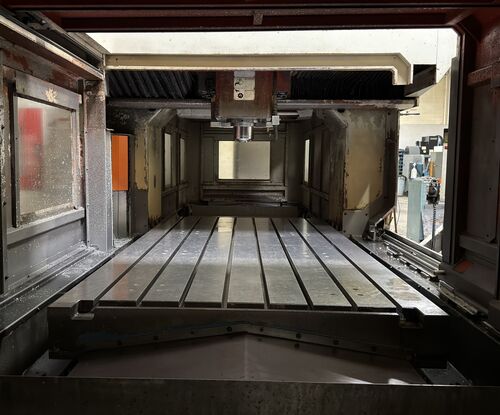

Table:
Length: 128.3"
Width: 59.0"
Max Weight on Table: 22,000 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 35 HP
Automatic Tool Changer:
Capacity: 19 Tools
Max Tool Weight: 15 lbs
Max Tool Length: 11.8"
Max Tool Dia.: 4.0" 5.0"
Tool Change Time (Tool to Tool): 12 sec.
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 3-Phase
Dimensions: 342" X 184" x 153" High Approx.
Weight: 52,000 lbs. Approx.
