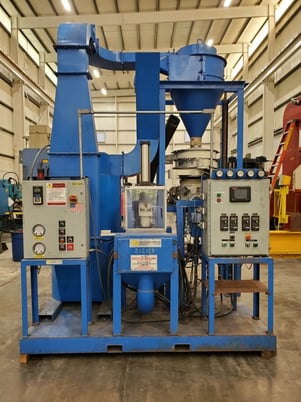

23" x 13-3/4" Abrasive #4-Head, shot blast system,front & back clamp type doors, 2012

ABRASIVE SHOT BLAST SYSTEM
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $15,500.00
HMC Stock # 21212-P
Machine Serial No.: 300802
Machine Model No.: Unknown
New Date: June 2012
Cabinet:
Access Doors: Front and Back Clamp Type Doors
Ventilation: Hair Felt Filter
Lighting: None
Rubber Lining: Walls and Curtains

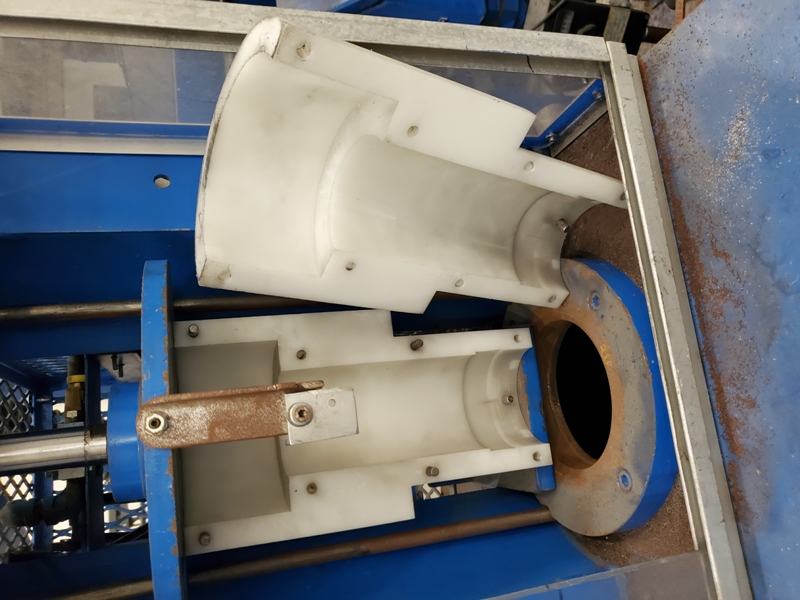

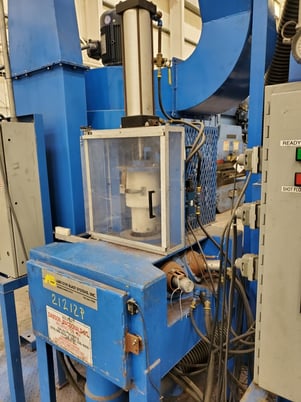

Mechanism: Positioning Cylinder
Blast Nozzles: (4) 3/8" Long Venturi Tungsten Carbide
Blasting Pressure: 15-90 psi

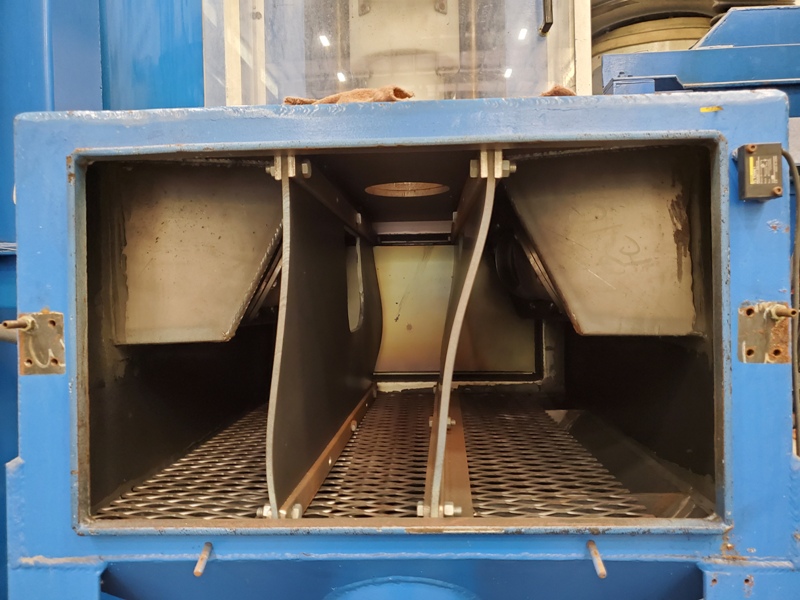

Shot Blast Chamber Size: 23" Wide x 13-3/4" High, But Has Nozzle Intrusions
Shot Blast Chamber Door Opening: 19-1/2" Wide x 11-1/4" High
Reclaiming System:
Cyclone: 1600 CFM Rubber Lined
Classifier: 24" 2 Screen
Storage Hoppers Capacity: 3.0 Cu. Ft.
Recommended Abrasive: CCW14 Steel Shot
Abrasive Capacity: 750 Lbs.

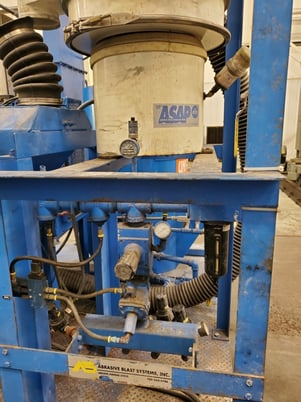

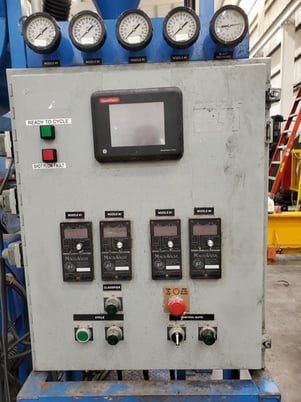

Feed Valve: (4) Magna Valve with FC Controller

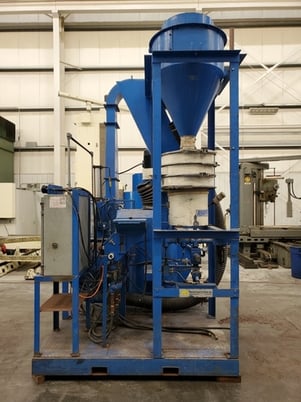

Sweco Vibro Energy Round Separator
Separates solid from liquids, segregates smaller particles from
larger particles and removes foreign materials.
Model # ZS24C444PTLWC, Unit # ZS24C-01-004652
1/2 HP Explosion Proof Classifier Motor

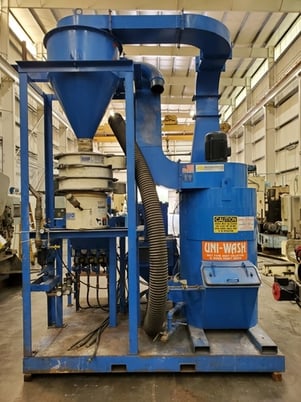

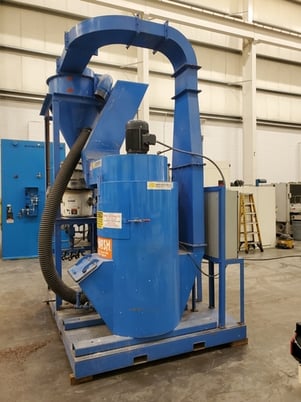

Uni-Wash Down Draft Bench Dust Collector:
Capacity: 1600 CFM
Style: Wet Type
Filter Monitor: Magnehelic Gauge
Exhauster: 7-1/2 HP, 3 Phase, 60 Cycle, 480 Volts, 3450 RPM
TEFC, 213T Frame
Supply Requirements:
Compressed Air: 1-1/2" NPT Supply Line, 200 CFM @ 90 psi
Electric: 480 Volts, 3 Phase, 60 Hertz
EQUIPPED WITH:
OEM Operation Manual with Electrical and Pneumatic Schematics
(4) Shot Blast Head
(4) Magna-Valve Shot Controllers
All Components are Mounted on a Common Steel Platform Base
Overall Size: Machine: 98" LR x 75" FB x 142" High (fully assembled, not on blocks)
Unit can be dismantled into 2 basic pieces plus some duct work for easy trucking
Dismantled Sizes: Main Unit: 98" LR x 75" FB x 99" High
Secondary Unit is Sweco Tower: 32" x 44" x 135" Long Laid Over
Total Machine Weight Fully Assembled: 5,000 Lbs.
Can be Hauled on One Flat Bed Truck Taking Up 18 Feet of Truck Space
