For Sale by Aleco Machinery Sales
Description

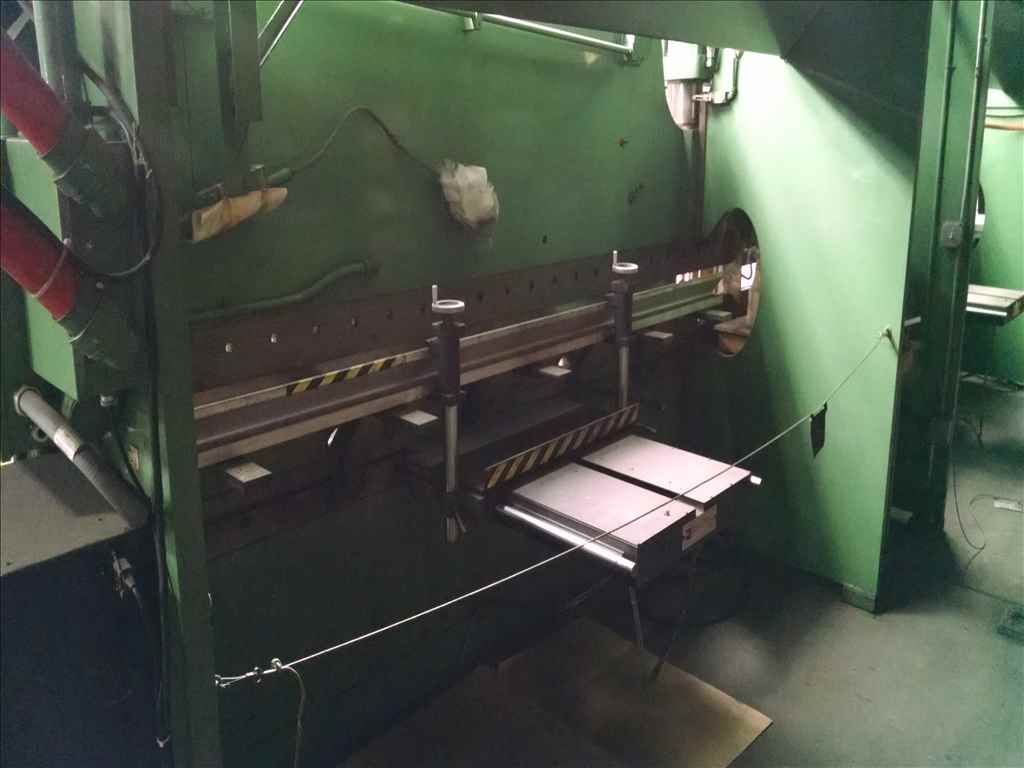

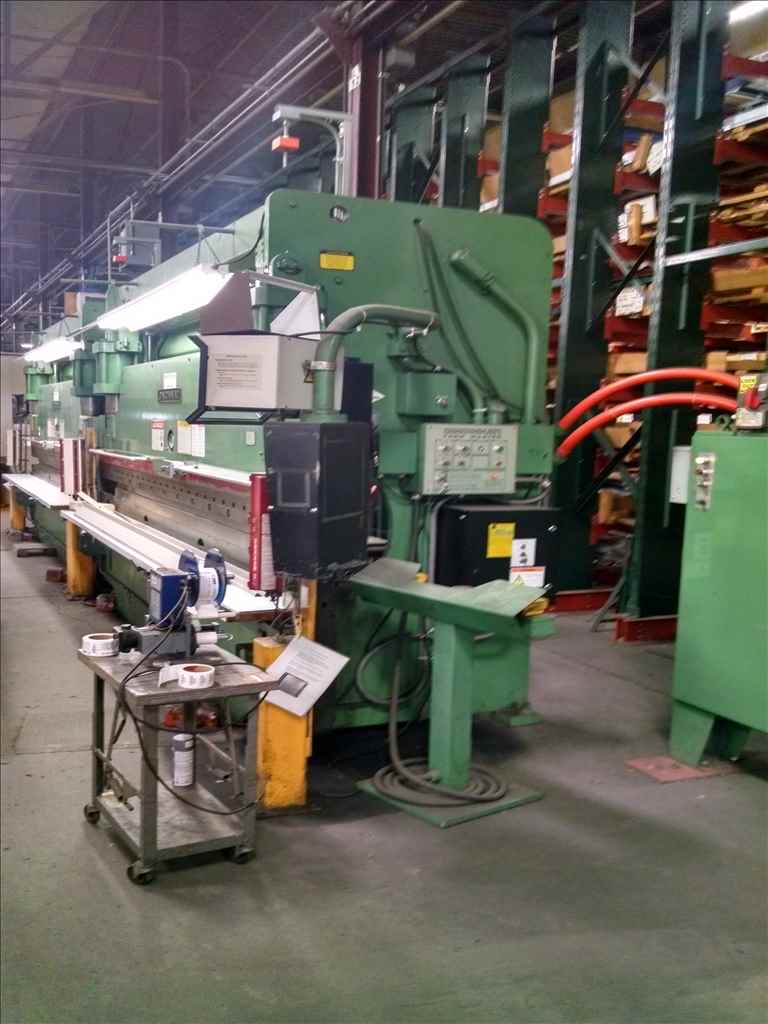

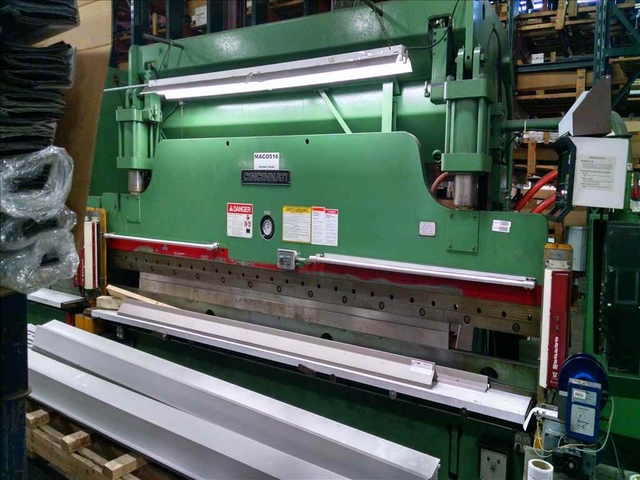

Pre Owned 90 Ton X 28’ Cincinnati FM Tandem Hydraulic Press Brakes
GENERAL SPECIFICATIONS
Capacity 90 TONS
Overall Length of Bed & Ram 28’
Distance Between Housings ` 10’6 3/4” Each Brake
Stroke 8”
Open Height 15”
Closed Height 7”
Throat Clearance 20”
Speeds
Approach 312 INCH PER MINUTE
Form 78 & 15 INCH PER MINUTE
Return 57 & 294 INCH PER MINUTE
Back Gage Speeds X- AXIS’, 1200 INCH PER MINUTE
Width at Top of Bed 3 ½”
Main Motor Horsepower 17.5
EQUIPPED WITH
Hurco Autobend 7 2 Axis 24” Programmable Back gage (X & Manual R)
Electric Foot Switch
Pedestal Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning CylindersApproximate Overall Weight Each Brake 22000 Lbs Ea 44000 lbs
Approximate Overall Dimensions 28” L X 114‘ H X 58” W
Get Your Price from Aleco Machinery Sales!
