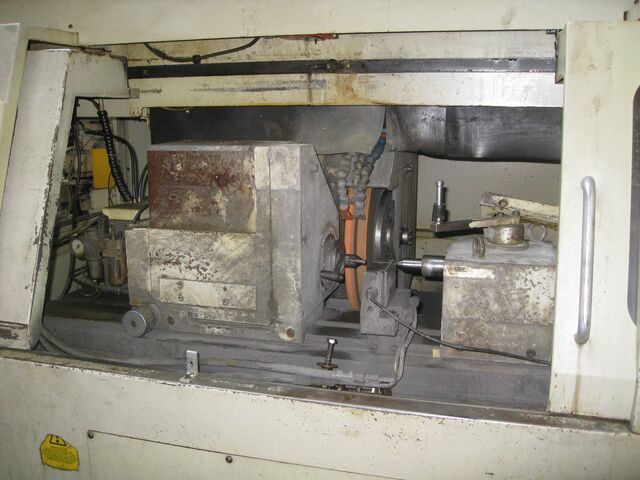

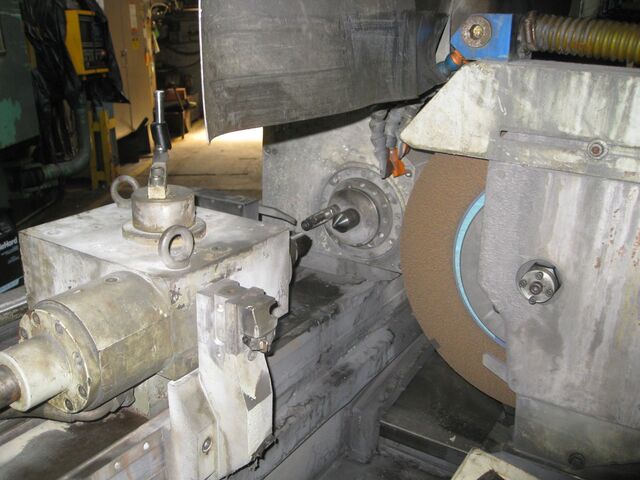

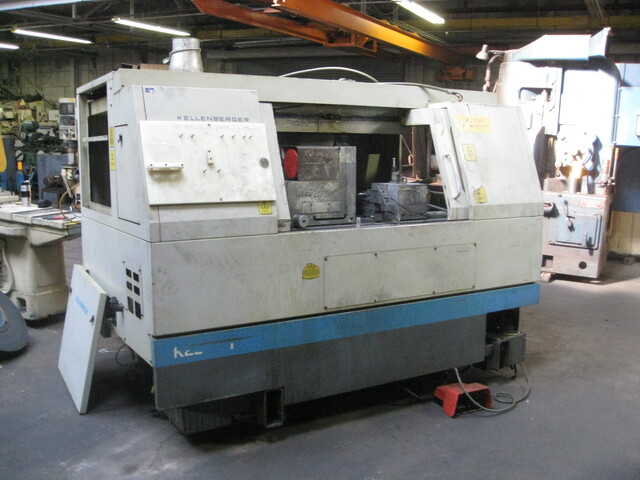

Kellenberger Kel-Vision Type URS 125/430 Universal CNC Grinder, 30" Between Centers, 10" Swing, 20" x 3" Wheel, As Is. KELLENBERGER KEL-VISION TYPE URS 125/430 UNIVERSAL CNC GRINDER S/N GK-143 Year: 1997 STANDARD SPECIFICATION CAPACITY Center Height………………………………………………4.92” Free Clamping Length Max………………………………...30” Grinding Length Max ……………………………………...17” Workpiece Diameter Max....................................................9.8” Wheel head Drive..................................................................7.5KWOptional 9.8 KW Grinding Wheel RH..............................................................20” x 3” Peripheral Speed Max...........................................................6890 SFPM Optional 8860 Universal Swiveling Wheel Head Manual Swivel Compound Slide (Z Axis) Max Slide Travel.....................................25.5” Compound Slide (Z Axis) Max Speed..............................................472 IMP Compound Slide (Z Axis) Max Speed Max Resolution....................0.1 UM Grinding Slide (X Axis) Max Travel.................................................12.6” Grinding Slide (X Axis) Max Speed.................................................236 IPM Grinding Slide (X Axis) Max Resolution...........................................0.1 UM STANDARD SPECIFICATIONS Workhead Drive...........................................................................3KW Swivel RangeMicro Corrector..................................................... /- 60” Spindle Speed (Infinitely Variable).............................................. 8 to 800 RPM Spindle Nose ASA........................................................................5/MT 5 Spindle Bore...................................................................................1.496” Max Weight of Workpiece Grinding Between Centers................. 220 LB Permissible Load............................................................................74FT-LBS Tailstock Holding Cone.................................................................... MK4 Lift of Tailstock Sleeve..................................................................... 2” Dimensions.........................................................................98”Wide x 79” Deep 71” Tall Approx. Weight..................................................................11,770 LBS EQUIPPED WITH: Fanuc 18TB CNC Controls Control Gaging 760 The x z axis slides are underneath the wheel head. The wheel head is a manual swivel2.5 degrees. Marposs E20 flagging device. 460 volts. The base is made from hardingeharcrete (epoxy granite). 20” OD grinding wheel Dual palm safety start. Single Point Dresser on tail stock. Fanuc Servo driven head stock. Specifications are deemed accurate, however, subject to verification or prior sale. All exchange units/returns must be shipped within 30 days. All exchange units/returns must be shipped using DDP terms - Grinders Clearing House, Inc. dba GCH Machinery, is not responsible for any customs formalities or shipping costs. If Grinders Clearing House, Inc. dba GCH Machinery does not receive exchange/core unit back within 30 days, GCH will invoice FULL replacement cost (OUTRIGHT Cost) to customer.
