Year: 2017
Gallons: 871768
Stock # 599353
For Sale by Revelation Machinery
Surplus Record Dealer Since 2017
Tim Wheeler
816-33...> Show Seller's Phone Number 816-330-2138 Let the seller know you found their listing on Surplus Record!
Description

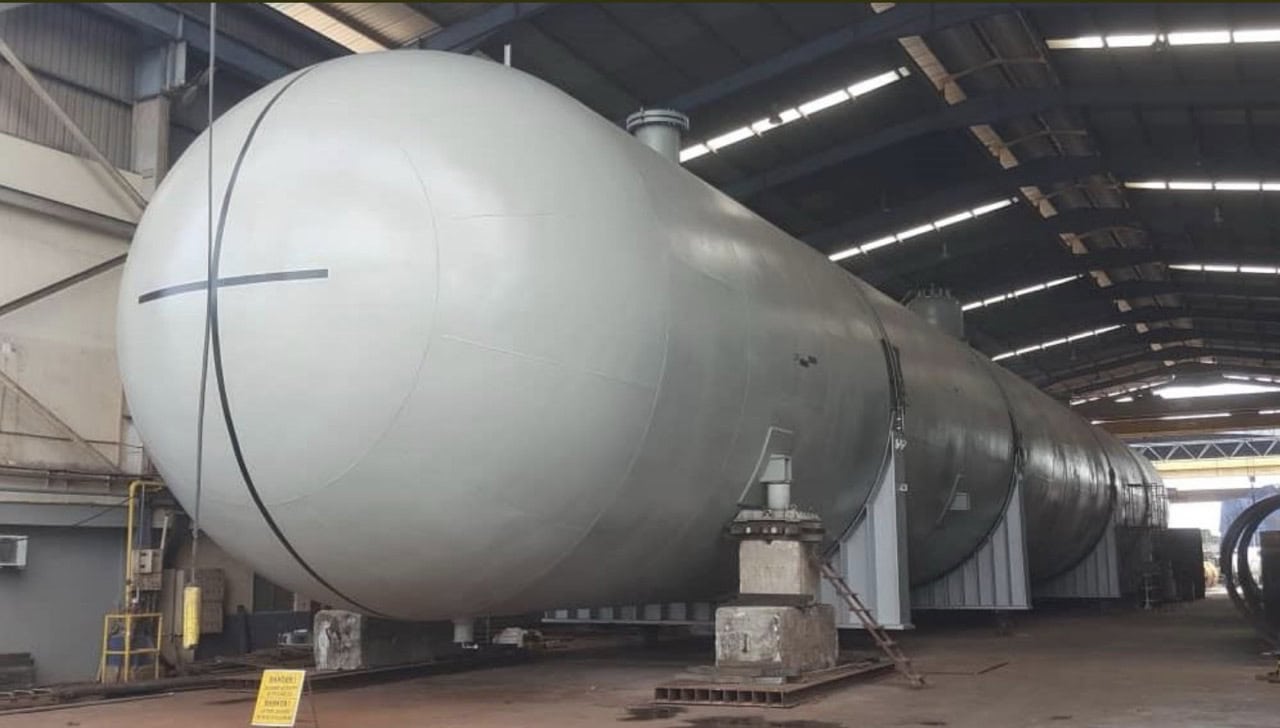

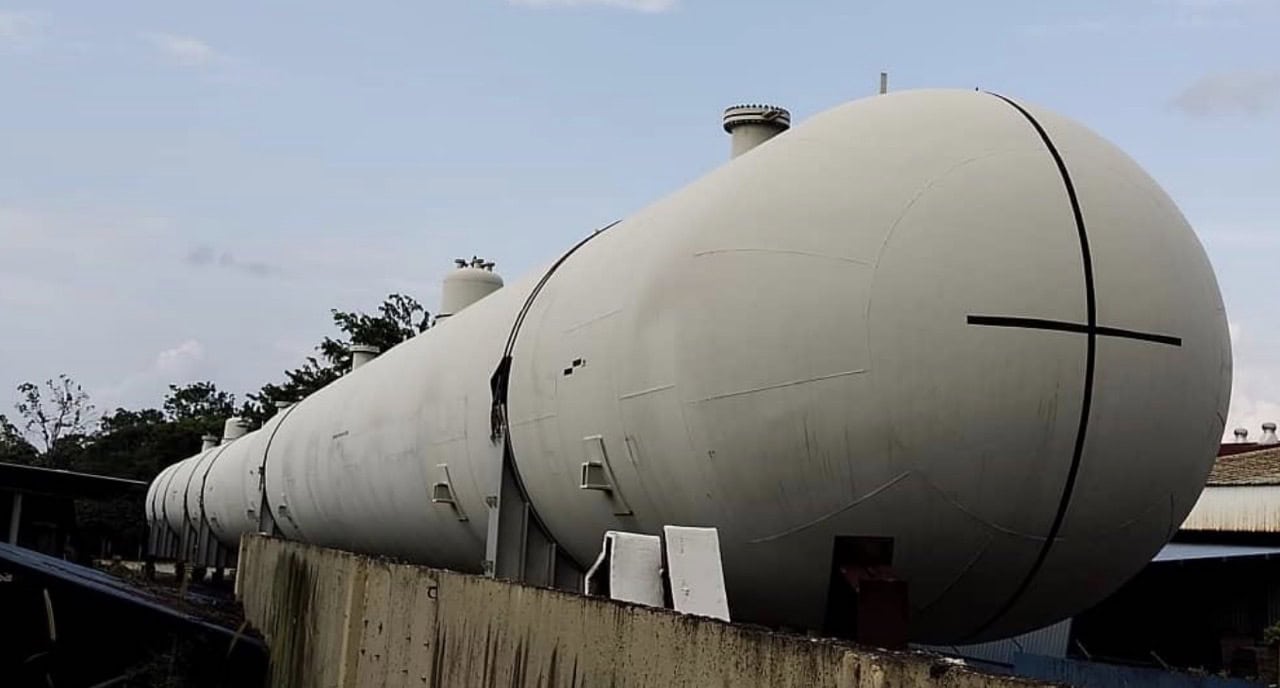

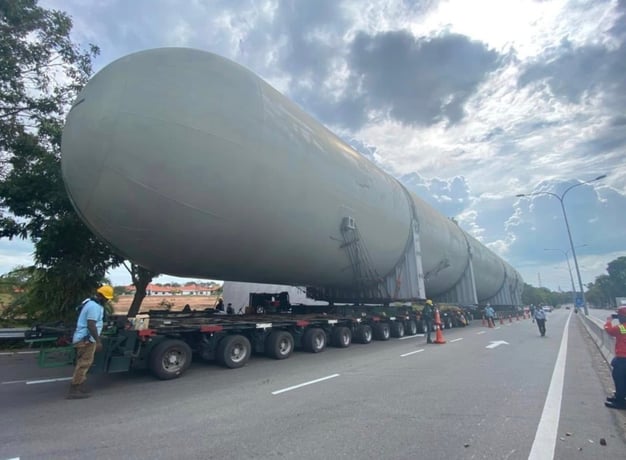

Make: KNM
Model: 3,300 Cubic Meter
Year: 2017
Machine Location: Upon Request
Model: 3,300 Cubic Meter
Year: 2017
Machine Location: Upon Request
Design Code : ASME Section VIII Div.2, Class 2 2017 Edition & EEMUA 190-Edition (2017)
Size : ID 8m x 61m (TLTL)
Thickness : 38mm (Shell) 25mm (Head)
Material : SA 537 cl 2
Capacity 3,300 m3 per bullet
Empty Weight : 612 MT per bullet
Operating Weight : 2,308 MT per bullet
Full of Water Weight : 3,950 MT per bullet
Design Pressure (Internal External) : 19 FV barg
Design Temperature (Max Min) : 50 -40 deg C
Post Weld Heat Treatment : Yes
**4 Available**
Get Your Price from Revelation Machinery!
