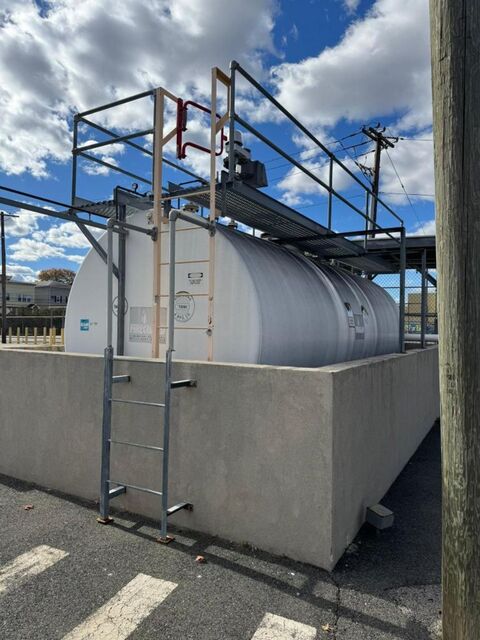

8000 gallon Highland Tank #UL-2085, Fireguard Double-Wall Above Ground Storage Tank, 8' 6" diameter x 21'11" L, Thermally Insulated

OVERVIEW

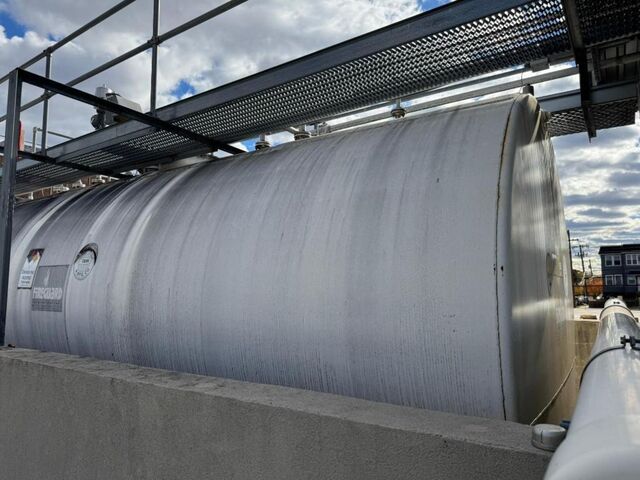

Highland Tank UL-2085 Fireguard 8,000 Gallon Capacity Aboveground Horizontal Cylindrical Thermally Insulated Double-Wall Stainless Storage Tank. Approximate nominal tank dimensions 8'6" diameter x 21'11" long. Serial# 30144. Highland Tank UL-2085 Fireguard protected secondary containment aboveground tank removed from operating facility. This fire-resistant double-wall storage tank features 8,000 gallon capacity with thermally insulated construction providing 2-hour pool fire protection. UL Listed tank manufactured by Highland Tank & Manufacturing Company of Manheim, Pennsylvania meeting UL-2085 standard for protected secondary containment. Steel Tank Institute certified Fireguard lightweight double-wall design with protective outer shell and inner primary tank. Complete with top-mounted access platform, safety railings, ladder, fill and vent piping connections. Suitable for diesel fuel, heating oil, gasoline, and other flammable liquids requiring fire protection and secondary containment. Ideal for commercial buildings, emergency generator fuel supply, industrial facilities, institutional campuses, fleet fueling operations, or any application requiring compliant aboveground flammable liquid storage with enhanced fire protection.
EQUIPMENT SPECIFICATIONS
Model Information:

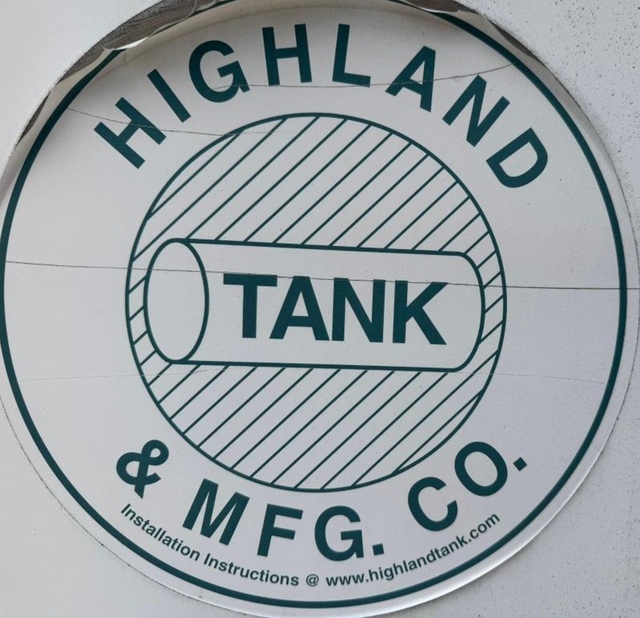

- Manufacturer: Highland Tank & Manufacturing Company
- Location: Manheim, PA

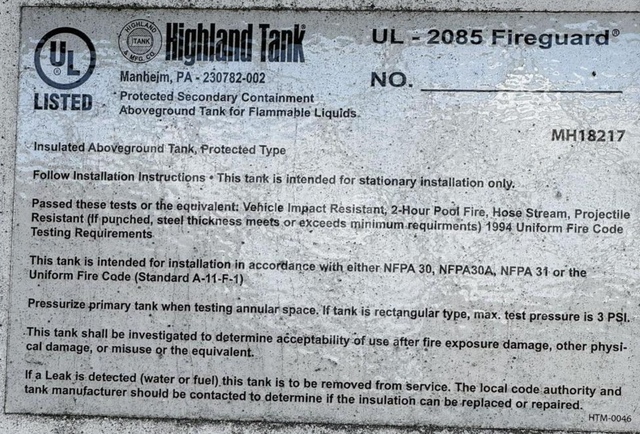

- UL File Number: 230782-002
- Model Designation: MH18217

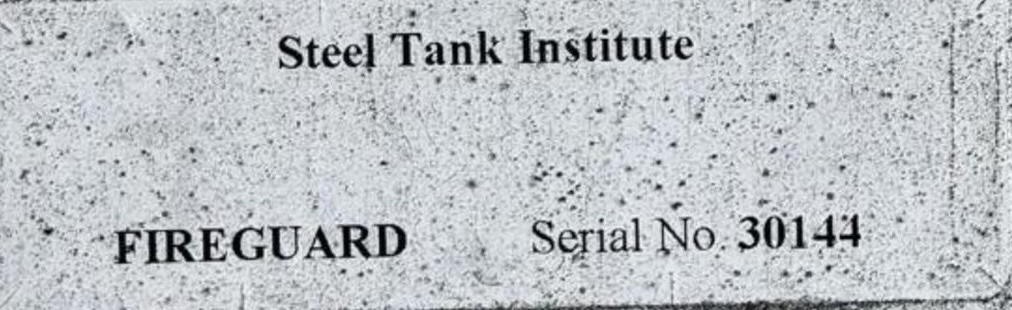

- Serial Number: 30144
- Tank Type: UL-2085 Fireguard
- Configuration: Protected Secondary Containment Aboveground Tank
Capacity & Dimensions:
- Nominal Capacity: 8,000 Gallons
- Tank Diameter: Approximately 8'6" (102 inches)
- Tank Length: Approximately 21'11" (263 inches)
- Configuration: Horizontal cylindrical
- Orientation: Aboveground stationary installation
Construction Specifications:
- Design: Double-wall protected type
- Inner Tank: Steel primary containment
- Outer Shell: Insulated protective jacket
- Insulation: Thermally insulated construction

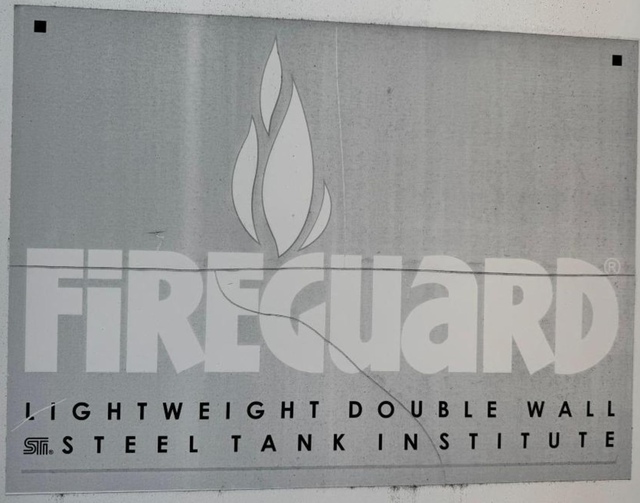

- Tank Institute: Steel Tank Institute certified
- Weight: Lightweight double-wall design (estimated 8,000-12,000 lbs empty)
Fire Protection Features:
- Fire Rating: 2-Hour pool fire protection
- Impact Resistance: Vehicle impact resistant
- Hose Stream Test: Passed
- Projectile Resistant: If punctured, steel thickness meets or exceeds minimum requirements
- Fire Code Compliance: 1994 Uniform Fire Code Testing Requirements
Certification & Compliance:
- UL Listed: Yes (UL-2085 Standard)
- Standard: Protected Secondary Containment Aboveground Tank for Flammable Liquids
- NFPA Compliance: NFPA 30, NFPA 30A, NFPA 31
- UFC Compliance: Uniform Fire Code (Standard A-11-F-1)
- Installation: Stationary installation only
- Test Pressure: 3 PSI maximum (for rectangular annular space testing)
Included Equipment:

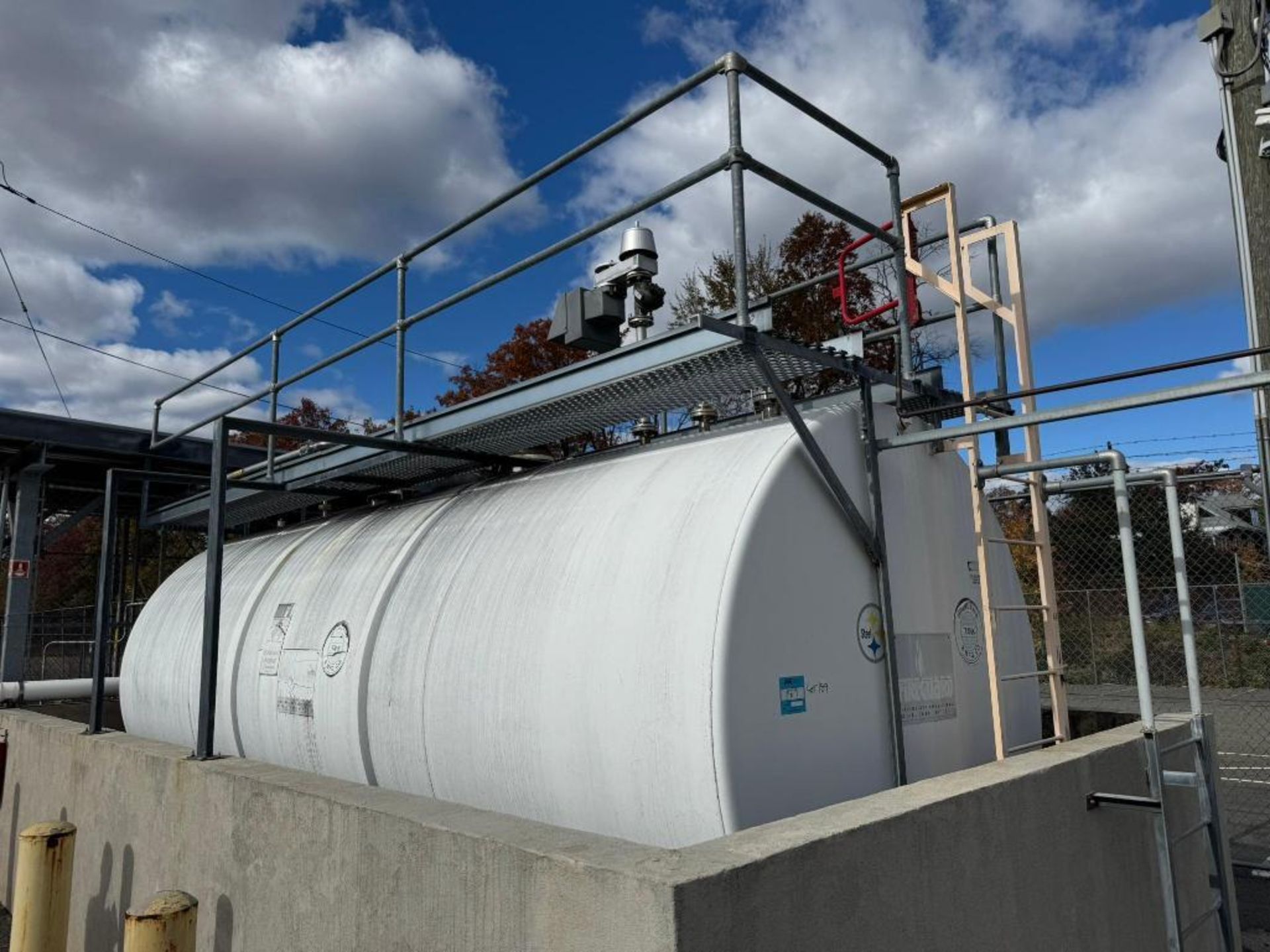

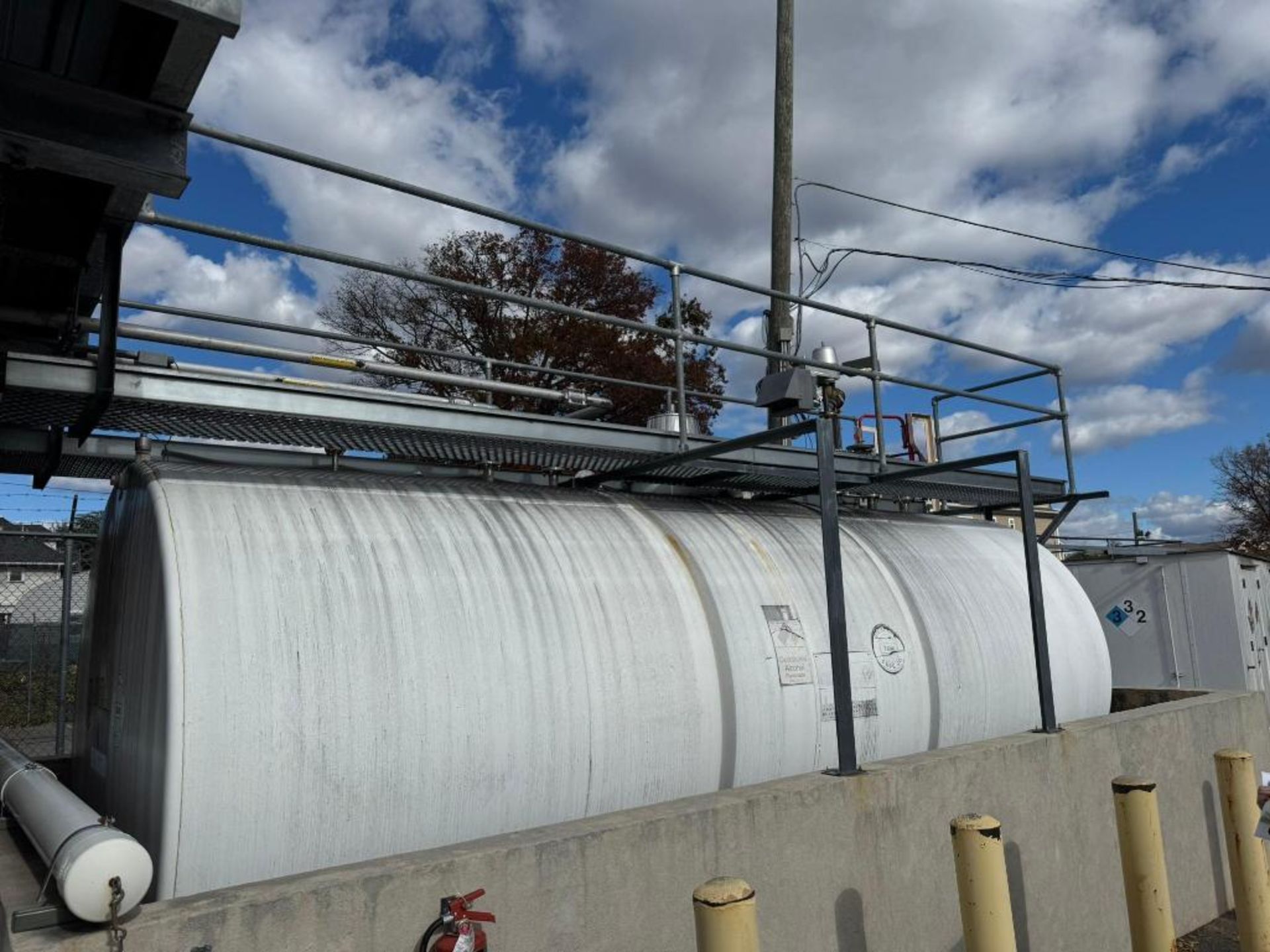

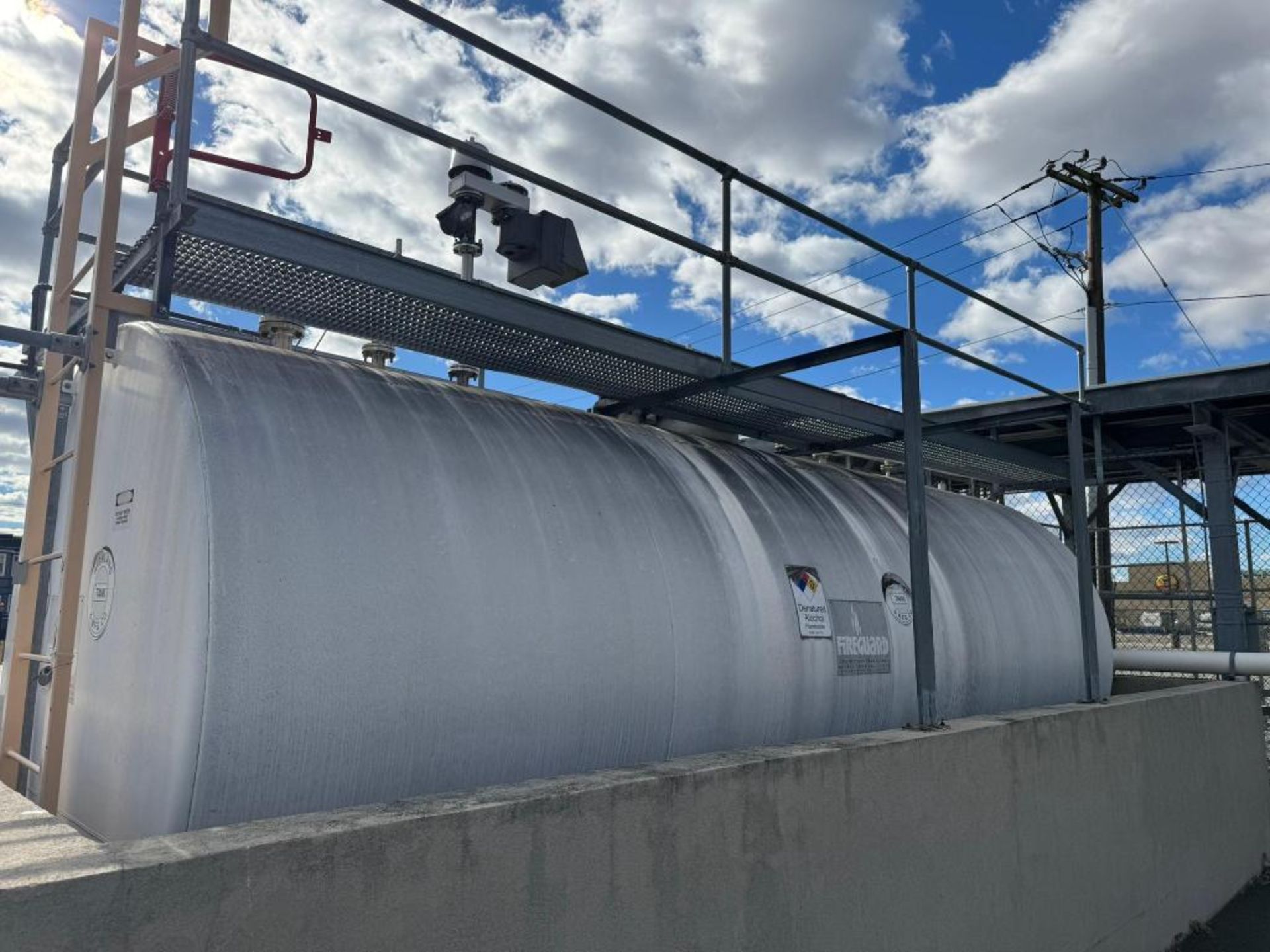

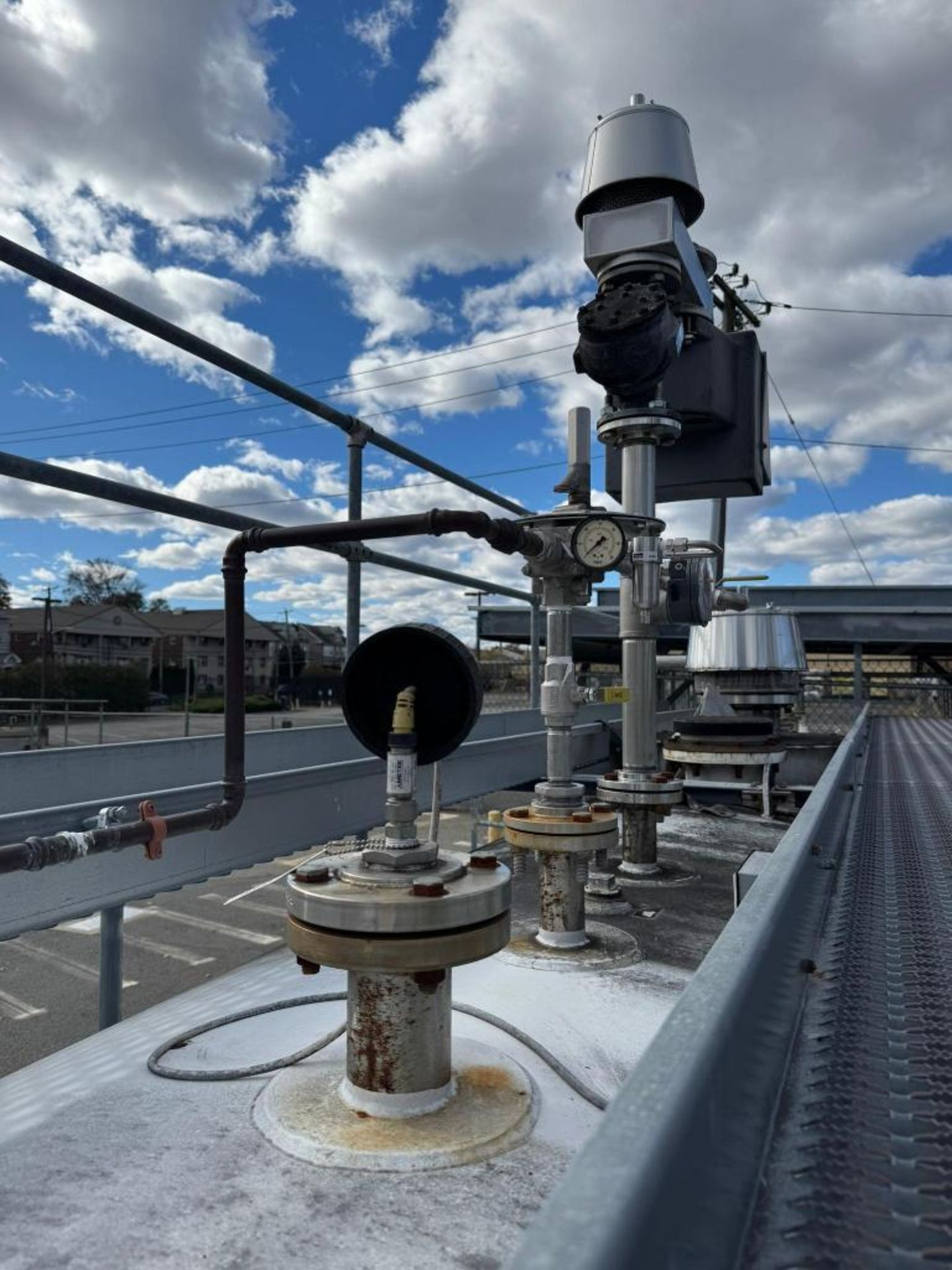

- Top-mounted access platform with safety railings
- Fixed ladder for platform access
- Fill connection piping
- Vent piping connections
- Tank anchoring saddles/supports
- Gauging provisions
- Safety valves and fittings
- Overfill prevention connections
KEY FEATURES & BENEFITS
UL-2085 Fireguard Advantages:
- 2-hour fire protection rating for pool fires
- Secondary containment eliminates need for external dike
- Thermal insulation protects fuel from fire exposure
- Vehicle impact resistant construction
- Meets strictest fire marshal requirements
- Reduces installation footprint vs. concrete vaults
- Lower installed cost than underground tanks
- Eliminates groundwater monitoring requirements
- No excavation or backfill required
Highland Tank Quality:
- Leading manufacturer since 1946
- UL Listed and Steel Tank Institute certified
- Proven Fireguard technology
- Professional commercial-grade construction
- Comprehensive testing and certification
- Nationwide acceptance by fire marshals
- Industry-standard design
Operational Benefits:
- 8,000 gallon fuel storage capacity
- Suitable for diesel, gasoline, heating oil
- Easy visual inspection and maintenance
- Accessible top-mounted equipment
- Protected piping connections
- Safety platform for filling operations
- Overfill prevention compatibility
- Gauge provisions for inventory monitoring
SPECIFICATIONS SUMMARY
Tank:
- Model: Highland Tank UL-2085 Fireguard
- Serial: 30144
- Capacity: 8,000 Gallons
- Dimensions: 8'6" diameter x 21'11" long
- Type: Double-wall thermally insulated
- Fire Rating: 2-hour pool fire protection
- Certification: UL-2085, STI, NFPA compliant
Construction:
- Design: Protected secondary containment
- Material: Steel double-wall
- Insulation: Thermal fire protection
- Platform: Galvanized steel with railings
- Ladder: Fixed with safety features
- Finish: Protective white/gray coating
Physical:
- Configuration: Horizontal cylindrical
- Mounting: Concrete pad (stationary)
- Weight: 8,000-12,000 lbs (estimated empty)
- Installation: Aboveground only
- Origin: USA (Manheim, PA)
ADDITIONAL INFORMATION
- Condition: Used - Operating Facility Removal
- Manufacturer: Highland Tank & Manufacturing Company
- Location: Manheim, Pennsylvania USA
- Model Designation: MH18217
- Serial Number: 30144
- UL File Number: 230782-002
- Capacity: 8,000 Gallons
- Dimensions: 8'6" diameter x 21'11" long (approximate)
- Configuration: Horizontal cylindrical double-wall
- Type: UL-2085 Fireguard Protected Secondary Containment
- Fire Rating: 2-Hour Pool Fire Protection
- Construction: Thermally Insulated Double-Wall Steel
- Certification: UL Listed, Steel Tank Institute, NFPA Compliant
- Installation: Stationary aboveground only
- Suitable For: Diesel, gasoline, heating oil, flammable liquids
- Platform: Included with safety railings and ladder
- Estimated Weight: 8,000-12,000 lbs empty
Location: Ohio
