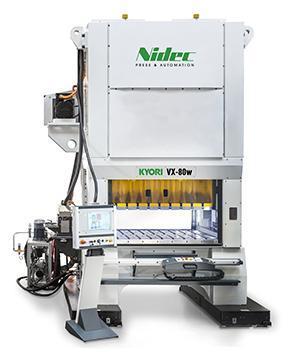

80 Ton, Kyori #VX-80W, straight side double crank, 2.9" stroke, 14.9" Shut Height, 3.15" adj., 650 SPM, 47.2" x 9.8" bed, air clutch, 2024, new

SPM 650

Tonnage 80 metric-tons

Stroke 75 millimeters

Shut Height 380 millimeters

Vari Speed (Yes/No) yes

Bed W 900 millimeters

Bed L 1500 millimeters

Crank (Single/Double) double

Air Clutch (Yes/No) yes

Feed VAMCO SR150 FEED includes Siemens Control

SPECIFICATIONS

Model Number........................................................... VX-80W

Force × Distance off Bottom..................................... 800 kN (88 US Ton)

Drive Arrangement.................................................... Flywheel w/ Dynamic Balancer

Drive Location........................................................... Left Hand Side

Approximate Press Weight........................................ 27,000 kg (59,525 lbs)

Shutheight Indicator Readout.................................... Metric

Shop Air Pressure, Minimum.................................... 5.9 bar (86 PSI)

Slide Specifications

Stroke Length, Speed Range..................................... 7 distinct increments

25 mm (0.98 in) @ 650 SPM

30 mm (1.18 in) @ 550 SPM

35 mm (1.38 in) @ 470 SPM

40 mm (1.57 in) @ 400 SPM

50 mm (1.96 in) @ 330 SPM

60 mm (2.36 in) @ 270 SPM

75 mm (2.95 in) @ 150 SPM

Shutheight, Maximum (SDAU)................................ 380 mm (14.96 in) on Bolster

Shutheight Adjustment.............................................. 80 mm (3.15 in)

Electric Slide Adjustment Device............................. Servo Motor

Area of Slide.............................................................. 1380 x 580 mm (54.33 x 22.83 in)

Slide Machining......................................................... Standard T-Slots

Maximum Recommended Upper Die Weight........... 550 kg (1212 lb.) @ Stroke 25-65mm (0.98-2.56 in)

450 kg (992 lb.) @ Stroke 66-75mm (2.60-2.95 in)

Bolster Specifications

Bolster Plate Material................................................ FC300 Steel

Area of Bolster........................................................... 1500 x 900 mm (59.05 x 35.43 in)

Opening in Bolster..................................................... 1160 x 210 mm (45.66 x 8.26 in)

Bolster Plate Thickness.............................................. 100 mm (3.94 in)

Bolster Plate Machining............................................. Standard T-slots

Press Frame Specifications

Floor to Top of Bed................................................... 960 mm (37.8 in)

Upright Opening, F-B................................................ 380 mm (14.9 in)

Opening in Bed, R-L x F-B....................................... 1200 x 250 mm (47.2 x 9.8 in)

Approx. Overall Area (Length x Width)................... 2850 x 1825 mm (112 x 73 in)

Approx. Overall Height from Floor........................... 4070 mm (160 in)
