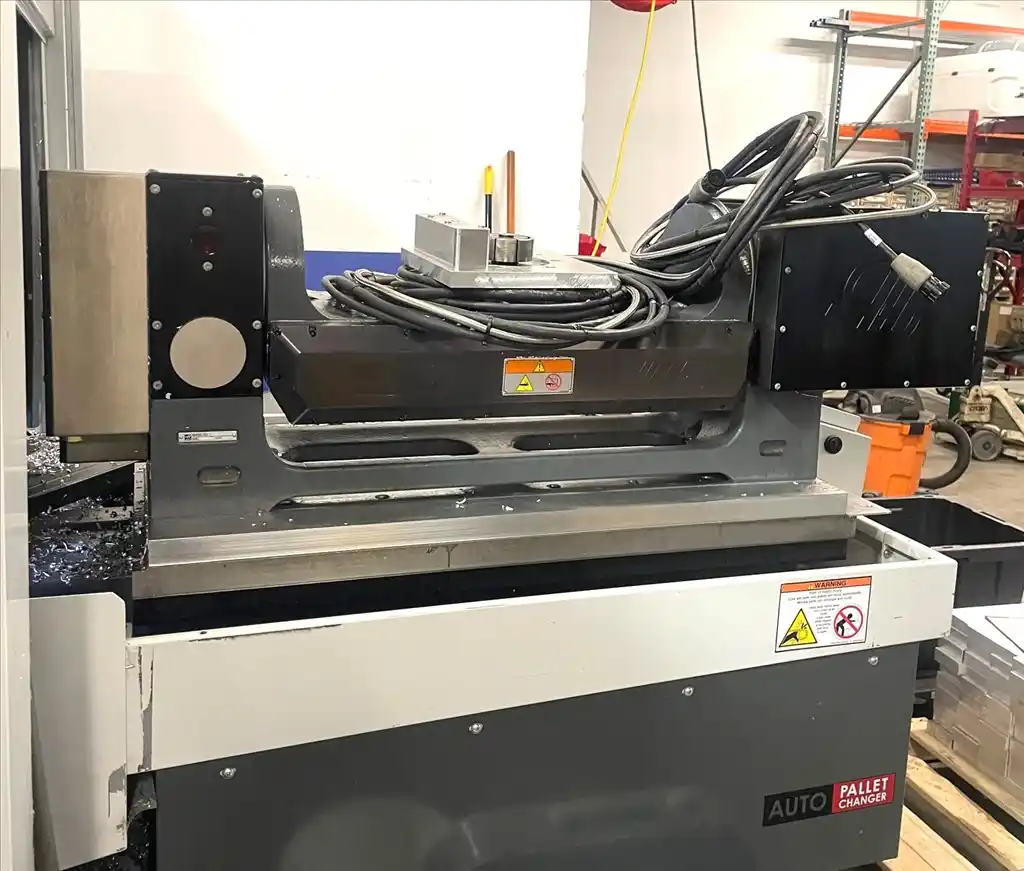

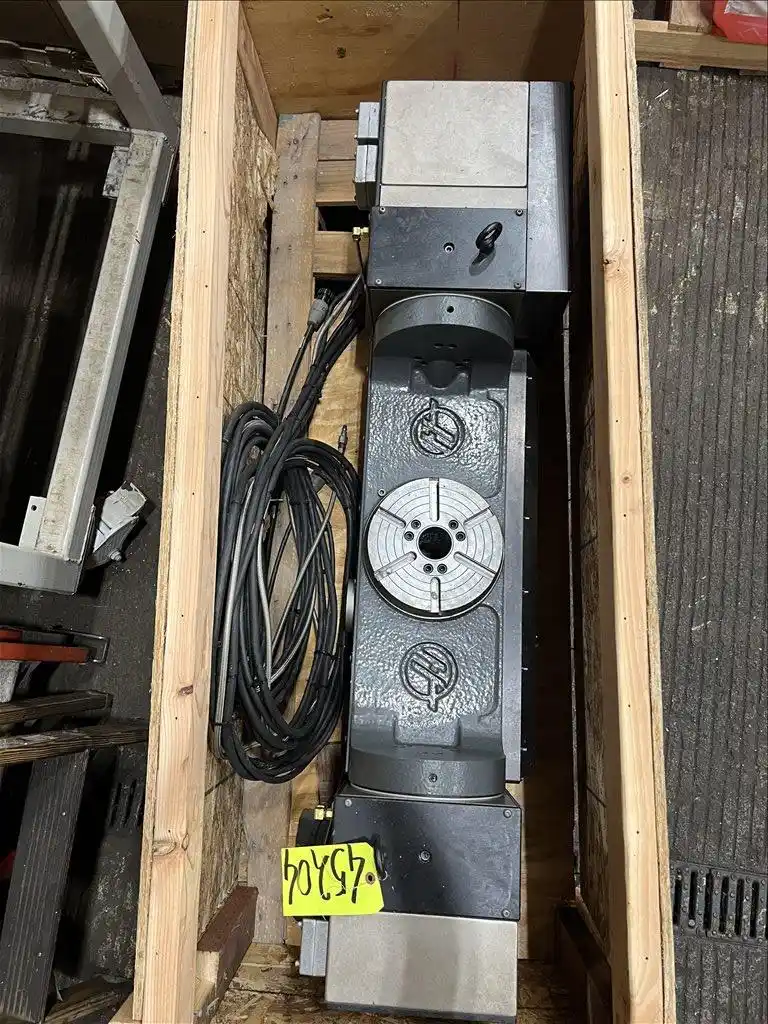

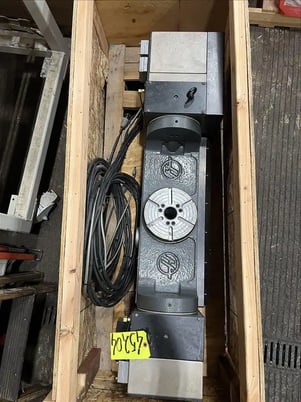

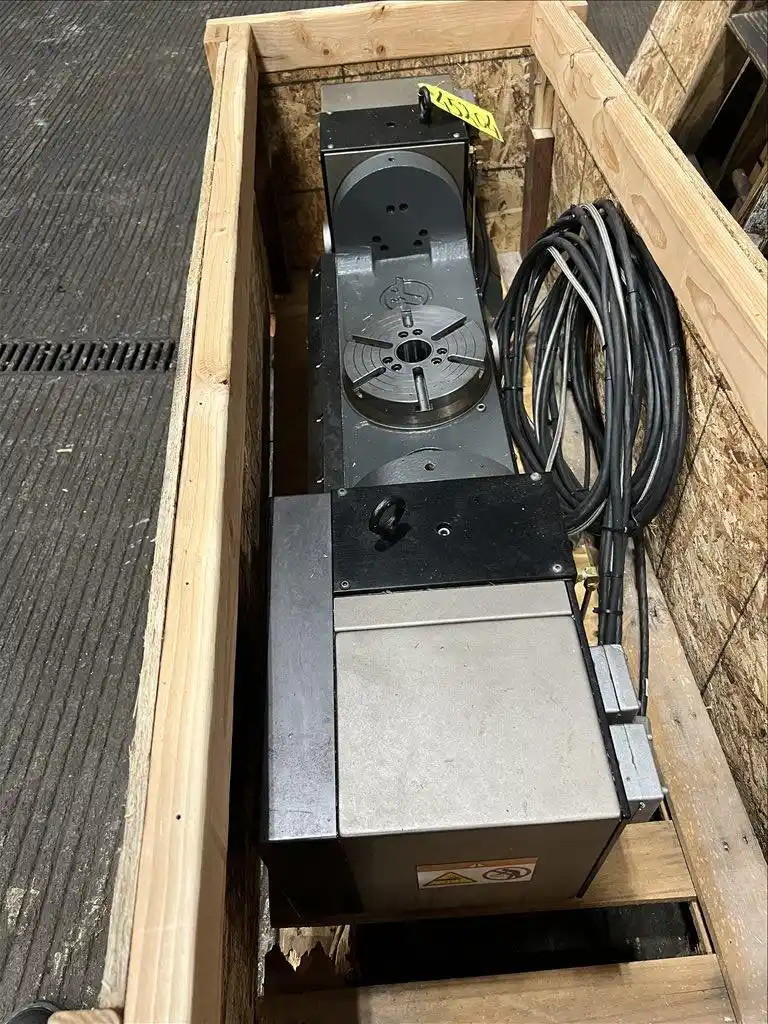

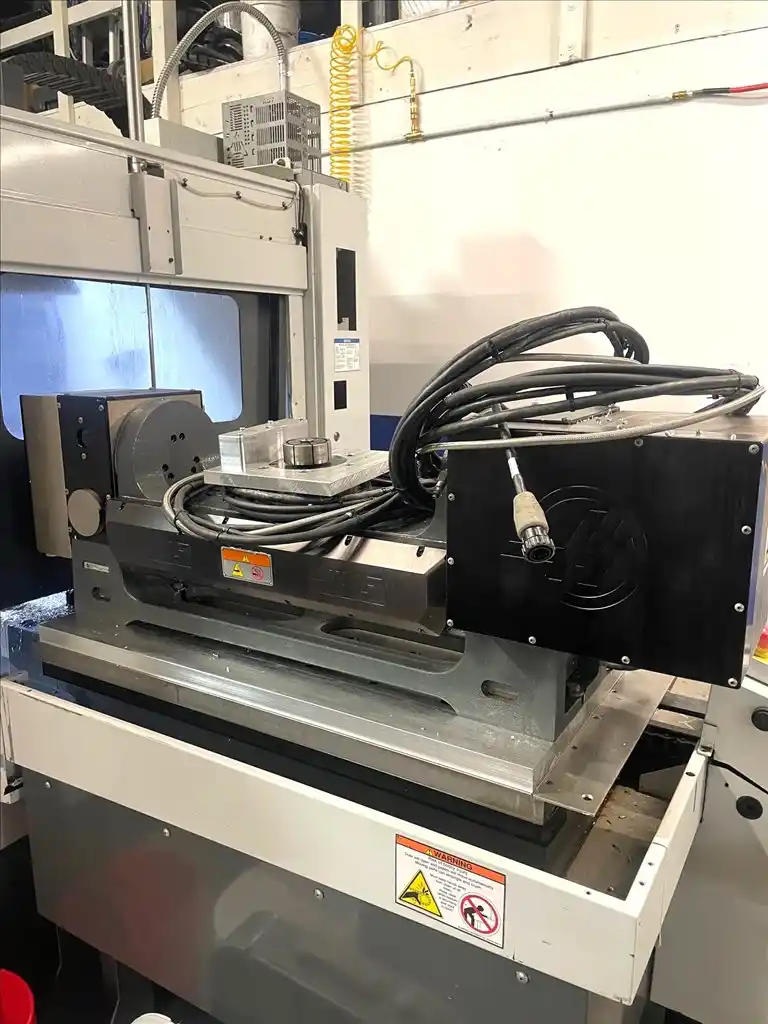

8.3" Haas #TR-210, 5-Axis rotary trunnion table, 8.3"platter diameter, 23.5"max part swing, 2019, S45204

PLATTER
PLATTER



Platter Diameter:
Platter Diameter:
8.3"
210.82mm

Max Weight on Platter:
Max Weight on Platter:
200 lbs
90.70 kg

Part Swing Max:
Part Swing Max:
23.5"
596.90mm

Number of Std T-Slots:
Number of Std T-Slots:
6 @ 60
6 @ 60








SPINDLE - A (TILT)
SPINDLE - A (TILT)



Max Speed:
Max Speed:
60/sec
60/sec

Max Torque:
Max Torque:
300 ft-lb
406.75 nm

Backlash:
Backlash:
30 arc-sec
30 arc-sec

Gear Ratio:
Gear Ratio:
90:1
90:1

Timing:
Timing:
2:1
2:1

Brake Torque @ 100 PSI:
Brake Torque @ 100 PSI:
400 ft-lb
542.33 nm








SPINDLE - B (ROTARY)
SPINDLE - B (ROTARY)



Max Speed:
Max Speed:
60/sec
60/sec

Max Torque:
Max Torque:
210 ft-lb
284.72 nm

Runout Max:
Runout Max:
0.0005"
0.01mm

Backlash:
Backlash:
30 arc-sec
30 arc-sec

Gear Ratio:
Gear Ratio:
90:1
90:1

Timing:
Timing:
2:1
2:1

Brake Torque @ 100 PSI:
Brake Torque @ 100 PSI:
200 ft-lb
271.16 nm








INDEXING - A (TILT)
INDEXING - A (TILT)



Max Rotation/Step:
Max Rotation/Step:
+/- 120
+/- 120

Resolution:
Resolution:
0.001
0.001

Accuracy:
Accuracy:
+/- 15 arc-sec
+/- 15 arc-sec

Repeatability:
Repeatability:
10 arc-sec
10 arc-sec

Equipped With:


Dimensions & Weight:
Call Perfection Global for Dims, 0 Lbs
Dimensions & Weight:
0 Lbs, 0 Kg

F.O.B. — Elk Grove Village, IL
