72" x .06" - .500" x 80000 lb., wean danielli, 200 & 400 FPM

72" x .060" - .500" carbon steel Thickness x 40 Ton Coils
Speed of line 200 and 400 FPM
Coil Weight: 20,000# - 80,000#
Coil OD: 42" - 80"
Coil ID: 20" with cone inserts, 24" - 36" mandrel
Coil ID exit 24"
Consisting of:
Coil Transfer Car
Double End Expanding Mandrel Uncoiler
2-75 HP DC Drag generators
peeler pinch roll combination
5 roll flattener
200 HP DC

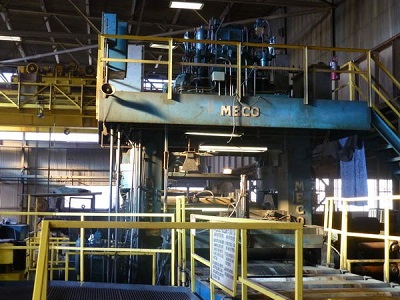

2 HI MECO Temper Mill included with Shape Correction/roll bending
80" x 38" diameter work rolls
Hydraulic screw downs
2 400 HP DC Motors
Recoiler and 400 HP DC drive for temper pass only processing
EXIT SECTION
Edge Trimmer, 125 HP DC
In Line Slitter Head, 150 HP DC
3 roll flex roll processor

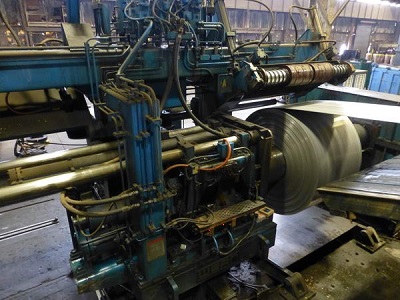

Turret Recoiler with full hydraulic drum
250 HP DC motor
floor standing exit coil car
4 arm exit turnstile
OTHER COMPONENTS
80" Peabody Electrostatic Oiler
2 sets of complete chocks and rolls for the temper mill
approximately 3,000 square feet of dedicated spare parts
(Detailed list to be provided)
General Electric controls and drives on the pickling portion
