7" x 11" KMT #H-310-M, Mitering Band Saw, Manual, Swivel Head, 109" x 1" x 0.035" Blade, 60-360 FPM, 2 HP, 220/230 V, new

Description

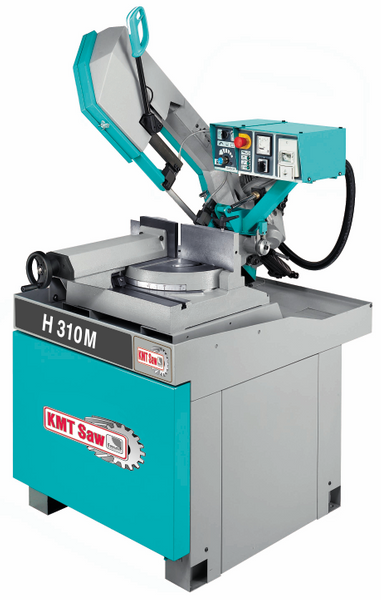

Kalamazoo Machine Tool 10″ Manual Swivel Head Mitering Band Saw, H 310 M

Inventory # 6195

Model: H 310 M

Made in Italy

Description:

The H 310 M is a gravity feed auto-cut band saw capable of mitering 45° to the left and 60° to the right. The cycle start button is located in the trigger switch for safety. The blade will turn off at the end of the cut. The solenoid will hold the saw frame where lifted. The auto-cut will ensure that each cut is fed exactly at the same rate, eliminating the need to open and close the valve each cut

Specifications:

Capacity:

@ 0°:

Round: 10″

Square: 9 1/2″

Rectangle: 7″ x 11″

@ 45° Right:

Round: 8 1/4″

Square: 7 1/2″

Rectangle: 6 1/4″ x 7 3/4″

@ 60° Right:

Round: 5 1/4″

Square: 4 1/4″

Rectangle: 3 3/4″ x 5″

@ 45° Left:

Round: 17″

Square: 6 1/4″

Rectangle: 3 3/4″ x 7″

Vise Opening: 12″

Blade Size: 109″ x 1″ x 0.035″

Blade Speed: 60 – 360 FPM

Motor: 2 HP / 220v / 1ph OR 2 HP / 230v / 3ph (Please Specify Desired Voltage at Time of Order)

Standard Equipment:

One Bi-Metal Blade

Low Voltage Control

Totally Enclosed Worm Gear Transmission

Full Coolant System

Full Blade Guarding

Operators Manual Parts List/Schematics

Tool Kit

Mechanical Specifications:

Dimensions: 66″ x 38″ x 37″ H (Workheight)

Weight: approx. 850 lbs.

Contact us for special pricing and availability

FOB Factory

Optional Equipment:

460v / 3ph Motor
