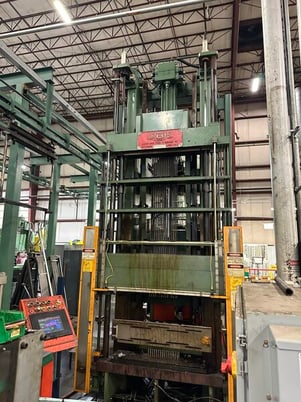

62 Ton, Burr Oak #RCSE, vertical expander, .866 between rows staggered, 5 rows, 5-1/2" rod diameter, 1999

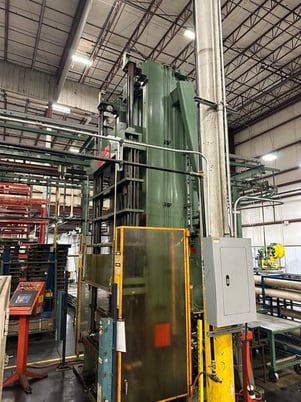

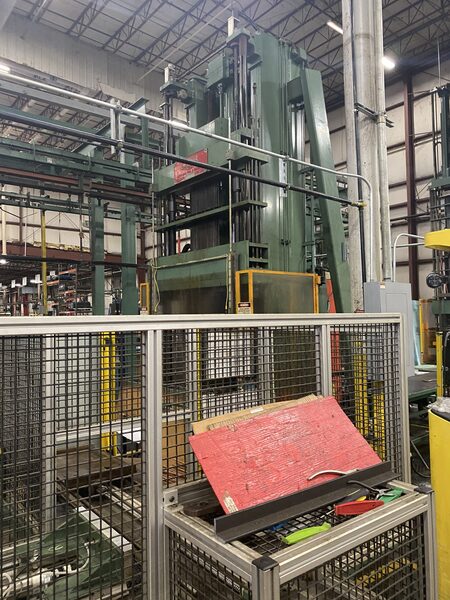

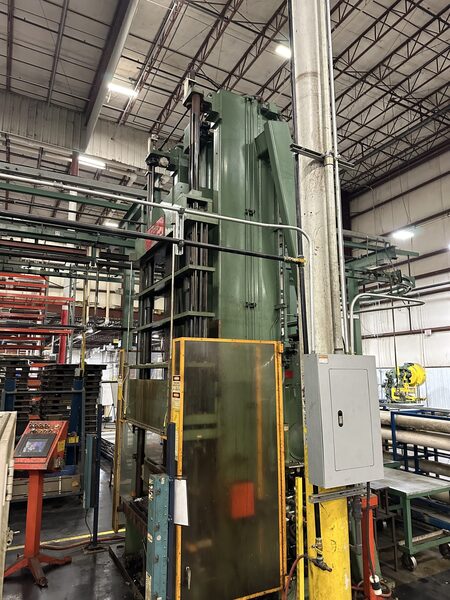

Burr Oak Vertical Expander
Model: RCSE
Year: 1999

Specifications:
Pattern #1: 3/8 – 1.000 Between Holes X .866 Between Rows, Staggered
5 Rows, (39/38) Holes Per Row, (193) Total
Tubing Specifications: 3/8 O.D. X .019 Grooved Wall Copper
Minimum Coil Height: 12″
Maximum Coil Height: 48″
Maximum Fin Length: 38″
Ram Cylinder Size: 8″ Bore X 56″ Stroke X 5 1/2 ” Dia. Rod
Ram Cylinder Speed: Standard (19-22 Fpm)
Operating Pressure: 2500 Psi
System Force: 62 Tons
Hydraulic Reservoir: 120 Gallon Tank Mounted To Back Side Of Column
Air Requirements: 8 Cfm @ 80 Psi
Pre-Size Cylinder Size: 3 1/4″ Bore X 4″ Stroke X 1 3/8″ Dia. Rod
Coil Enclosures: 3-Position Rotary W/ Intermediate Air Latch
Table Type: 3-Position Rotary Table (Ferguson Drive)

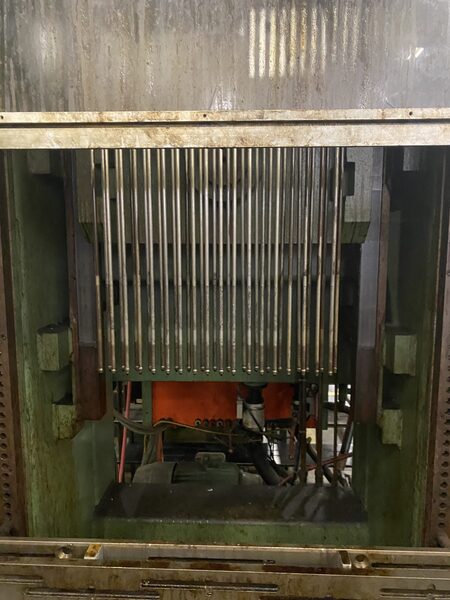

Expander Rod Type: Ring-Lok
Final Expander Pusher: Ring-Lok
Machine Weight: 23,850 Lbs. (Dry Weight, Rotary Table Not Attached)

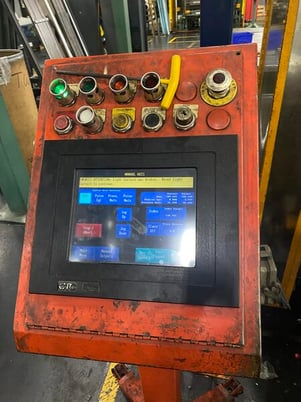

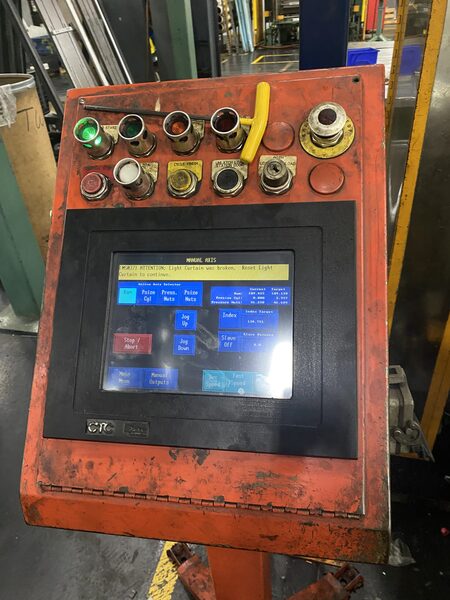

Options: Single, Vertical, Compact, Auto Electric Controls,
Differential Hydraulic Ram Control, Electric Ram Decel,
Quick Change Bullet Coupling Feature, Quick Change
Receivers, Rod Shortout System, 3-Position Rotary Table,
Hard Coating For Coil Enclosures, Automatic Coil Height
Adjustment
Final Expander Tip: Floating Piloted

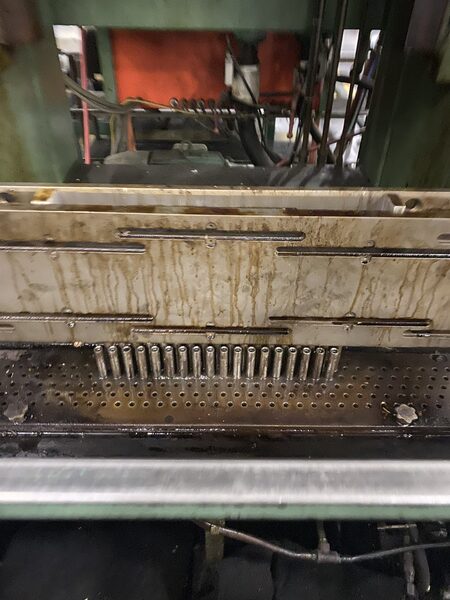

Bullet Type: Quick Change Tapered Donut (Carbide)
