60000 lb. Perfecto #RS60-7272 / 38-72-7, feed line, 72" x.125" stock, 72" OD, 20"-24" ID, (7) 3.8" diameter rolls, 3-leaf mandrel w/ hydraulic expansion 2011

Coil weight capacity: 60000 pounds

Stock Width Capacity 72 inches

Max Stock Thickness Capacity At Full Width .125 inches

Minimum expansion range: 20 inches

Maximum expansion range: 24 inches

Coil O.D. capacity: 72 inches

Stock thickness capacity: .125" x 72" Wide
Stock thickness capacity: .375" x 09" Wide

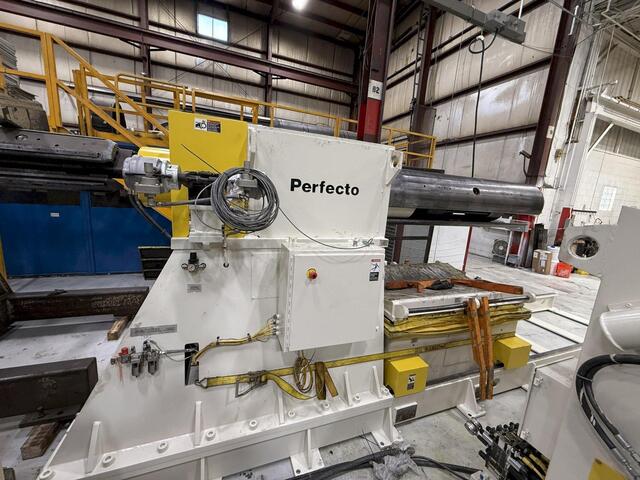

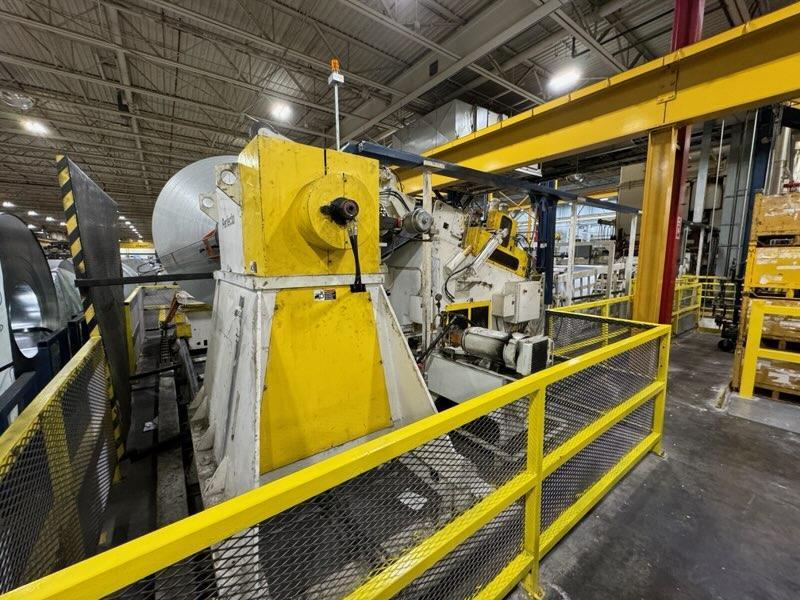

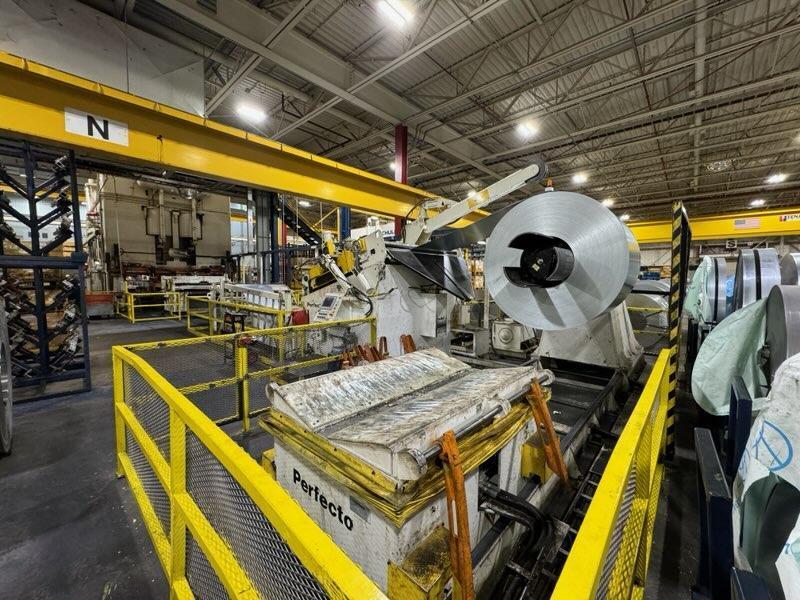

Perfecto Coil Reel Model No. RS60-7272
Three leaf mandrel with hydraulic expansion
Air brake for adjustable tensioning
Jog drive for threading
Traveling coil load car
Powered lift and travel

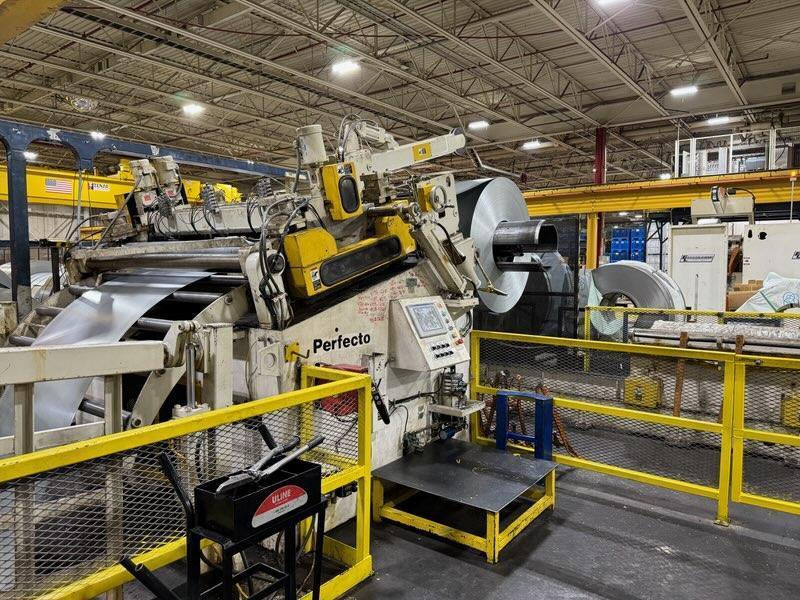

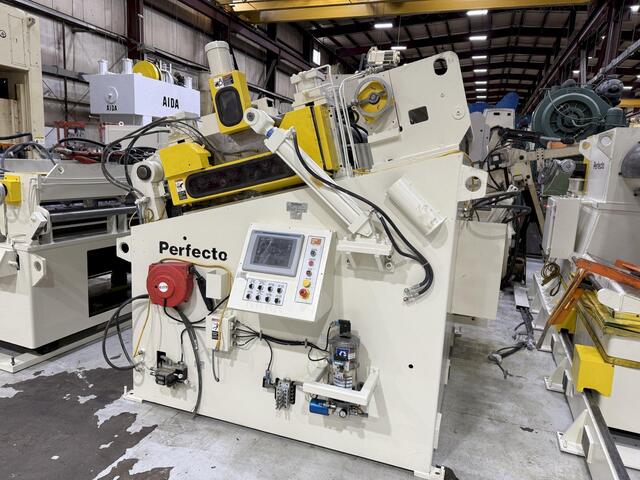

Perfecto Coil Straightener Model No. 38-72-7
Seven straightening rolls x 3.8 diameter
Motorized straightening roll adjustments
Back up support rollers on upper and lower straightening rolls
Entry and exit pinch rolls
Hi lift head for access to straightener and roll cleaning
Coil hold down and peeler station
Automatic lubrication system
Operator's controls
Loop control
Perfecto Servo Feed Model No 700-72
Piloting upper feed roll
Entry cascade loop support rollers
Anti Back Up Rolls
Cabinet base mounted
Motorized pass line adjustment
AC Servo controls
Perfecto hydraulic shear
